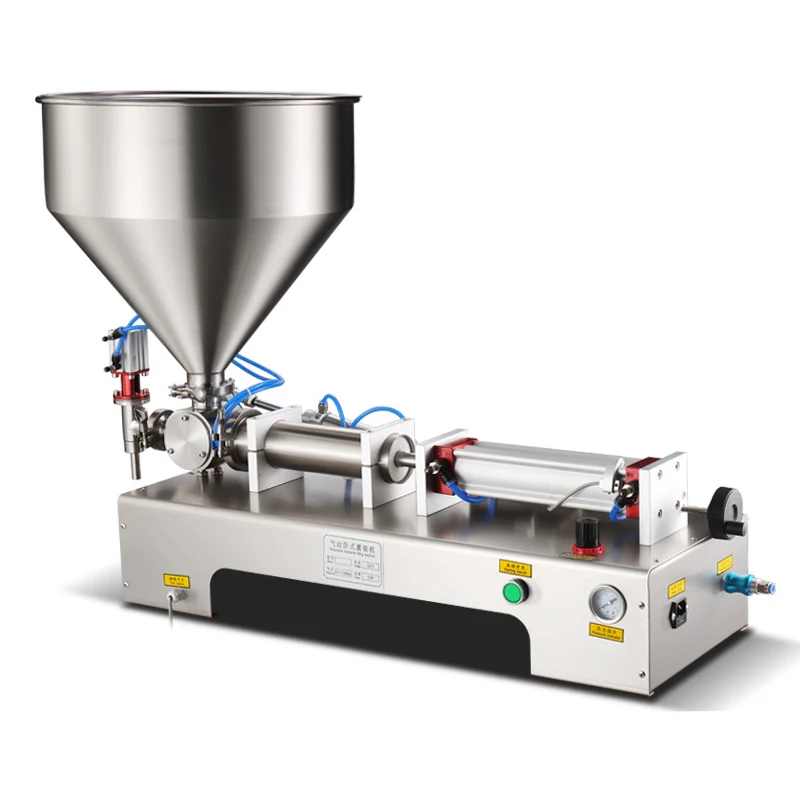

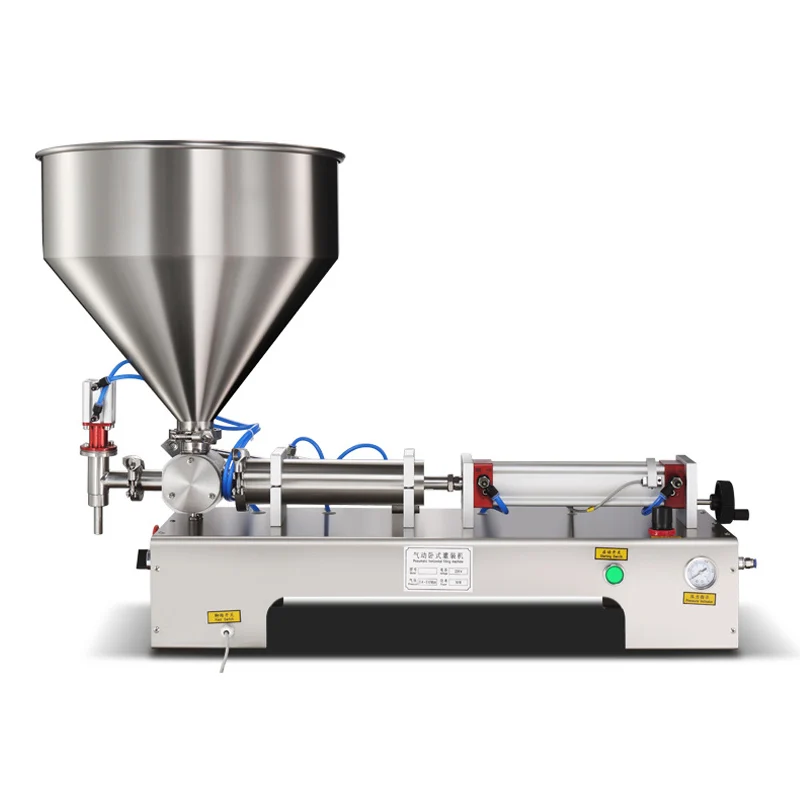

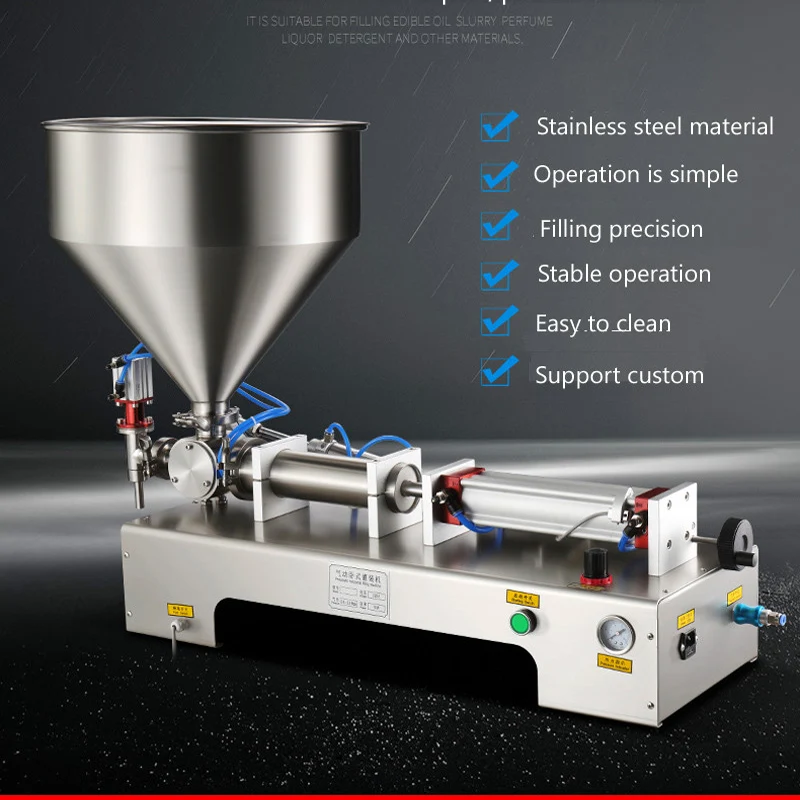

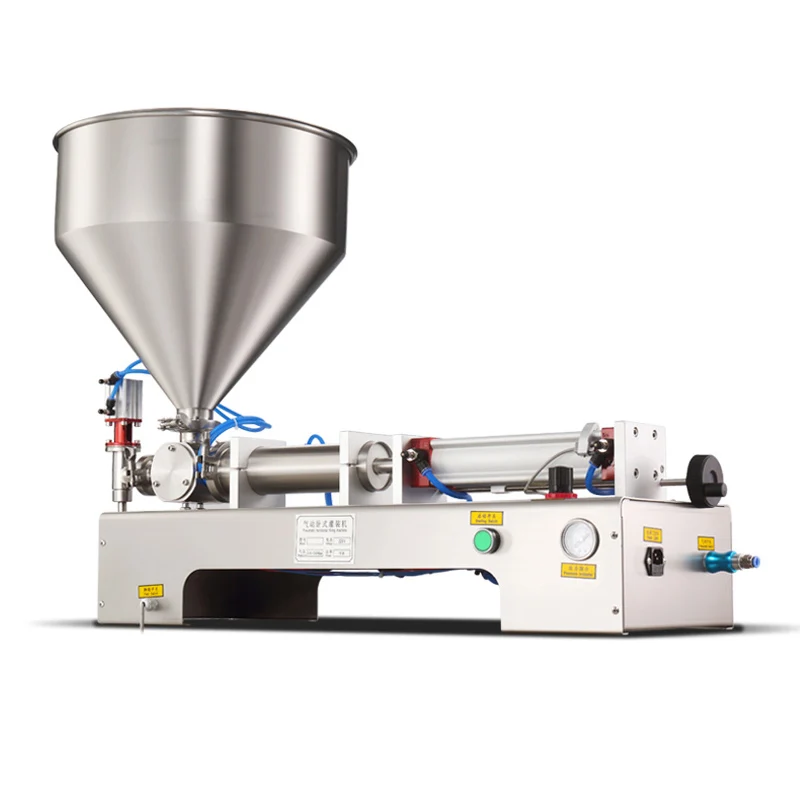

110V 220V Filler Shampoo Lotion Cream Honey Juice Sauce Jam Gel Paste Filling Machine Pneumatic Piston |

110V 220V Filler Shampoo Lotion Cream Honey Juice Sauce Jam Gel Paste Filling Machine Pneumatic Piston |

Feature

The series filling machine reasonable structure, compact models, reliable, accurate, easy to operate, the power section pneumatic structure, material contact parts are 316L stainless steel materials, in line with GMP certification requirements. According to user needs in a range of models adjusted filling volume and filling speed, high filling accuracy. Filling head adopts anti-drip and lifting filling device. The filling machine main power source for the gas, customers must bring their own air compressor equipment.

Product Description

1, the machine uses compressed air to control the drive, it is particularly suitable for use in explosion-proof requirements and humid environment, with a high degree of safety 2, the use of pneumatic control, and the use of mechanical positioning, so high filling accuracy, precision can be controlled at 1% 3, using the screw, counter, filling volume adjustment so precise, and can be directly reflected in digital form 4. In case of need the emergency stop, just press the emergency stop switch, automatic piston back to the initial position, filling stop 6, equipment failure rate is very low The series of quantitative liquid filling machine is equipped with a special filling valve tee, under reciprocating piston, to the effect of the filling, the piston tic, inlet valve open feed, discharge valve is closed; piston driven feed valve is closed, the valve open for filling

Technical parameters

Power: 110V/220V 50-60Hz Power:10W Filling accuracy: ≤ ± 0.5% Filling speed: 5-35 bottles / min Equipped with air pressure: 0.4-0.9MPa With gas consumption: ≥0.1m3 / min Filling range:5-100ml/10-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml

Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor: Pressure: 0.4-0.9MPa; Power: 1100W; Gas Capacity: >40L

Machine filling nozzle diameter range of 4-12mm default delivery diameter 8mm Can be customized 12-22mm diameter, need to customize please contact us

Warranty and Guarantee :

The machine with 2 years warranty, if there is something wrong with it, please contact us without hesitation. (meng)

Other Policies :

(1) We are not responsible for any custom duty or import tax.and not responsible for custom clearance thing on any country. (2) Please contact us if you are not satisfied with the item after receive it, don't leave the negative feedback or neutral feedback without any communication. We can resolve all problems you meet. (3) All emails will be answered within 24 hours, if you interested in our machine, please contact us directly, we could give you the best machine within reasonable price. (4) All machine size and weight measured by our hands,maybe have some deviation,please don't minds (5)​Please ensure that the machine packaging condition is good before you sign the goods (6)If you can not choose your country and make payment just contact me.
