LED-дисплей видеопроцессор LVP613S SDI стеновой контроллер поддерживает карту отправки Linsn Colorlight полноцветный экран пиксель p3.91.

LED-дисплей видеопроцессор LVP613S SDI стеновой контроллер поддерживает карту отправки Linsn Colorlight полноцветный экран пиксель p3.91.

Brand NameAmoonskyModel NumberAMS-LVP613SOriginMainland ChinaCertificationCECertificationFCCCertificationRoHSTypeSignal ProcessingMeasurement unitpiece/piecesEach pack1Input signal3AV 1DVI 1VGA 1HDMI 1SDIOutput signal2DVI 1VGAMax support resolution2304*1152@HzWarranty2 yearsMTBF30000 HoursPower100~240VAC,50~60HzMachine size484mm*335mm*44mmCertificateCE FCC ROHSProduct namesdi wall controller for full color p3.91 pixel led screen

Unavailable in

Description

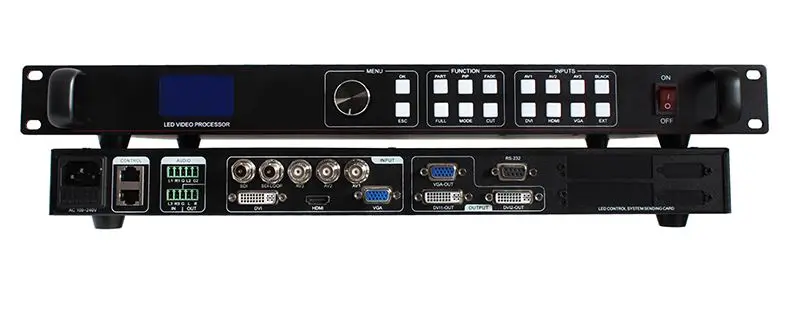

led display video processor lvp613s sdi wall controller support linsn colorlight sending card full color p3.91 pixel led screen

Key Features ► Seamlessly switch between any channel ►6-channel digital-analog video input （3 AV、1 DVI、1 HDMI、1 VGA、1SDI） ► Support oversized splice 10x10 ► Maximum output resolution 2304x1152@60Hz,2560x816@60Hz ► Pre-switching technology ► Signal detection function ► PIP function、P0P function ► Keying ► Mode save and recall ► A black screen and freeze key ► Audio input and output

Function

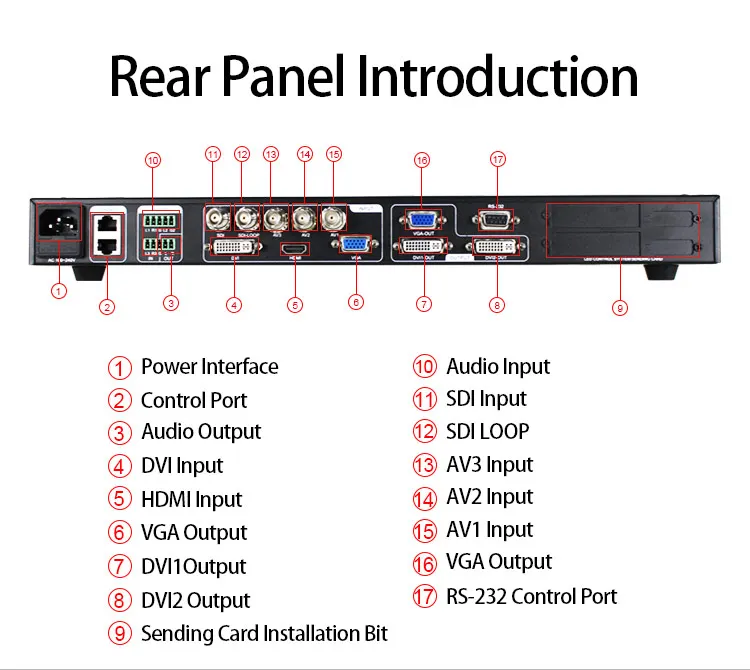

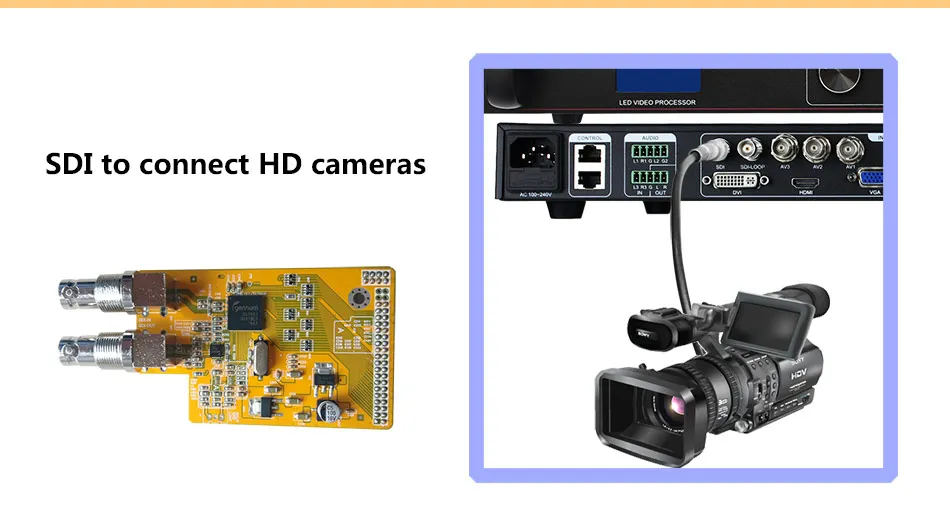

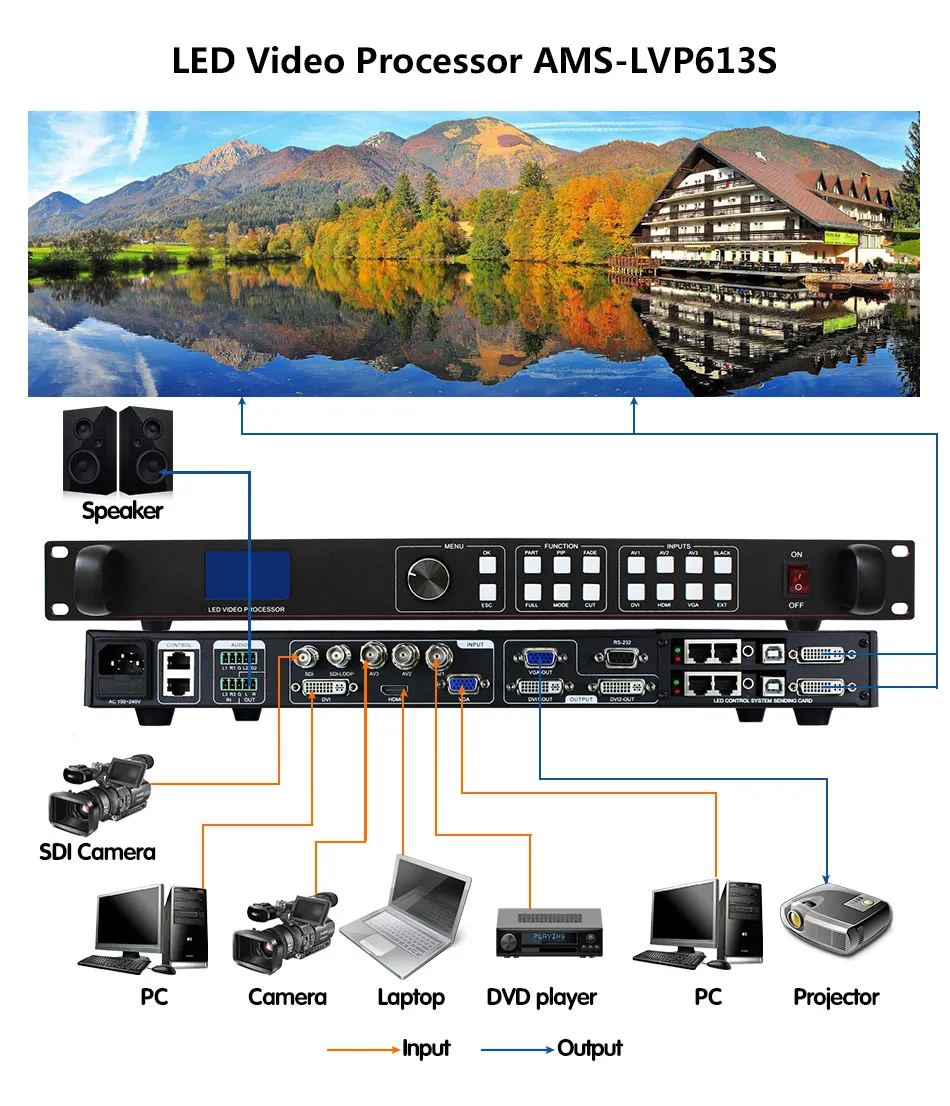

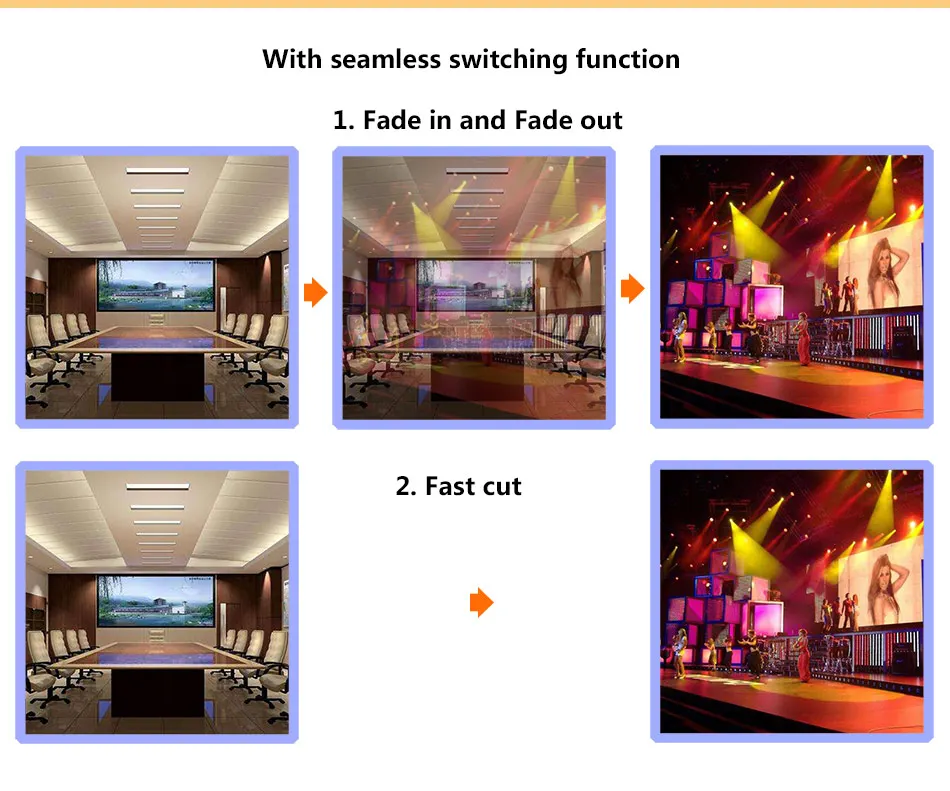

More video input - LED Video Processor 6-channel video input, 3 AV, 1 VGA, 1DVI, 1 HDMI,1 SDI ,1 USB , Basically covers the civil and industrial uses. All video input switching and enables fast cut and fade transitions. Practical video output interfaces - LED Video Processor has three video outputs. 2 video output using two DVI outputs, including a VGA output and DVI outputs share one output connector. After these three videos are programmed to send output to the LED card or monitor. Seamlessly switch between any channel -LED Video Processor can also seamlessly switch between any channels switching, the time adjustable from 0 to 5.0 seconds. With a fade transition effect, switch the input channel, so that the screen can be switched smoothly to the second screen. Using fast switching, switching input channels; you can instantly switch the video output.

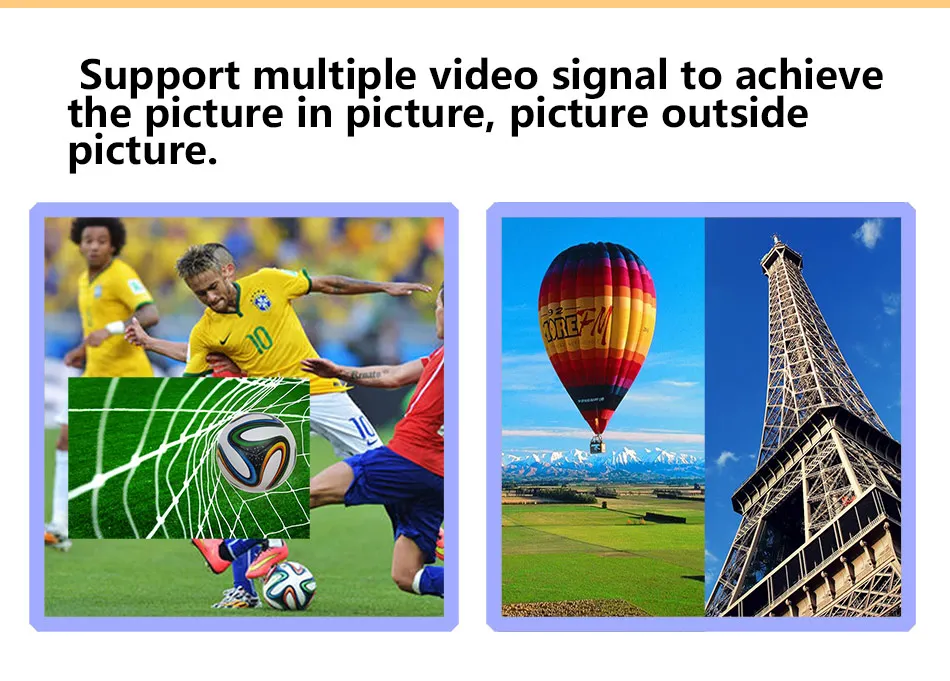

Support PIP &POP - PIP technology unaltered state in the original image, the other input of the same or different overlay images. LED Video Processor PIP function, not only can be adjusted overlay size, location, borders, etc. You can also use this feature to achieve Picture outside Picture (POP), dual-screen display

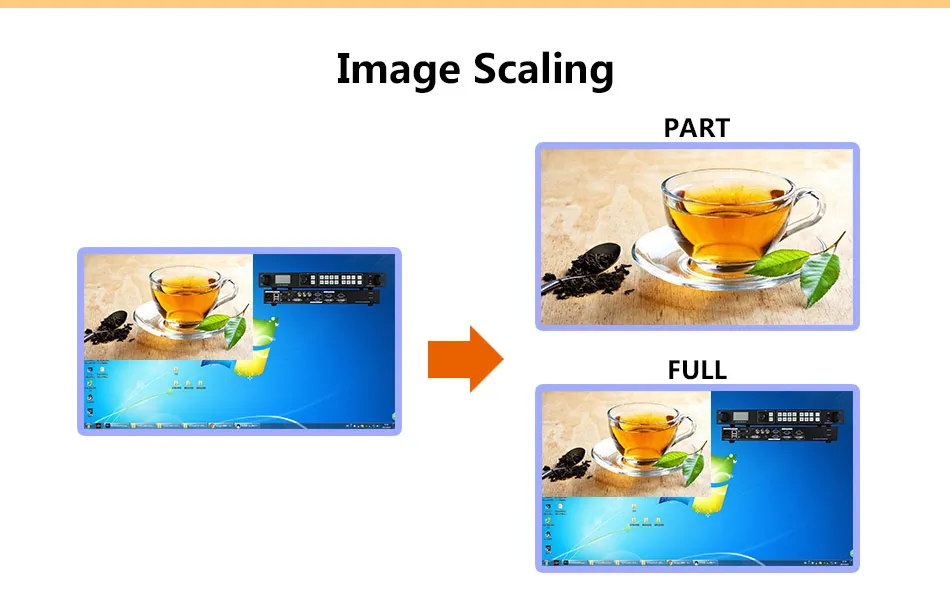

PART and FULL fast switching - LED Video Processor a simple and functional operation of the interception part of the screen and full-screen operation, any one input channel can be independently set different interception effect, and each channel is still able to seamlessly switch. Users can arbitrarily set the current channel interception of part of the screen size and position, and the other channels remain unchanged intercept method. When switching between channels most of its screen or full screen function follows

Details Compare

The 613 series has 4 models. LVP613 is the basic model, can be extended to USB/WIFI/SDI. this is lvp613 link https:/item/32846143740.html this is lvp613u link https:/item/1005001296338142.html this is lvp613w link https:/item/1005001302496642.html
