Характеристики
12 В постоянного тока реле беспроводной пульт дистанционного управления RF
История изменения цены
*Текущая стоимость 724,01 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 862.37 руб. | 905.48 руб. | 883.5 руб. |
| Aug-15-2025 | 854.37 руб. | 897.37 руб. | 875.5 руб. |
| Jul-15-2025 | 717.4 руб. | 753.70 руб. | 735 руб. |
| Jun-15-2025 | 840.49 руб. | 882.56 руб. | 861 руб. |
| May-15-2025 | 731.21 руб. | 768.1 руб. | 749.5 руб. |
| Apr-15-2025 | 825.74 руб. | 866.42 руб. | 845.5 руб. |
| Mar-15-2025 | 818.94 руб. | 859.60 руб. | 838.5 руб. |
| Feb-15-2025 | 811.93 руб. | 852.57 руб. | 831.5 руб. |
| Jan-15-2025 | 804.44 руб. | 844.97 руб. | 824 руб. |
Описание товара
Typical applications:
DC 12V Home lighting system
Remote control switch
Smart Home / Home Automation
Garage Door
Fluorescent lamp Illumination
Motorcycle Electromobile
Remote controlled gates
Security Monitoring
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360

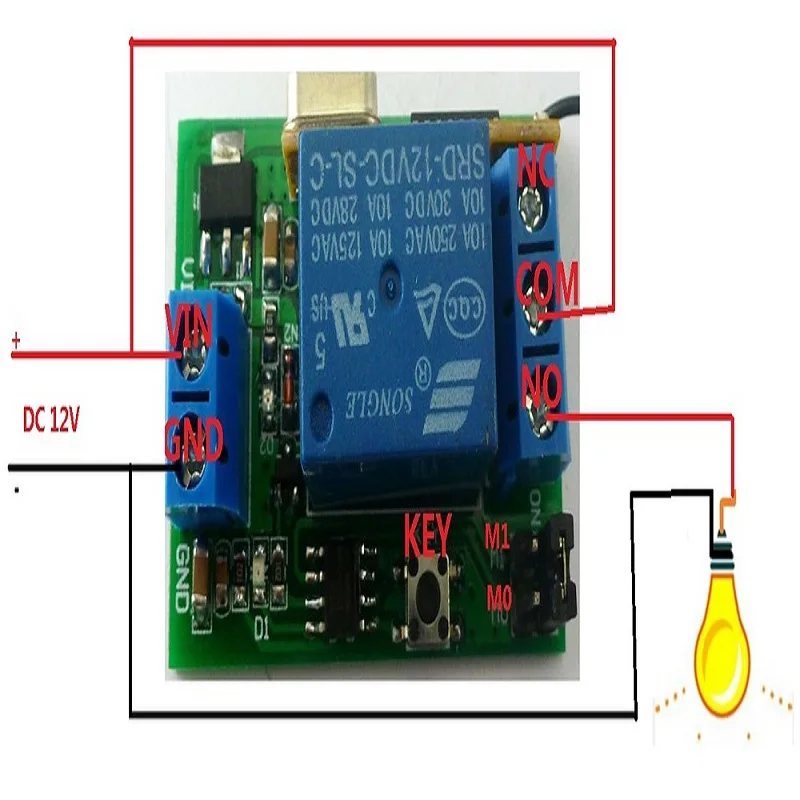

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lamp, fans, motors and other DC 12V Electrical equipment

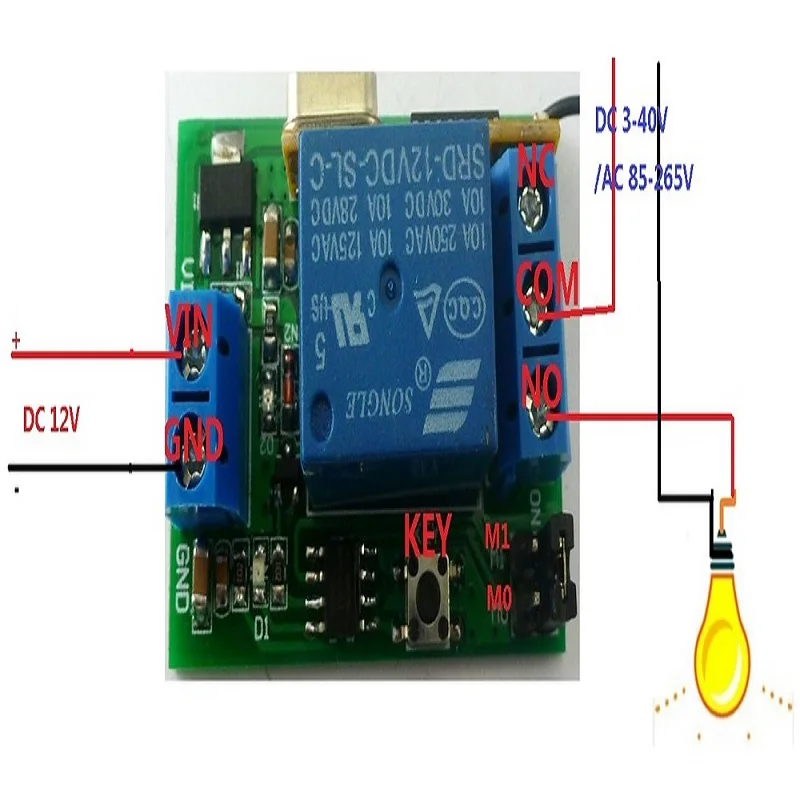

Wiring Diagram 2:
DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lamp, fans, motors and other DC AC equipment

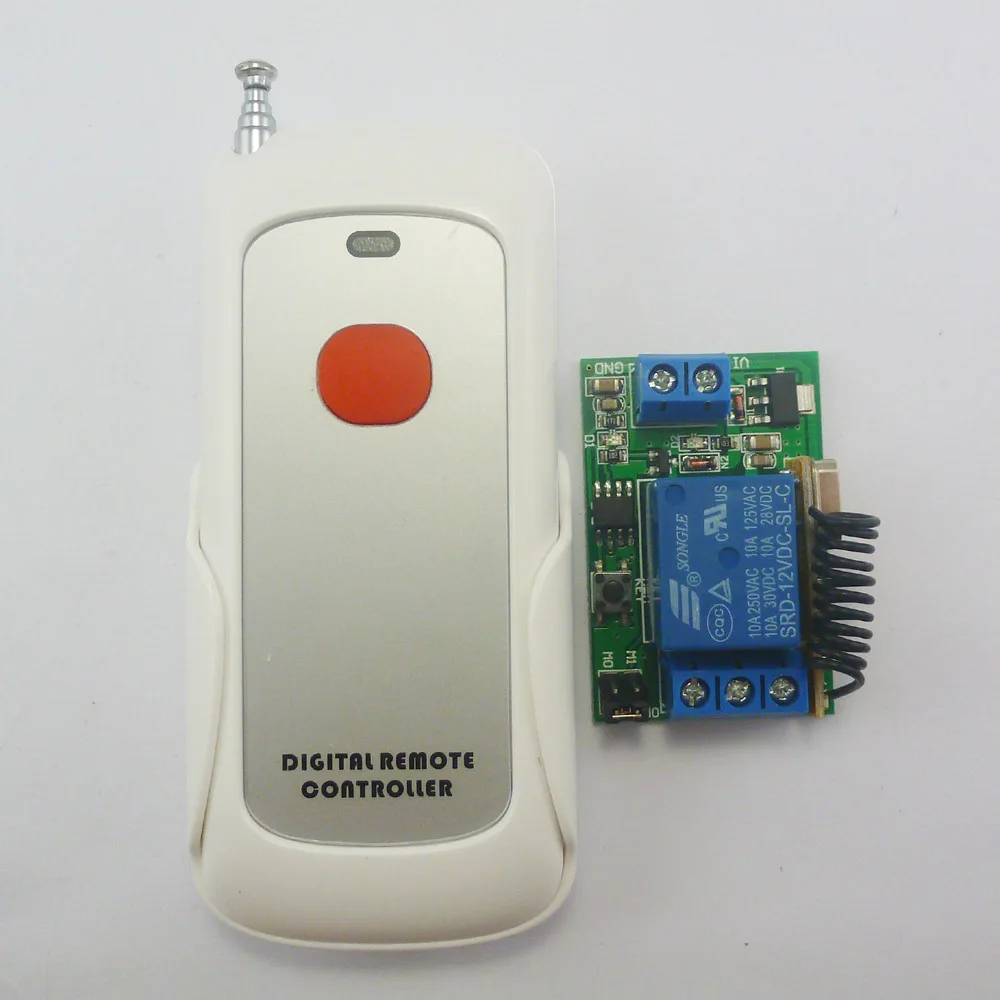

Packing list:
1 PCS 433M DC 12V one Channel Delay Relay 1 PCS 433M Large Power 1 Button PT2262 Remote Control (USE 12V 23A battery,Batteries not included)
receiver Features:
1 Operating voltage: DC 12V;
2 Operating Current: relays close, about 9MA; relay open,about 42MA;
3 Operating frequency: 433.92M; 315M version can be customized
4 Receiver sensitivity : -108dBm
5 Decode : learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 32 remote control
6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch),Delay; 1-5000 seconds adjustable delay time, minimum step 0.1 seconds
7 Size(Including housing)50*35*22mm
8 Weight(including housing) 30g
9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC,10A/12VDC
Work mode
NO : Relay normally open contact COM : Relay common contact NC : Relay normally closed contact Open : NO connection COM, NC disconnect COM Close : NO disconnect COM, NC connection COM Momentary : Press the Transmitter button , the receiver relay is Open, release button;the relay is Close; Toggle : Press transmitter button for 1 time , the receiver relay is Open, press button again, the relay is Close; Latched : Press transmitter button A, the receiver relay is Open Press transmitter button B, the receiver relay is Close. Delay : Press the Transmitter button, the receiver relay Open,After a set time delay, the receiver relay is Close; If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close Adapter remote control (learning remote control): Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes Clean code: press the key and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist) Step 1 (into the learning mode): Press the key (about 1 second), LED off; Step 2 (adapter button): Then press the utton on the remote control, LED flashes four times on, then learning the button value Note: Only the Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch) mode to a "clear code" and " learning " action In the "delay" mode can only set the delay time Delay setting: Step 1, the mode is set to "delay" mode (jumper cap on the M1 into two rows of pins) Step 2, press the key until the LED is off Step 3. Click the key again, LED flashes Step 4. Click the key again after a period of time, LED light LED blinking time is the delay time.

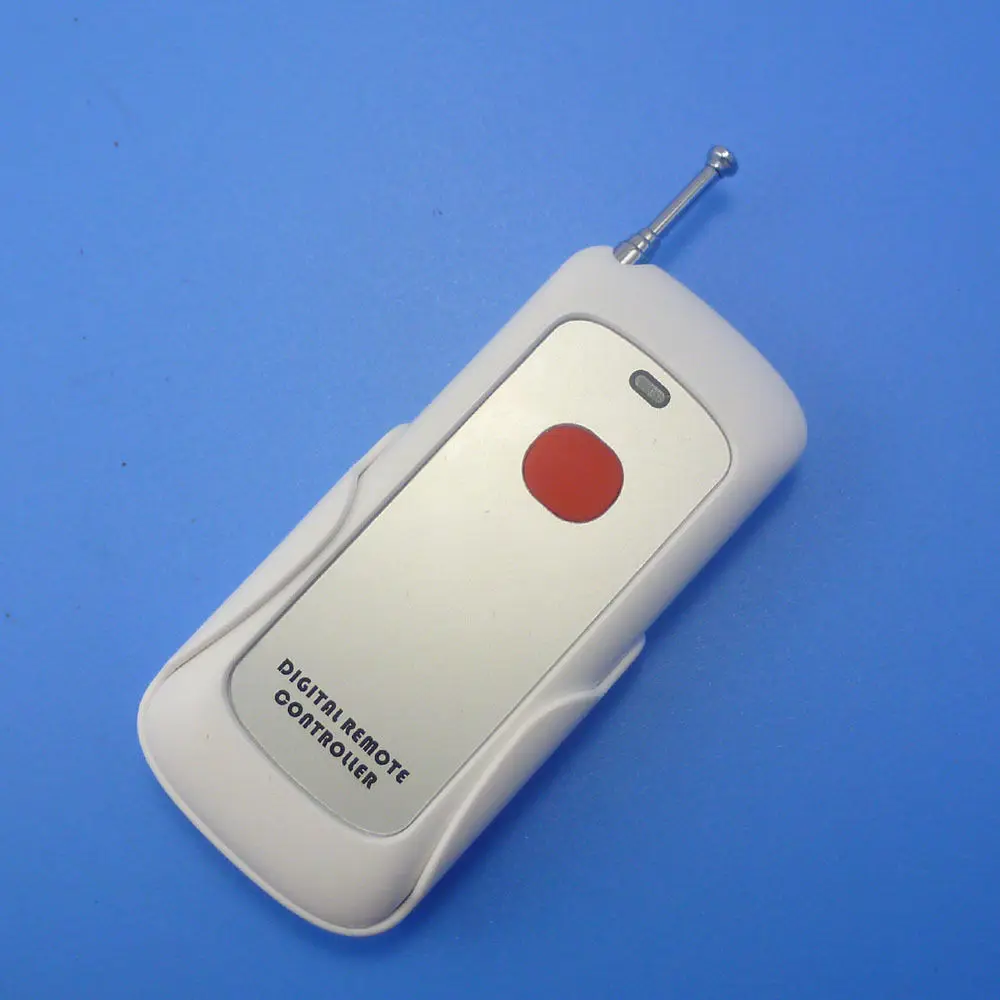

Transmitter :
Features / Specifications :
1. 1 buttons; 2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor; 3: Large power;Technical Data : Transmitter Module No.: TB419; Power supply : 12V 23A battery (not included ) , please buy battery from here : . Operating current: 28-33mA; Oscillation mode: SAW resonator; Modulation mode:ASK/OOK; Operating frequency:433.92MHZ ; Encoding format: SCT2260 fixed code (compatiable for PT2262 SC2262 PT2260 PT2264 , can work with PT2272-M4 ,PT2272-T4,PT2272-L4 ); RC Resistance : 4.7M; Transmit power : 200mW ;
