Характеристики
3D фрезерный станок с ЧПУ 4 оси 1325 для резьбы по дереву поворотной осью мебельных
История изменения цены
*Текущая стоимость 284633.4 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-16-2025 | 361484.93 руб. | 368714.79 руб. | 365099 руб. |
| Jul-16-2025 | 293172.74 руб. | 299035.11 руб. | 296103.5 руб. |
| Jun-16-2025 | 355791.83 руб. | 362907.49 руб. | 359349 руб. |
| May-16-2025 | 352945.80 руб. | 360004.25 руб. | 356474.5 руб. |
| Apr-16-2025 | 281787.83 руб. | 287423.59 руб. | 284605 руб. |
| Mar-16-2025 | 347252.35 руб. | 354197.58 руб. | 350724.5 руб. |
| Feb-16-2025 | 344406.40 руб. | 351294.93 руб. | 347850 руб. |
| Jan-16-2025 | 341560.93 руб. | 348391.38 руб. | 344975.5 руб. |
Описание товара

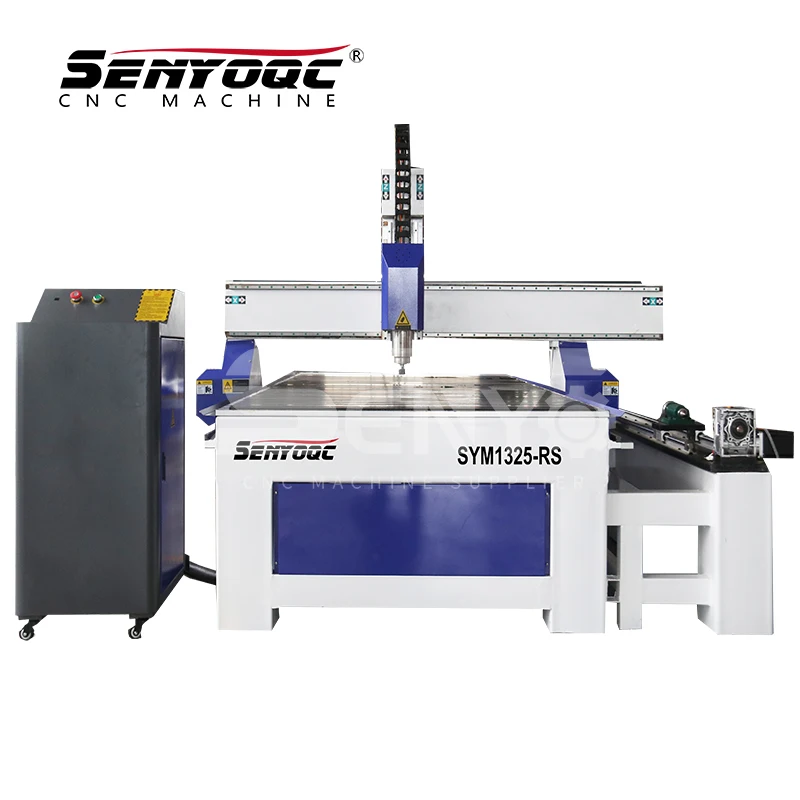

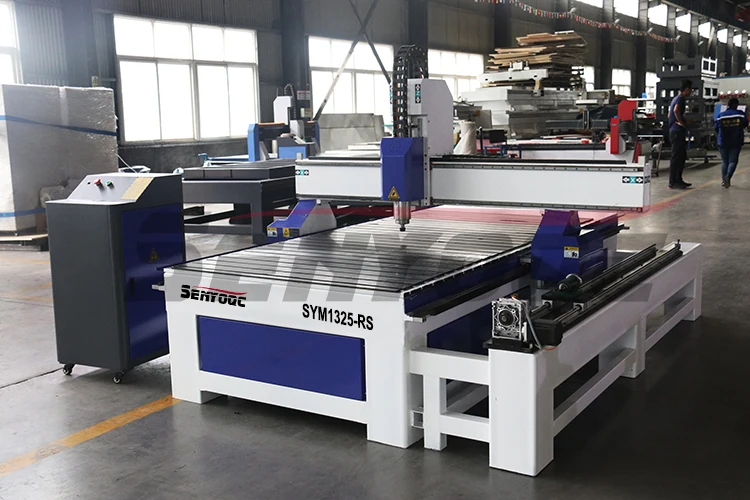

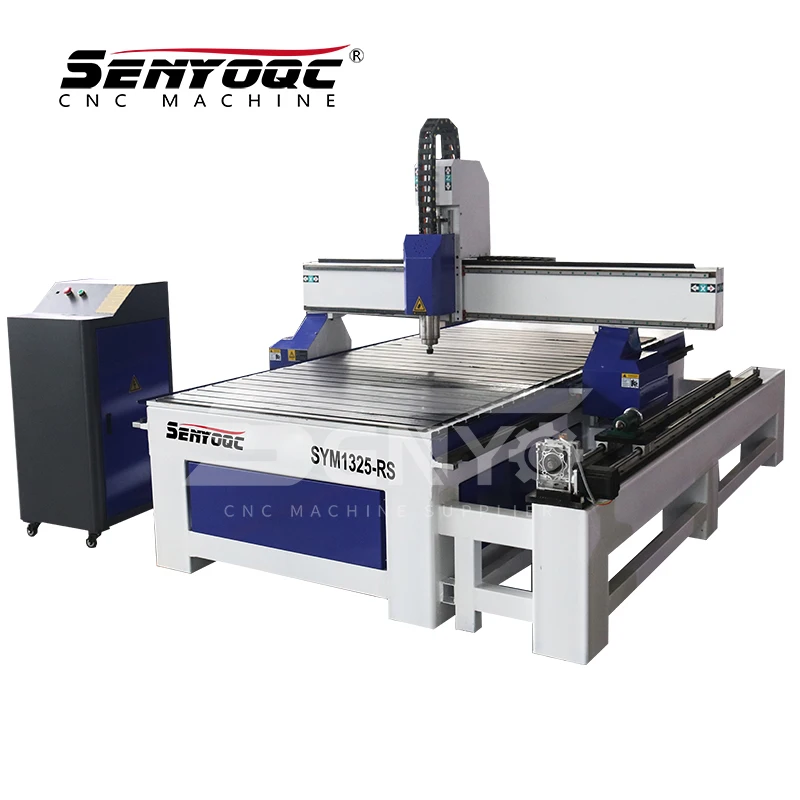

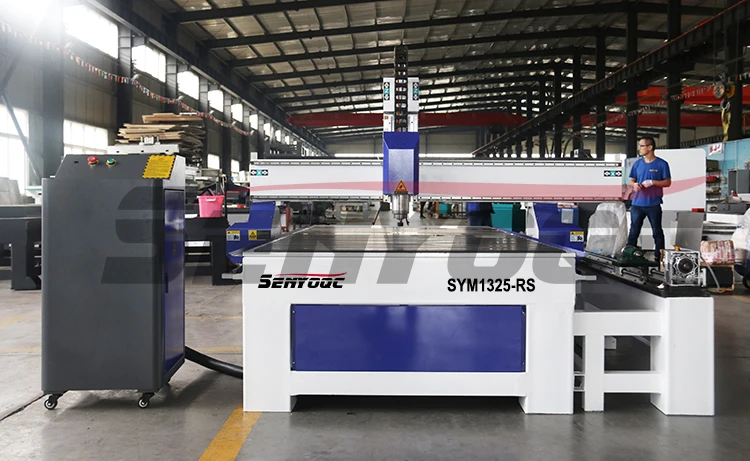

Factory supply cnc router engraving machine cnc 1325 1530 2030/cnc router 4 axis/cnc router machine price (Model:SYM1325-RS) (Contact:Whatsapp +8615253141880 Email: senyocnc2@senyocnc.com)
Rotary axis put on the side, allow to perform flat materials, such as doors, panels,
Icons, sheets, etc(3D professing), as well as engrave cylindrical objects
Such as columns, balusters, table/chair legs,or many other cylindrical models(4D processing)
Features
1) With rotary axis put on the side, allow to perform flat materials,
Doors, panels, icons, sheets, etc(3D professing), as well as engrave cylindrical objects,
such as columns, balusters, table/chair legs,or many other cylindrical models(4D processing)
2) Wholly cold-roll machine structure, which is very heavy and strong, this can restrain
resonance during working and increase the stability to ensure the machine very high precision.
3) Mach3 control system allows control machine working without connecting computer
4) X Y axis use high precision rack&pinion, Z axis adopts TBI ball screws,
X Y Z axis use Taiwan HIWIN square rails, dual stepper motors for Y axis.
5) This machine is widely used for cutting and engraving large format materials
and cylinder/round objects.
|
Machine Features |
Description |
|
|
1300*2500mm effective working area |
10mm Steel gantry thick square tube, heavy-duty structure |
|
|
Bigger welded steel tube machine body |
Thicker steel tube frame with 4legs(also have 4 adjust screw), more solid and stable for the machine |
|
|
3KW water cooling spindle 0-24000 rpm
|
With lower noise, easy maintenance, use industry standard ER collects, From 0-24000rpm/min. |
|
|
Mach3 control system |
Famous Brand control system ,computer control panel with USB |
|
|
Leadshine big driver |
4sets in total, double motors for Y axis, Each one for X and Z axis |
|
|
Taiwan linear guide way for X,Y,Z axis |
Famous brand, can improve high precision, smooth transmission, fast speed, low noise, and it has 10 times longer life than normal |
|
|
Helical rack gears for X,Y axis |
1.25M, big loading capacity, very powerful for machine, long lifetime |
|
|
Taiwan TBI ball screw for Z axis |
Accurate precision, smooth transmission. |
|
|
oil lubrication system |
Help lubricate the rail way, maintaining machine good performance. |
|
|
Soft limit switch |
Help to protect machine axis. |
|
|
Working voltage |
380V,3phase,50HZ |
|
|
software |
Professional software artcam software |
|
|
OPTIONAL Items |
|
|
|
Vacuum system |
Vacuum & T-slot |
You can fix the material by clamps on the T-slot table , and you can also use the vacuum pump to fix the material |
|
Vacuum pump 5.5KW |
To provide the vacuum suction
|
|
|
Dust collector system |
3kw dust collector With dust collector tube and hood
|
|
|
Standard Accessories equipped : |
Tool Box 1set One set of engraving cutters ER20 2 pcs collet 3.175mm 1pc ,6mm 1pc Fixture :6pcs 6.Spanner 2pcs Adjustment screw 6pcs |
|
Detailed Images

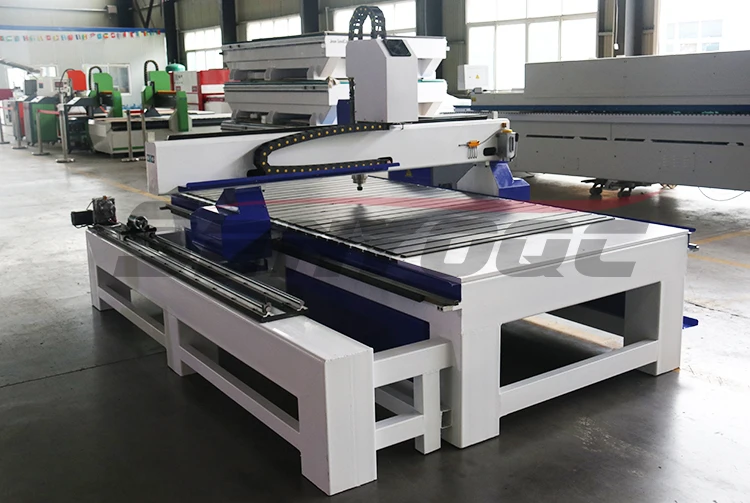

4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock,
and linear guide track for easy tail stock movement and center alignment.
The addition of 4-axis rotary table assembly adds greater functionality machine’s
capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
High Frequency Powerful spindle
The CNC Router machine comes standard with 3kw high frequency spindle.
This precision spindle requires no maintenance, uses industry standard ER collets.
Fully programmable speeds from 6,000 to 24,000 RPM, and comes complete with
pneumatically retractable vacuum hood.
Artcam software, sharing the intuitive interface and ease of use for production
design and routing. In addition to the powerful drawing and production routing
tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos,
drawing and digital artwork into detailed 3D relief models and then to calculate
3D Roughing and Finishing toolpaths to accurately cut these shapes.
Application and Sample
1.Mould: wood,wax, wood, gypsum,foams,wax
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables,
chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car,
bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass,
plastic and soft metals such as copper engraving and milling process.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp to provide online services to customers.
Quality Control
Packaging detail
1).Outside package: Standard marine export plywood case.2). Inner package: Stretchy film and plastic film for humidity.
Shipping detail
Shipped in 7working days after payment.1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Pipe,limit switches etc)
Certifications
|
|
|
Company Information
Jinan Senyo Machinery Company is an independent international business company, developing and marketing CNC router, laser, plasma cutting machine, fiber laser cutting machine plate furniture production line, CNC work center, CNC wood lathe, CNC spare parts and other CNC machines.
