Application

For Isuzu Amigo Rodeo Trooper 2.6L 4ZE1

Specification

TÜV Certification Con Rods

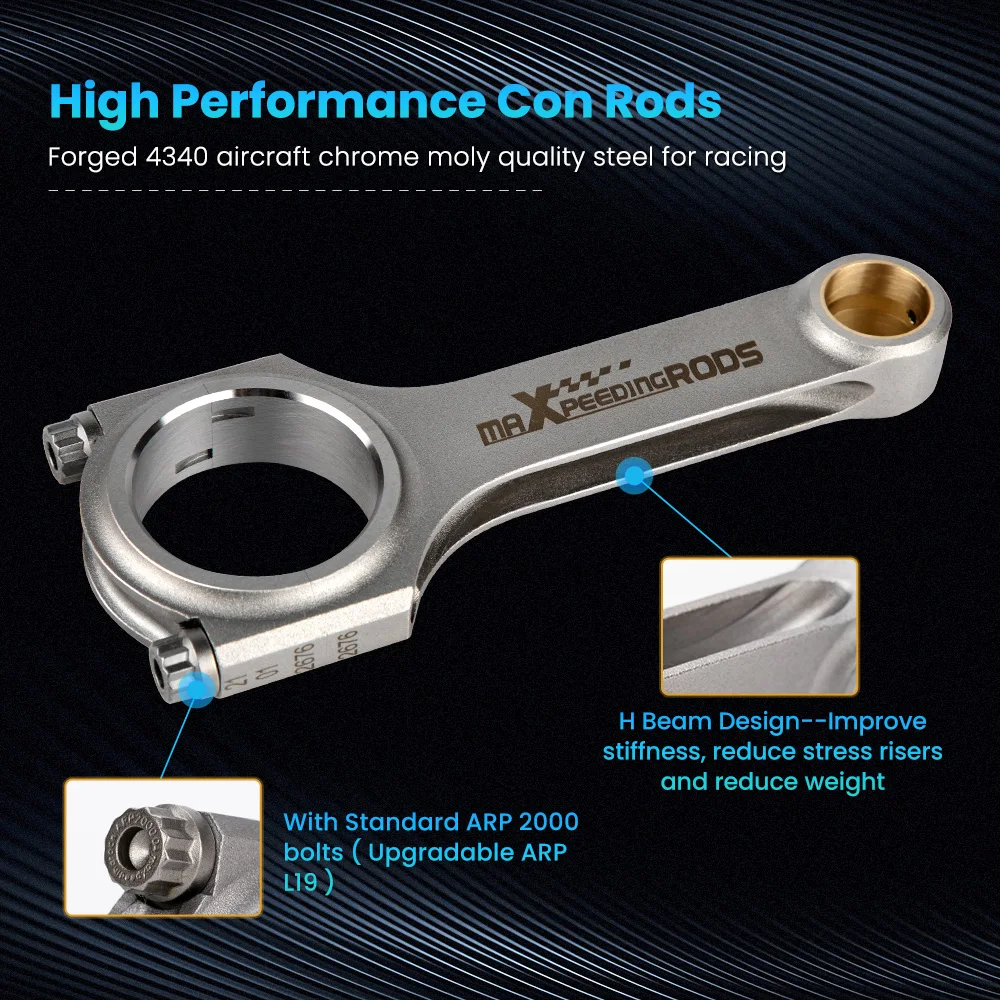

Type: Forged 4340 aircraft chrome moly quality steel for racing

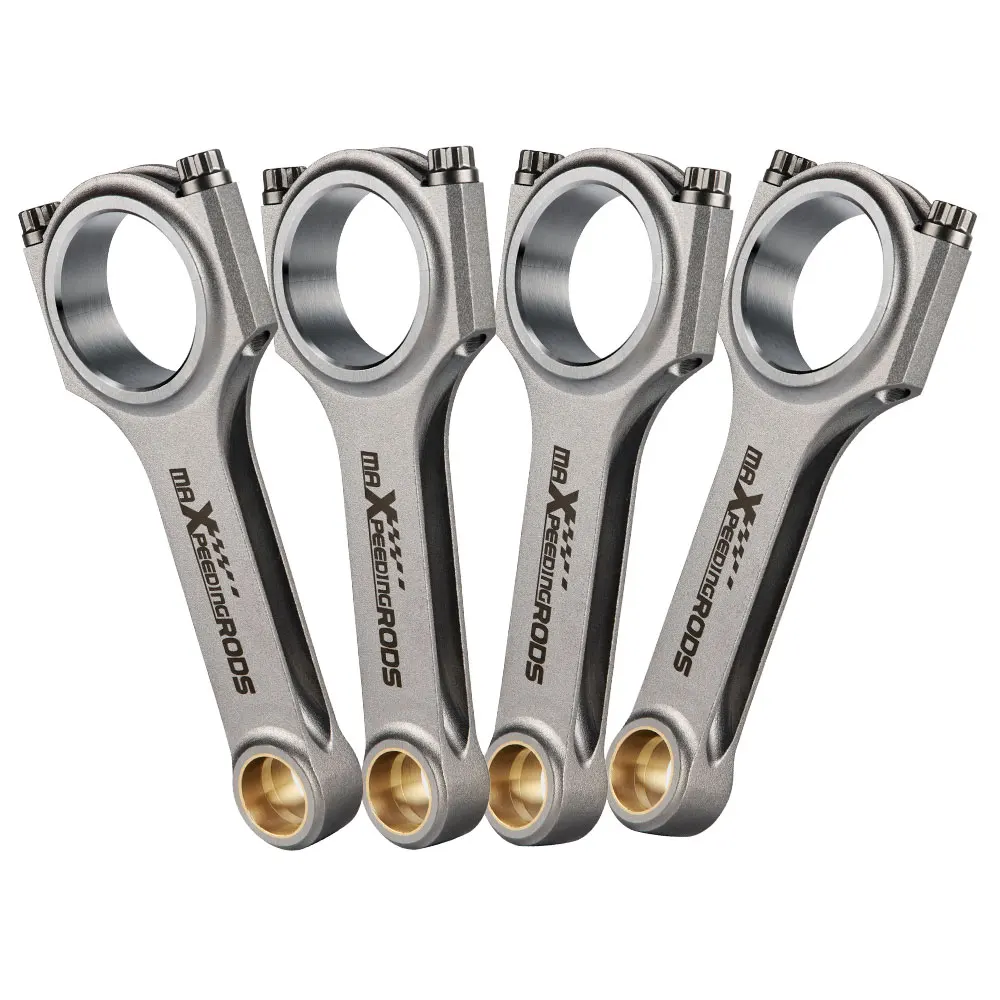

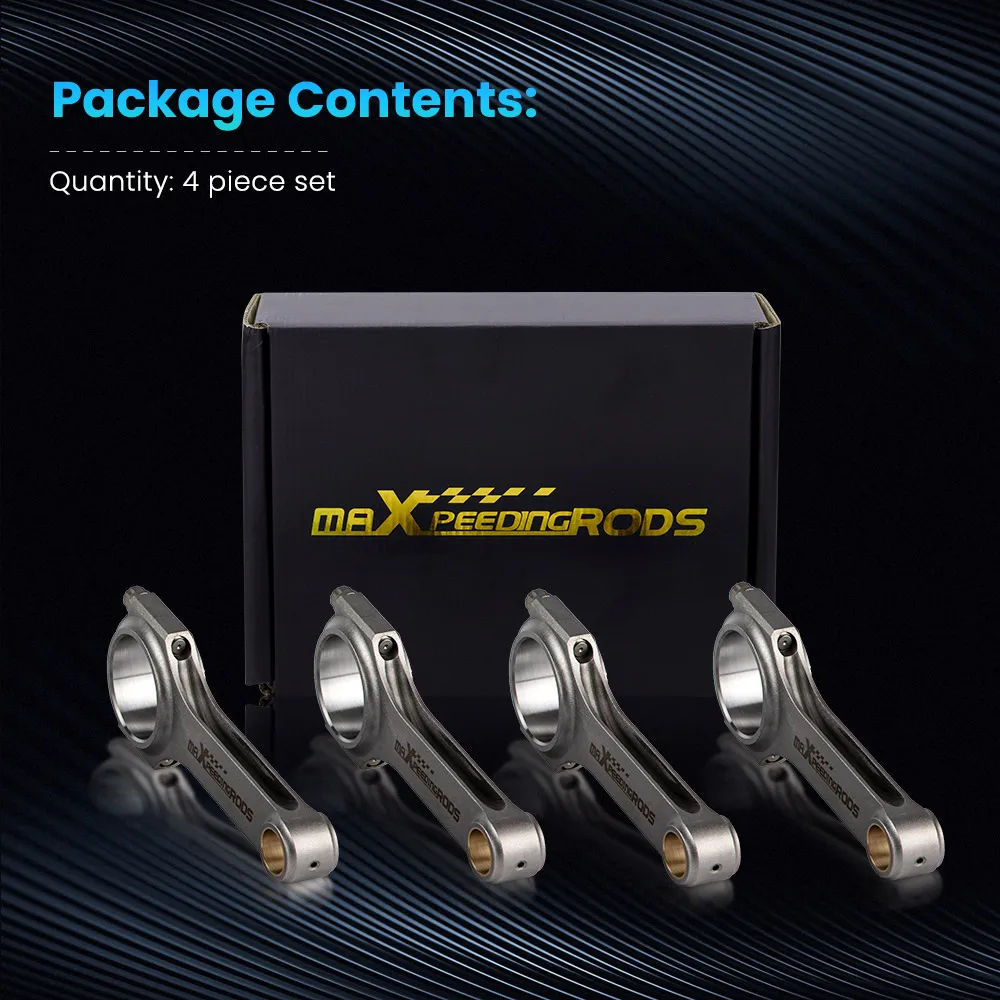

H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts

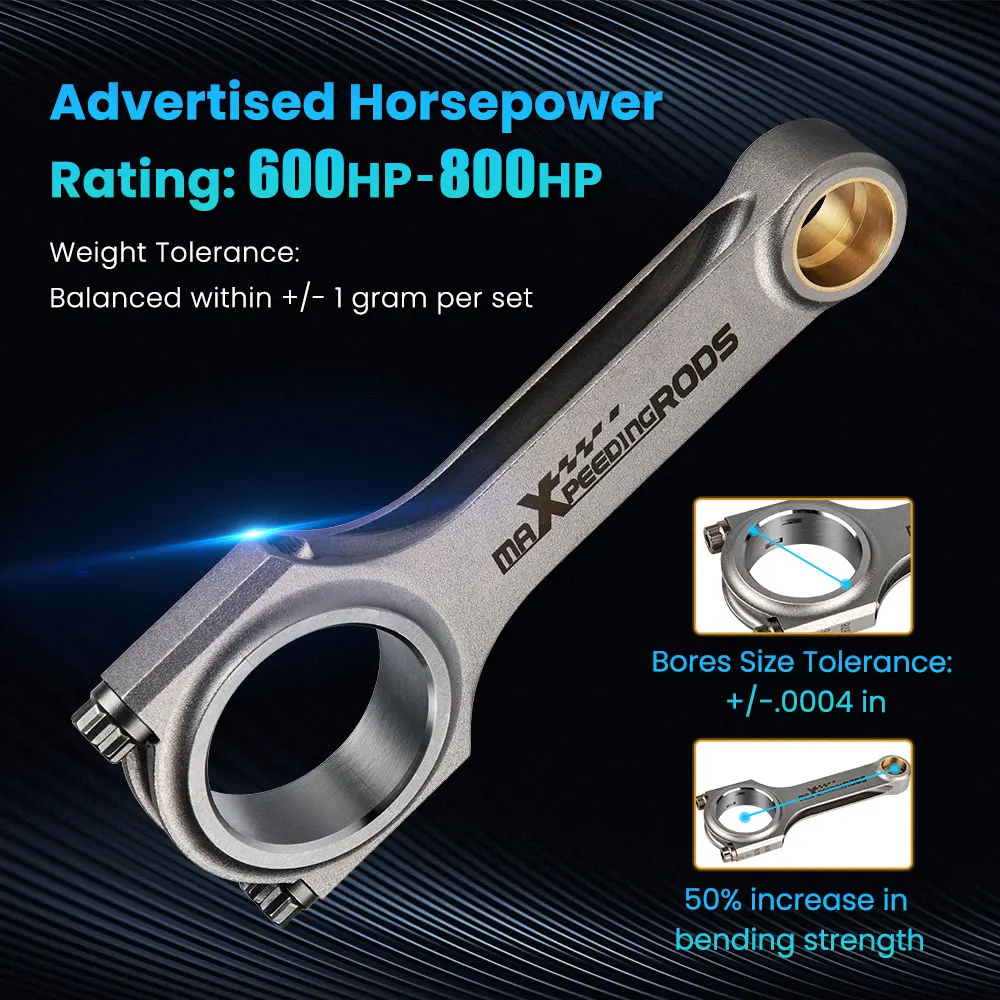

Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm
warranty: 2 years warranty for any manufacturing defect

Dimensions

Center to center length: 150mm
Big end diameter: 52mm
Small end diameter: 23mm
Big end width: 26.8mm
Small end width: 26.8mm

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine

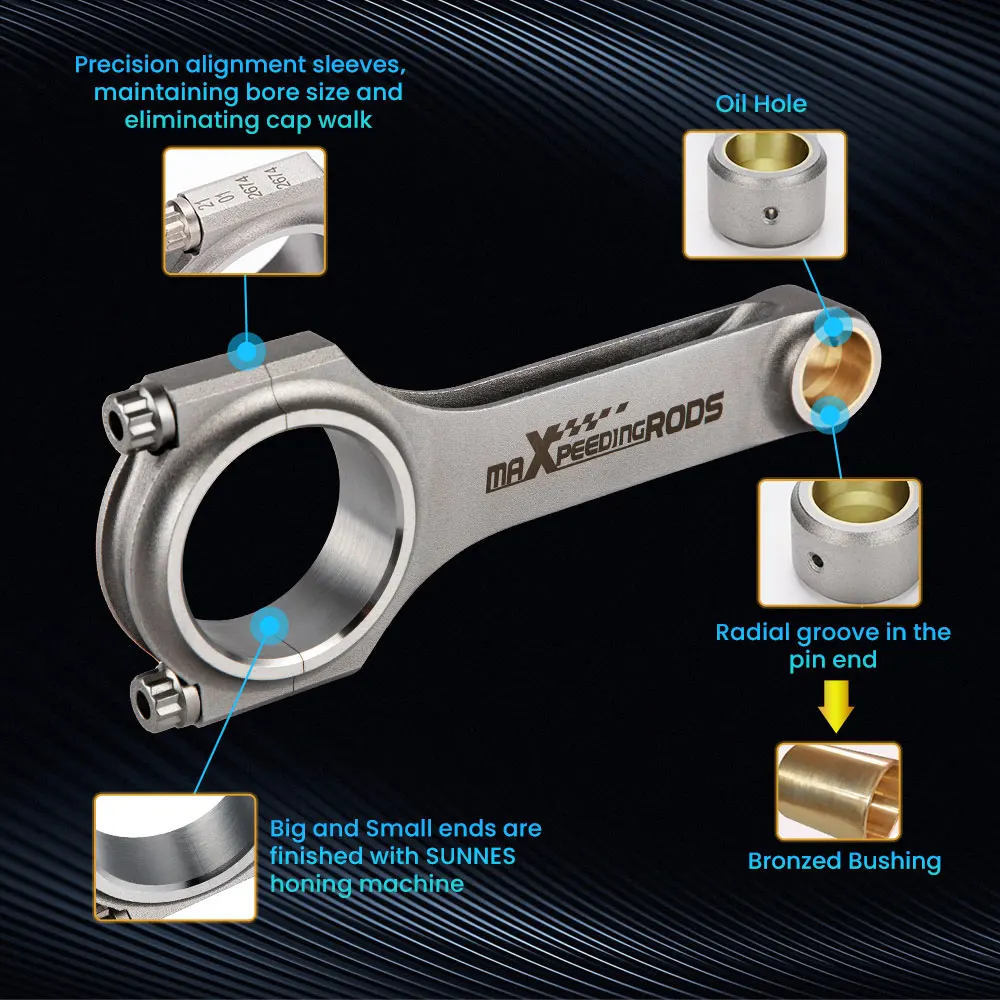

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

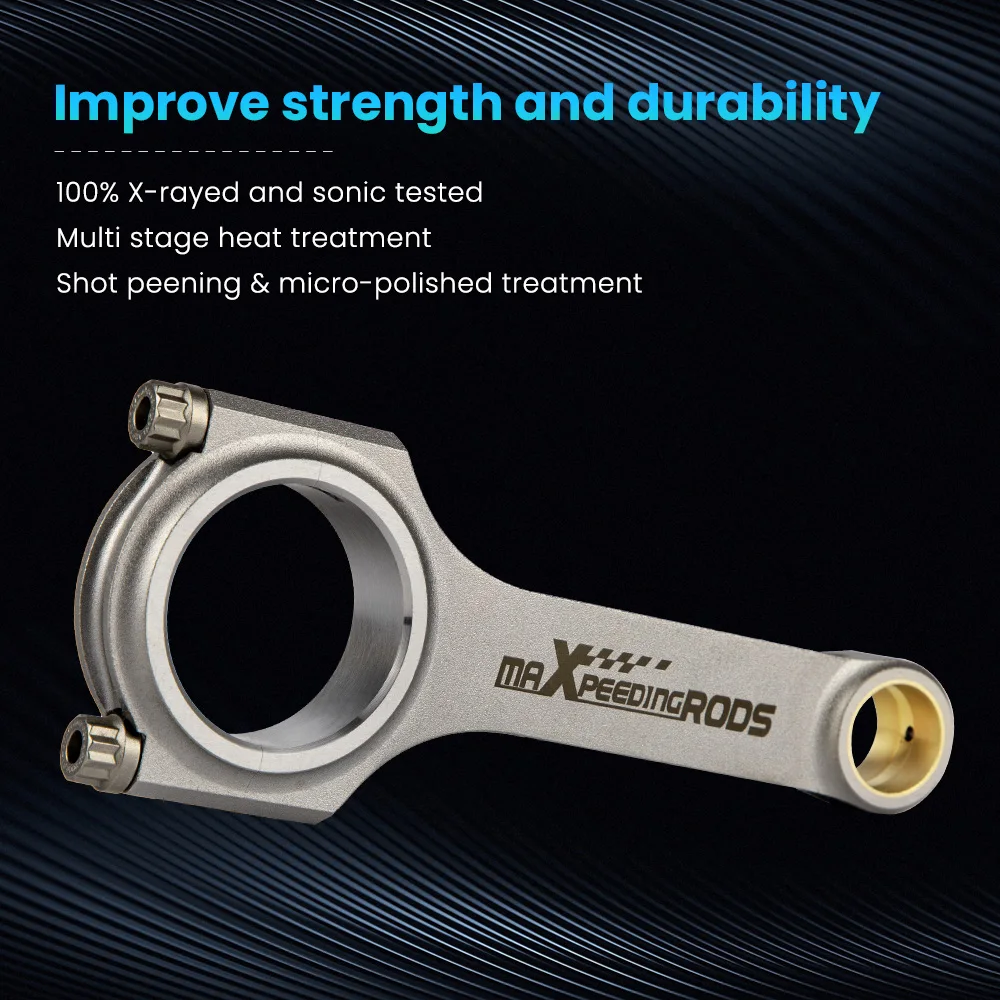

-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
