Bg630 Multifunction Worktable Milling Working Table Machine Compound Drilling Slide For Bench Drill | Инструменты

Bg630 Multifunction Worktable Milling Working Table Machine Compound Drilling Slide For Bench Drill | Инструменты

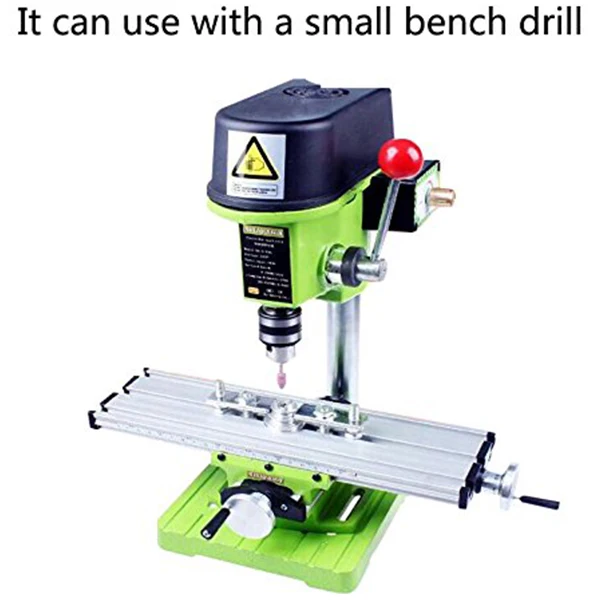

The table is suitable for Mini Drill and drill bracket series. It can also apply to other suitable machine.
The work table is composed of several adjustable dovetail slot composition, can guarantee the minimumspace and ensure the accuracy
Type : BG6300 working table
T solt : have three t solts
Apple to : Mini drill and drill bracket series and other suitable machine
colour:Silver + green
Material:Aluminum alloy

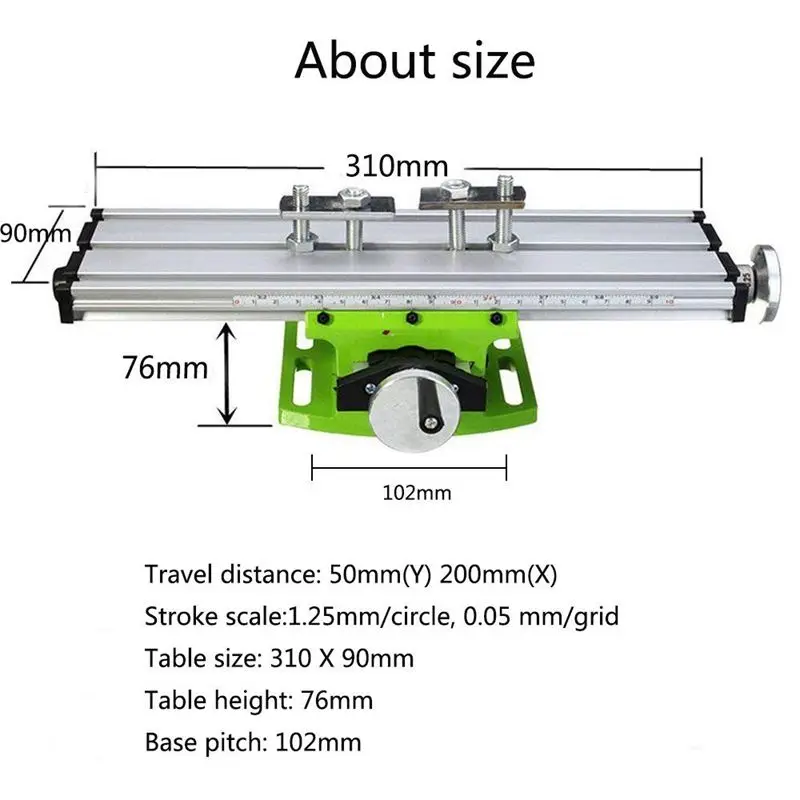

size:Product size: about 31*9*6.7cm
Solt size: 15mmx8mmx6mm
X axis travel : 200mm
Y axis travel : 50mm
Distance between grooves : 34mm
Working table size : 310mmx90mm
The working table comes with three T shaped groove, standard size is 15x8x6mm.
X axis travel : 200mm,Y axis travel : 50mm, Distance between grooves : 34mm
Working table size : Height : 80mm (including two working clamp)
Mounting hole distance : two holes 9m away from the nearest is the middle is 98mm,the distance is 112mm
Zero adjustment handwheel rotates a circle : 1.25mm.one lattice equal is 0.05mm
Package Contents:
1 X BG6300 Milling Working Table
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
