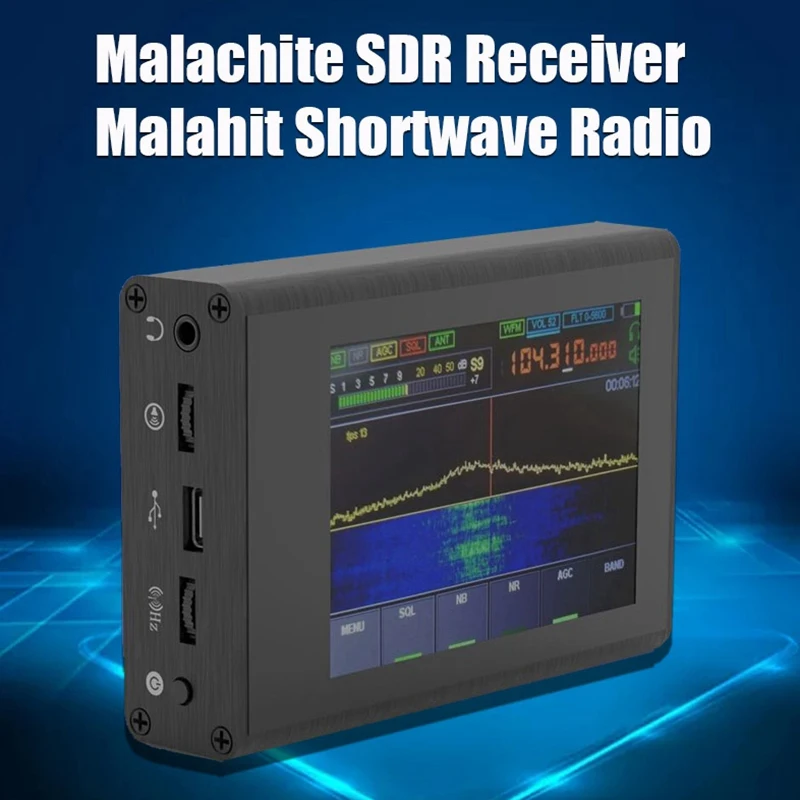

50KHz-200MHz Malachite SDR Receiver Malahit Shortwave Radio 3.5inch Sn Instruments Network Analyzers with Antenna | Электроника

50KHz-200MHz Malachite SDR Receiver Malahit Shortwave Radio 3.5inch Sn Instruments Network Analyzers with Antenna | Электроника

      Welcome to our store.

Our products have affordable prices and good quality. We support dropshipping and wholesale. If you want to work with us for a long time, please contact us and we will give you a very favorable price.Best Regards!

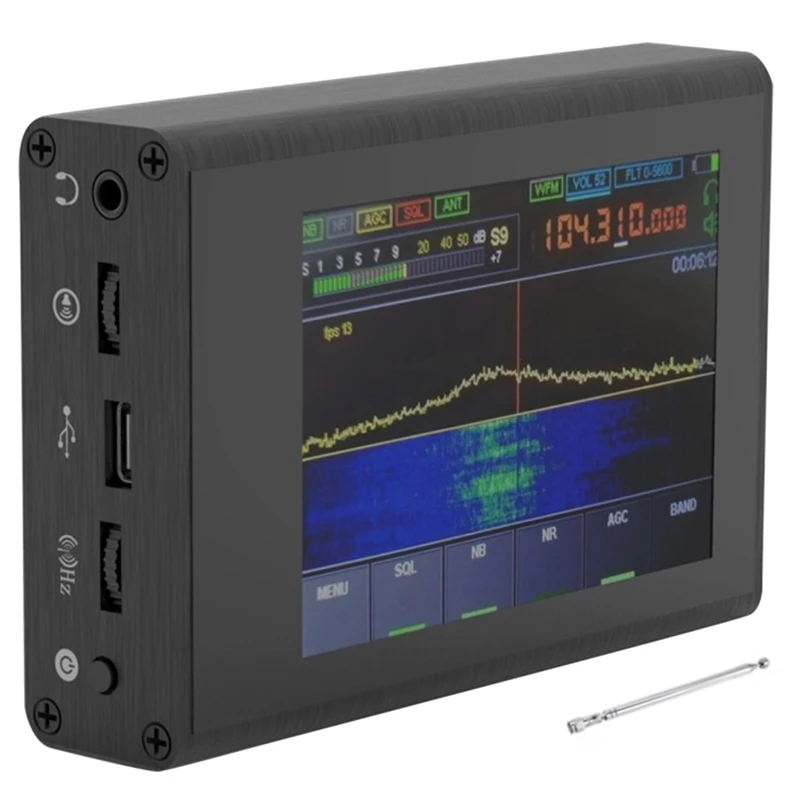

Advantages:Malahit DSP SDR Receiver;3.5inch IPS display Press sn
Standard frequency range: 50KHz-200MHz;Demodulation mode: AM, SSB, NFM , WFM

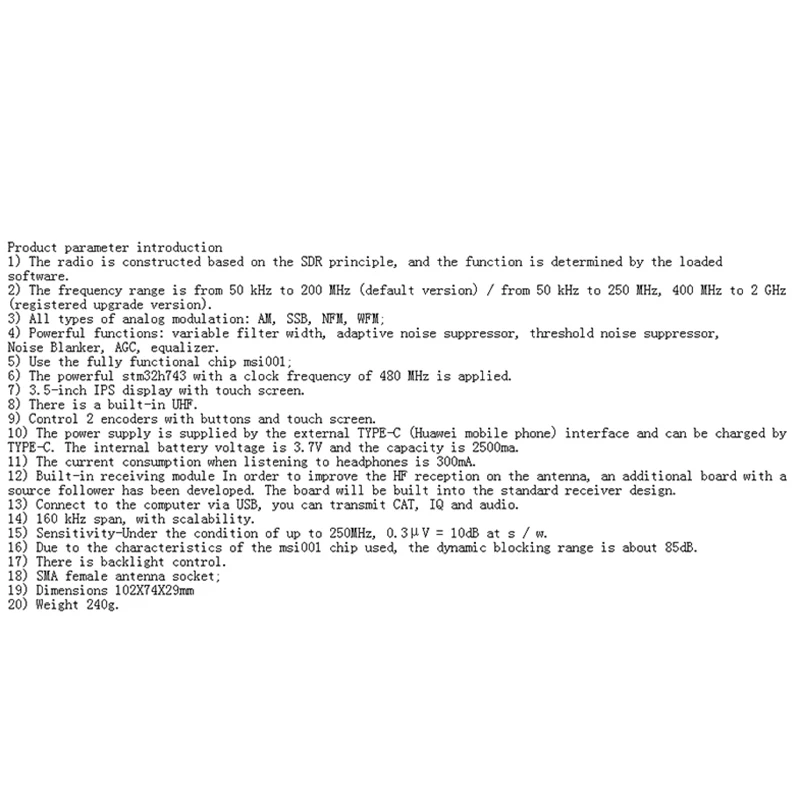

Product Parameters:1. The radio is built based on SDR principle, and the function is determined by loaded software.
2. the frequency range from 50 kHz to 200 MHz (standard version) / from 50 kHz to 250 MHz, 400 MHz to 2 GHz (registered upgrade version).
3. all kinds of analog modulation: AM, SSB, NFM, WFM;

4. Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise Blanker, AGC, equalizer.
5. use fully functional chip msi001;
6. The powerful STM32H743 with a clock frequency of 480 MHz has been applied.
7. 3.5-inch IPS display Press sn.
8. There is a built-in UHF.

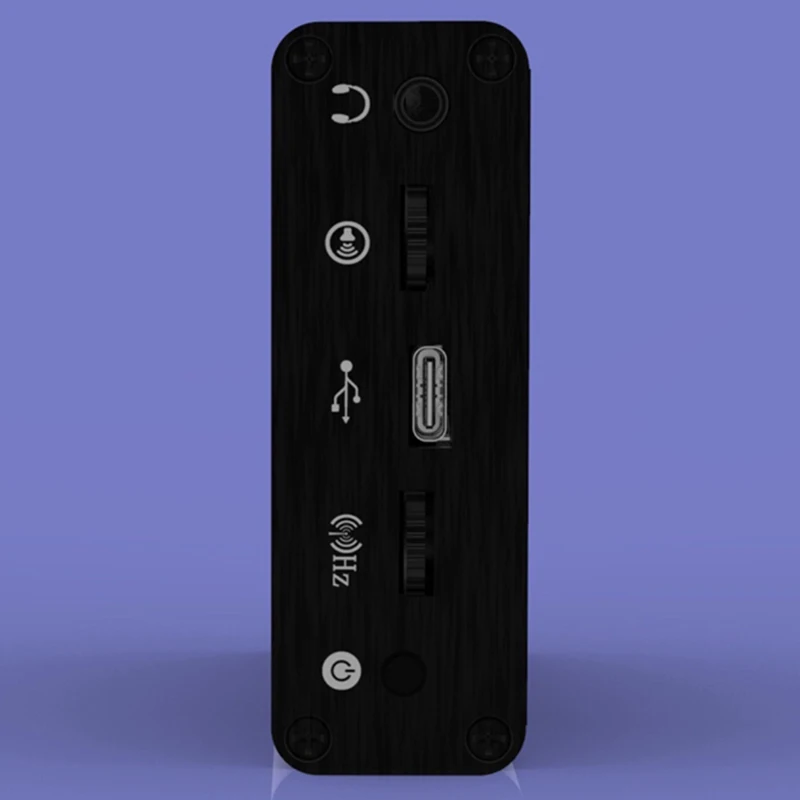

9. Control 2 encoders with buttons and Press sn.
10. The power supply is provided by the external TYPE-C (for Huawei mobile phone) interface, and can be charged by TYPE-C. The internal battery voltage is 3.7V and the capacity is 2500mAh.
11. The power consumption when listening to headphones is 300mA.
12. built-in receiving module to monitor the HF reception on antenna, an additional board with a source follower developed. The board will be built in the standard receiver design.
13. Connecting to a computer via USB, you can get CAT, IQ and o.
14. 160 kHz span, with scalability.
15. Sensitivity-Under the condition of up to 250MHz, 0.3μV = 10dB at s / w.
16. Thanks to the characteristics of the msi001 chip used, dynamic blocking range is about 85dB.
17. there is backlight control.
18. SMA FEMALE antenna socket
Colour:Black
Material:plastic
Size:Dimensions: 102X74X29mm

Package Contents:
1* SDR Receiver
1* SMA antenna

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
