XM-18 18S 18SE Digital Incubator Automatic Egg Turning Motor Full automatic and multifunction egg incubator control system40%off

Function:

1.Digital displaying of temperature,humidity

2.Full automatically temperature controlling

3.Full automatically humidity controlling

4.Full automatically eggs turning

5.Full automatically alarming

6.Full automatically ventilator

7.Back emergency system

Main Technical Index:

1. Temperature display range: 0 ~ 99.9℃

2. Temperature measurement accuracy: ± 0.1℃

3. Humidity display range: 0-99% RH

4. Humidity control accuracy: ± 3% RH

5. Output path: 7 Road ( over-temperature, temperature control, insufficient temperature, egg-left turning, egg right-turning, humidity control, alarm )

6. The maximum output load current: temperature control, insufficient temperature <= 8A/AC 220V, over-temperature,egg-left turning, egg right-turning, humidity control, alarm<= 1A /AC 220V

7. Number of egg-turning : Maximum record 999 times.

8. Cycle of egg-turning: from 0 to 999 minutes (factory set at 90 minutes)

9. Turn the eggs time: 0 to 999 seconds (factory set at 180 seconds)

10. Ventilation cycle : 0-999 minutes (factory set at 120 minutes)

11. Ventilation time: 0-999 seconds (Factory set at 30 seconds)

12. The measuring line length: 1.5 meters

1. Power Supply : AC 160V ~ 240V, 50Hz  or AC 110V ( choose the one you need )

2. Relative humidity: less than 85%

3. Ambient temperature: -10 ~ 60 ℃

Feature:

Specification:

The new generation intelligent humiture incubator controller s a fully-intelligent microcomputer control system designed and developed for incubation industry and iapplies the latest microelectronic technology and new type components. It apples the microcomputer chips to have strong anti-interference and high stable performance;the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range:it applies high performance humidity sensor to high precision to effectively ensure the stableness and reliability.It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys.And five kinds of incubation modes for user-definition,chicken,duck,goose and pigeon are available for selection.

Temperature display range: 0~40.5℃

Temperature measurement precision: ±0.1℃

Humidity display range: 0~99%RH

Control release precision: ±3%RH

Output lines: 6 lines (heating, refrigeration(aeration),egg turning,humidifying,fan,light)

Output current: heating AC220V/8A, fan AC220V/5A ,egg turning AC220V/5A ,humidifying AC12V/0.2A ,refrigeration DC12V/0.4A ,light DC5V/0.1A

Egg turning times: maximum 999 times

Egg turning cycle: 0~999 minutes (default 90 minutes)

Egg turning period: 0~999 seconds (default 19 seconds)

Air exchange cycle: 0~999 minutes (default 120 minutes)

Air exchange period: 0~999 seconds (default 15 seconds)

Length of measuring line: about 2 meters

Working voltage: AC 180V-240V , 50HZ/DC12V

Relative humidity: less than 85%

Ambient temperature: -20℃~70℃

The incubation setting consists of automatic incubation and user-defined incubation.

The new generation intelligent humiture incubator controller is a fully-intelligent microcomputer control system designed and developed for incubation industy and it applies the latest microelectronic technology and new type components.It applies the microcomputer chips to have strong anti-interference and high stable performancs,the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range;it applies high perfomance humidly sensor to high pecison to effectively ensure the stableness and reliability.it has the design of user-friendly four screens for display inclucding two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys.And five kinds of incubation modes for user-definition,chicken,duck,goose and pigeon are avalable for selecion.

1.Temperature display range: 0~40.5℃

2.Temperature measurement precision: ±0.1℃

3.Humidity display range: 0~99%RH

4.Control release precision: ±3%RH

5.Output lines: 6 lines (primary heating, auxiliary heating, exhaust (air exchange), turning left, turning right, humidifying)

6.Output current: primary and auxiliary heating 30A, other output 10A

7.Egg turning times: maximum 999 times

8.Egg turning cycle: 0~999 minutes (default 90 minutes)

9.Egg turning period: 0~999 seconds (default 180 seconds)

10.Air exchange cycle: 0~999 minutes (default 120 minutes)

11.Air exchange period: 0~999 seconds (default 15 seconds)

12.Length of measuring line: about 2 meters

1.Working voltage: AC 180V~240V,50HZ

2.Relative humidity: less than 85%

3.Ambient temperature: -20℃~70℃

The incubation setting consists of automatic incubation and user-defined incubation.

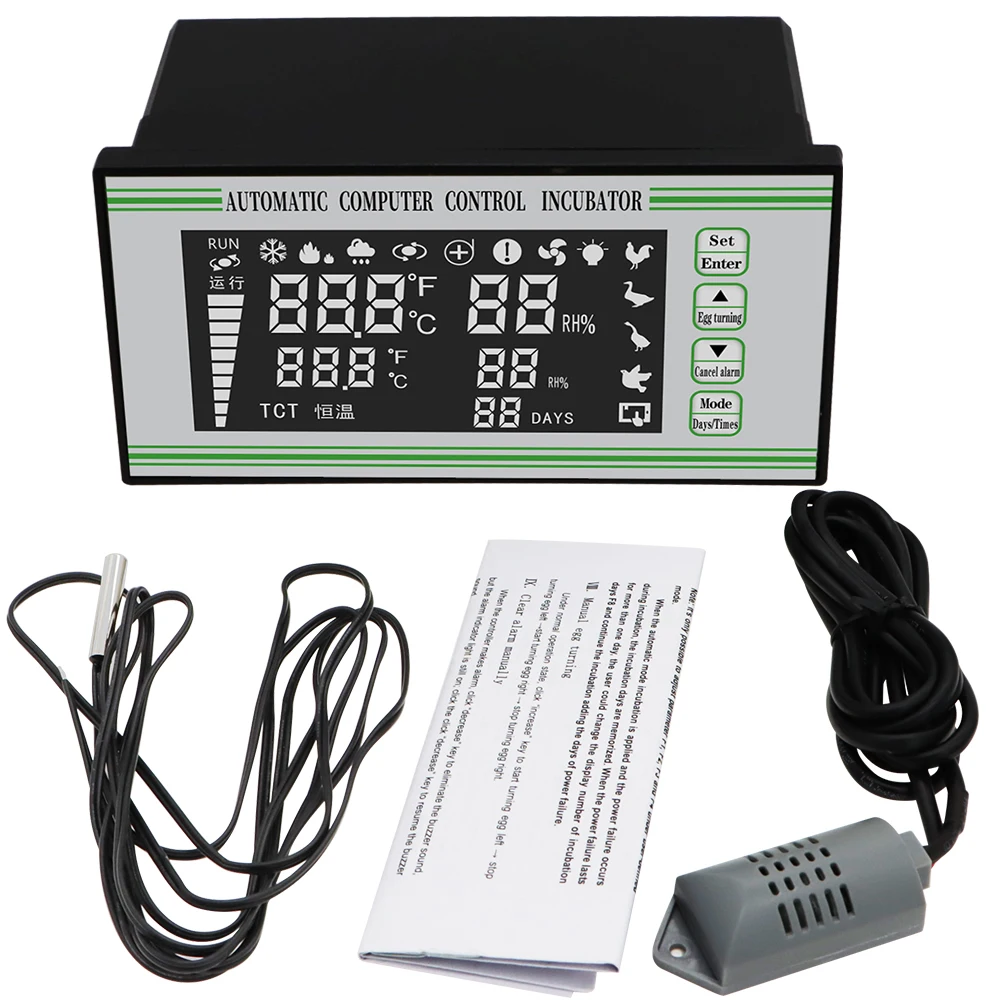

1 x Incubator Controller

1 x Temperature sensor

1 x Humidity sensor

1 x Operational Manual

The new generation intelligent humiture incubator controller s a fully-intelligent microcomputer control system designed and developed for incubation industry and iapplies the latest microelectronic technology and new type components. It apples the microcomputer chips to have strong anti-interference and high stable performance;the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range:it applies high performance humidity sensor to high precision to effectively ensure the stableness and reliability.It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys.And five kinds of incubation modes for user-definition,chicken,duck,goose and pigeon are available for selection.

Temperature display range: 0~40.5℃

Temperature measurement precision: ±0.1℃

Humidity display range: 0~99%RH

Control release precision: ±3%RH

Output lines: 6 lines (primary heating, auxiliary heating, exhaust (air exchange), turning left, turning right, humidifying)

Output current: primary and auxiliary heating 30A, other output 10A

Egg turning times: maximum 999 times

Egg turning cycle: 0~999 minutes (default 90 minutes)

Egg turning period: 0~999 seconds (default 180 seconds)

Air exchange cycle: 0~999 minutes (default 120 minutes)

Air exchange period: 0~999 seconds (default 15 seconds)

Length of measuring line: about 1.5 meters

Working voltage: AC 180V-240V,50HZ

Relative humidity: less than 85%

Ambient temperature: -20℃~70℃

The incubation setting consists of automatic incubation and user-defined incubation.

Features:

1. Digital displaying of temperature, humidity and turning frequency.




2. It applies the microcomputer chips to have strong anti-interference and high stable performance;

3. The temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range;

4. It applies high performance humidity sensor to high precision to effectively ensure the stableness and reliability.

5. It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys.

6. And six kinds of incubation modes for user-definition, chicken, duck, goose and so on.

Parameters:

Model: XM-18D

Size: approx. 300 X 83 X 120mm

Temperature measurement range: 0-99.9 degrees

Temperature measurement accuracy: plus or minus 0.1 degrees

Humidity measurement range: 0-99% RH

Humidity accuracy: plus or minus 3% RH

Number of eggs turned: The maximum record is 999 times.

Egg turning cycle: adjust 0 - 999 minutes (factory default is 90 minutes)

Egg turn time: 0~999 seconds (default 180 seconds)

Ventilation cycle: 0~999 minutes (default 120 minutes)

Ventilation cycle: 0~999 seconds (default 15 seconds)

Temperature measurement line length: about 1.5 meters

Number of signal outputs: 7 (over temperature, temperature control, insufficient temperature, egg left turn, egg right turn, humidity control, alarm)

working environment:

1. Working voltage: AC 160V~240V, 50HZ

2. Relative humidity: less than 85%
