Промышленный 485 фотоэлектрический изолятор RS485 усилитель повторитель расширитель дистанции Антиинтерференция и антиудар.

Промышленный 485 фотоэлектрический изолятор RS485 усилитель повторитель расширитель дистанции Антиинтерференция и антиудар.

Brand NameHuo Guang ShuModel NumberRS485OriginMainland ChinaBundle1CompatibilityAll CompatibleState of AssemblyReady-to-GoCamera EquippedNoMeasurement unitpiece/piecesEach pack1

Unavailable in

Description

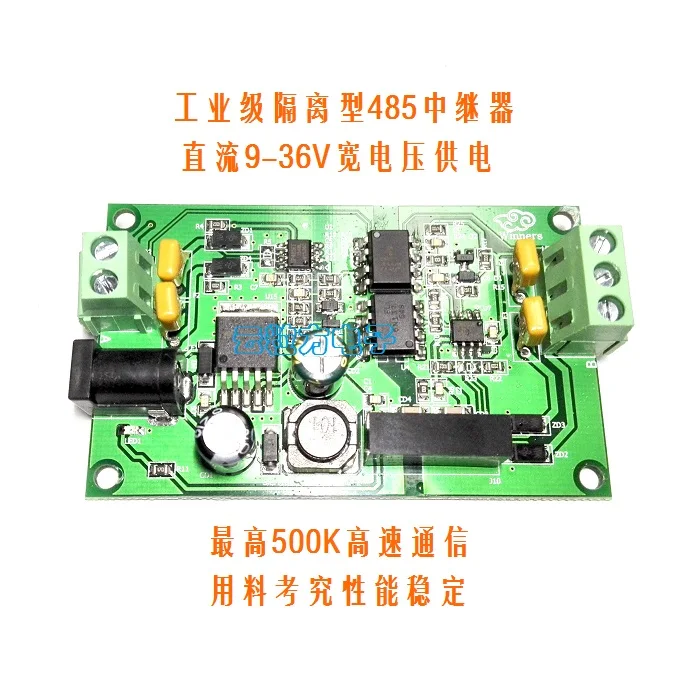

Isolated RS485 repeater One: Product introduction Isolated RS485E repeater is a high-performance industrial-grade RS485 signal amplifier and extender. The product can automatically sense the direction of the data flow and the communication baud rate, without any control or handshake signals, ensuring full transparent data transmission. The equipment power supply and communication signal are completely isolated, with surge protection, electrostatic protection and other measures. It has the characteristics of long transmission distance, high speed, stable and reliable performance. It is widely used in attendance machines, IC card toll collection systems, automated control, access control systems, parking lots, canteen sales systems, and highway toll collection systems. Two: product features 1. Industrial-grade design, complete communication isolation, stable and reliable performance, and transmission rate up to 115.2Kbps; 2. Built-in high-quality DC/DC isolated power supply module to achieve electrical isolation between ports; 3. Support multi-machine communication, up to 128 nodes can be connected, and the longest transmission distance is 1200 meters; 4. Data flow automatic control technology, automatically distinguish and control the data transmission direction; 5. Multiple protection measures: plus or minus 15KV ESD protection, 600W dual-channel TVS protection 2.5KV communication isolation; 6. The power supply has a wide range of 9-36VDC and has anti-reverse protection; Three: Electrical parameters: RS485E equipment is suitable for long-term stable operation under the recommended value; the equipment will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause equipment damage! Item/parameter To Recommended value (typical value) To Limit value Operating Voltage To DC: 9-36V To DC: 9-36V rated power To 0.36W (9V/35mA; 12V/27mA; 24V/15mA) To 0.5W Operating temperature To -30℃ to 70℃ To -40℃ to 80℃ Responsibility To 1-128 nodes To 128 nodes Communication distance To 0-1200 meters To 1200 meters Communication rate To 300-500K bps To 500Kbps Four: Notes for 485 wiring: 1. 485 communication line must use shielded twisted pair, preferably multiple strands for spare, the total length does not exceed 1200 meters. 2. The wiring should be as far away as possible from high-voltage wires, not parallel to power lines, and not to be bundled together. 3. 485 bus must be a hand-in-hand bus structure, and resolutely eliminate star connection and bifurcation connection. 4. If there are more than 30 controllers or the line length is greater than 500 meters, 485 repeaters must be used. 5. The AC-powered equipment and the chassis must be grounded and well grounded. 6. Connect the GND ground of all 485 devices with shielded wires. Five: Requirements for wire selection using RS-485 bus for communication: Use 2-core shielded twisted pair cable Copper, wire diameter 0.5～0.75 square millimeter, Impedance 38～88 ohm/km, Capacitive resistance 30～50 nanofarad/km, 2-core shielded twisted-pair cable with a twisting distance of 20 mm (if the line distance is not more than 500 meters, the line standard can be appropriately reduced, but it must be a twisted pair) Six: Bus restrictions: It is composed of two or more devices that have physical connections with each other. A maximum of 128 devices are allowed to be connected to the bus. The length of the bus is no more than 1200 meters without a repeater. The system bus should not be branched. If branching is inevitable, the following requirements must be met: 1. The branch length is not more than 10 meters; the total length of the bus is not more than 800 meters; the total number of devices on the branch line must not exceed 50. 2. All communication signal lines should be kept away from interference sources as far as possible. The signal lines should go through weak electric wells. They should not run in parallel with strong currents (such as 220V residential power supply) or radio frequency signal lines (such as CATV, large signal audio lines). Line, the distance should be greater than 0.5 meters. 3. The joints of all circuits must be connected by welding or screw clamping, and be waterproof and moisture-proof. For example, the joints can be welded and wrapped with waterproof tape or sealed with epoxy resin. Seven: Signal common ground: 1. All devices on the same network segment must have a unified signal ground to avoid common mode interference. 2. For centralized power supply, directly connect the DC negative poles of all power supplies on the same network segment (including the self-contained power supplies of communication equipment) to form a common signal ground. At this time, the signal ground is the DC power ground. 3. When a single home supplies power independently, connect the ground (black wire) pins of all bus devices on the same network segment together to form a common signal ground. Eight: Wiring diagram Size: 97*50*31 Weight: 66G Nine: Recommend several debugging methods: First of all, make sure that the equipment wiring is correct and strictly in compliance with the specifications: 1. Common ground method: Use 1 wire or shielded wire to connect the GND ground of all 485 devices, which can avoid the potential difference between all devices that affects communication. 2. Intermediate segment disconnection method: Check whether the equipment is overloaded and the communication distance is too long by disconnecting from the middle. The damage of a certain equipment affects the entire communication line. 3. Separate wire drawing method: Simply pull a wire to the device temporarily, so that it can be used to rule out whether the wiring caused the communication failure. 4. Replace the converter method: carry a few converters with you so that you can rule out whether the quality of the converter is affecting the communication quality. 5. Notebook debugging method: First, ensure that the computer notebook you carry is a normal communication device, and replace the customer's computer for communication. If it can, it means that the serial port of the customer's computer may be damaged.
