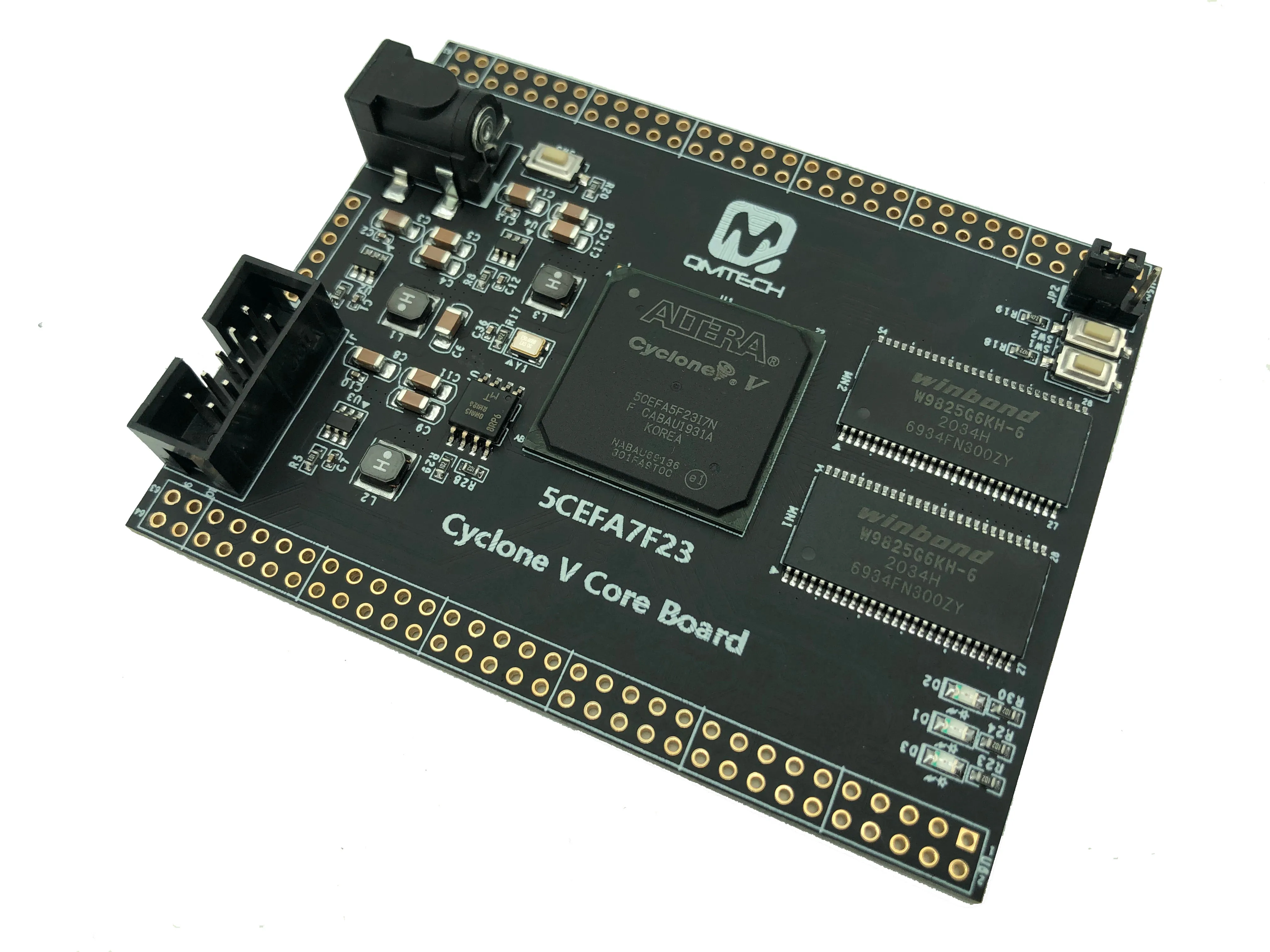

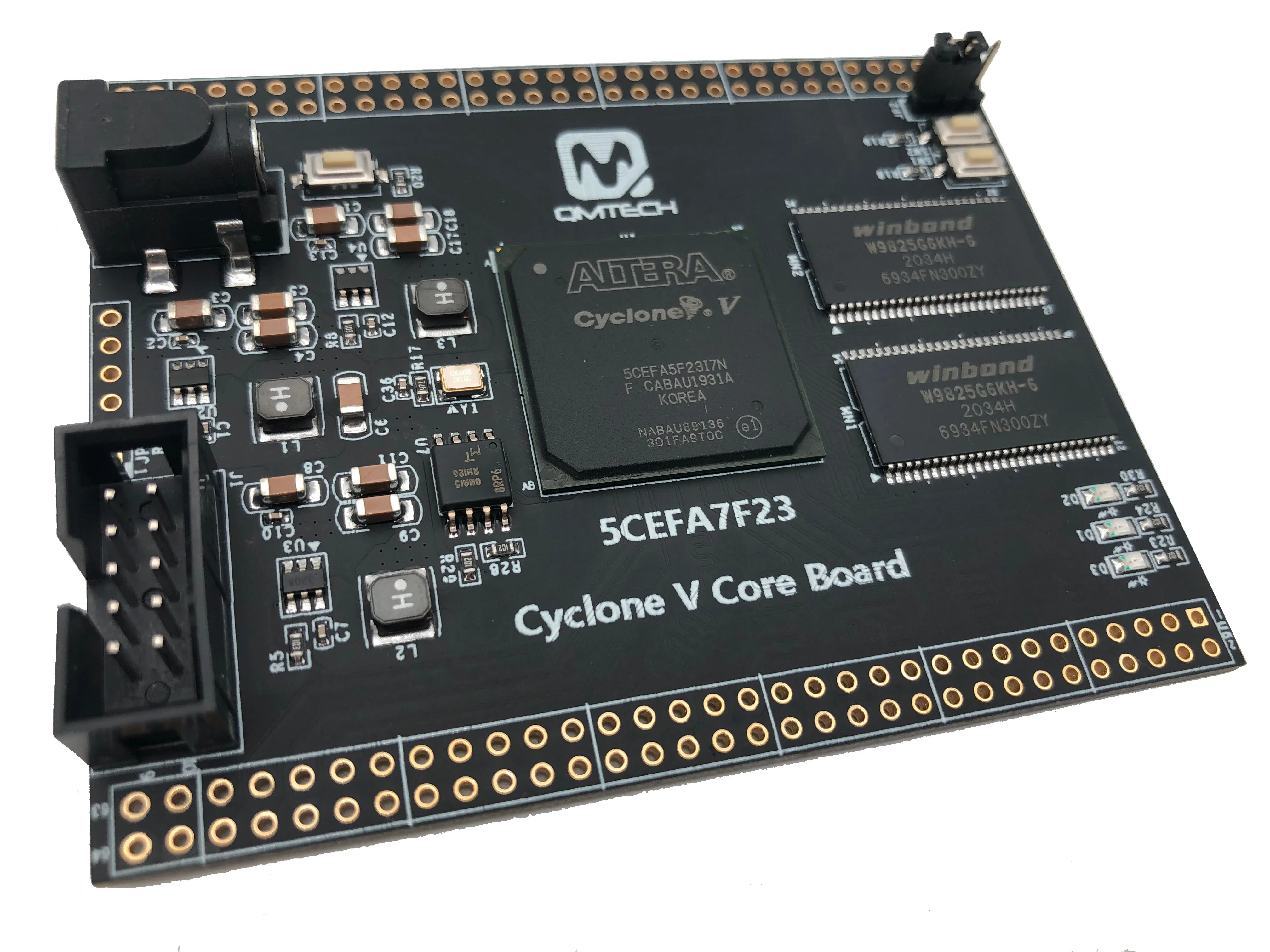

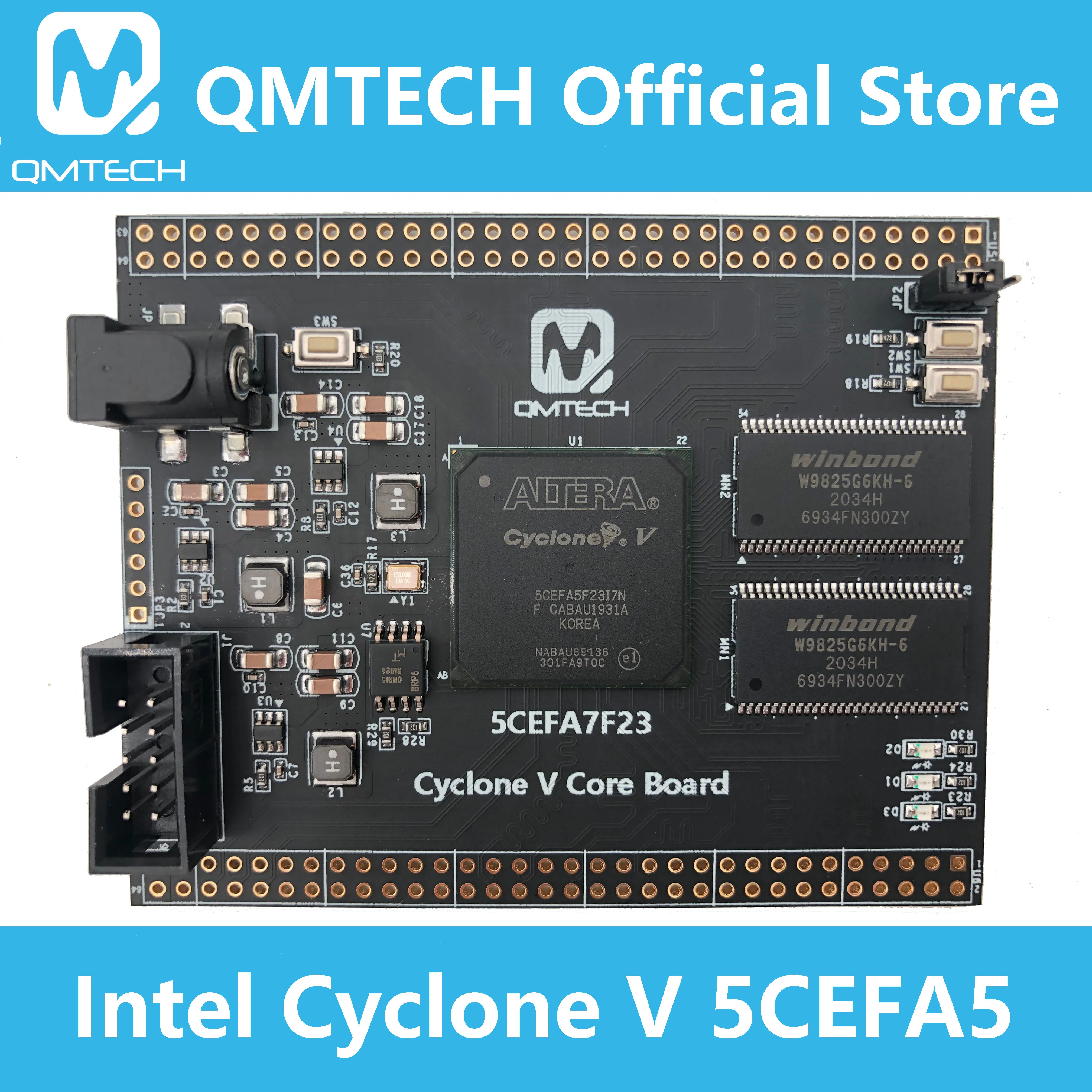

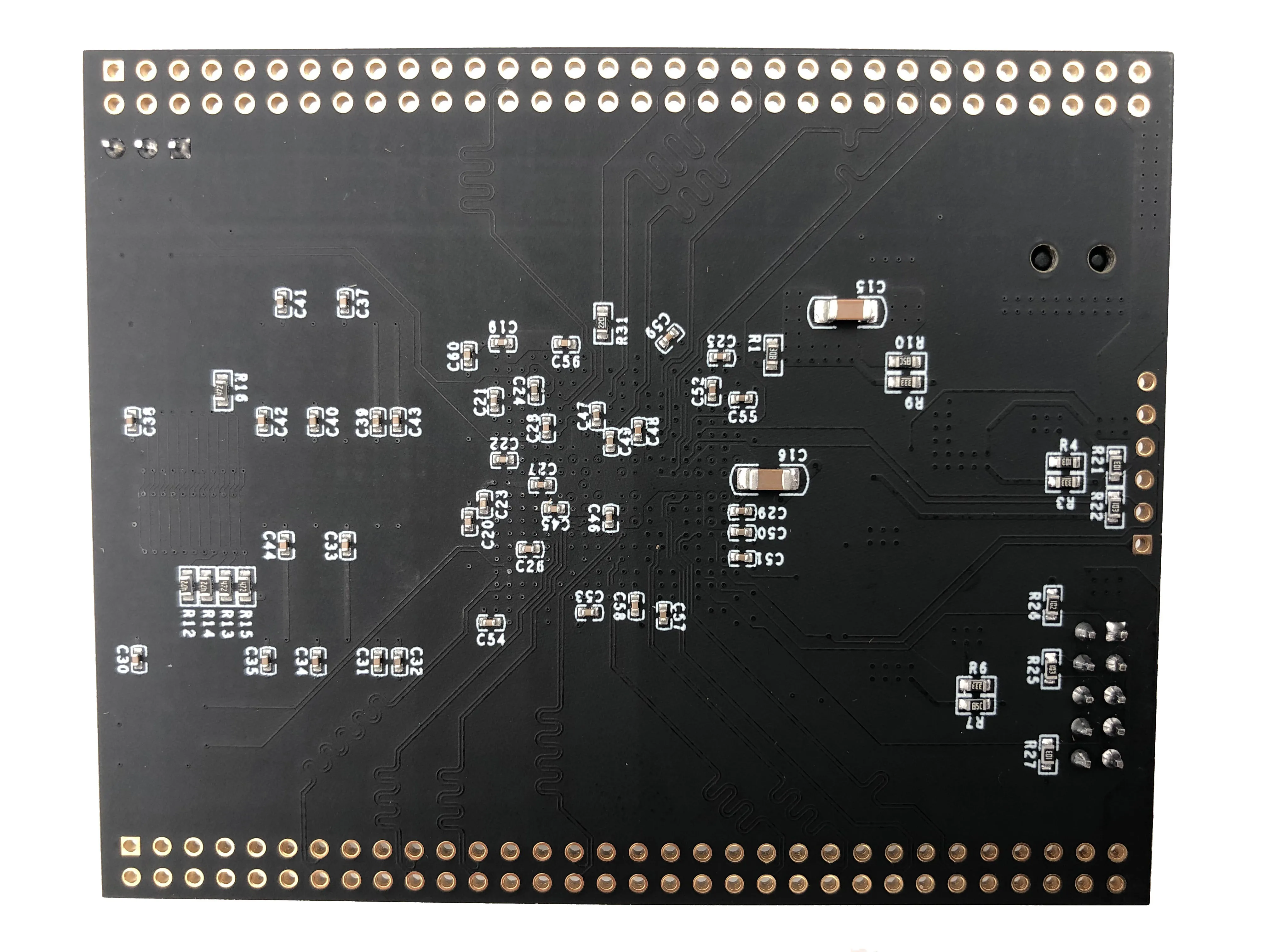

Specification:

• On-Board FPGA: 5CEFA5F23;
• On-Board FPGA external crystal frequency: 50MHz;
• 5CEFA5F23 has rich RAM resource up to 4,460Kb;
• 5CEFA5F23 has 77K logic cells;
• On-Board Micron MT25QL128A SPI Flash, 16M bytes for user configuration code;
• On-Board Winbond 32MBX2 SDRAM, W9825G6KH-6;
• On-Board power supply for FPGA by using TPS563201 wide input range DC/DC;
• 5CEFA5F23 core board has two 64p, 2.54mm pitch headers for extending 108 user IOs. All 108 user IOs are precisely designed with length matching;
• 5CEFA5F23 core board has 3 user switches;
• 5CEFA5F23 core board has 2 user LEDs;
• 5CEFA5F23 core board has JTAG interface, by using 10p, 2.54mm pitch header;
• 5CEFA5F23 core board PCB size is: 6.7cm x 8.4cm;
• Default power source for board is: 1A@5V DC, the DC header type: DC-050, 5.5mmx2.1mm;

Packing List:

• One QMTECH_5CEFA5F23_SDRAM Core Board.
• Schematic, User Manual, Test Program are provided via Github. Please search keyword QM_CYCLONE_V in Github.
• ​Schematic, User Manual, Test Program can be downloaded from http://www.chinaqmtech.com/download_fpga.

Official Support Forum:

• http://forum.chinaqmtech.com/forum.php
