in stock! BG95 BG95-M2 Minipcie Cat M1/ NB2/ EGPRS GNSS LPWA nb-iot Module compatibility with BG96 BC95 UG95 UG96 |
История изменения цены
*Текущая стоимость 26786.15 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 31875.7 руб. | 33469.95 руб. | 32672 руб. |
| Aug-16-2025 | 31607.80 руб. | 33187.30 руб. | 32397 руб. |
| Jul-16-2025 | 26518.68 руб. | 27844.81 руб. | 27181 руб. |
| Jun-16-2025 | 31072.81 руб. | 32626.51 руб. | 31849 руб. |
| May-16-2025 | 27054.25 руб. | 28407.18 руб. | 27730.5 руб. |
| Apr-16-2025 | 30536.63 руб. | 32063.45 руб. | 31299.5 руб. |
| Mar-16-2025 | 30268.92 руб. | 31781.12 руб. | 31024.5 руб. |
| Feb-16-2025 | 30000.29 руб. | 31500.83 руб. | 30750 руб. |
| Jan-16-2025 | 29732.17 руб. | 31219.82 руб. | 30475.5 руб. |
Описание товара
Description

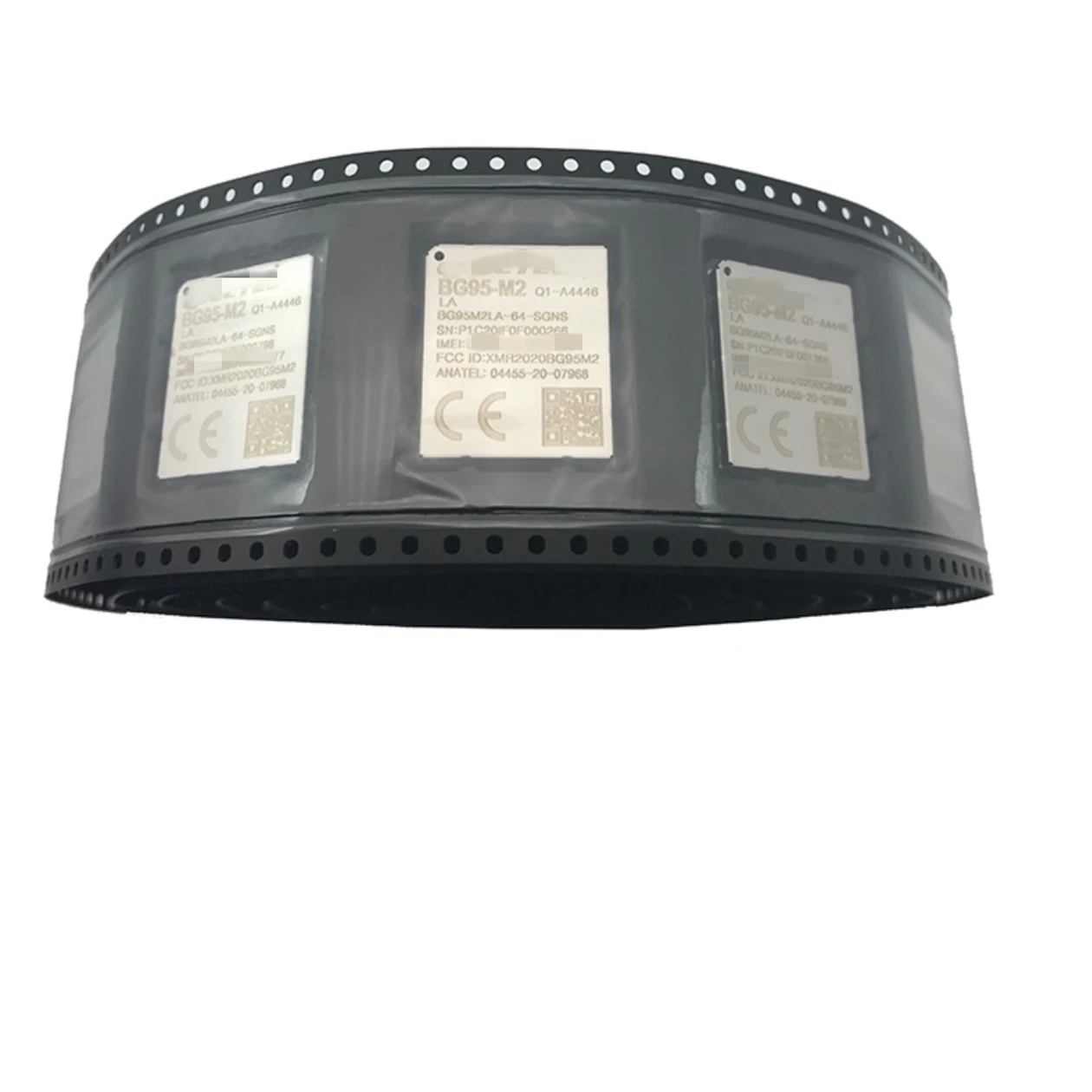

LTE BG95 Cat M1/ Cat NB2/ EGPRS Module
BG95 is a series of multi-mode LTE Cat M1/Cat NB2/EGPRS modules with integrated GNSS functionality. It is fully compliant with 3GPP Rel. 14 specification and offers maximum data rates of 588Kbps downlink and 1119Kbps uplink under LTE Cat M1. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor.
BG95 boasts a comprehensive set of hardware-based security features and enables trusted applications to run directly on the Cortex A7 TrustZone engine. Additionally, BG95 provides pin-to-pin compatibility with Quectel LTE Standard modules EG91/EG95, LPWA modules BG96/BC95, UMTS/HSPA modules UG95/UG96 and GSM/GPRS module M95.
With a cost-effective SMT form factor of 23.6mm × 19.9mm × 2.2mm and high integration level, BG95 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications. A rich set of Internet protocols, industry-standard interfaces and abundant functions extend the applicability of the module to a wide range of M2M applications such as wireless POS, smart metering, tracking, wearable devices, etc.
Key Benefits
● LTE Cat M1/Cat NB2/EGPRS module with ultra-low power consumption
● Easy migration from Quectel GSM/GPRS, UMTS/HSPA and LTE standard modules
● Super slim profile in LGA package
● Integrated RAM and flash in the baseband chipset
● Comprehensive set of hardware-based security features
● Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
● Compact SMT form factor ideal for size-constrained applications with tight space
● Robust mounting and interfaces
Variants for the Golbal
BG95-M1
Cat M1 Only:
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
BG95-M2
Cat M1/Cat NB2:
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
BG95-M3
Cat M1/Cat NB2:
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
EGPRS:850/900/1800/1900MHz
BG95-N1
Cat NB2 Only:
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
BG95-M4
Cat M1/Cat NB2(450MHz Supported):
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B31/B66/B72/B73/ B85
BG95-M5
Cat M1/Cat NB2(Power Class 3):
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
BG95-MF
Cat M1/Cat NB2:
LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
WI-FI(For Positioning Only):
2.4GHz/5GHz
Frequency | BG95-M1 | BG95-M2 | BG95-M3 | BG95-N1 | |
Region/Operator | For the Global | For the Global | For the Global | For the Global | |
LTE FDD | Cat M1 Only: | Cat M1: | Cat M1: | Cat NB2 Only: | |
GSM/EDGE | / | / | 850/900/1800/1900MHz | / | |
GNSS (Optional) | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | |
Wi-Fi (For Positioning) | / | / | / | / | |
Certification | Carrier: North America: Regulatory: Global: GCF* Others: RoHS | Carrier: North America: Regulatory: Global: GCF* Others: RoHS | Carrier: Global: Vodafone* Regulatory: Global: GCF Others: RoHS/PEN/ATEX* | Carrier: North America: Regulatory: Global: GCF* Others: RoHS | |
Frequency | BG95-M4* | BG95-M5* | BG95-MF (Planning) | |
Region/Operator | For the Global | For the Global | For the Global | |
LTE FDD | Cat M1: | Cat M1: | Cat M1: | |
GSM/EDGE | / | 850/900/1800/1900MHz | / | |
GNSS (Optional) | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | |
Wi-Fi (For Positioning) | / | / | 2.4GHz | |
Certification | Carrier: Planning Regulatory: Planning Others: Planning | Carrier: Planning Regulatory: Planning Others: Planning | Carrier: Planning Regulatory: Planning Others: Planning | |
BG95&BG96 Difference Introduction | ||
Parameter | BG95 | BG96 |
Dimensions | 23.6mmx19.9mmx2.3mm | 26.5mmx22.5mmx2.3mm |
3GPP Release | Release 14 (Rel.14 LTE Cat NB2,Rel.14 LTE Cat M1 with CE Mode B) | Release 13 (Rel.13 LTE Cat NB1,Rel.13 LTE Cat M1 with CE Mode A) |
Frequency Bands | LTE FDD： B1/B2/B3/B4/B5/B8/B12/B13/B14/B17 /B18/B28/B31/B66/B71/B72/B73/B85 EGPRS:850/900/1800/1900MHz | LTE FDD： B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD:B39(for Cat M1 only) EGPRS:850/900/1800/1900MHz |
Power Class | Class 5(Max 20dBm for Cat-M1/NB2) | Class 3(Max 23dBm for Cat-M1/NB1) |
Supply Voltage | Extended supply range 2.4V-4.8V，3.8V Typ. | 3.3V-4.3V, 3.8V Typ. |
Power Consumption | PSM:3uA 85% reduction in eDRX current (From Qualcomm MDM9205 Spec) | PSM:10uA DRX=1.28s@Real Network 16mA e-I-DRX=20.48s@Real Network 15mA |
Data Rate | LTE Cat M1: Max.375Kbps(DL), Max.1.12Mbps(UL)(Half Duplexer) LTE Cat NB2: Max.136Kbps(DL), Max.150Kbps(UL) EGPRS: Max.296Kbps(DL), Max.236.8Mbps(UL) GPRS: Max.107Kbps(DL), Max.85.6Mbps(UL) | LTE Cat M1: Max.375Kbps(DL),Max.375Kbps(UL)(Half Duplexer) LTE Cat NB1: Max.32Kbps(DL), Max.70Kbps(UL) EGPRS: Max.296Kbps(DL), Max.236.8Mbps(UL) GPRS: Max.107Kbps(DL), Max.85.6Mbps(UL) |
Memory Configurations | Integrated RAM and flash (32MB LPDDR2 and 64MB NAAD with ThreadX OS) | External 64MB LPDDR2 and 128MB NAND with ThreadX OS |
APP and OS | ARM Cortex A7 @800MHz | ARM Cortex A7 @1.2GHz |
Location | Gen.9, GPS, GLONASS, BeiDou, Galileo; QuecLocator for Triangle location | Gen.8, GPS, GLONASS, BeiDou, Galileo; QuecLocator for single cell location |
Voice | VoLTE(For Cat M1 Only) CS voice for GSM | VoLTE(For Cat M1 Only) |
Jamming Detection | Cat M1/NB2/EGPRS Jamming detection | Not Support |
If you need BG95-M1 or BG95-M2 Minipcie module, Please feel free contact us.
Type1:BG95-M3 Minipcie module*1pcs
Type2:BG95-M3 Minipcie module*5pcs
Type3:BG95-M3 Minipcie module*10pcs
1. We can ship to all over the world.Items will be shipped within 1-3 business days after we verify your payment.
2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.
3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express such as DHL UPS FEDEX EMS TNT and so on.
4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don't receive the item within thirty days, please contact us, and then I will help you track it
Frequency | BG95-M4* | BG95-M5* | BG95-MF (Planning) | |
Region/Operator | For the Global | For the Global | For the Global | |
LTE FDD | Cat M1: | Cat M1: | Cat M1: | |
GSM/EDGE | / | 850/900/1800/1900MHz | / | |
GNSS (Optional) | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | GPS/GLONASS/BeiDou/ | |
Wi-Fi (For Positioning) | / | / | 2.4GHz | |
Certification | Carrier: Planning Regulatory: Planning Others: Planning | Carrier: Planning Regulatory: Planning Others: Planning | Carrier: Planning Regulatory: Planning Others: Planning | |
