PLL Stereo FM Transmitter Radio Broadcast Station CZE-05B 100mW/500mW Frequency 76-108Mhz Home Campus Amplifier Dual Mode |

PLL Stereo FM Transmitter Radio Broadcast Station CZE-05B 100mW/500mW Frequency 76-108Mhz Home Campus Amplifier Dual Mode |

Description

Note:

1. FM Transmitter Frequencies: 76-108Mhz（Customized 70-98MHz，Delivery time takes 7 days longer）. 2. The antenna must be connected before powering on, otherwise there is a danger of burning.

Detailed product parameters:

feature: The CZE-05B FM stereo transmitter can be used in factories, schools, supermarkets, farms, offices or to create your own radio station. *Stereo LCD liquid crystal display, 0.1W and 0.5W power can be switched for use; *The frequency can be set arbitrarily within the range of 76M~108M; *Excellent heat dissipation, stable power and excellent sound quality. technical parameter: 1. The overall size of the host: 11.3×8.8×3.8 (mm) 2. Power supply: 12V DC 3. Working current: <0.5A 4. Frequency range: 76-108Mhz (customized 70-98MHz, delivery time takes more than 7 days) 5. Frequency step: 0.1MHz 6. Frequency stabilization method: phase-locked frequency synthesis 7. Modulation method: FM stereo 8. Frequency deviation: +/- 75KHz 9. Pre-emphasis delay: 50us 10. S / N (stereo):> 40db 11. Stereo separation: -45dB (5000Hz~15000Hz) 12. Frequency response: 40KHz~15KHz±0.2dB (stereo) 13. Distortion: <0.3% 14. Modulation degree: 15% 15. Input level: -15dBV 16. RF output impedance: 50Ω 17. Reference range: 200m—500m

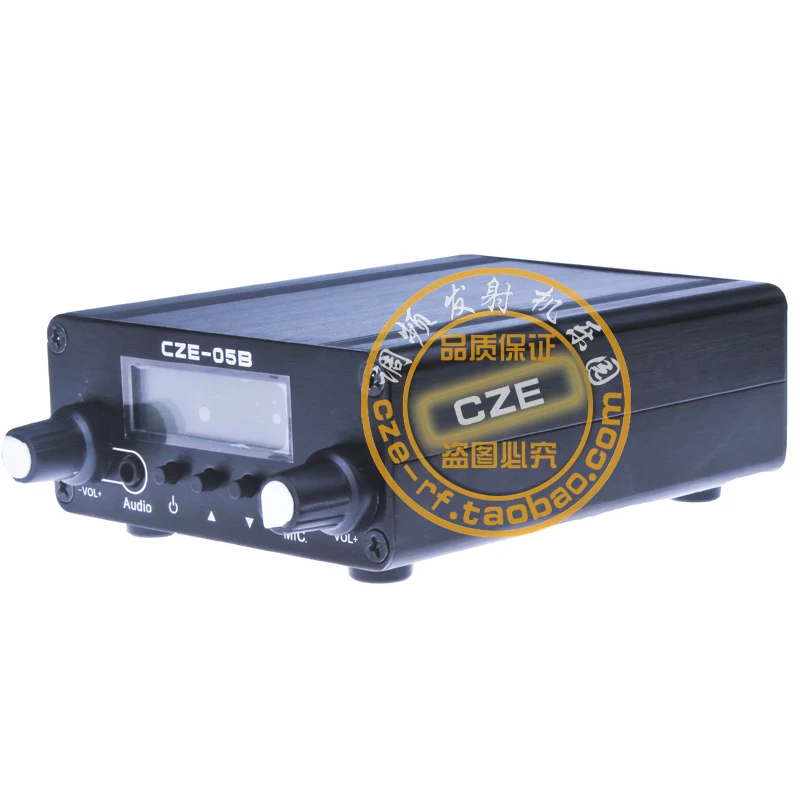

Button and panel description:

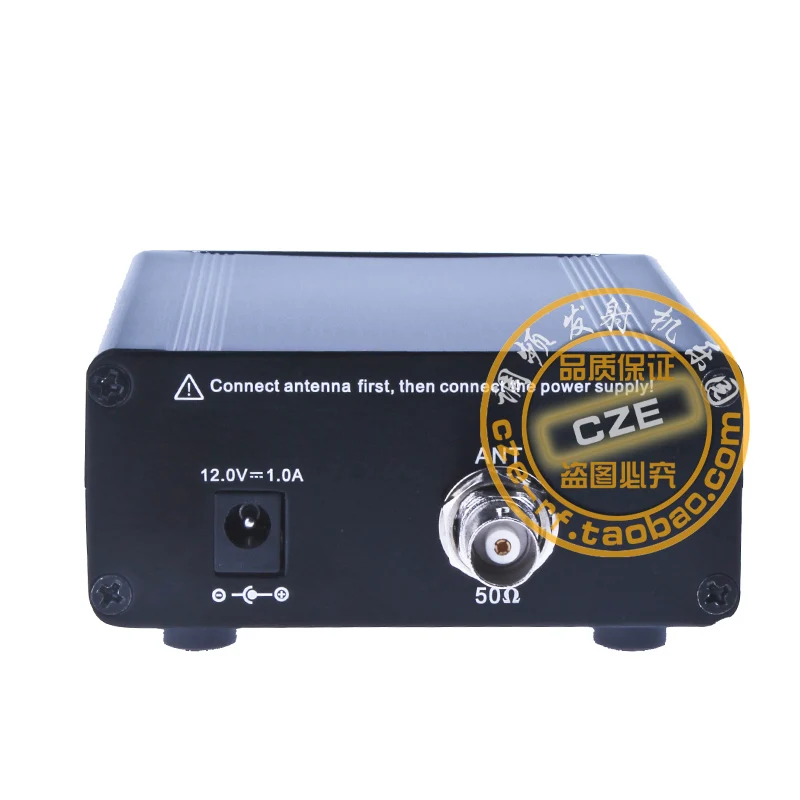

①: Audio volume adjustment ②: Audio input interface ③: Power button ④: Frequency increase ⑤: Frequency reduction ⑥: Microphone jack ⑦: Microphone volume adjustment ⑧: LCD display ⑨: Power interface ⑩: Antenna interface

Transmitter power switch description: H=0.5W, L=0.1W

The power of this machine can be switched between 0.1W/0.5W. First unplug the power supply, press and hold the power button on the left side of the front panel without letting go, then plug in the power supply, release the button switch after 3 seconds, the display shows the letter H, switch between H or L through the +-button on the front panel, and select Then press and hold the switch on the left to confirm, and then enter the frequency range selection, also select the frequency range through the +-buttons, first set the high-end frequency to 108M, then press the switch to confirm, and then enter the low-end frequency and set it to 76M, set After finishing, press the power button again to confirm. When the display shows OFF, it means the setting is completed and it can work normally.

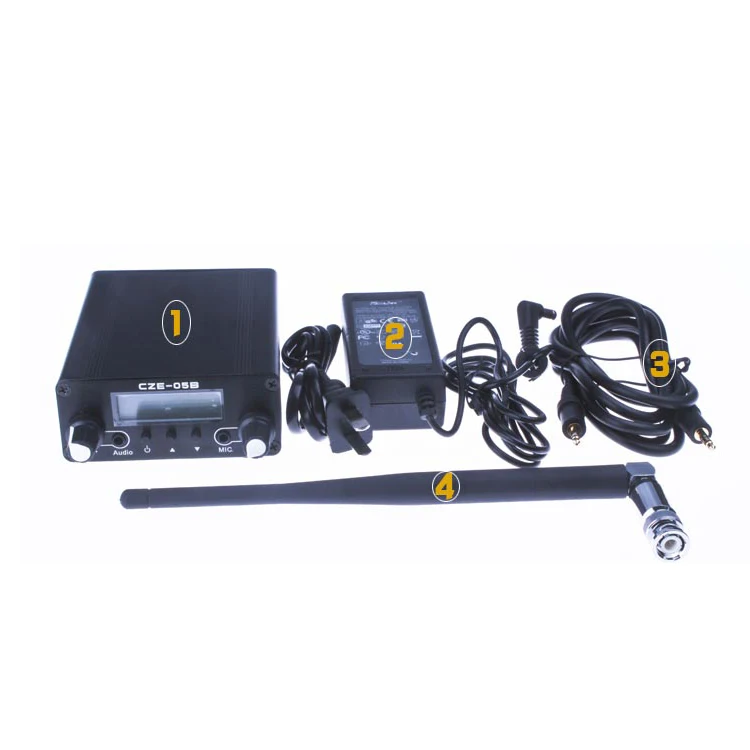

Package included:

If you select "Full set": 1 x Professional NKTECH 100mW/500mW FM Transmitter. 1 x 3.5mm Stereo Audio Interlink Cable. 1 x AC Adaptor (100-240V). 1 x Rubber Antenna. 1 x AC Power Cord. If you select "Host Only": 1 x Professional NKTECH 100mW/500mW FM Transmitter (Not included Accessories).
