Характеристики

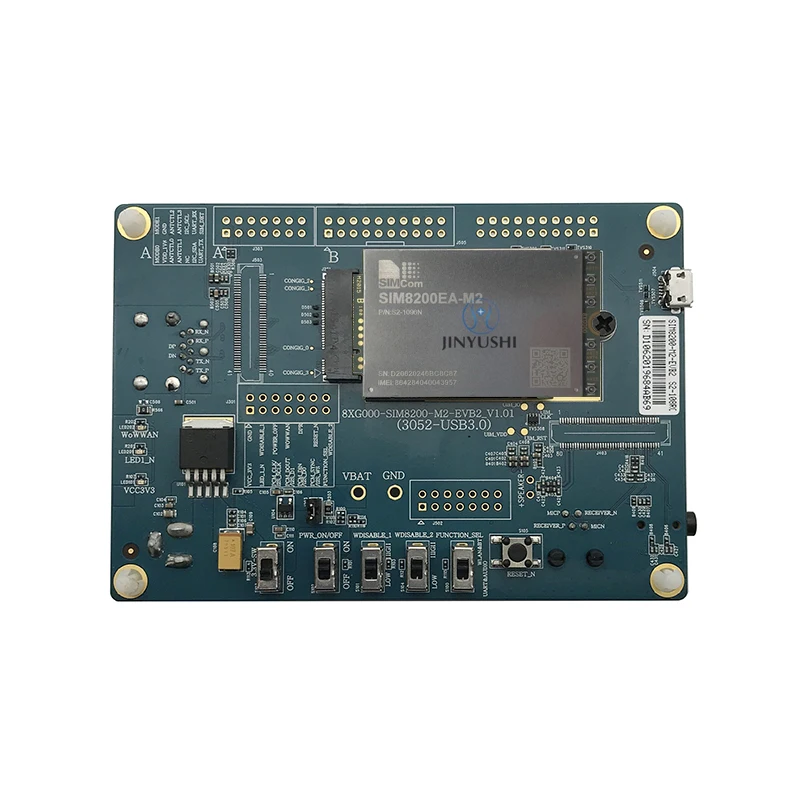

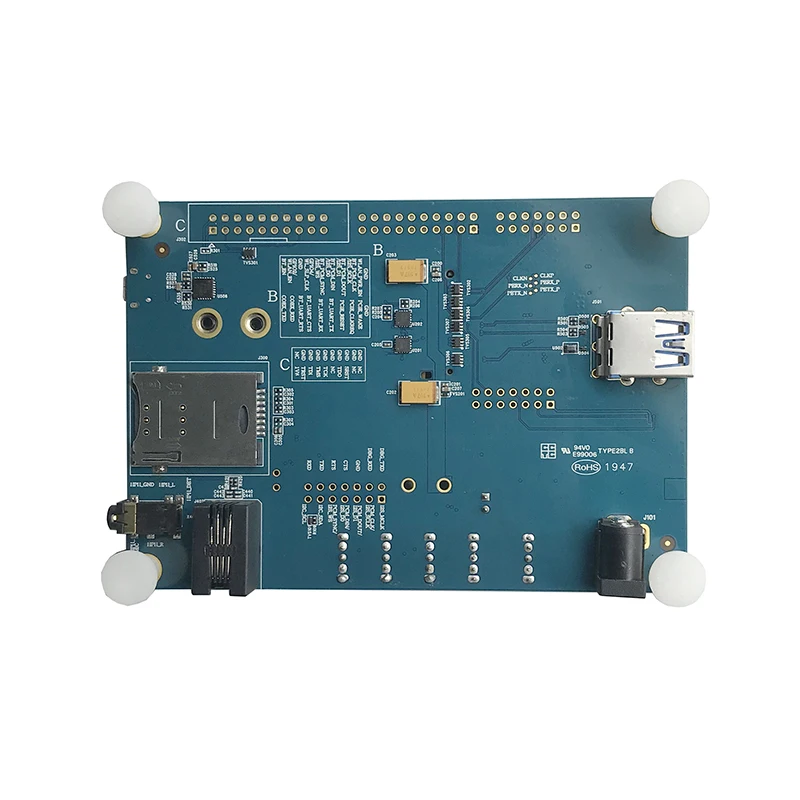

SIMCOM SIM8200EA‐M2 M.2 5G Module EVB Development Board Kit NR/LTE‐FDD/LTE‐TDD/HSPA+ R15 NSA/SA Sub‐6G |
История изменения цены
*Текущая стоимость 9 723,59 - 32 096,78 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-19-2025 | 12348.83 руб. | 12595.14 руб. | 12471.5 руб. |
| Jul-19-2025 | 10015.26 руб. | 10215.44 руб. | 10115 руб. |
| Jun-19-2025 | 12154.67 руб. | 12397.92 руб. | 12275.5 руб. |
| May-19-2025 | 12057.71 руб. | 12298.30 руб. | 12177.5 руб. |
| Apr-19-2025 | 9626.7 руб. | 9819.36 руб. | 9722.5 руб. |
| Mar-19-2025 | 11862.50 руб. | 12099.33 руб. | 11980.5 руб. |
| Feb-19-2025 | 11765.29 руб. | 12000.65 руб. | 11882.5 руб. |
| Jan-19-2025 | 11668.94 руб. | 11901.14 руб. | 11784.5 руб. |
Описание товара
Packing list 1: only evb board (without SIM8200EA-m2)* 1set
Packing list 1: only SIM8200EA-m2(without EVB Board)* 1pcs
Packing list 1: evb board *1set + SIM8200EA-m2* 1pcs
Tips:
We suggest choose an Express like DHL/FedEx due to the 5G module is high value. DHL/FedEx supply the fast and safe service than other registered airmail.
SIM8200EA‐M2
The SIM8200EA‐M2 is Multi‐Band 5G NR/LTE‐FDD/LTE‐TDD/HSPA+ module solution in a M.2 type which supports R15 5g NSA/SA up to 4.0 Gbps data transfer.
It has strong extension capability with rich interfaces including PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application.The package of SIM8200EA‐M2 is M.2. AT commands of SIM8200EA‐M2 are mostly compatible with SIM7912G/SIM7920G Series modules. This also minimize the investments of customers, and enables a short time‐to‐market.It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product advantages
• Standard M.2 interface.• High throughput data communication.• The AT commands of SIM8200EA‐M2 are mostly compatible with SIM7912G/SIM7920G Series modules.Product details
| General Features• Supply voltage range: 3.3V ~ 4.3V, Typ: 3.8V • Control Via AT Commands • Operation temperature: ‐30℃ ~ +70℃ • Dimensions: 30.0*52.0*2.3mm • Weight: TBD • Sub‐6G/LTE‐FDD/LTE‐TDD/WCDMA • GNSS:GPS/GLONASS/BeiDou/Galileo/QZSS | Data• Sub‐6G ‐ Uplink up to 300Mbps ‐ Downlink up to 4 Gbps • LTE CAT22 ‐ Uplink up to 200Mbps ‐ Downlink up to 2.4Gbps • HSPA+ ‐ Uplink up to 5.76Mbps ‐ Downlink up to 42.0Mbps |
| Other Features• USB Driver for Microsoft Windows Win7/Win8/Win10 • USB Driver for Linux /Android • RIL supporting for Android 5.0/6.0/7.0/8.0 • RNDIS /NDIS/PPP/MBIM to Win8 • Firmware update via USB • TCP/IP/IPV4/IPV6/Multi‐PDP/FTPS /HTTPS/MQTTS/DNS • SSL3.0/TLS1.0/TLS1.2 • DTMF (Sending and Receiving) • VoNR/VoLTE/CSFB • FOTA/OTA • AGPS/SUPL2.0Approvals• RoHS Compliant • CCC* • CTA* • SRRC* • REACH* • CE* • FCC* • GCF* | InterfacesUSB2.0 with High speed up to 480Mbps • USB3.1 with SS Gen2 • UART • (U)SIM card (1.8V /3.0V) • Digital Audio through PCM • I2C • GPIOs • PCIe Gen3 • Antenna x 6 |
Frequency
5G NR | n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79 |
LTE-TDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
LTE‐TDD | B34/B38/B39/B40/B41/B42/B43/B48 |
WCDMA | B1/B2/B3/B4/B5/B8 |
1. We can ship to all over the world.Items will be shipped within 1-3 business days after we verify your payment.
2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.
3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express such as DHL UPS FEDEX EMS TNT and so on.
4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don't receive the item within thirty days, please contact us, and then I will help you track it
.
1. Please confirm the receipt of the products after you get them.
2. If you have any question for the products you received, please contact us in time and we will try our best to solve the problems and make you satisfied.
3. Please kindly not forget to give us the positive feedback for 5 star.
