CCTV Camera 11-core Video Cable DC Input + BNC output OSD Menu Button For Camera(6pin 1.25mm 3pin 1.5mm 2pin 2.0mm) | Безопасность и

CCTV Camera 11-core Video Cable DC Input + BNC output OSD Menu Button For Camera(6pin 1.25mm 3pin 1.5mm 2pin 2.0mm) | Безопасность и

1.Packing list:

1PCS * 11 core OSD Menu Cable 1PCS* 3PIN video / power connector port size 1.5mm, 1PCS*2PIN IR power port size 2.0mm, 1PCS*6PIN OSD port size 1.25mm

2.Product description

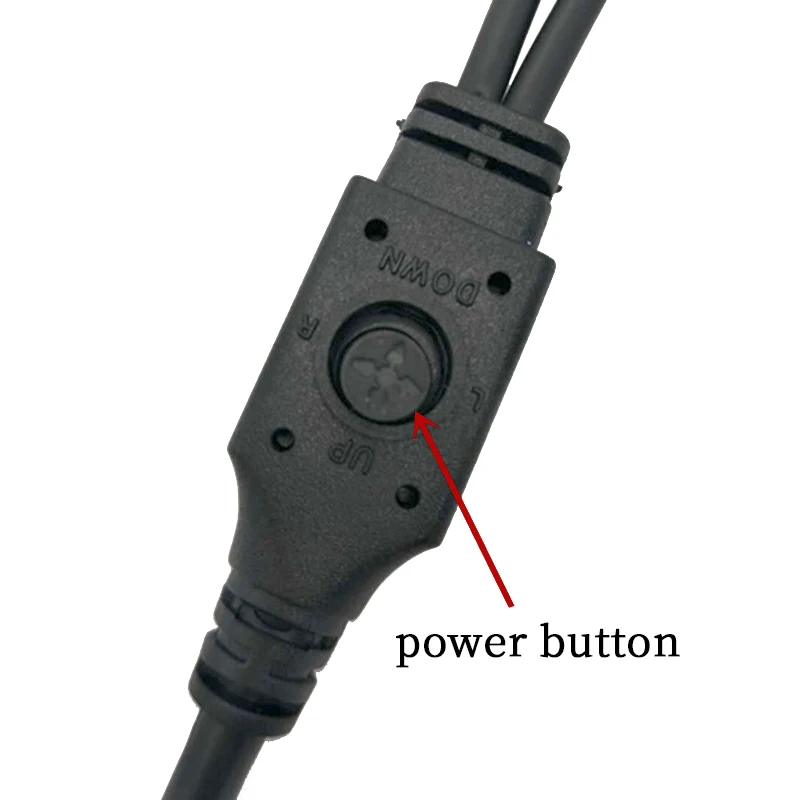

2 PIN---2.0mm Red: + 12V Black: GND 3 PIN---1.5mm Red: + 12V Black: GND Yellow: Video output 6 PIN---1.25mm Orange: DOWN Green: RIGHT White: LEFT Gray: UP Purple: MENU Brown: GND ------------------------------------------------------------------------------ 6PINs for Up / Right / Down / Enter / Left / GND, compatible for all camera boards that with OSD control By default will send the most common type 3PIN video / power connector port size 1.5mm, 2PIN IR power port size 2.0mm, 6PIN OSD port size 1.25mm 3PIN video / power connector port size 1.25mm available,please message on the order ------------------------------------------------------------------------------ Please note: 1 pcs 2pin port (2.0mm), 1 pcs 3pin port (1.5mm), 1 pcs 6pin port (1.25mm) and cable are separate,Please according to their own needs,Arrange the cable sequence. ( The connection port of the camera module will be different for different manufacturer's connection order. Please sort the cable port order according to the port description of the camera module. )

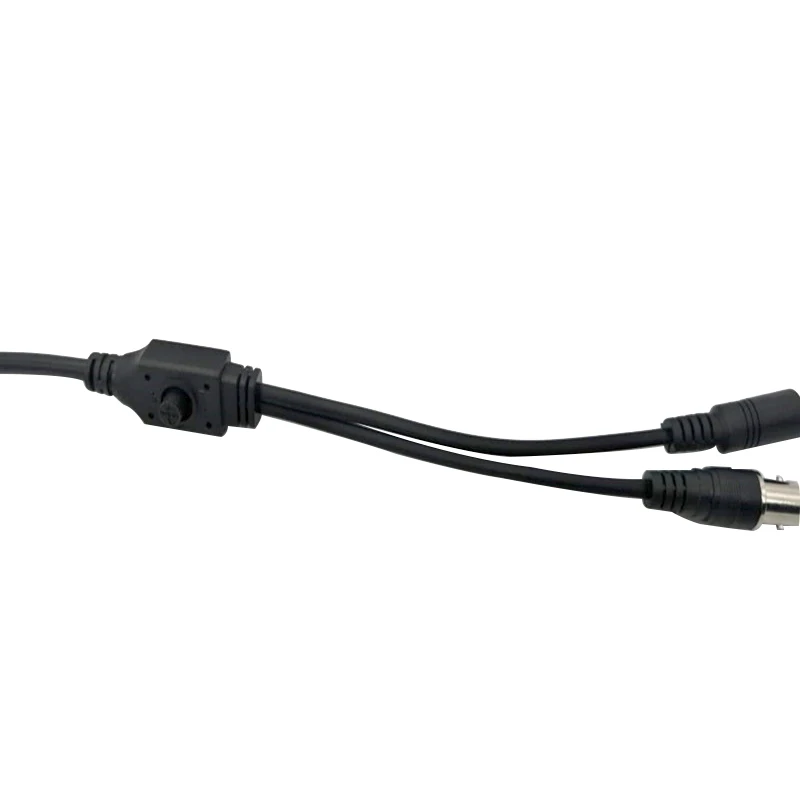

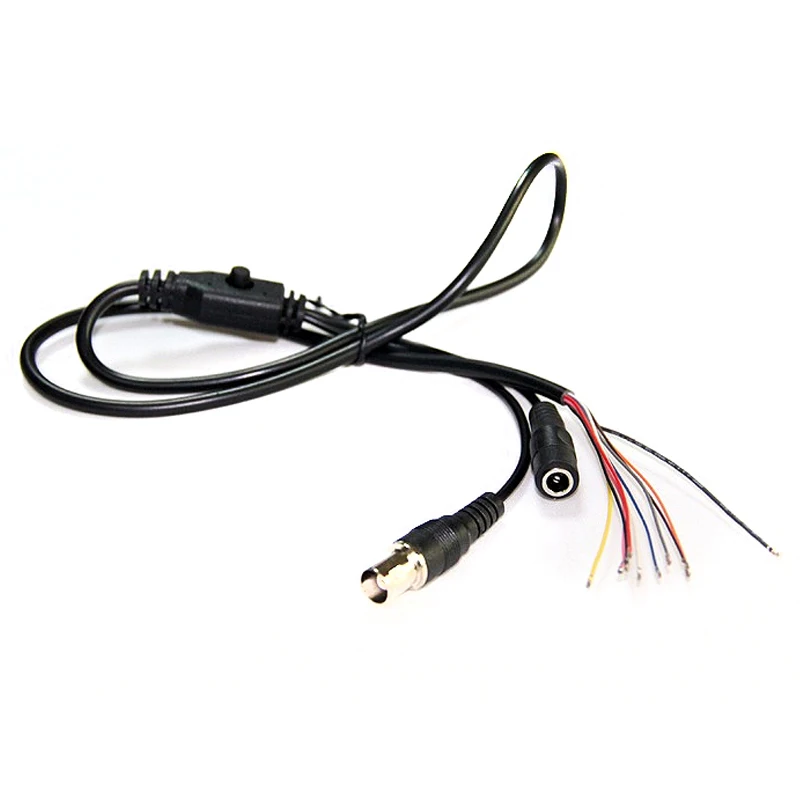

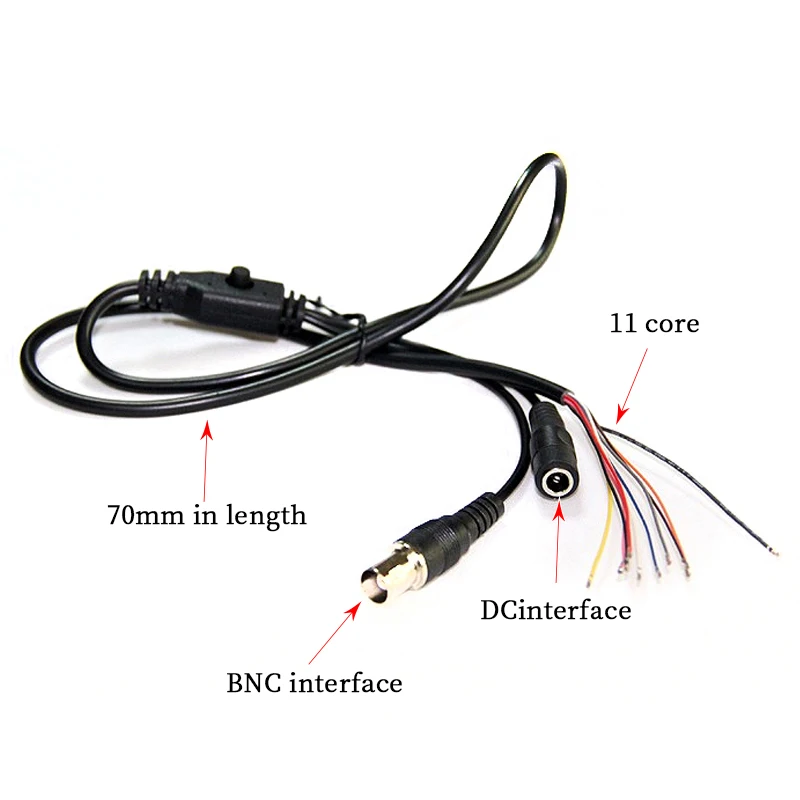

3.Product Image

4.To Buyer:

(1) We will send the items as soon as possible once your payment is completed.Generally,within 1-7 days. (2) We ship products to the address that mentioned at aliexpress. (3) Ship by Postal Air Mail usually not provide door to door services, have to pickup the parcel at your local postal office. (4) If ordered products not reach you above 35 days, please be patient contact us, we will implement priority international tracking. (5) Urgent needs of the products, please consider DHL / EMS express. (6) Buyer may need to pay extra for the goods import to their country (if have, such as custom clearance fees, import TAX etc). (7) Not provide invoice, description & value direct print on label outside the package. Warranty : (1) We provide 7 day (date upon receiving) testing period for all of our products, if un-satisfy of the product, please return it with original state (product / item / package / accessories etc.) within 30 days, we full refund you total amount of the order, but buyer have to pay the return shipping fees. We NOT ACCEPT keep the product but request full or partial refund. (2) We provide ONE YEAR warranty of the selling products (date upon receiving), including repair / replacement / maintenance etc. Please be noted that if the damage of the product is cause by un-proper usage, we have to charge buyer for components cost (if has), repairing fee is free during 12 months. During warranty period, buyer have to pay all transportantion fees (including return / send back / import TAX / export TAX etc). *** IF DON'T AGREE OUR WARRANTY, STOP to place order please *** Products Live Long Services : (1) Thank you very much for your ordered, we are highly appreciate for you could give us 5 star positive feekback, this will encorage us to do more to server you on using the products on it's live longer! (2) We deeply understand your feeling, if has problem on using our products, please contact us before dispute, we would like to provide more details and our best service for you. (3) When you receive our product, and you satisfied with it, please give us positive feedback and all five stars DSR appraisal will to encourage us to provide better service for you in near future. Your encouragement is very important to us and is highly appreciated to your feedback! If you have any problem, please contact us freely, we will do our best to serve our customers the best that we can. Thank you very much for visiting. Come back often & you will always find something new & innovative here.
