Описание товара
Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

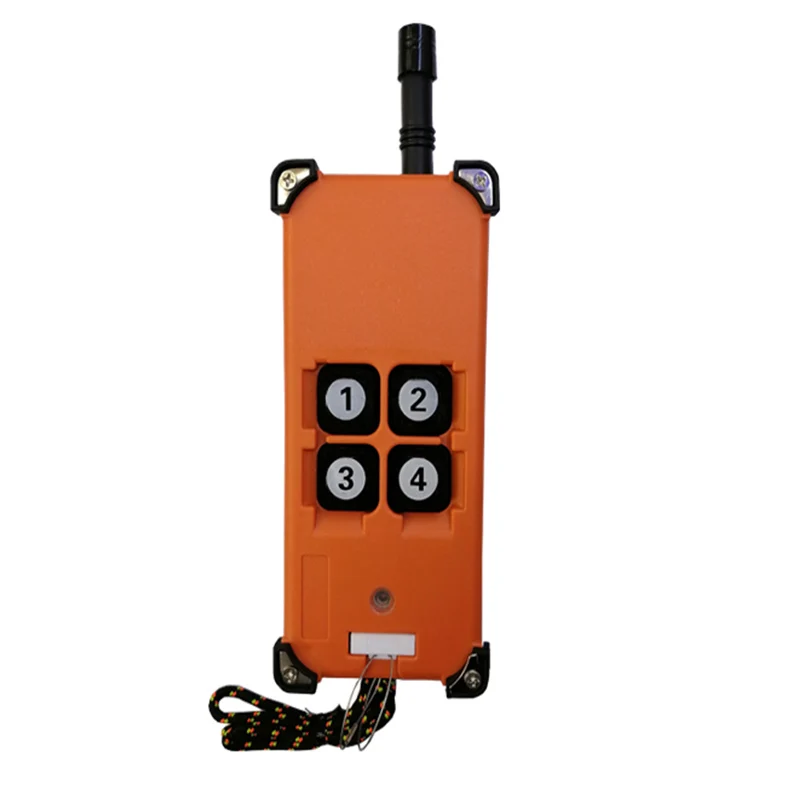

1.TransmitterChannel:4CHRemote Control Distance:0-3000m( Ideal Distance WITHOUT Any Block and Signal Interfere,Could Rise or Fall 10%-90% in Real Situation )Encode:fixed code2264
Frequency:315MHZ/433MHZ
Size:70*158*38m
Power Supply:DC6V(4 section 5 batteryNote that the batteries do not match)

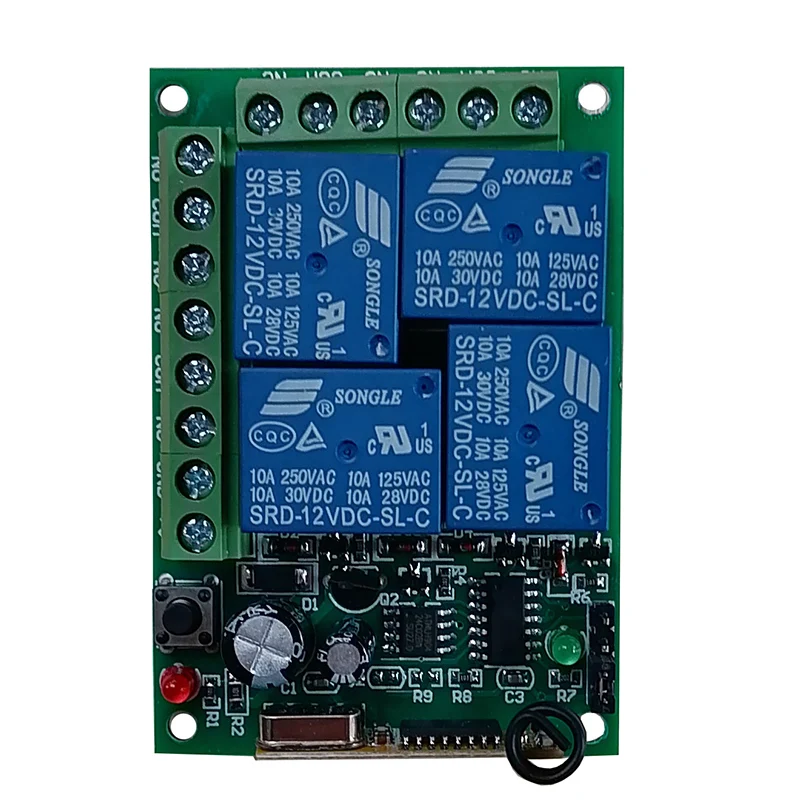

2.Receiver
1.Working Voltage: DC12V/24V ±10%
2.Current:Standby less than 10mA,Working less than 128mA
3.Working Temperature: -10'C—+60'C
4.Receiver Frequency: 315MHz/433.92MHZ
5.Receiving Sensitivity: -105dB
6.Output State: Switching Value
7.Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A
8.Receiver Board Size:70*50*18mm
9.Case Size:75 * 55 * 30mm
Encoding Type: Learning Code
Add transmitter by the Learning Button on the receiver
1.Control ModeOutput State: It is adjusted by the Jumper on the Receiver Board,
Momentary-----Jumper on "1&2"
Toggle--------Jumper on "3&4"
Latched-------Jumper on 1 Pin or Take away the Jumper
1)Toggle/Self-Lock: Press->On;Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On;Press other button->Off
press one button is working/ON ,press another button is stop/OFF .( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On;Release->Off
Keep pressing one button is working /ON.loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
(Original Setting is Momentary , Change it by yourself.)
Learning Method:
Input DC12V/24V Power for the receiver,press the learning button ,Green LED indicator OFF,Then press transmitter ,the LED indicator flash fast,It mean learning successfully.
Clearing Code:
Keeping press the learning button 8 seconds until the LED indicator ON, It mean the code have been cleared successfully.
pacote inclued:
A:
1x Transmitter
B:

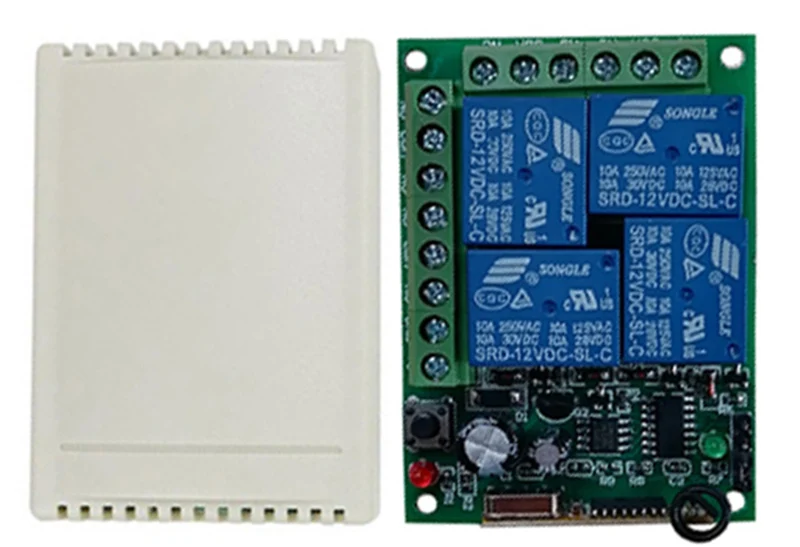

1x Receiver(with cover)
C:

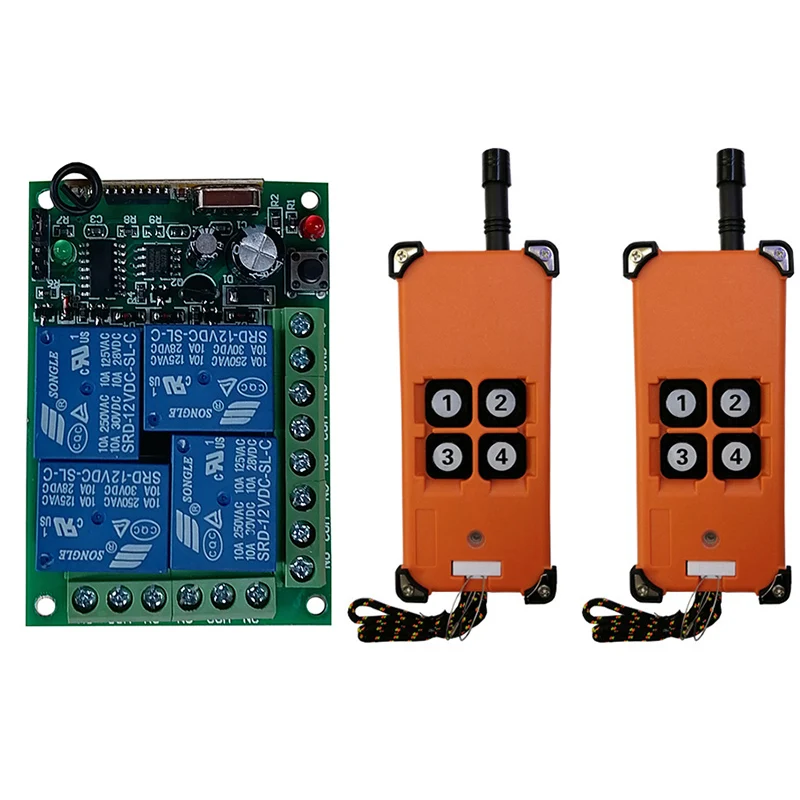

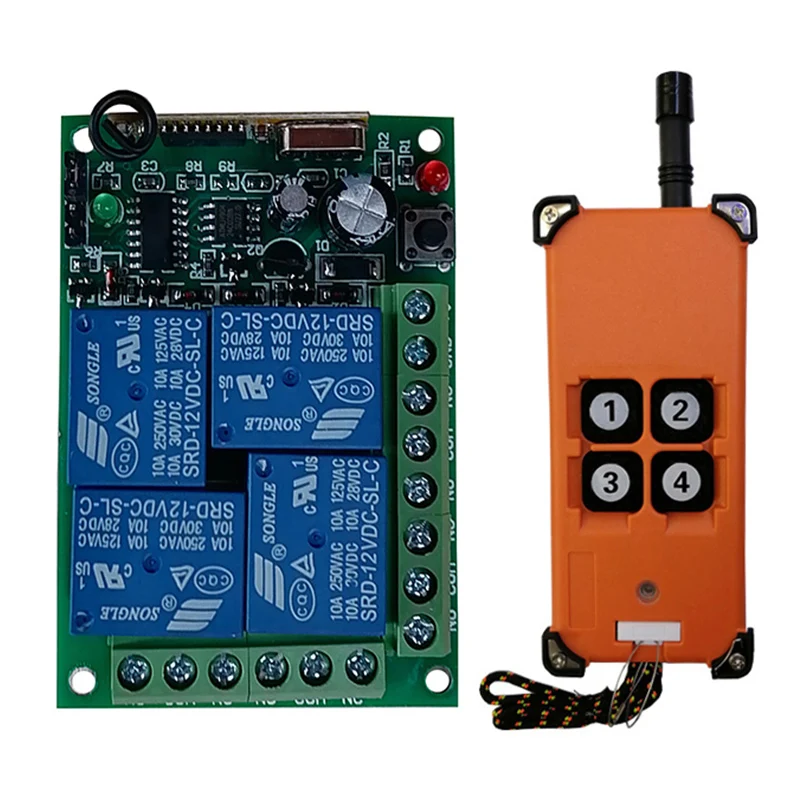

1 x Receiver(with cover)1x TransmitterD:1x Receiver(with cover)2x TransmitterСмотрите так же другие товары:
