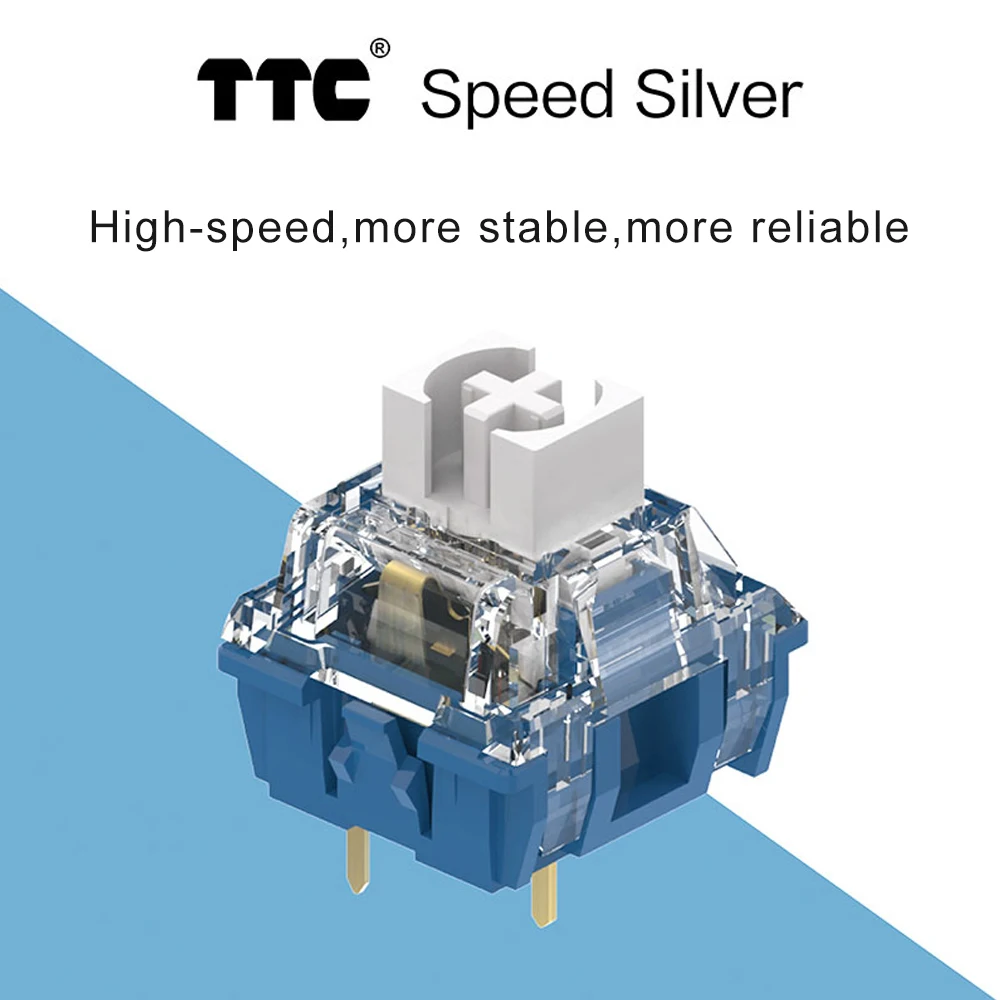

TTC Speed Silver Switch for Customize Mechanical Keyboard Linear Axis 45g 3pins Stable Dust-proof Prevent Accident Click Double Spring

TTC Speed Silver Switch can be triggered faster by shortening the conduction stroke.
TTC speed silver switch improve switch accuracy and initial pressing force by double long spring structure design . It prevent accidental touch and rapid rebound effectively .
TTC speed silver switch, the structure of the axis and switch body are matched. Whether switch is in a free state or triggering the working state, the switch coordination is always as stable as a rock by TTC double-sided dust-proof wall patented technology .

1,FASTER

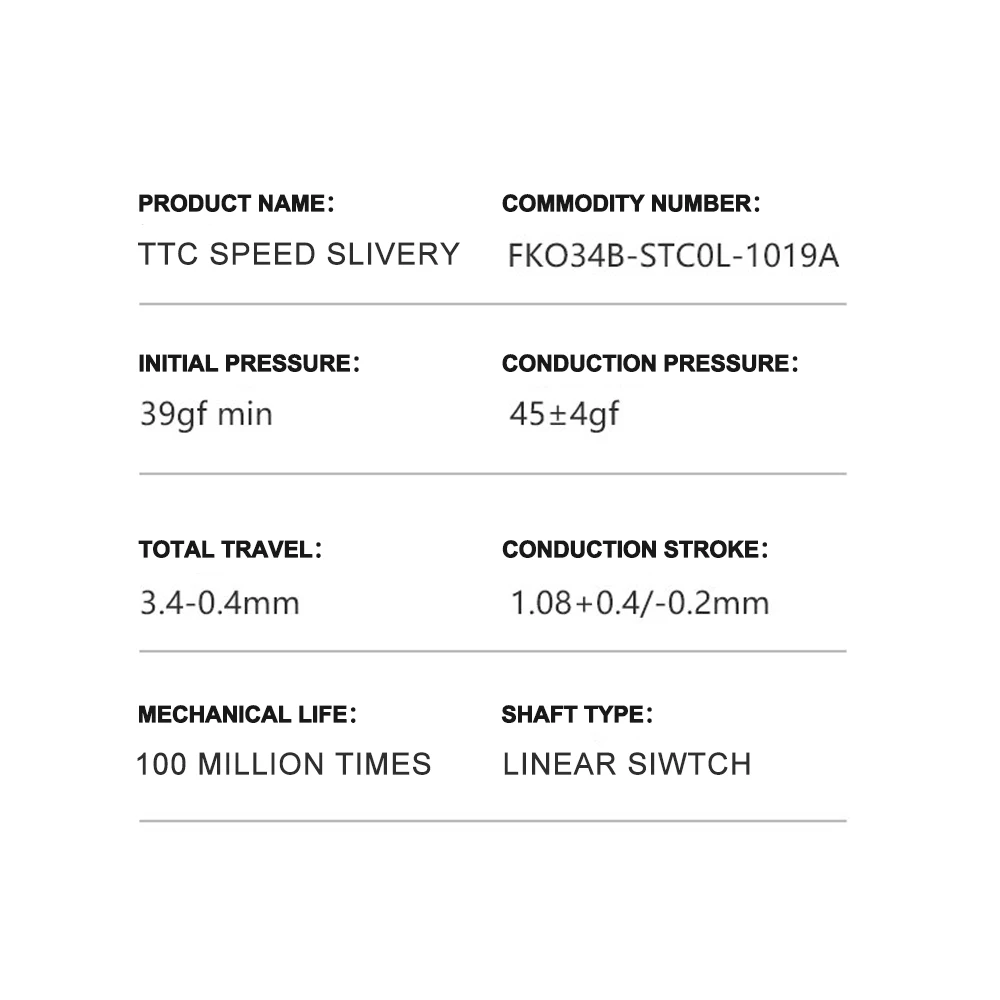

TTC speed silver switch conduction stroke (conduction value) is designed to be 1.08+0.4/-0.2mm, which is 46% faster than the standard mechanical switch 2.0mm and 10% faster than the traditional silver switch 1.2mm.

2,More stable

TTC speed silver witch adopts the TTC double-sided dust-proof wall patented technology (CN201620103314.9) structure, not only in free state ,but also the trigger state, it is always as stable as a rock.

3, More reliable

1) Increase initial pressure

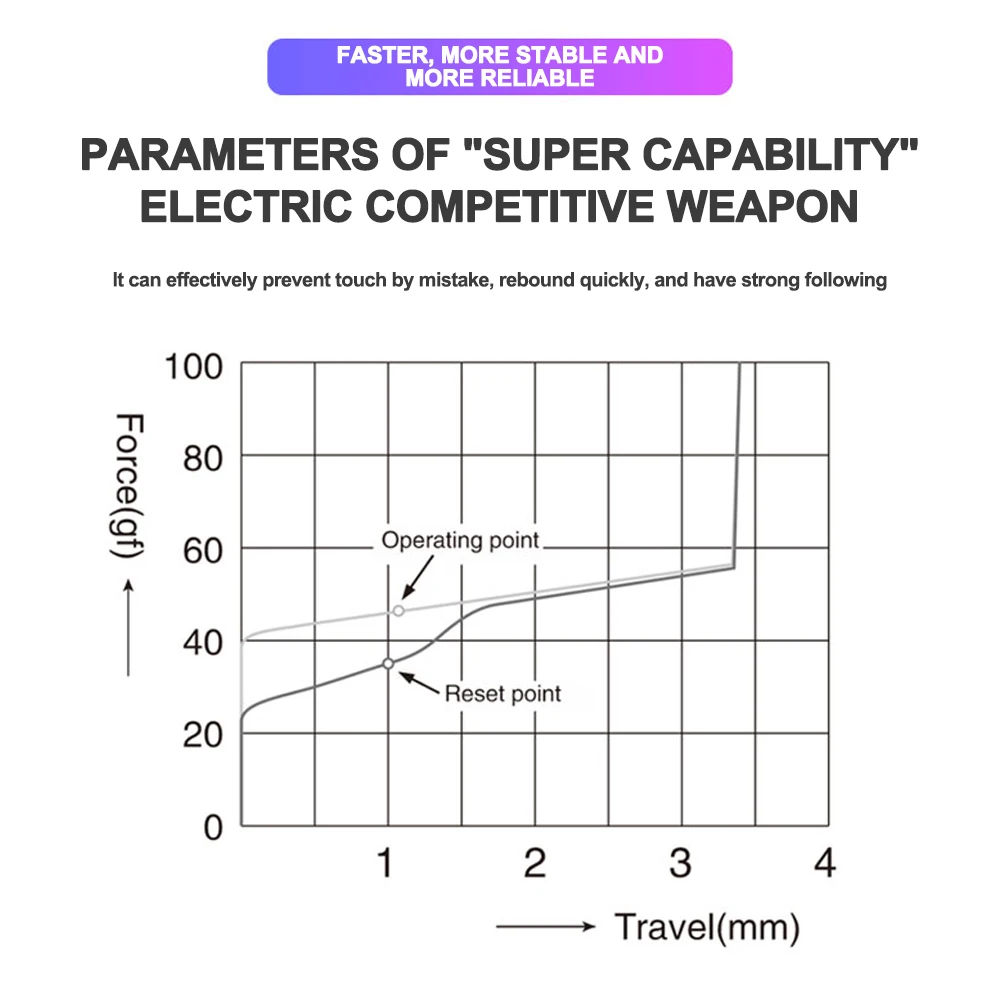

The initial pressure is the minimum critical point pressure for the switch to start the working chamber. If the critical point is too low, light pressure and false touches are inevitable. For this reason, TTC increase the minimum pressure of the starting critical point to 39GF from the traditional silver switch 30GF,which greatly reduces the risk of false touches, and the effect is very significant.

2) Increase the lower limit of conduction force
By adopting the TTC-featured double long spring structure design, the accuracy of spring force is improved, and the rebound is reduced under the condition of optimizing the rebound.
Pressure tolerance, the lower limit of the traditional silver switch conduction pressure is increased from 30GF (45+-15GF) to 41GF (45+-4GF), an increase of 36%.Thereby, the chance of false touch caused by the light touch of the finger is greatly reduced, and the effect is immediate.

3) Increase the lower limit of conduction stroke
In order to further reduce the probability of false touches, TTC increased the theoretical lower limit conduction stroke to 0.88MM(1.08+0.4/-0.2MM) from from traditional silver switch 0.8MM(1.2+-0.4MM) ,Increase the range by 10%.Thereby reducing the probability of light touch by false .

4) Strictly prevent infiltration
Because there is a gap between the metal terminal and the housing, switch and PCB are wave soldered, if the control is not good, the rosin and rosin vapor may enter the switch from the gap. If it is stuck to the position of the gold contact on switch , will occure poor contact .
In order to prevent the vapor from penetrating into the switch when passing through the tin furnace, TTC pioneered the use of glue-added anti-permeation process with the shaft conductive foot and the base to ensure that the shaft is 100% reliable and safe.

5) Military standard control is stable and reliable
TTC speed silver switch strictly follows the main performance characteristics of the national military standard (GJB/Z 63-94) 5.9 keyboard switches.Strictly control according to the manufacturing requirements of military products, tempered and strive for perfection, to ensure that each TTC speed silver switch 100% stable and reliable.
