FMUSER 1KW Radio broadcast FM Transmitter + dipole antenna+35M feeder cable with connecoters | & TV Broadcasting Equipment
История изменения цены
*Текущая стоимость 544328.4 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 647750.39 руб. | 680138.66 руб. | 663944 руб. |
| Aug-16-2025 | 642307.48 руб. | 674422.96 руб. | 658364.5 руб. |
| Jul-16-2025 | 538885.4 руб. | 565829.30 руб. | 552357 руб. |
| Jun-16-2025 | 631420.24 руб. | 662991.29 руб. | 647205.5 руб. |
| May-16-2025 | 549771.38 руб. | 577260.30 руб. | 563515.5 руб. |
| Apr-16-2025 | 620534.37 руб. | 651561.5 руб. | 636047.5 руб. |
| Mar-16-2025 | 615091.88 руб. | 645846.85 руб. | 630468.5 руб. |
| Feb-16-2025 | 609647.12 руб. | 640129.2 руб. | 624888 руб. |
| Jan-16-2025 | 604204.7 руб. | 634414.80 руб. | 619309 руб. |
Описание товара
Brand NamefmuserOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1544 328,40 ₽544 328,40 ₽loader
Description

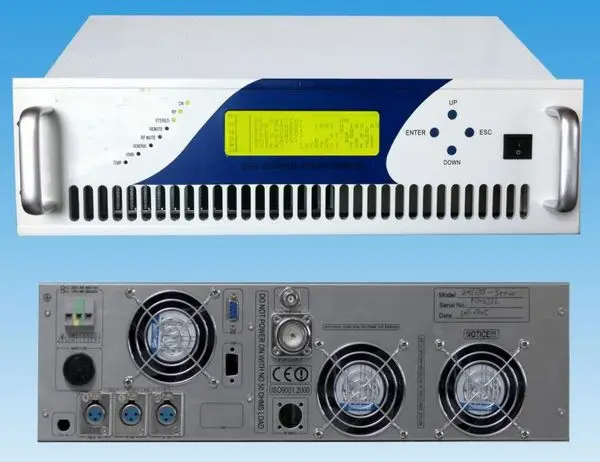

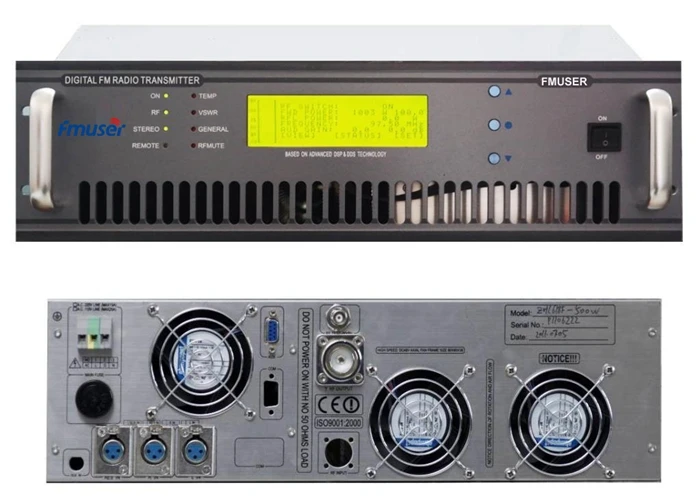

1KW FM Transmitter 3U
The FMUSER1kw fm transmitterimplements digital FM modulator module as its core,combining with RF power amplifier.In the1kw fm transmitter,DSP&DDS are used to execute all-digital processing,such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
High performance and very good reliability has been proved by the large usage of1000W FM transmitter.Also it is low cost and small size.
Features:
1. Hearing Similar to CD
2. All-digital technologies DSP+DDS
3.Built-in audio signal limiter
4.Analog and digital(AES/EBU)audio signal input directly
5.AGC circuit to keep the Output Power stability
6.Big LCD display all the parameters in real time
7.Communication Interface by RS232 for remote
8.Five kinds of protections for the security
9.Stainless steel cabinet
10.Easy to upgrade to synchronized transmitter
11.Compact structure
Diagram
Technical Specifications：
1. Frequency Range: 87.0MHz～108 MHz
2. Frequency Setting step： 10KHz
3. Carrier Frequency precision： ±200Hz
4. Residual Wave Radiation： ≥65dBc
5. Audio Input Impedance： 600Ω,Balance
6. Separation: 60dB
7. Audio Input Level： ±10dBm，step 0.01dB
8. S/N: ≥75dB(10H～15kHz,100%)
9. Audio Harmonic Distortion： <0.05%
10.Audio response: ±0.05dB(10Hz～15KHz)
11.Output Load Impedance： 50Ω
12.Output Power： 500W,1000W,1KW
13.Pre-emphasis： 0μS，50μS，75μS
14.Deviation: ±75kHz
15.Pilot Frequency: 19 kHz±1Hz
Pilot Signal Modulation: 8%～10%
16.Sub-carrier Suppression： ≥65dB
17.RF Output connector: 7/16'(female)/7/8'Flange
18.Size: 605mm×484mm×133mm
19.Weight: 36KG

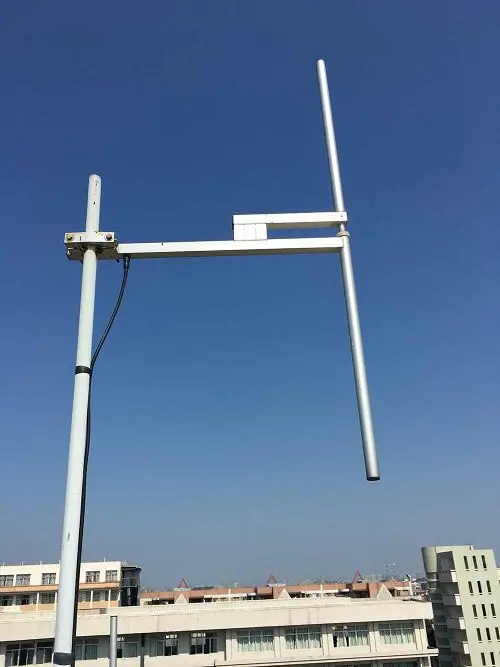

FM Dipole Antenna DP-200 Series for 50w-1kw
Band II dipole Broadband
87.5÷108 MHz 1.5 dBd gain
Vertical Polarization
Omni directional pattern
Stainless steel AISI 304
Specifications:
ELECTRICAL DATA ： | MECHANICAL DATA ： | ||
Item: | FM-DV1（HP） | Shape size （mm） | 1360×1060×60 |
Impedance: | 50Ω | Weight | 9kg |
Frequency range : | 87-108MHz | Maximum wind speed | 225km/h |
Gain | 1.5dBd | Wind load | 32kg.150Km/h |
VSWR | <1.10 | Mast diameter | φ50-100mm |
Polarization | Vertical polarization | Material | External parts:stainless steel |
Voltage standing wave ratio | <1.25(Full-bandwidth) | Internal parts:passivated aluminium | |
Rated input power | <1.10(Designated frequency) | Internal parts:：Copper | |
Matrix | The antenna is especially suitable for array | Fixture: Hot-dip zinc Steel | |
Input interface | IF45/70/110-50K | ||
If you have any question ,Please feel free to tell me :sky@cantonmade.com
<-------------------------- PHOTO-------------------------->
| Bay | Face | Gain | Weight | Height L | Wind Load (v=160 km/ h) | Linear Array | ||||
| dB | Multiples | kg | m | kg | 1 K W | 3 K W | 5 K W | 1 0 K W | ||
| 1 | 1 | 1.5 | 1.4 | 9 | 1.4 | 10.1 | F M -D V 1 X 1 1 | |||
| 2 | 1 | 4.5 | 2.8 | 18 | 3.7 | 20.2 | F M -D V 1 X 2 1 | F M -D V 1 X 2 3 | ||
| 3 | 1 | 6.3 | 4.2 | 27 | 6.0 | 30.3 | F M -D V 1 X 3 1 | F M -D V 1 X 3 3 | F M -D V 1 X 3 5 | |
| 4 | 1 | 7.5 | 5.6 | 36 | 8.3 | 40.4 | F M -D V 1 X 4 1 | F M -D V 1 X 4 3 | F M -D V 1 X 4 5 | F M -D V 1 X 4 1 0 |
| 6 | 1 | 9.3 | 8.4 | 54 | 12.9 | 60.6 | F M -D V 1 X 6 1 | F M -D V 1 X 6 3 | F M -D V 1 X 6 5 | F M -D V 1 X 6 1 0 |
| 8 | 1 | 10.5 | 11.3 | 72 | 17.5 | 80.8 | F M -D V 1 X 8 1 | F M -D V 1 X 8 3 | F M -D V 1 X 8 5 | F M -D V 1 X 8 |
The package include :
1pc 1000W FM Transmitter ( power supply already include inside )
1pc 1KW High gain dipole antenna

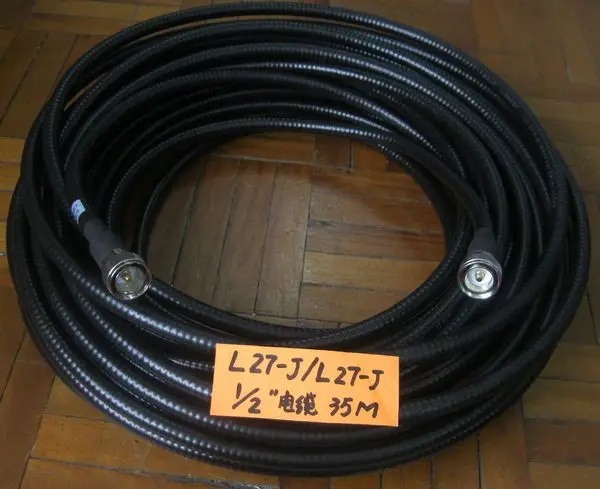

1pc 35Meters feeder cable with connector
