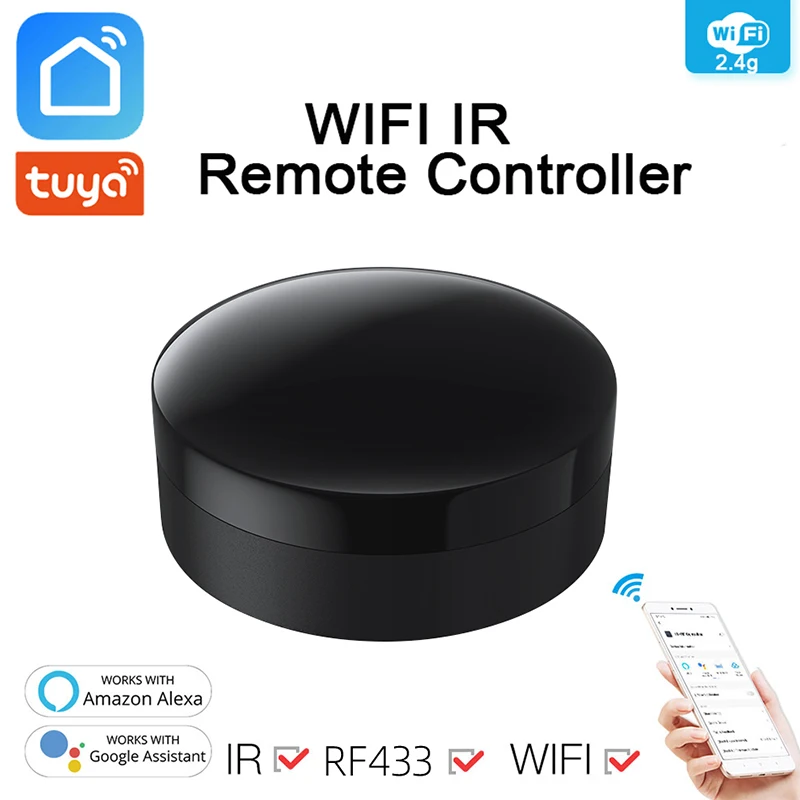

Product Overview

Type 1 support IR38Khz,RF433Mhz
Type 2 support IR38Khz

Overview

The universal remote controller can be used to control the IR and RF433 electrical appliances by learning IR38KHz or RF433MHz frequency of your original remote controller.

Feacture

【Learning IR Frequency】
The WIFI remote controller can learn IR 38KHz Frequency of your original remote controller to turn on/off your TV, air conditioner, set-top box and projector by your mobile phone.
【Learning RF433 Frequency】
The device can learn RF433MHz Frequency of your original remote controller to control the electrical appliances that support RF433 Control.
Such as RF433 Lamp,RF433 lights,RF433 fans,RF433 Electrical Curtain.
【Simple Operation】
No Hub Need,No need to make the wiring.Easy to add the device in APP and learn IR IR38KHz or RF433MHz frequency of your original remote controller to control your home apppliances.

Note

1.The universal remote controller can learn fixed code RF433 remote controller,and it can't learn rolling code RF433 remote controller.
In the end of the page,there have some test ways,you can follow the step to check whether your RF433 remote controlller is fixed code RF433 remote controller.

2.You can choose "DIY" in the APP page to learn your IR and RF433 remote controller

Different Way to Control the WIFI Unversal Remote Controller

【APP Control】
You can control the IR+RF433 home appliances in Tuya/Smart life APP. Supports iOS 8.0 and above & Android 4.0 and above smart phones.
【Voice Control】
Works with Alexa and Google Home Assistant.
Just give a voice command to control your IR home appliances,such as TV, air conditioner,no need to activate the appliances manually.
(RF Control Device don't support)
【Mobile Phone Control】
When you go outside or at home,you could control the device in your smart phone by 2.4Ghz WIFI or 2G/3G/4G Mobile Network.
(Note:The router need to online and the Universal remote controller need to online in app and keep a close distance with the router )
【Share Control】
One device can be controlled by Multiple phones,you can share the universal remote controller with your family member.

New Arrival(Other Recommand)

Product Description

Learn IR and RF Frenquency

The Universal Remote Controller can learn IR and RF Frenquency of your original remote controller.

RF Frenquency:433MHz

IR Frenquency: 38KHZ

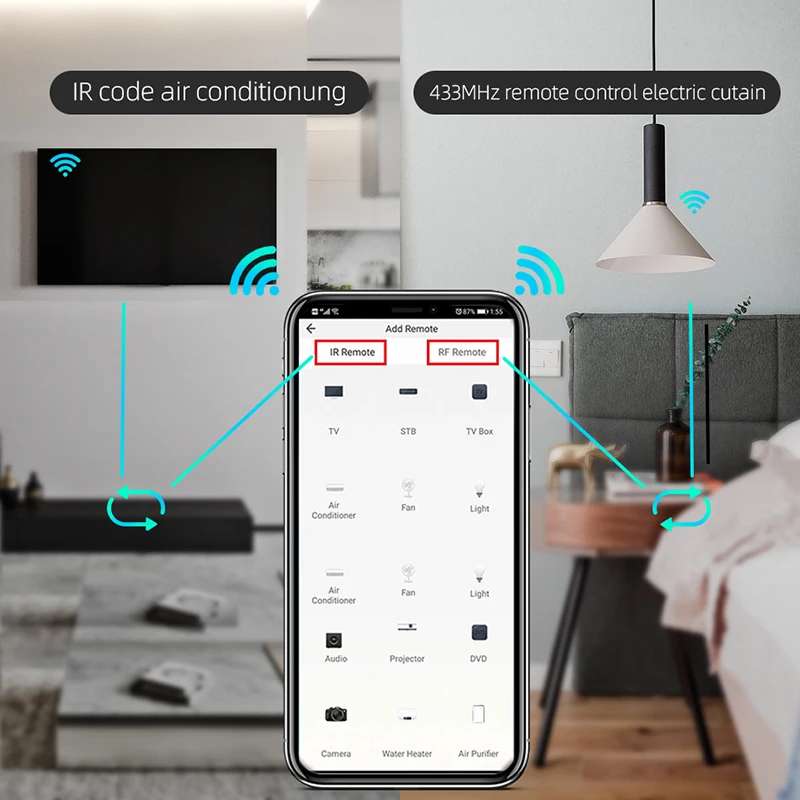

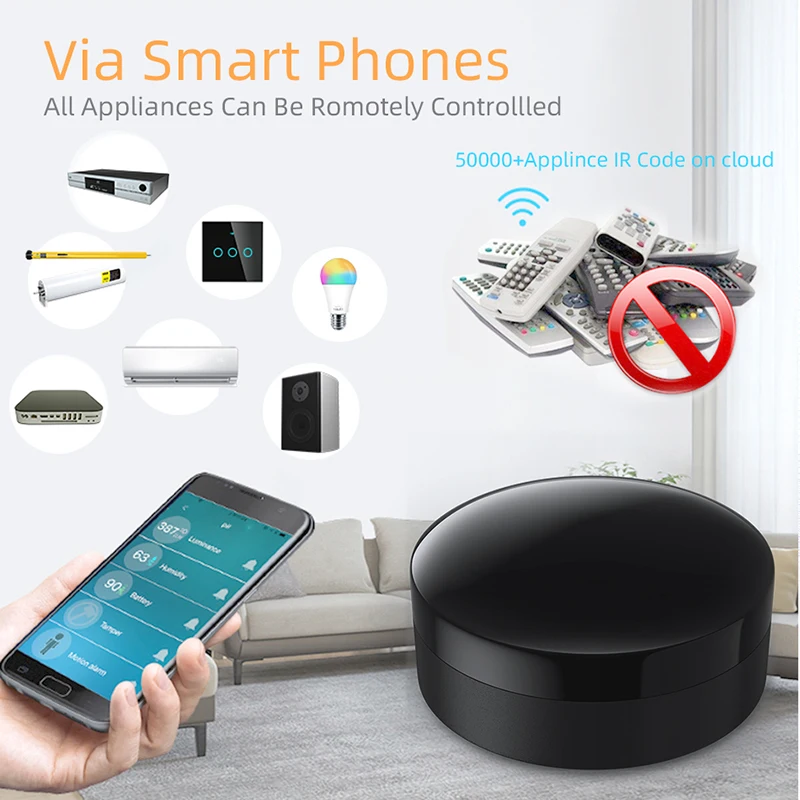

Make All IR and RF Remote Controllers work in Mobile Phone

All RF appliances and IR appliances can be remote control via smart phone.

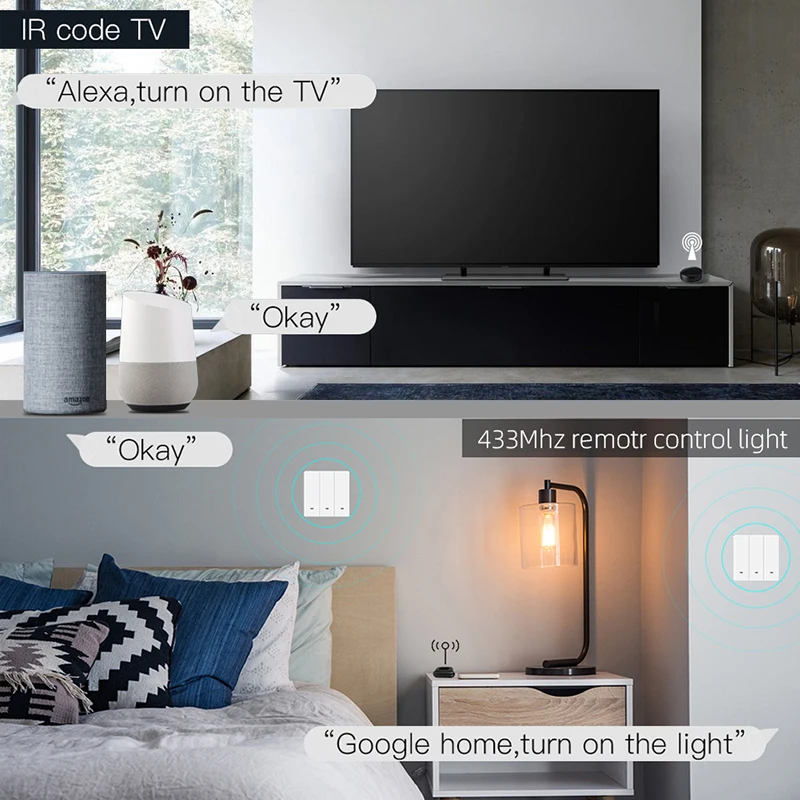

Hands-free Voice Control

Work with Alexa and Google Assistant
set Air Condictioner(A/C) to 77 degrees Fahrenheit.
A simple voice command can activate the controller to remotely control most Infrared and Control Devices,such as Air Condictioner,,TV, DVD, STB, TV BOX.
RF433 protocol devices don't support voice control..

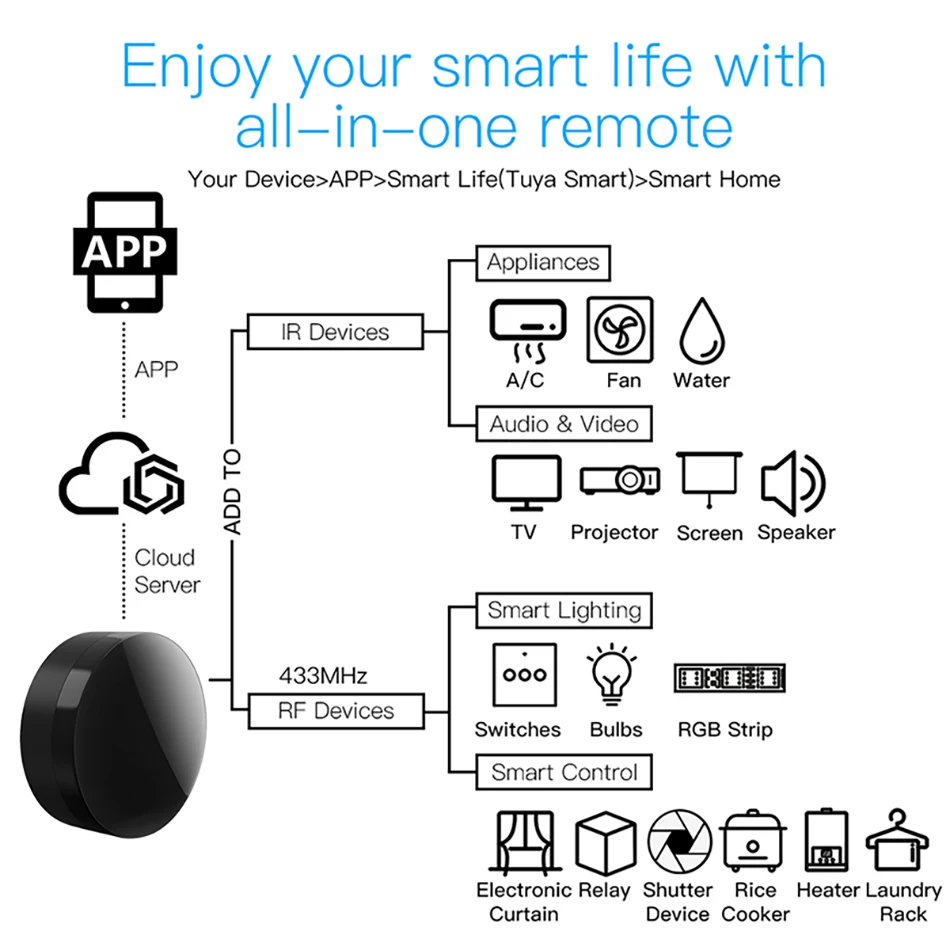

All-In-One Remote

By one IR+RF remote controller, you could remote control the IR and RF home appliances in your cell phone.

2G/3G/4G Mobile Network Control

When you go outside or at home,you can turn on/off your air conditioner in your mobile phone by 2.4Ghz WIFI or 2G/3G/4G Mobile Network

Remotely Turn on/off IR(Infraed) and RF433 devices.

All-in-one IR and RF remote controller can remotely turn on/off Air conditioners, TVs, fans, DVDs, STBs, TV BOXes etc Infraed devices. And turn on/off RF appliances ,such as RF light,RF switch, RF roller blinds etc.

Sharing Control

The device can be controlled by multiple eWeLink accounts.You can share the device to your family member.

Note

The universal remote controller can learn the frenquency of fixed code RF433mhz remote controller as follow:
The Frequency should be RF433 Frequency.
The type of the chip(IC) of the remote controller is as follow:
PT2240,PT2260,PT2262,PT2264
HS1527,HS527,HS2240,HS2260,HS2262,HS2264 EV1527,EV527
SC2240,SC2262,SC1527,SC527
HT6P20D,HT6P20B

Note

The device can't learn the frenquency of the rolling code remote control,the tpye of the chip begin with HCS,such as HCS200,HCS201,HCS300,HCS301

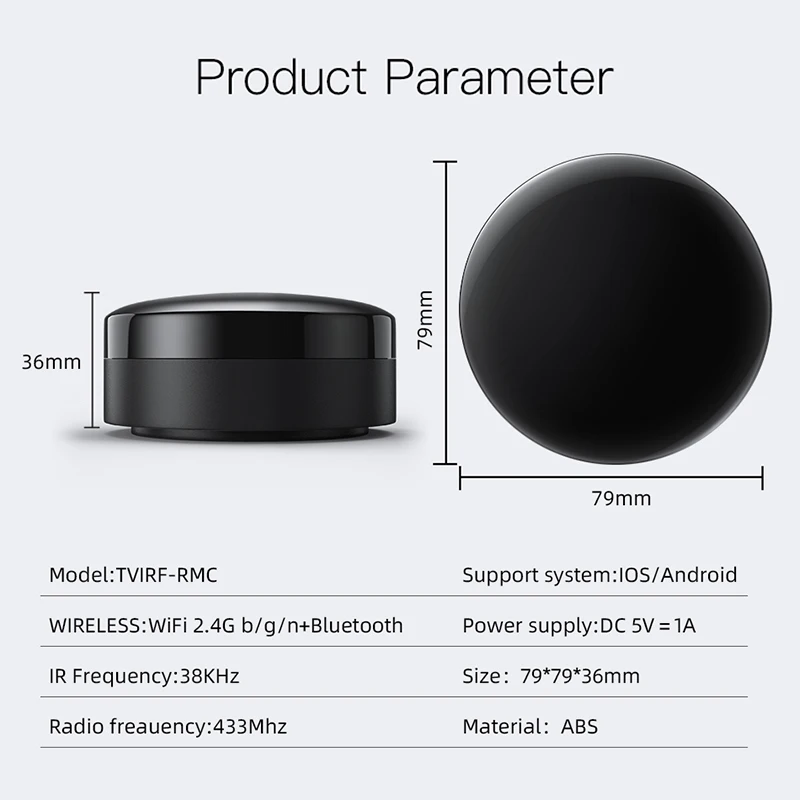

Parameters

Model: TYIRF-RMC
wireless: WiFi 2.4G IEEE802.11b/g/n+ Bluetooth
IR Frequency: 38KHz
Radio Frequency:433Mhz
Support system: 10S/Android
Power supply: DC 5V==1A
Size: 79*79*36mm
Material: ABS

Package List:

1* WiFi-IR Remote Controller
1* USB Cable
1* User Manual(English)

How to add the device in Tuya APP

1.Connect to 2.4Ghz WIFI(it can't be 5G WIFI)
2.Open bluetooth
3.Use the USB Cable to power on the device
4.Press the reset button,and loosen the button when the wifi light flash quickly.
5.Open Tuya/Smart life APP
6.Choose"add manually">Other>Unversal remote controller"
7.Enter 2.4G WIFI name and password
8.Click"Next"
