AS1000 Voice Control Full Color RGB Music Spectrum Display Analyzer Stereo Audio KTV Stage LED Rhythm Light 160 Mode MP3 Amplifier

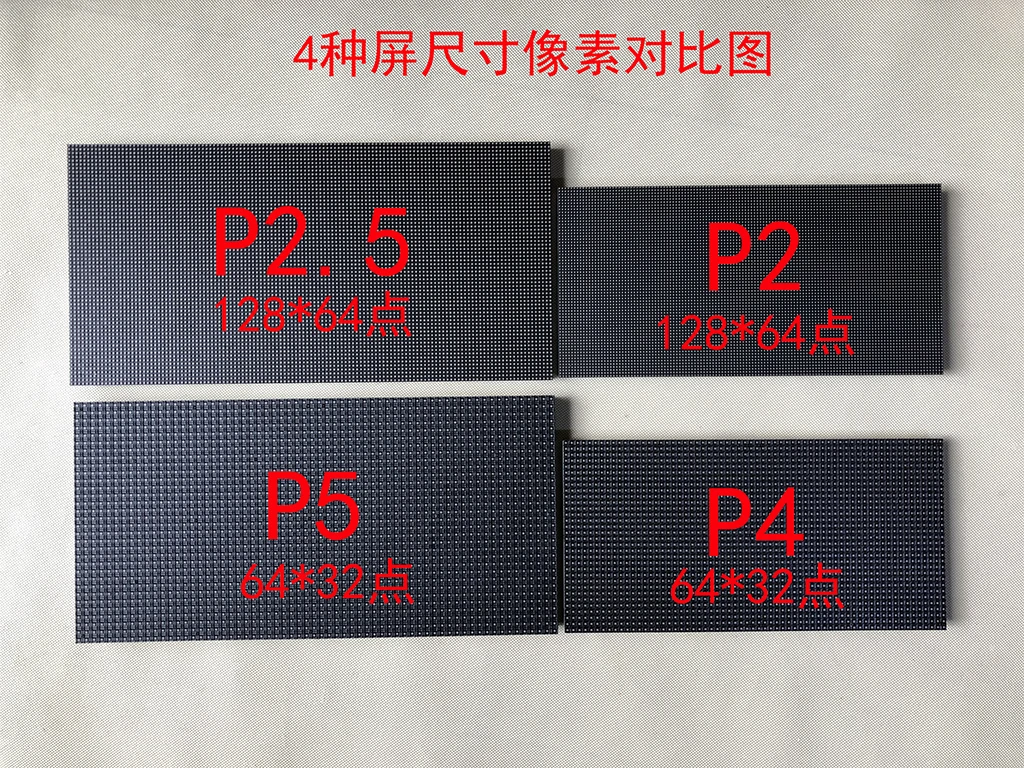

AS1000 product size

4*P5 screen: length 128cm*height 16cm

4*P4 screen: length 102.4cm* height 12.8cm

3*P5 screen: length 96cm*height 16cm

3*P4 screen: length 76.8cm*height 12.8cm

2*P5 screen: length 64cm*height 16cm

2*P4 screen: length 51.2cm* height 12.8cm

Single P5 screen: length 32cm*height 16cm

Single P4 screen: length 25.6cm*height 12.8cm

Single P2.5 screen: length 32cm*height 16cm

Single P2 screen: length 25.6cm*height 12.8cm

Special note: AS1000 control card is not suitable for all full-color screens on the market. It only supports P3, P4, P5, P6 full-color screens with conventional chip 32*64 pixel, 16 scan, 75 interface; and 64*128 pixel, 32 scan , P2, P2.5 full color screen with 75 ports.

The difference between AS1000 and AS3264 and AS128:

AS3264 uses an 8-bit processor, with bright colors, multiple modes, and average accuracy. It only supports a single screen and cannot adjust the brightness;

AS128 uses a 32-bit processor, with high accuracy, with voice control, brightness adjustment, automatic gain, and more modes! Can drive 1-2 P4, P5, P6 screens;

AS1000 is our flagship product. It uses a higher-level 32-bit processor that can drive 1-4 P4, P5, P6 screens, or a single P2, P2.5 screen, with more color modes, and full remote control Control, Chinese and English menu, gradient color, automatic mode.

AS1000, using a higher-level 32-bit processor, can drive 1-4 P4, P5, P6 screens, or a single P2, P2.5 screen, with more color modes, and full remote control, Chinese and English Menu, gradient color, automatic mode.

Special note: this spectrum has no shell! DIY products, hobbyists with hands-on ability can DIY by themselves,

Main features of AS1000 spectrum:

1. AS1000 is our flagship spectrum product, using a higher-level 32-bit ARM processor. This spectrum control card can drive 1-4 conventional P4, P5, P6 full-color screens, or a single P2, P2.5 high-density screen ; With rainbow gradient color display, the frequency spectrum display is precise, accurate, and beautiful, and can be used for frequency point testing.

2. Full infrared remote control, and key control is also reserved. The setting menu interface is displayed with Chinese and English subtitles.

3. 10 colors, 16 modes, up to 160 color mode combinations, with 10 levels of brightness adjustment, adjustable frequency range, settings with power-off memory;

4. Electret microphone MIC and line input 2 signal acquisition methods, using Jingsong electronic spectrum core technology, the microphone acquisition effect and line input effect are very good

5. With professional-grade AGC (automatic gain control), it has a wide range of audio adaptation, which not only guarantees the accuracy and effect of the spectrum, but also does not appear when the volume is too low and does not display, and the volume is turned up and full screen display;

6. With automatic mode conversion function, it can be turned on or off by remote control, and the color and mode will be automatically switched after it is turned on.

Instructions for use:

1. The AS1000 spectrum needs a high-quality 5V 6A or above 6A DC power supply.

2. In order to facilitate packaging, we will remove the flat cable and power cord after testing. After you receive the goods, please connect them according to the picture

3. The infrared remote control of this product does not have a battery (CR2025 model 3V button battery)

4. Please pay attention to users who purchase high-density screens P2 and P2.5. Because these two kinds of screens have high LED density, LEDs leak out and cannot be collided, please handle with care to prevent the LED from being touched. Once the screen is damaged, the screen will Not covered by the warranty.

5. The AS1000 spectrum control card can only control the full-color screens of the conventional chips P4, P5, P6, and does not support dual lock screens. This card only supports horizontal cascading, not vertical cascading.

6. The blue DIP switch on the control card is used to set the type and number of screens. After setting the P2 and P2.5 screens, it will be effective after being powered off and on again.

7. If you use MIC acquisition, you can enter the menu and set the gain to H.

8. When using remote control operation, be careful not to block the infrared remote control receiver of the control card. If it is installed in the chassis, the receiver can be led out with a wire.

9. Online piracy is rampant now. In order to keep technology confidential, we will polish the surface of some chips. This will not affect the use. Please support the original! !

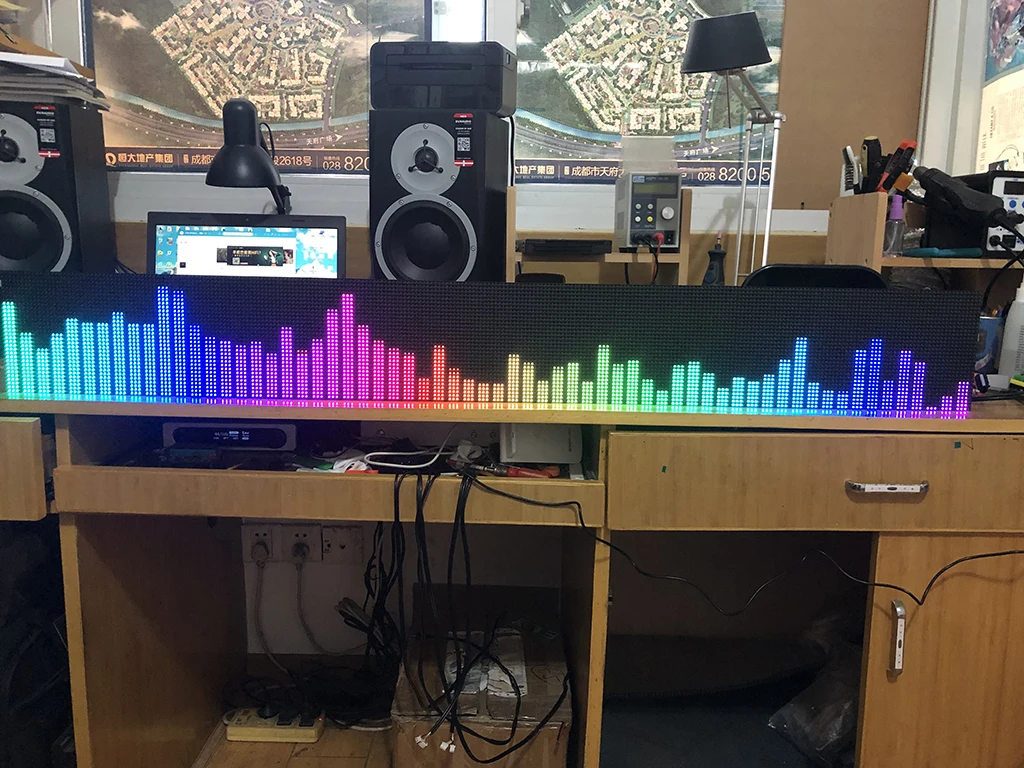

4 P5 display pictures:

Control card and remote control function:

Menu interface diagram (with Chinese and English switching, the following picture is used for P2.5 screen demonstration):

English menu demo:

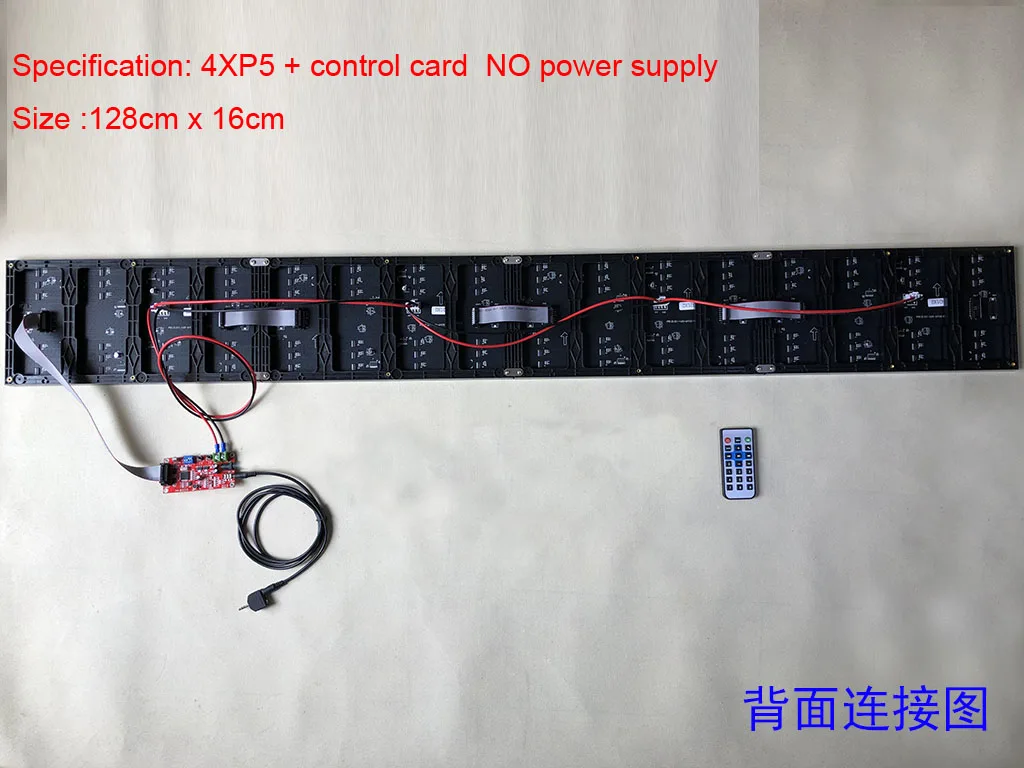

4 P5 cascade demonstration pictures
