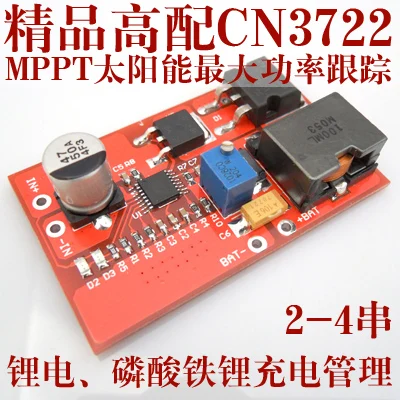

CN3722 MPPT Solar Controller 3A 2S 3S 4S LiFePO4 Cell or Lithium Battery Charger | Электроника
История изменения цены
*Текущая стоимость US $6.99 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 7.38 руб. | 7.13 руб. | 7 руб. |
| Aug-15-2025 | 7.81 руб. | 7.37 руб. | 7 руб. |
| Jul-15-2025 | 6.47 руб. | 6.50 руб. | 6 руб. |
| Jun-15-2025 | 7.25 руб. | 7.46 руб. | 7 руб. |
| May-15-2025 | 6.54 руб. | 6.86 руб. | 6 руб. |
| Apr-15-2025 | 7.0 руб. | 7.20 руб. | 7 руб. |
| Mar-15-2025 | 7.53 руб. | 7.66 руб. | 7 руб. |
| Feb-15-2025 | 7.9 руб. | 7.6 руб. | 7 руб. |
| Jan-15-2025 | 7.41 руб. | 7.14 руб. | 7 руб. |
Описание товара
MPPT technology --- solar maximum power tracking
8.4V, 12.6V, 16.8V lithium battery
7.2V, 10.8V, 14.4V lithium iron phosphate battery
2-4 string lithium batteries, lithium iron phosphate charging management board
4A high current smart trickle, constant current, constant voltage charging management board
Solar cell maximum power point tracking (MPPT)
The solar cell maximum power point tracking (MPPT) is to ensure that the photovoltaic cell always outputs the maximum power when the light intensity changes, so as to make full use of solar energy. In general, it is necessary to use a switch-mode DC-DC converter to realize the MPPT function to keep the product of output voltage and charging current (output power) maximized,
CN3722 adopts the switch step-down mode DC-DC conversion method to realize the maximum power point tracking function of photovoltaic cells, and its input voltage can reach up to 25V, which is very suitable for applications where the input voltage and the battery voltage are quite different.
Charging management board features:
1. High-end technology MPPT solar maximum power tracking charging management chip, with trickle, constant current, and constant voltage charging management
2. Imported high frequency low conduction internal resistance double MOS tube, high current diode, high efficiency flat high power inductor, constantan current detection resistor
3. Intelligent temperature control heat dissipation system, automatically detect the temperature of the charging management board and turn on the radiator (additional radiator needs to be equipped separately)
4. High-speed and high-efficiency charging method, low heat generation and fast speed
5. Dual status indicator lights, the red light flashes when the battery is not connected, the green light is always on, the red light is on when charging, it will stop when it is full and the green light is on at the same time
Basic parameters:

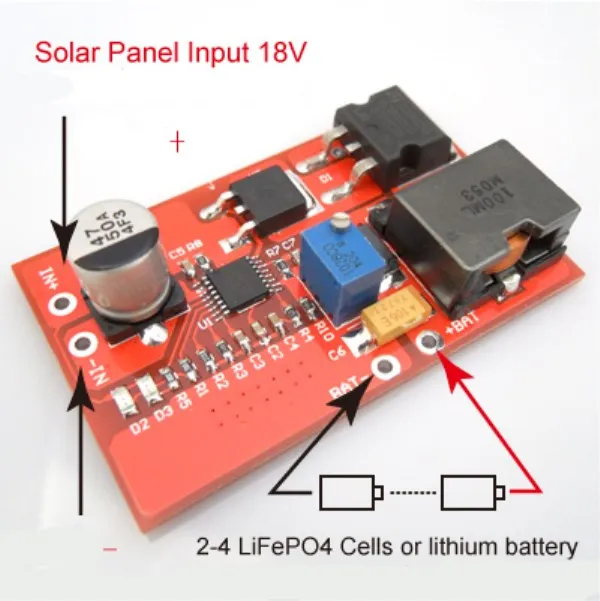

Input voltage: 18V solar panel
Output voltage: 2-4 strings of lithium batteries or lithium iron phosphate batteries (adjustable by external resistance), please inform the output voltage when shooting
Output current: 3A
Wiring method: pad
IN+ input positive, IN- input negative
BAT+ battery positive, BAT- battery negative
Size: 30*50mm
Imported high frequency low conduction internal resistance double MOS tube, high current diode, high efficiency flat high power inductor, constantan current detection resistor
Adjustable resistance to adjust output voltage
Suitable for 2-4 strings of lithium batteries or lithium iron phosphate batteries
Lithium battery 4.2*2 string = 8.4V
Lithium battery 4.2V*3 string=12.6V / 4.2V*4 string=16.8V
Lithium iron battery 3.6V*3 string=10.8V / 3.6V*4 string=14.4V
During adjustment, the no-load voltage is recommended to be lower than the actual charging junction voltage by 0.1V (for example, 4.2V*3 string=12.6V is set to 12.5V), because the voltage will automatically be higher than the set no-load voltage when the charging is terminated
