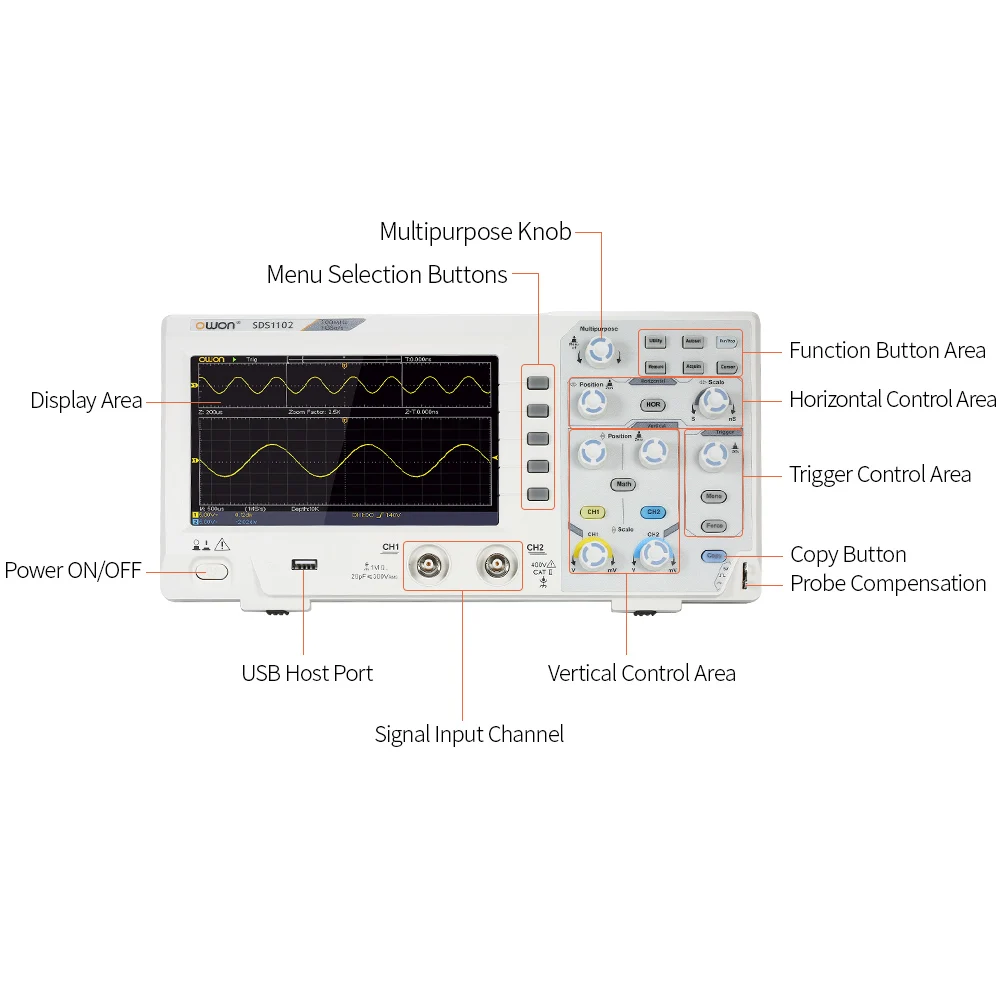

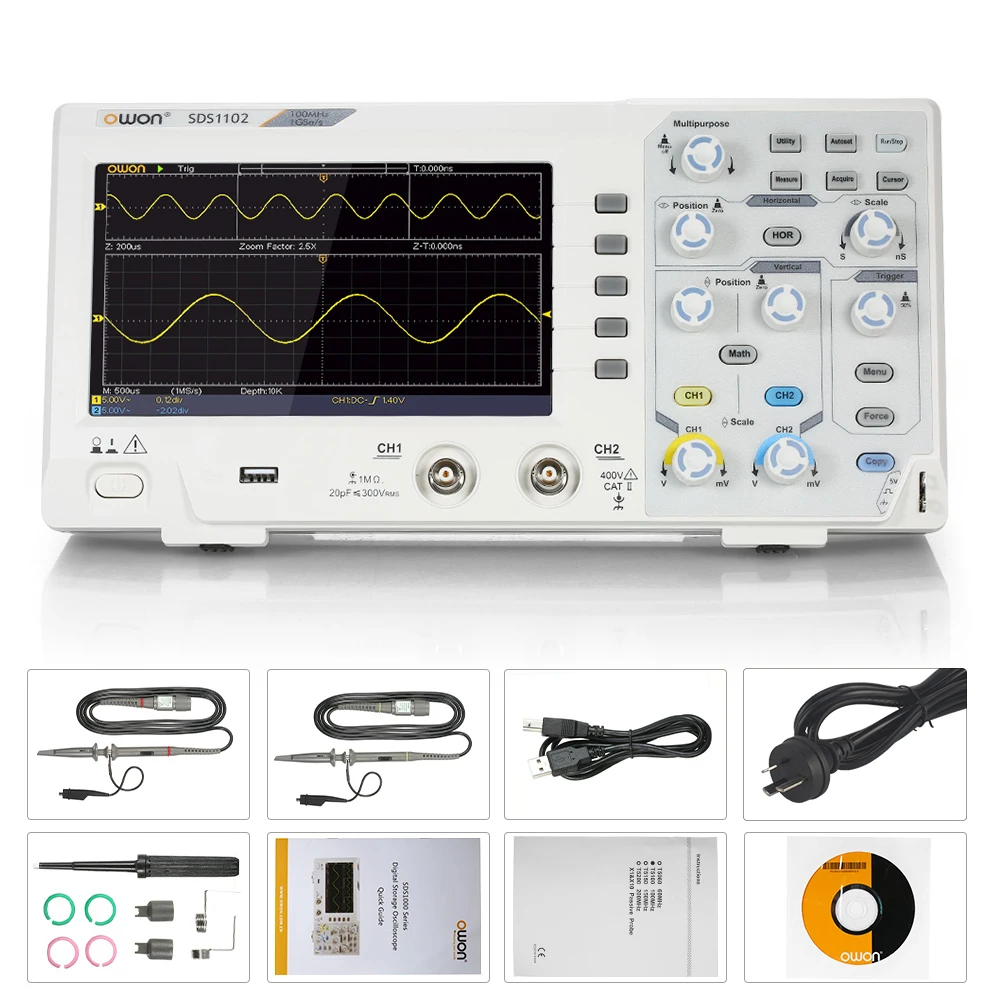

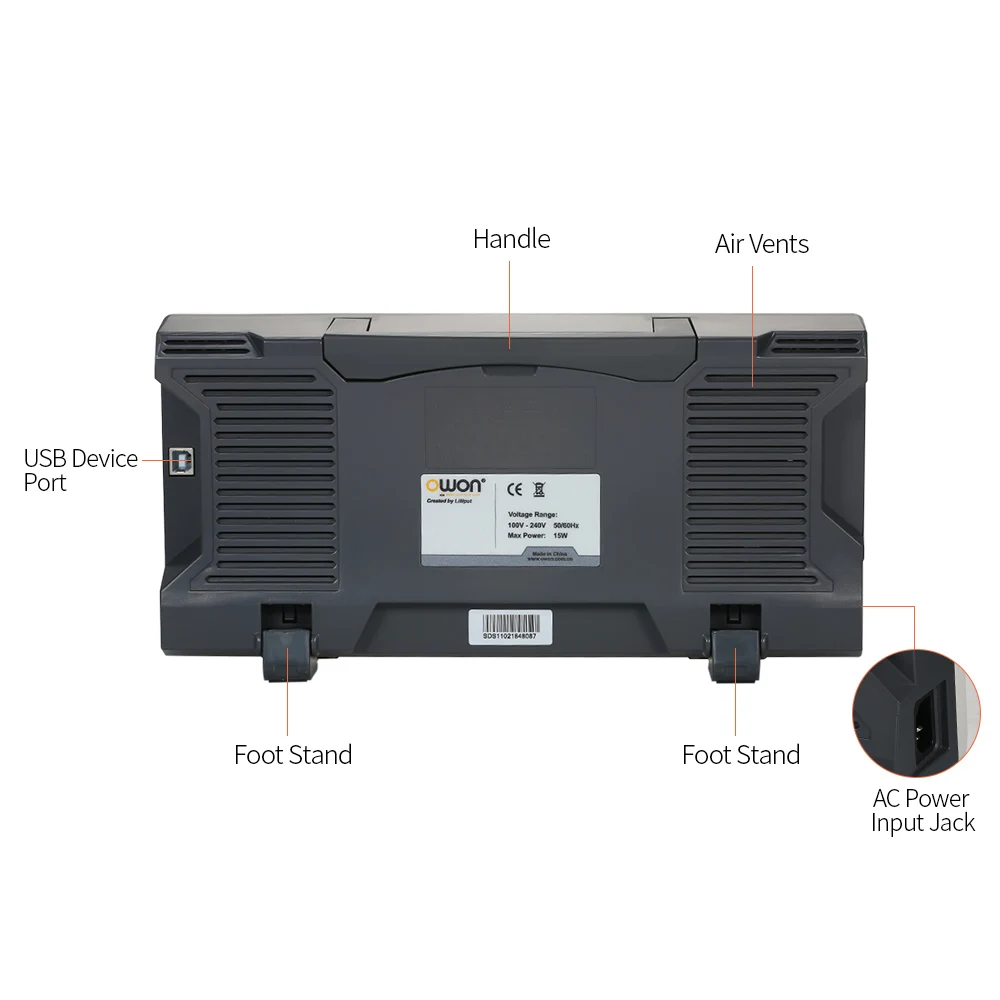

Functions & Specifications of SDS1102

Bandwidth

100MHz

Sample Rate

1GS/s

Horizontal Scale(s/div)

2ns/div - 100s/div, step by 1-2-5

Rise Time (at input, typical)

≤3.5ns

Channel

2

Display

7" color LCD, 800 × 480 pixels

Input Impedance

1MΩ ± 2%, in parallel with 20pF ± 5pF

Channel Isolation

50Hz:100:1, 10MHz:40:1

Max Input Voltage

400V (PK-PK) (DC+AC, PK-PK)

DC Gain Accuracy

±3%

Record Length

10k

DC Accuracy (average)

Average≥16: ±(3% reading+0.05div) for △V

Probe Attenuation Factor

1X, 10X, 100X, 1000X

LF Respond (AC, -3dB)

≥10Hz (at input, AC coupling, -3dB)

Sample Rate / Relay Time Accuracy

±100ppm

Interpolation

sin (x) / x

Interval(△T) Accuracy (full bandwidth)

Single: ±(1 interval time + 100ppm × reading + 0.6ns),

Average＞16: ±(1 interval time + 100ppm × reading + 0.4ns)

Input Coupling

DC, AC, and GND

Vertical Resolution (A/D)

8 bits (2 channels simultaneously )

Vertical Sensitivity

5mV/div - 5V/div (at input)

Trigger Type

Edge, Video

Trigger Mode

Auto, Normal, and Single

Trigger Level

±5 divisions from screen center

Line / Field Frequency (video)

NTSC, PAL and SECAM standard

Cursor Measurement

△V, and △T between cursors

Automatic Measurement

Vpp, Vavg, RMS, Frequency ,Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot,
Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B

Waveform Math

+, -, ×, ÷, invert, FFT

Waveform Storage

16 waveforms

Lissajous Figure Bandwidth

full bandwidth

Lissajous Figure Phase Difference

±3 degrees

Communication Interface

USB host, USB device

Frequency Counter

available

Power Consumption

＜15W

Fuse

2A, T class, 250V

Power Supply

220V (EU/UK plug), 110V (US plug), 50/60Hz, CAT II

Plug Type

EU / UK / US (Optional)

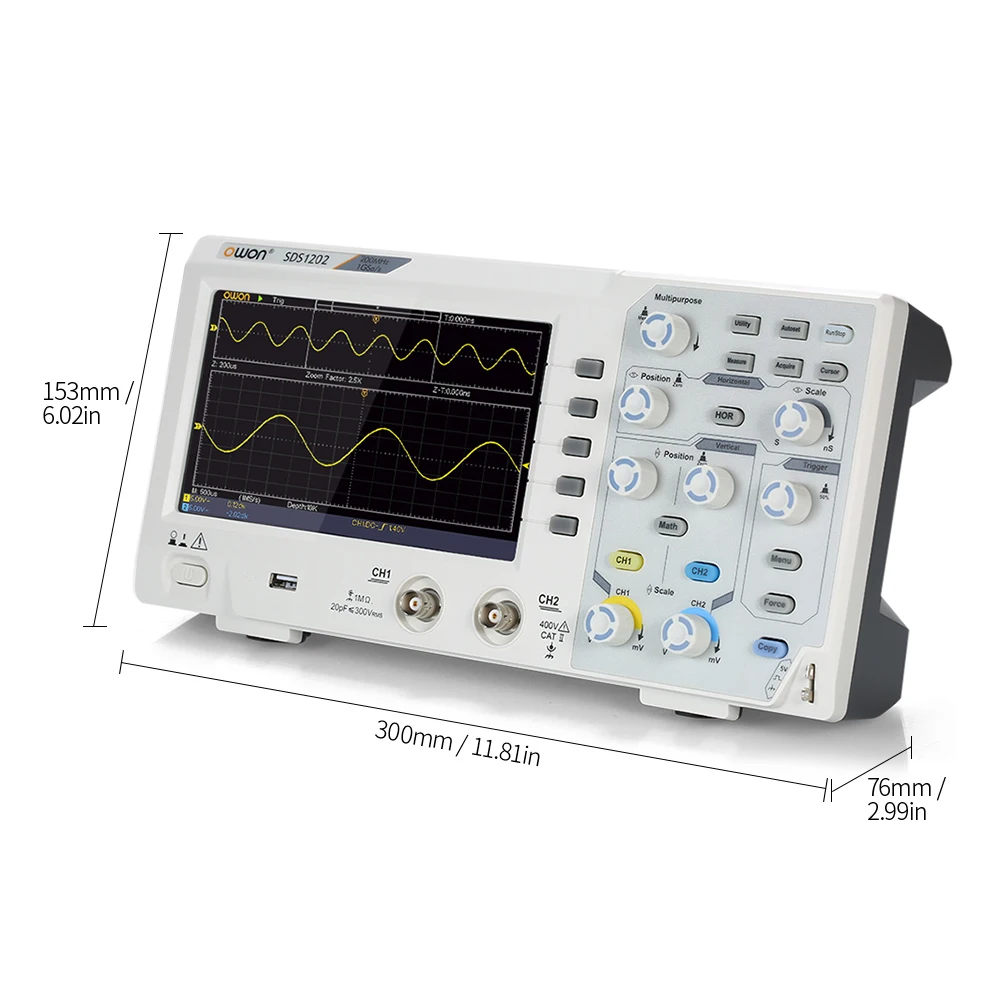

Item Size

300 * 76 * 153mm / 11.81 * 2.99 * 6.02in

Net Weight

1403g / 3.09lb

Package Weight

1601g / 3.53lb

Package Size

37 * 18 * 11.5cm / 14.57 * 7.09 * 4.53in
