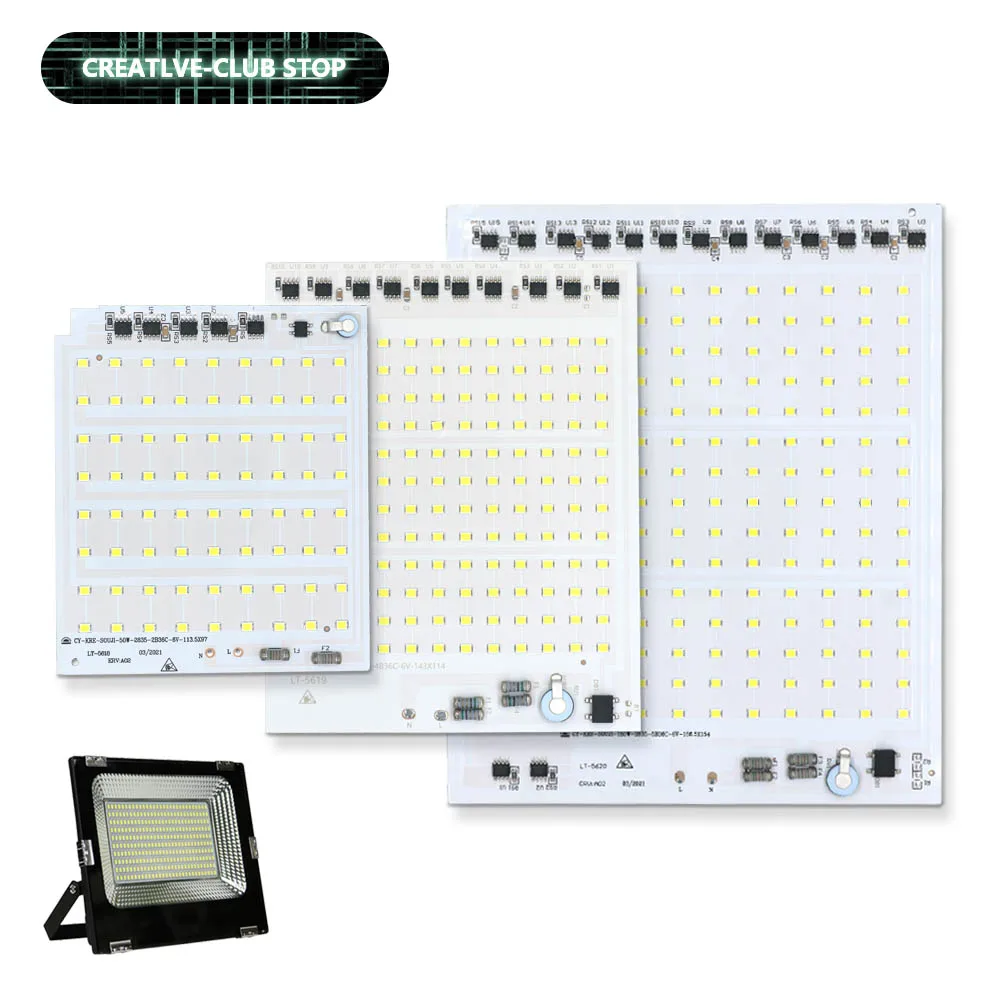

LED Matrix Flood Light SMD2835 Smart IC Source Board AC220V 10W 20W 30W 50W 100W 150W 200W bead For LEDs Panel | Освещение

Product details

10W

Power: 10W
Voltage: AC220V
Serial and parallel circuit: 4 series and 3 parallel
Size: 50*40mm (1.96*1.57in)
Light-emitting surface size: 15*17mm (0.59*0.66in)
Crystal size: 15*30mil
Number of crystals: 12pcs
Crystal name: Epistar chip
Lumens: 1100LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light

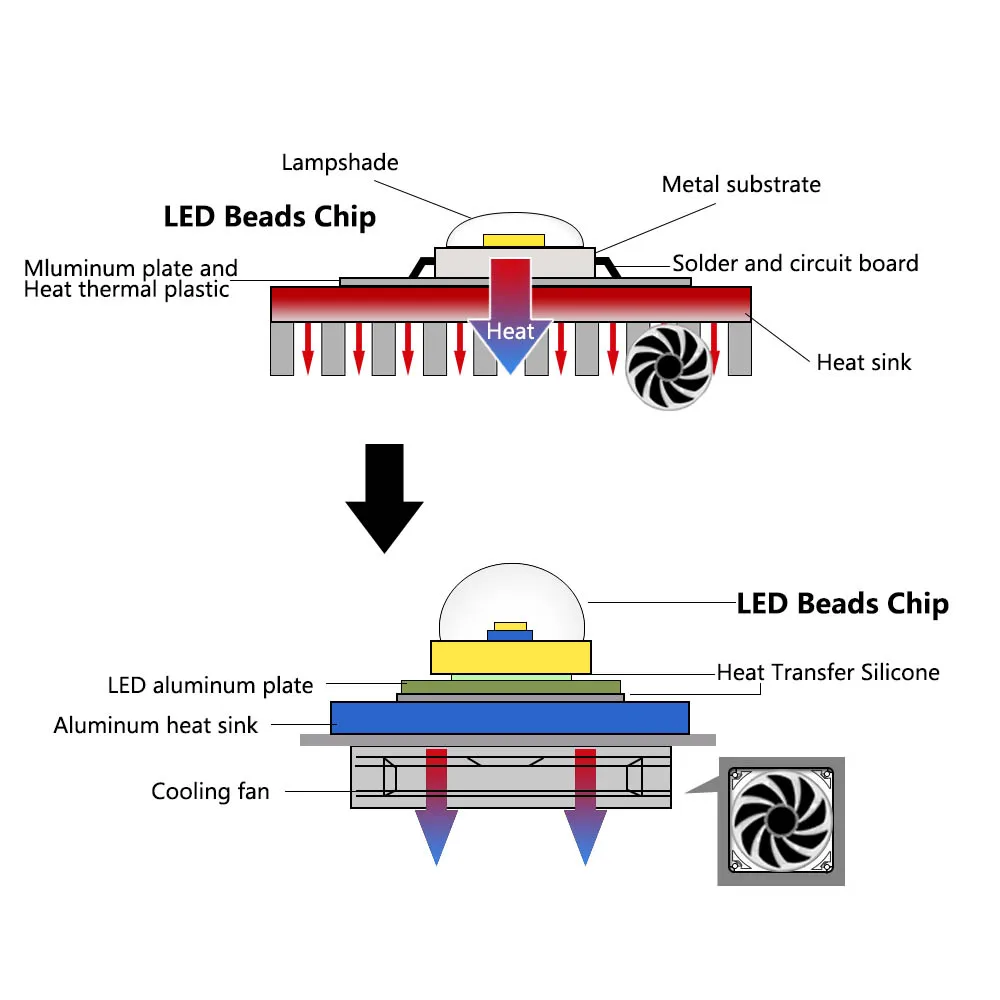

Conditions of use: radiator required
Chip temperature does not exceed 65℃

20W

Power: 20W
Voltage: AC220V
Series and parallel circuit: 6 series and 4 parallel
Size: 63*46mm(2.48*1.81in)
Light-emitting surface size: 27*27mm (1.06*1.06in)
Crystal size: 15*30mil
Number of crystals: 24
Crystal name: Epistar chip
Lumens: 2200LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Applicable place: floodlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃

30W

Power: 30W
Voltage: AC220V
Serial and parallel circuit: 6 series and 6 parallel
Size: 91*79mm (3.58*3.11in)
Light-emitting surface size: 54*52mm (2.12*2.04in)
Crystal size: 15*30mil
Number of crystals: 36pcs
Crystal name: Epistar chip
Lumens: 3300LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

50W

Power: 50W
Voltage: AC220V
Serial and parallel circuit: 8 series and 9 parallel
Size: 114*97mm (4.48*3.81in)
Light-emitting surface size: 84*82mm (3.30*3.22in)
Crystal size: 15*30mil
Number of crystals: 72pcs
Crystal name: Epistar chip
Lumens: 5500LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

100W

Power: 100W
Voltage: AC220V
Serial and parallel circuit: 12 series and 12 parallel
Size: 143*114mm(5.62*4.48in)
Light-emitting surface size: 95*82mm (3.74*3.22in)
Crystal size: 15*30mil
Number of crystals: 144pcs
Crystal name: Epistar chip
Lumens: 11000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

150W

Power: 150W
Voltage: AC220V
Serial and parallel circuit: 15 series and 12 parallel
Size: 186*150mm(7.32*5.90in)
Light-emitting surface size: 134*132mm (5.27*5.19in)
Crystal size: 15*30mil
Number of crystals: 180pcs
Crystal name: Epistar chip
Lumens: 15000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

200W

Power: 200W
Voltage: AC220V
Serial and parallel circuit: 14 series and 18 parallel
Size: 225*180mm (8.85*7.08in)
Light-emitting surface size: 170*165mm (6.69*6.49in)
Crystal size: 15*30mil
Number of crystals: 252pcs
Crystal name: Epistar chip
Lumens: 20000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
