Конвертер питания для лодок и автомобилей 4000 Вт, DC 12 В в AC 220 В/110 В, инвертор с интеллектуальным ЖК-дисплеем и двойным отображением, 4 USB.

Конвертер питания для лодок и автомобилей 4000 Вт DC 12 В в AC 220 В/110 инвертор с интеллектуальным ЖК-дисплеем двойным отображением 4 USB.

62434118520484275

Package includes:

1 x Power Inverter

2 x Battery Clip

1 x Cigarette Lighter Plug(gift)

1 x English Manual

Specifications:

Series: Triumph Series

Model: CMK-4000

Color: Blue

Name: Car power inverter

Input voltage: DC 10.5V~15V,

(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)

Output voltage : AC 110V /220V for your choice

Output frequency is: 50Hz for 220V model /60Hz for 110V model.

Peaks Power : 4000W

Rated power: 300W

Output waveform: Modified sine wave

Product Size: 19.5*10.5*6.8cm

Package Size: 7.87x4.4x 2.2 inch

Adavantage:

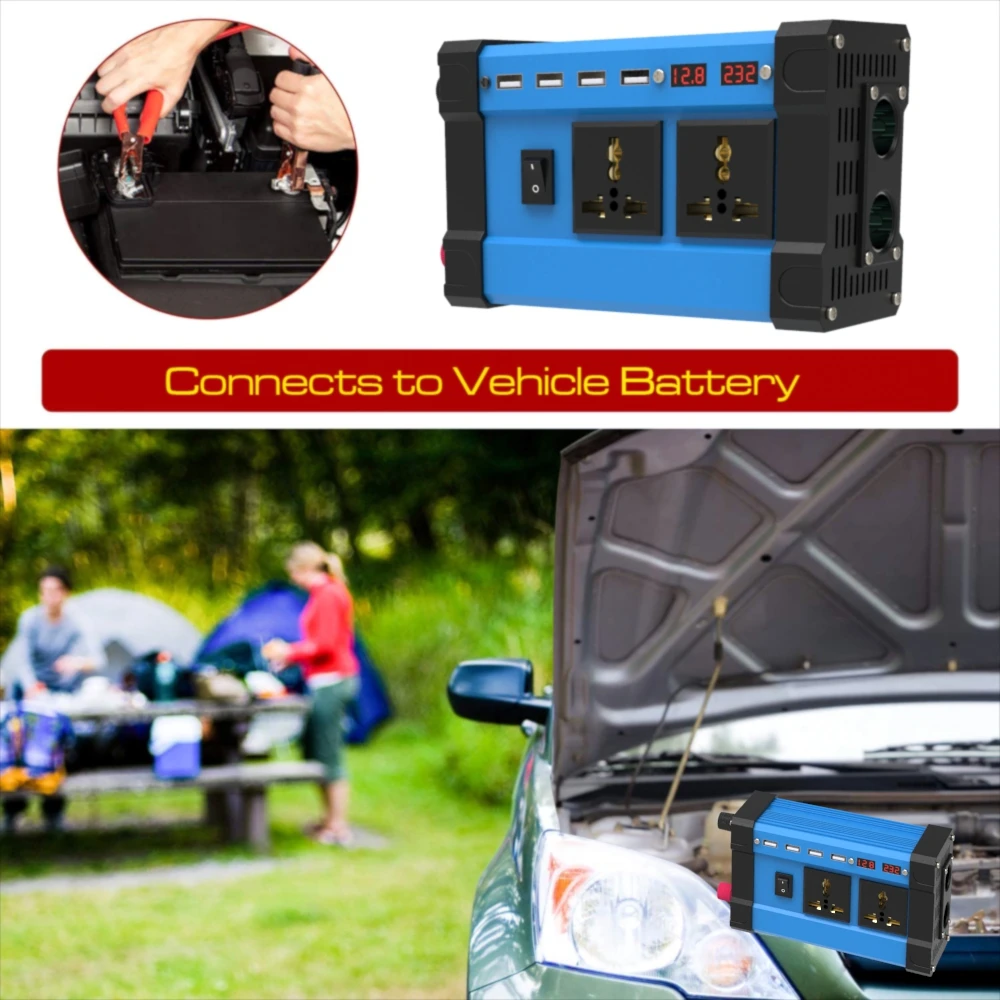

[Car Power inverter] Car power inverter with 2 USB ports and one AC outlet. The power inverter comes with free cigarette lighter and 2pcs battery clips, providing 300Watt continuous power, 4000watt peak power (Please make sure that the total rated power of the connected devices is ≤ 300W). Cigarette lighter cable can supply power for device easily. If the out put power is higher than 150W, please using the Crocodile Clips to a battery.

[Two Cigarette lighter splitter hole] In the car, Two Cigarette lighter splitter hole can help you to use the Cigarette appliance at the same time, For example, you can use your car audio and driving recorder at the same time, it helps you solve the embarrassment of having only one cigarette lighter hole in the car.

[LED Green&Red Work Lights] When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.

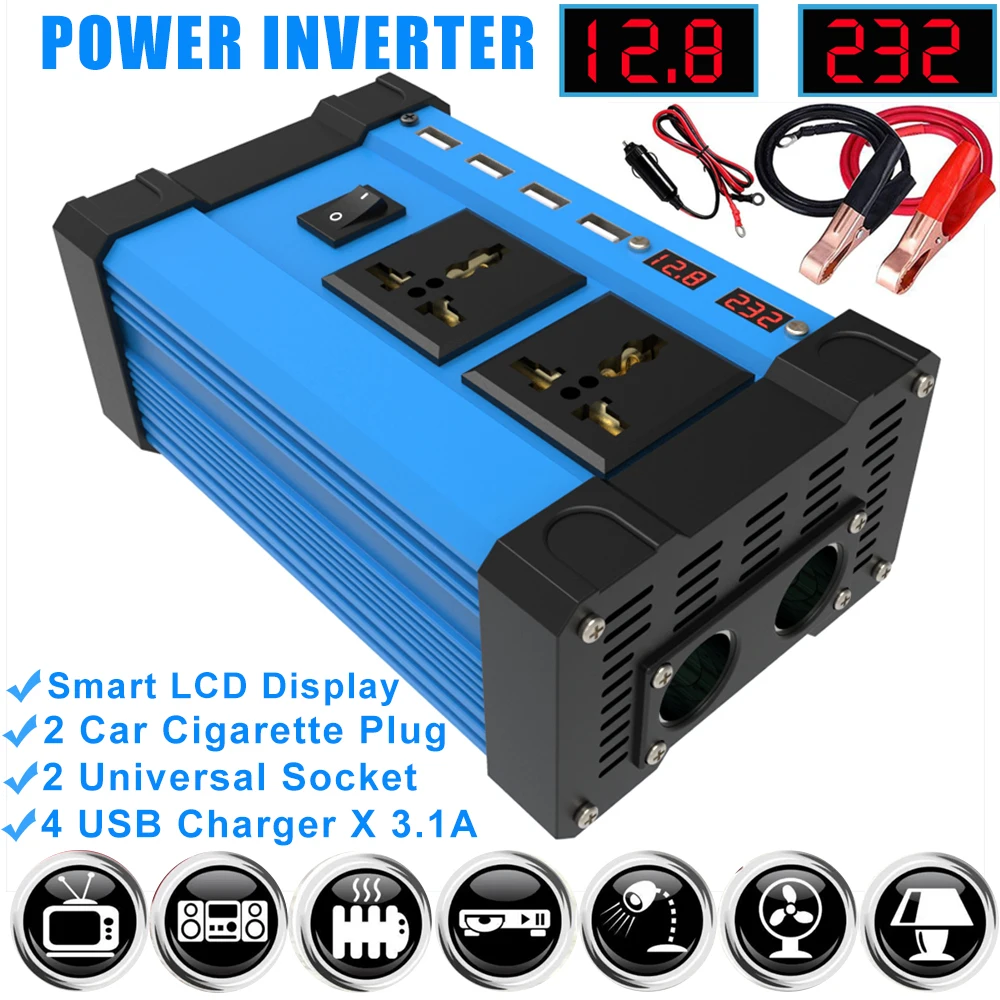

[Intelligent LCD Voltage Screen display] Colorful smart LCD Display shows the battery Input battery voltage and output voltage in real-time, when the battery voltage is lower than 10.5V, the inverter is low voltage protection, please try to charge your battery full power then try again. When the battery voltage is higher than 15V, the inverter high voltage protection)

[Fast Charging Four USB ports ] Two Internation Universal AC Outlets and support four usb charger ports 3.6A to work at same time and it can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer, Razors, medical rescue device, emergency equipment etc. Easily meet the power supply needs of the diverse vehicle electrical appliance and it can be as a Emergency Power Supply.

[Multi Protection] Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat, saving power and energy, over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.

[Lightweight design &Top Quality] Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.

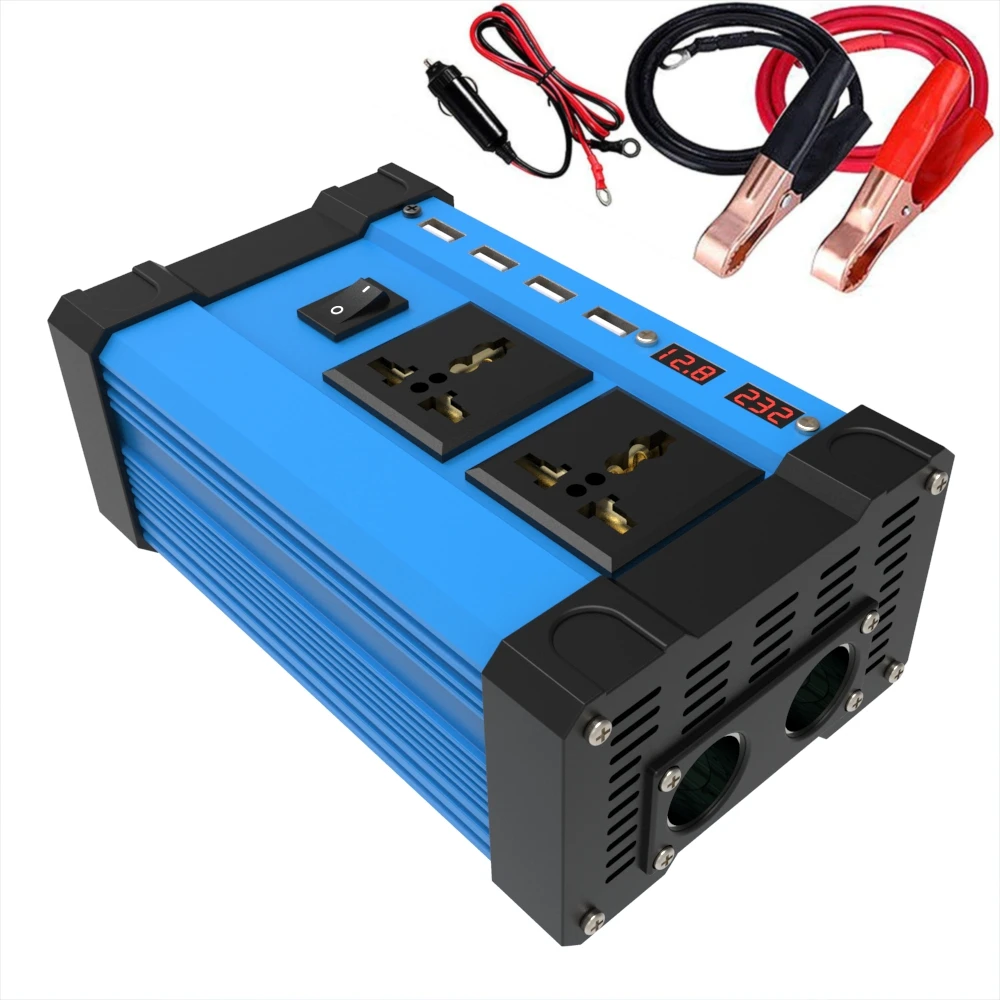

[What you get] 1 X car power inverter, user manual, 2 x Battery Clamp, 1 x Car Cigarette Plug and 100% customer service.

Application:

-Applicable Loads for Rated Power under 300W:

5W-Cell phone

5W-Breast pump

10W-Digital Electronics(Ipad/Car navigation/Digital camera)

10W-Game console

5W-10W Electric shaver

20W-LED Lamp

25W-Walkie talkie

50-100W Laptop

60W-Compact Fluorescent Lamp

60W-Incandescent lamp

60W-Mechanical Electric9 Fan

60W-150W TV

80W-VCR

180W-Desktop Computer

Note:

①Please Ensure the Rated Power is higher than the electric appliance you wanna apply to. We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).

②And if you wanna run several appliance at the same time, you should refer to the total Watt.

③If you wanna run a inductive load for a long time, it`s suggested to buy a pure sine wave inverter.

Features:

- 12V is generally for cars, 24V for trucks, 48V and 60V is generally for electric vehicles.

- Available Range Of Rated Voltage Of Electrical Appliances : 200~240V, 100~120V

- Safe Range Of our inverter Input Voltage:12V (9.8~15V)

- 8 Safety Protection Function:

①Reverse polarity protection

②Low input voltage protection

③High input voltage protection

④Over-current protection

⑤Short circuit protection

⑥Over temperature protection

⑦Overload protection

⑧Internal fuses

CAUTION!

-1.This is a modified sine wave inverter,NOT applicable for devices which work by built-in motor, hair dryers,air conditioners, coffee machine,water pump, induction cooker,refrigerators and microwave ovens etc.Make sure that the total rated power of the connected devices is ≤ 400W

-2.Tighten the Positive (+) and Negative (-) terminals when the car converter is in use

-3.If the converter is directly connected with the cigarette lighter. The highest out put power must be under 150W. If higher than 150W,we strongly recommend you using the Crocodile Clips to a battery ,because car cigarette lighter might not afford power over 150W.

-4.The car converter suitable for DC12V and Car ONLY, not applied for DC 24V and airplane

-5.Please do not leave the inverter in the ON position before car start.It's easy to damage the inverter before connected to the battery.The correct operation is connect to the battery first and then turn on the inverter switch

-6. It's normal for the inverter to become warm while you are using it.In order to get the best using results, please put the inverter on the flat surface The working place should meet the following criteria:

1. Keep dry, should not let the inverter contact the water or other liquids, keep the inverter away from moisture or water.

2. Cool environment, keep the temperature between 0 Celsius degrees and 40 Celsius degrees. Do not put the inverter next to heat vents or other devices. Try to keep the inverter not be shined directly by the sunshine.

Battery Usage Time Cacalation:

1) The working time of inverter, it is depend on the battery power and load power.

2) Formula: Working time (hours)= Battery Capacity X Battery Voltage X 0.8X0.9/Load Power

3) For example, the battery of 12V 60A is supplied to a 220V 100W bulb.

The working time is = 12(V) X 60(AH) X 0.8 X 0.9 / 100(W)=5.18(hours)

Note: Discharge coefficient of 0.8-battery, Conversion efficiency of 0.9-inverter

What Size Power Inverter Do I Need?

The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).
