Беспроводная сетевая карта с высокой мощностью и дальностью передачи сигнала, интерфейс USB, модуль Wifi, исходный код для Linux, Wince и Android.

Беспроводная сетевая карта с высокой мощностью и дальностью передачи сигнала интерфейс USB модуль Wifi исходный код для Linux Wince Android.

modname=ckeditor

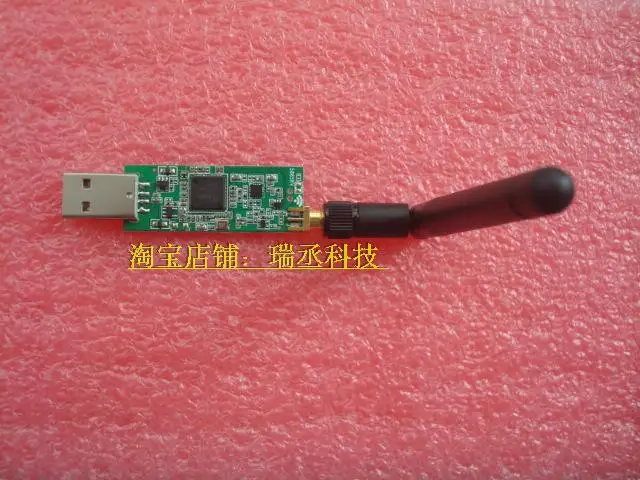

Model 1: USB male connector with SMA antenna base 1PCS

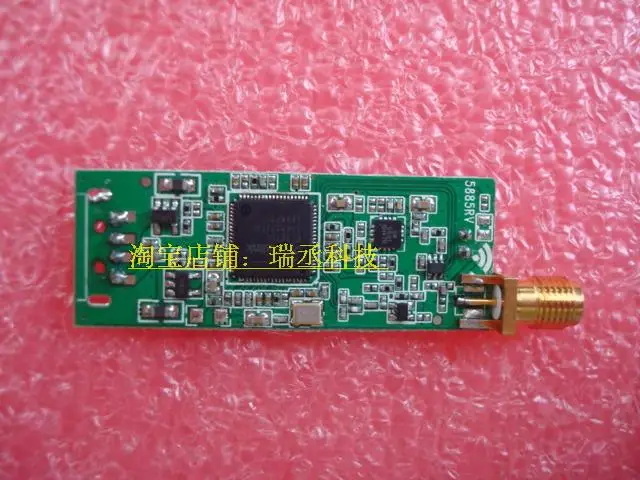

Model 2: Pin header with SMA antenna base
Model 3: USB male head with IPEX antenna base

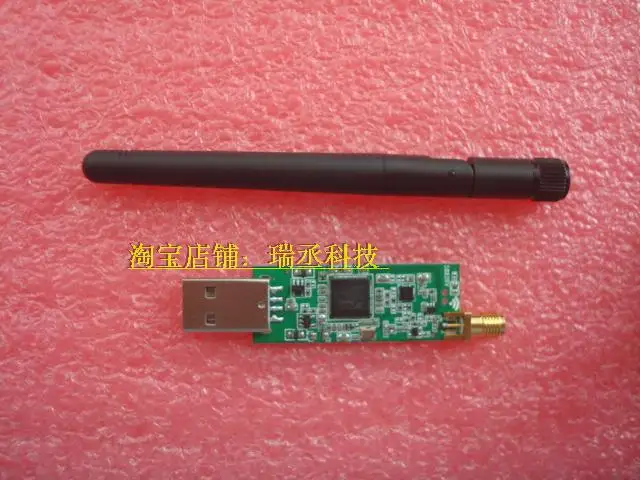

Model 4: USB male head with SMA antenna base and antenna kit

Independent research and development design,Industrial grade5VSingle voltage supply,High power embeddedwifimodular,It's not hot,Module chip surface temperature approx40degree,use150Mbps high speed Lei LingRalink RT3070Lchip design ,2.4G RFsignal TX & RXSeparate three-stage amplification circuit,Signal lifting200%,Further distance,Stronger penetration. --supportAndroid,linux,wince,win 2000,XP,win 7,

win 8，win10Such system，Linux Driver source code provided This link defaults to standardUSBInterface，The order is5V,D-,D+,GND,When connecting, make sure that it corresponds to the computer pin one by one。

Module introduction： UN5885U-SMA It is a long-distance communication system specially designed for the wireless LAN communication application of embedded systemUSBInterfacedWIFImodular。The module enables users to use the embedded hardwareUSB hostInterface efficiency、quick、Expand the wireless communication function of wireless LAN。UN5885-IPEX The LAN communication function of the module isRalinkOf RT3070WMAC/BBComponent implementation，Transceiver function byRT3070realization，Fully implementedIEEE802.11b/g/nstandard，The maximum communication rate can reach150Mbps,High gain power amplifier with simultaneous integrated three pole amplification，And farther away,Stronger penetration. Performance and characteristics： 1) Taiwan leilingRalink RT3070L Main chip,Maximum transmission speed up to150Mbps,High speed transmission 2) USB communication protocol,Few external components，Secondary development design is simpler,Relevant application notes shall also be provided. 3）The pin interface package adopts a single row of pins2.0mmFoot spacing，Easy to weld and fix.If you don't need needle arrangement in batch,It can be directly processed by reflow soldering,Save manual welding cost. 4) Ultra small volume17.3mm*50mm*2mm,Very little space inside the product. 5) 5VSingle voltage supply,The foot position definition is fully compatible with the computerUSBMouth order5V,D-,D+,GND. 6）The power consumption of the module is about650mW,The surface temperature of the main chip does not exceed40degree。 7) Separate three-stage power amplifier circuit is adopted,Stable performance,Not virtual height。 8) Two working modes are supported：Infrastructure ModeandAd Hoc Mode,And softAPpattern. 9) With eachARM,MIPS,X86Good compatibility with other platforms,Provide a simple driver loading method description document. 10) AvailableLinux 2.6.xx/windows 7/wince 5.0/6.0/AndroidOther drivers. 11) supportWPS/WEP 64/128, WPA, WPA2And all secure encryption methods. 12) fromRFPin out connection antenna signal,Flexible choice of internal or external antennas. 13) supportGPIOControl on/shutWiFiModule function. 14) Data communication supportLEDFlashing indication control. UN5885U-SMATypical application of module： Webcam monitoring; Smart home; Handheld devices, IPTV;IP SET BOX;IP radio; Intelligent Transportation ； Medical instruments； Digital photo frame; RFIDSmart card terminal； wirelessPOSMachine tax declaration system； Power grid data acquisition and communication； Modern network education,Learning machine.
