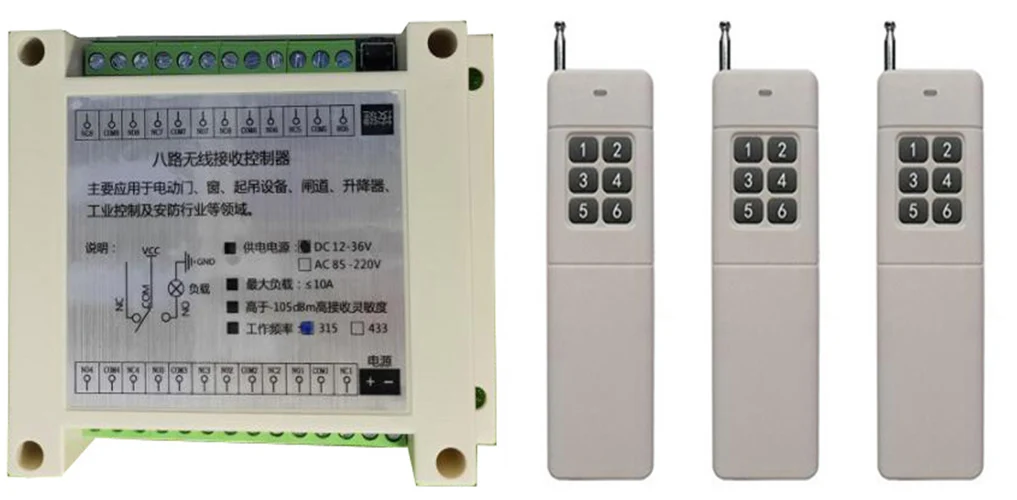

Беспроводной пульт управления на 8 каналов с радиопередатчиком 433 МГц и реле на выходе для светодиодных ламп DC12V 24V на расстоянии до 500-3000 м.

Беспроводной пульт управления на 8 каналов с радиопередатчиком 433 МГц и реле выходе для светодиодных ламп DC12V 24V расстоянии до 500-3000 м.

Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

1.Feature:

1, working voltage:12V --48V   (12V 24V 36V 48V all is ok )

2, working temperature: -40 degrees C - +80

3, the receiving sensitivity is not less than -105dBm

4, working frequency: 433MHz

5, output current: less than 3A

6, size: circuit board: 86.95*92.6*16.4mm with shell: mm 90.2*115*40

The output mode

According to the remote signal point -- 1 Key Learning

Signal interlock - press 2 key learning

According to the remote signal self-locking -- 3 key learning

1 - 4 points, 5 - 8 - way self-locking by remote control 4 key learning

1 - 4 points, 5 - 8 road interlock -- by remote control 5 key learning

1 - 4 - 5 8 interlocking self-locking -- by remote control 6 key learning

1 - 4 - 8 5 interlocking way points -- learning by remote control button 7

1 - 4 - 5 road self-locking, 8 way points -- learning by remote control button 8

Learning methods and steps

1, press the receiver learning key - the buzzer, said to enter the learning state,

2, press the remote control button, the buzzer stops any noise, said to have success in learning.

Clear stored information

Long press the receiver button until the buzzer sound to stop, said the stored information has been successfully cleared.

Transmitting Distance: 500-3000m(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference ).

pacote inclued:

A:

1x Transmitter(with battery)

B:

1x Receiver(with cover)

3x Transmitter(with battery)

F:

4x Transmitter(with battery)
