Описание товара
Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

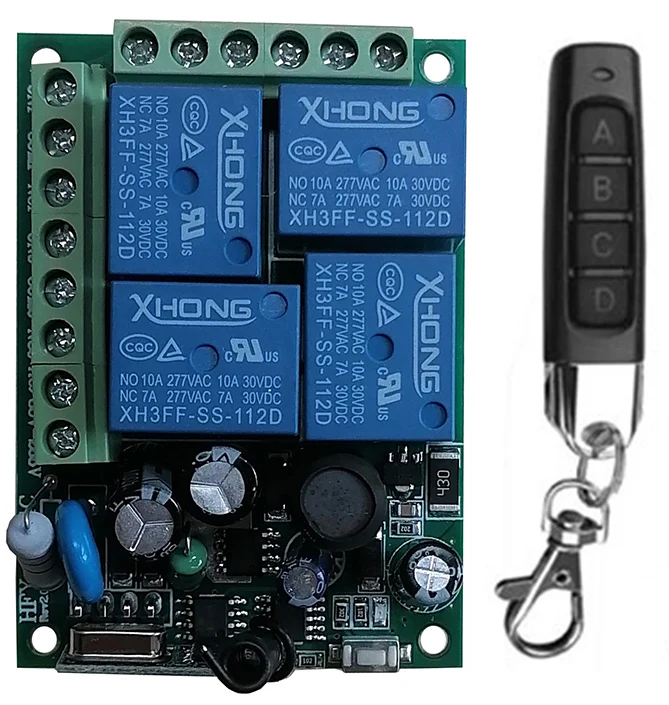

一，Relay Receiver Board Parameter
Operating voltage: AC85V-265V
Static working current: ≤7mA
Max current : 10A
Max load: 2200W
RF frequency: 433MHZ
Pin : NO / COM / NC
Receiving sensitivity: ≤ -105dbm
Modulation mode: ASK (amplitude modulation)
Operating temperature: -20~+70 ℃
Circuit board size: 65.5*36*16mm
Shell size: 70*41*22mm
Amount of storage remote controls : 35 pieces
Support encoding : 1527 Leaning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode
二，working/output way
1.Momentary/Joggle: Press and hold->On;Release->Off
Keep pressing one button, the corresponding channel is working /on;Release your finger is stop/OFF.(4 channel switch(receiver) need 4 button remote control (transmitter )
2.Toggle/Self-Lock: Press->On;Press again->Off
Press one button for one time, the corresponding channel is working/on;Press the same button again to stop/OFF.(4 channel switch(receiver) need 4 button remote control (transmitter).
3.Latched/Inter-Lock: Press->on;Press other button->Off
Press one button for one time, the corresponding channel is working/on;Press another button is stop/OFF(At the same time, another corresponding channel works).(4 channel switch( receiver) need 4 buttons remote control (transmitter).
三，The Setting of Working Mode:
1.Momentary Mode: Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.
2.Toggle Mode: Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode successfully.
3.Latched Mode: Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator means setting Latching Mode successfully (first button stands for on, second button stands for off ).
4.2CH Momentary + 2CH Toggle: Pressing the learning key button on the receiver board four times(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED indicator means setting successfully.
四， Clearance method:
.Deleting Existing Remote Controls Data: Pressing the learning key button on the receiver board eight times, the LED Indicator on receiver board will flash for eight times, it means that the existing remote controls are deleted successfully.pacote inclued:
A:
1x Transmitter(with battery)
B:
1 x Receiver(with cover)C:
1 x Receiver(with cover)1x Transmitter(with battery)
D:

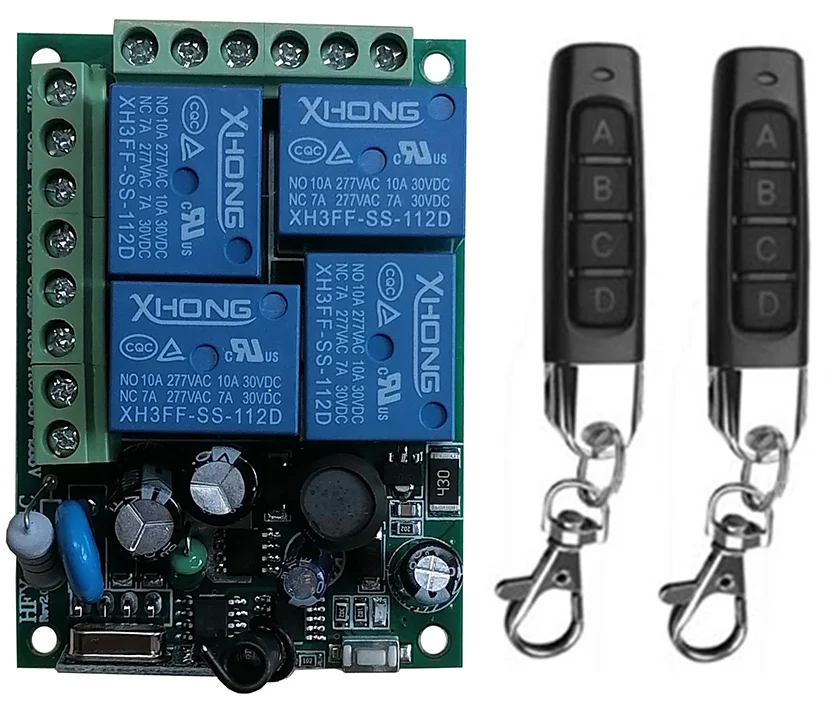

1 x Receiver(with cover)2x Transmitter(with battery)E:

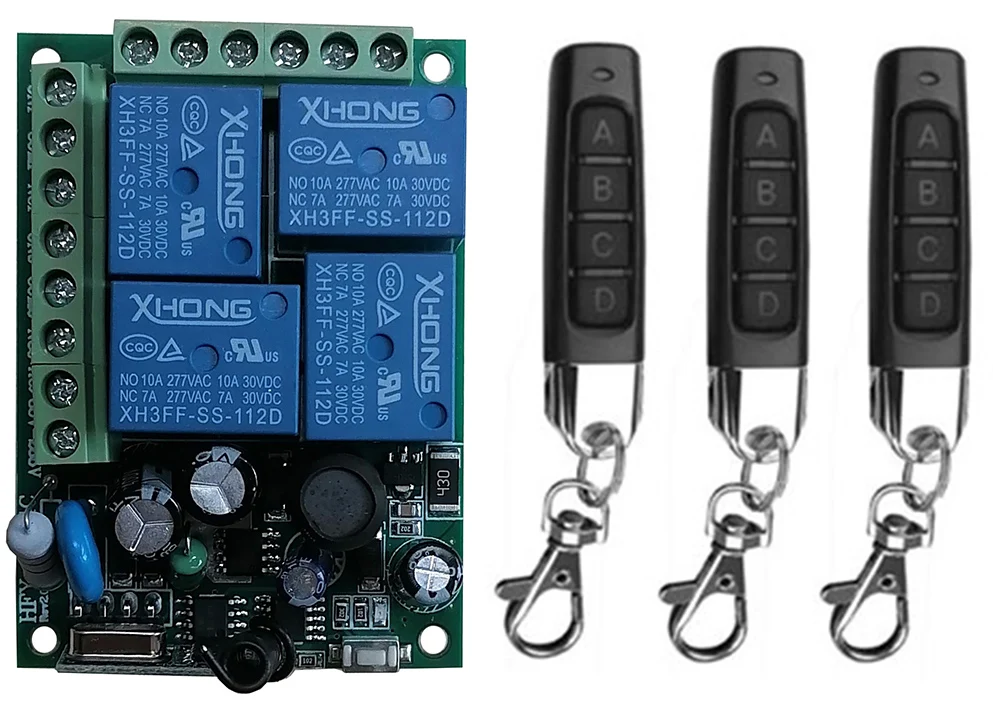

1 x Receiver(with cover)3x Transmitter(with battery)F:

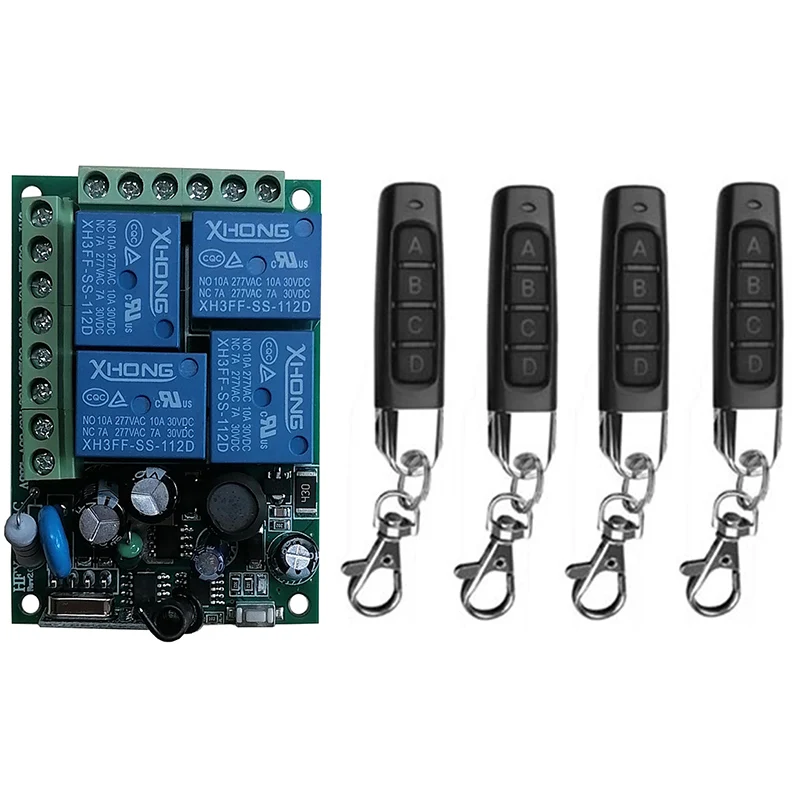

1 x Receiver(with cover)4x Transmitter(with battery)
