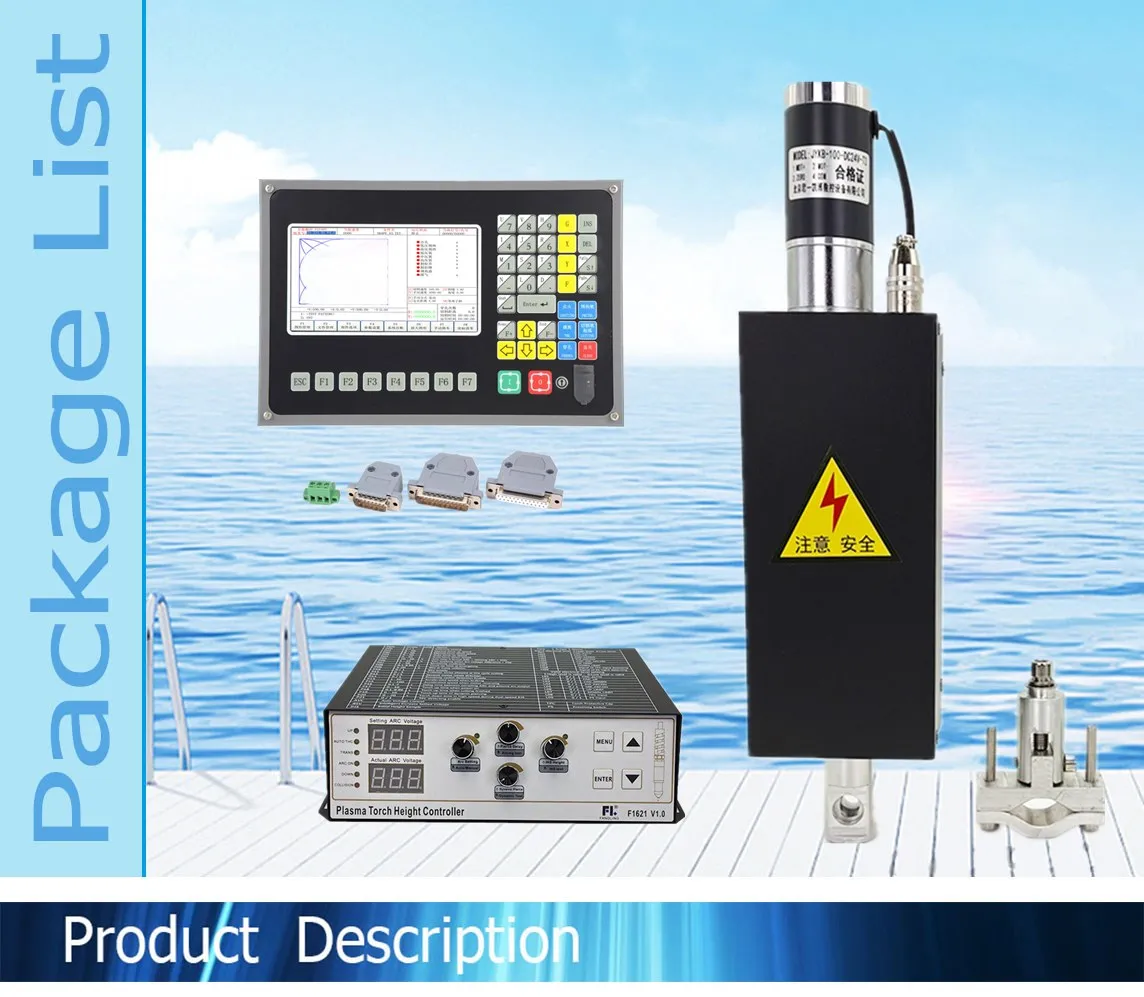

Packing list

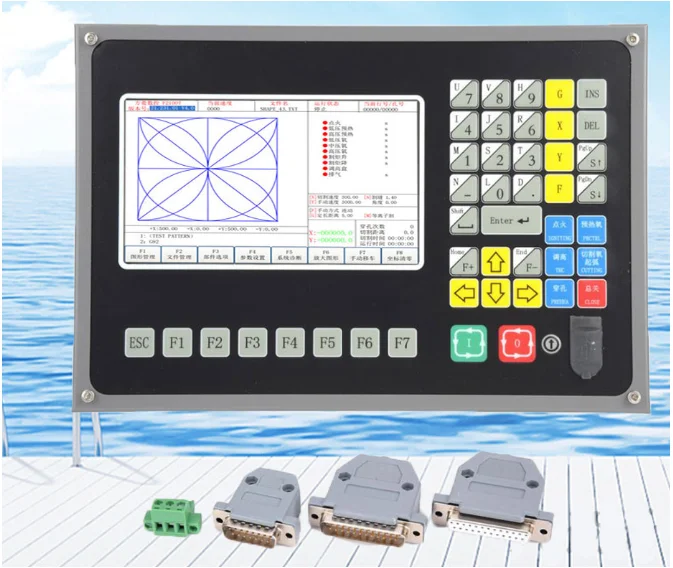

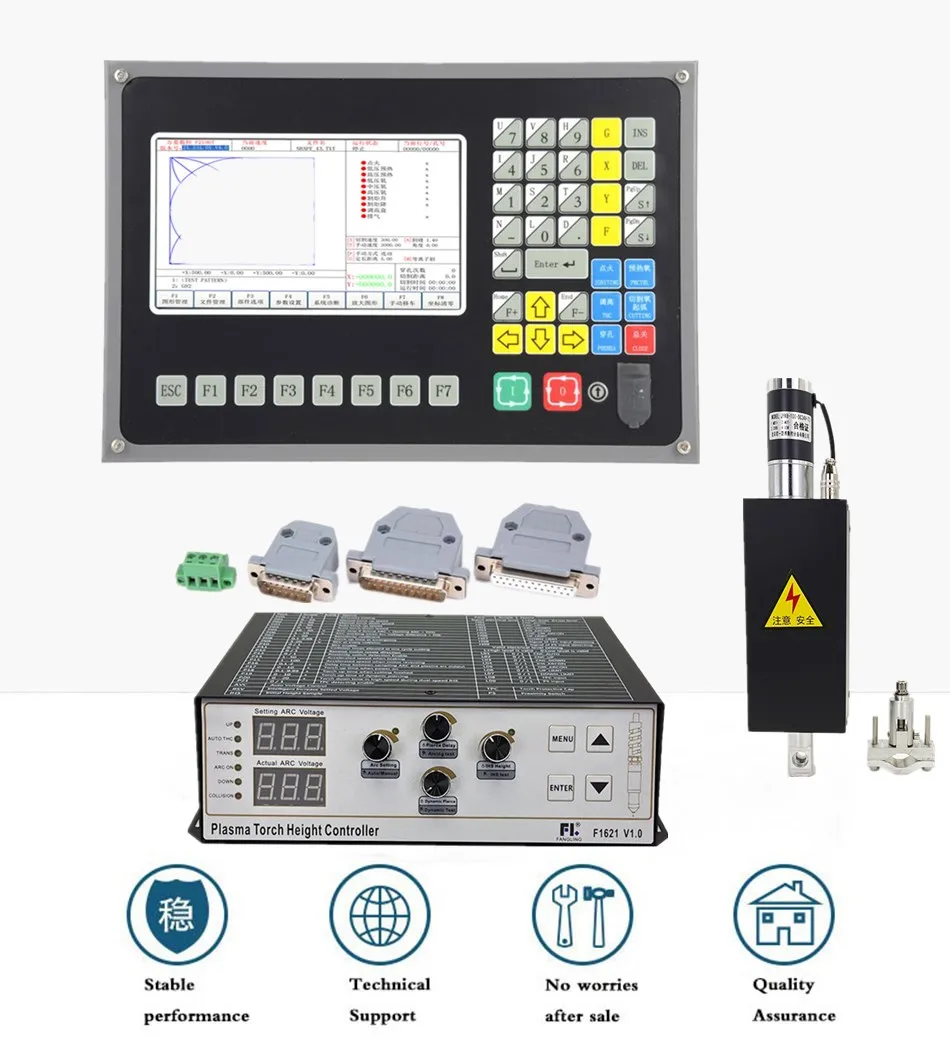

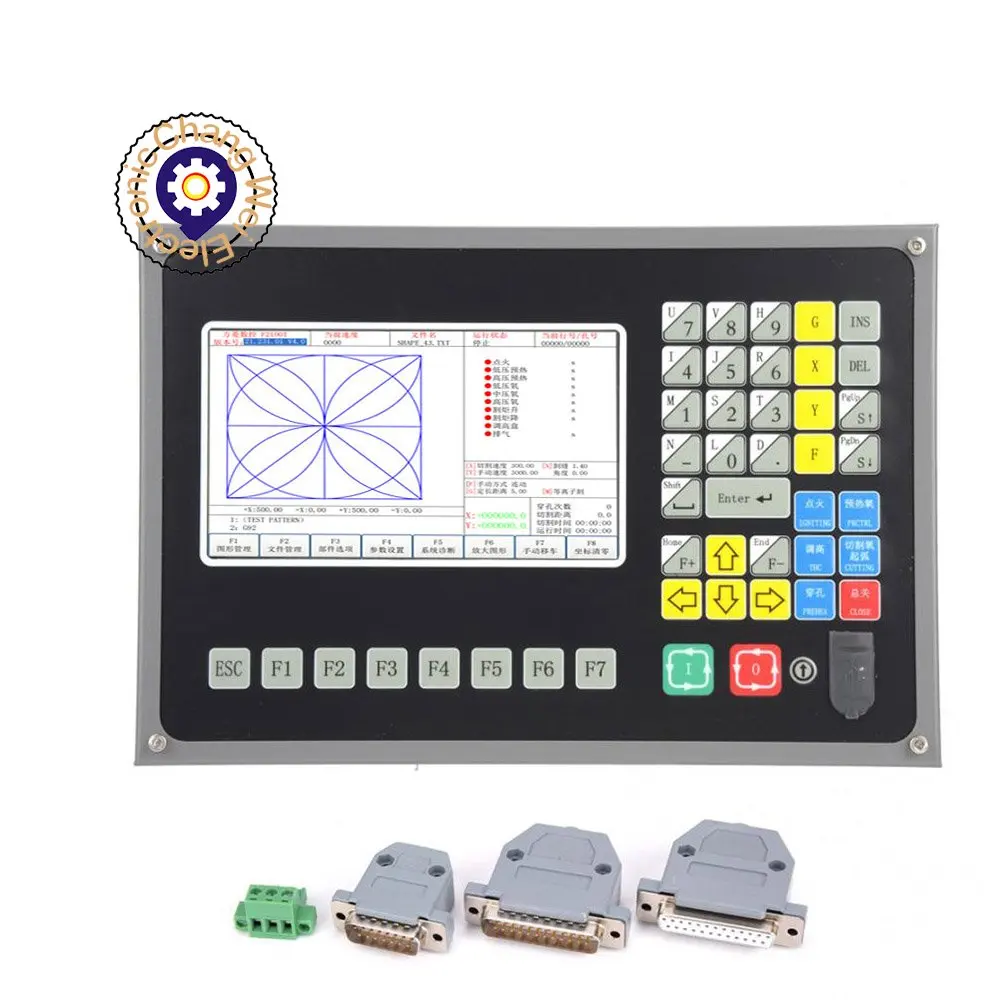

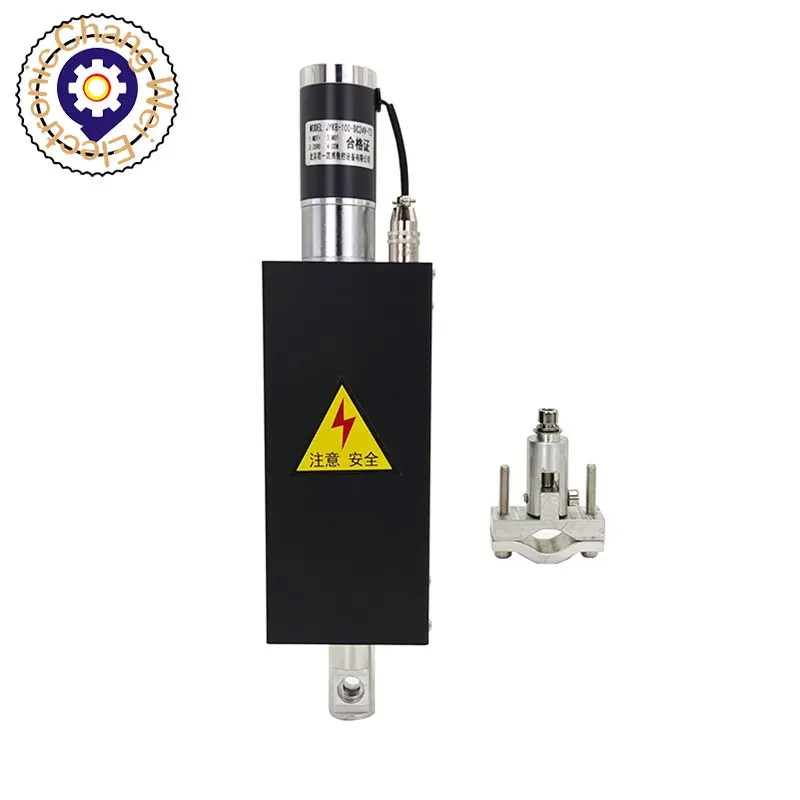

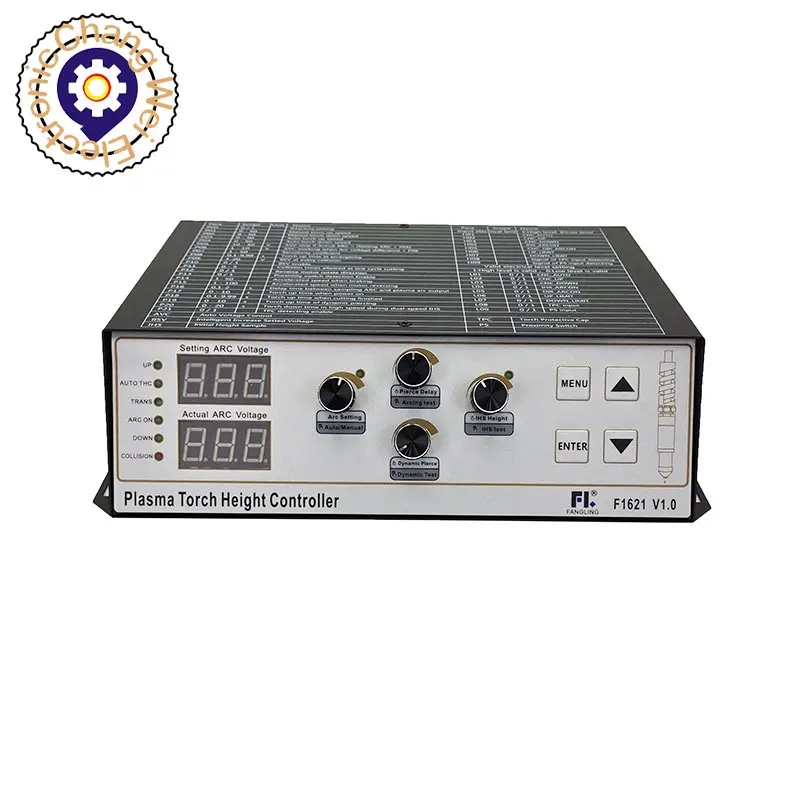

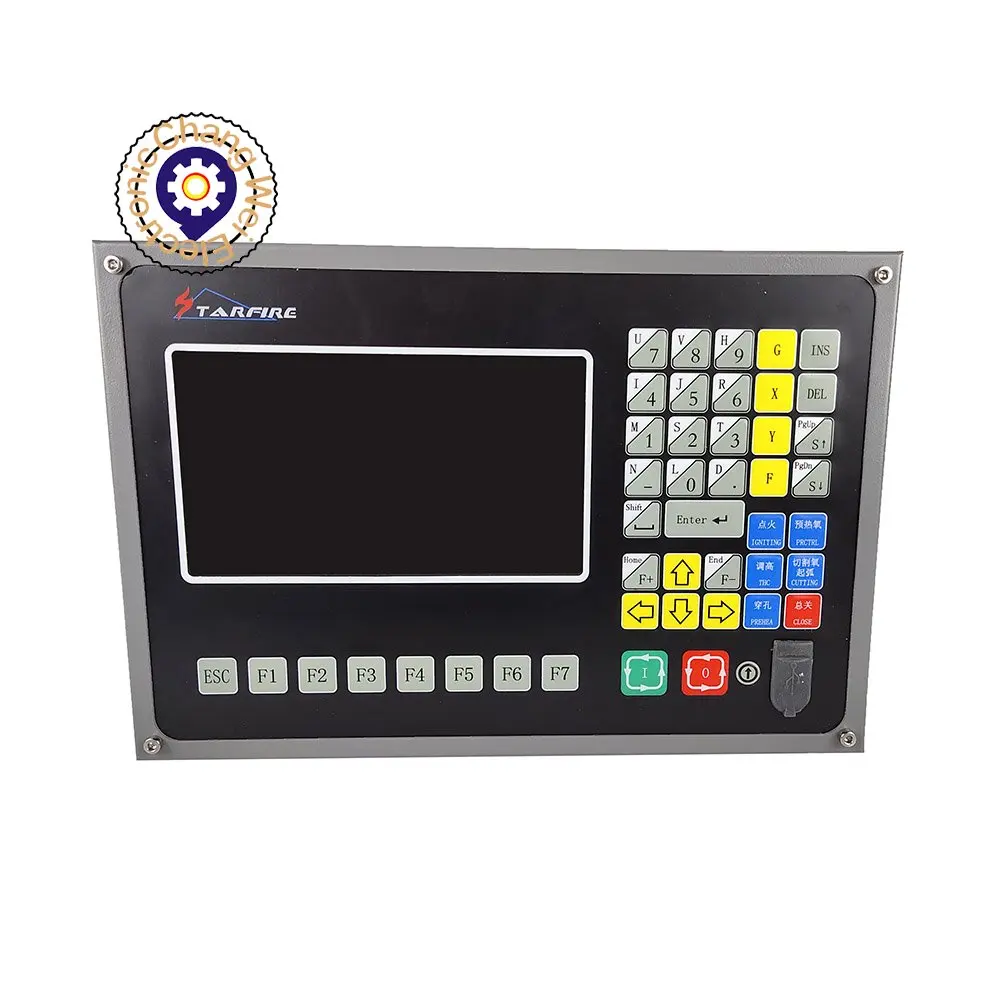

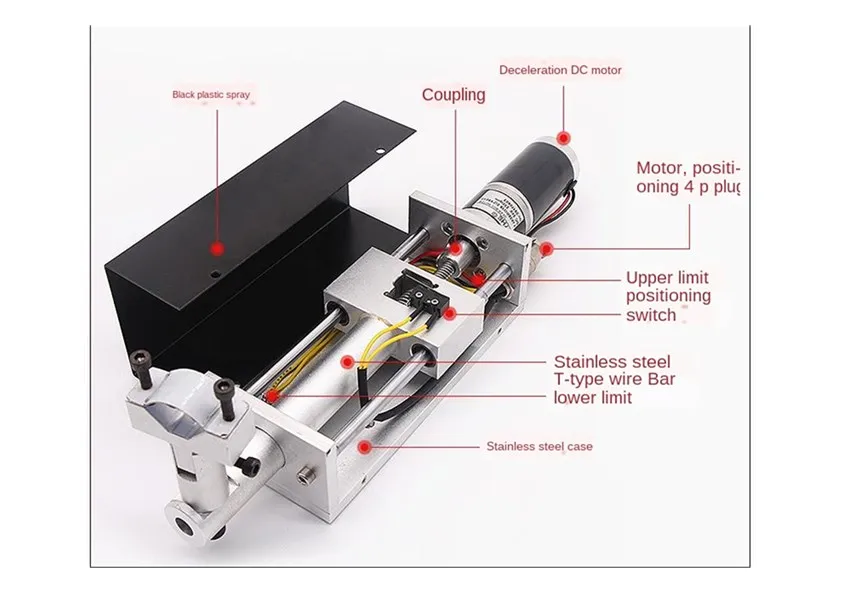

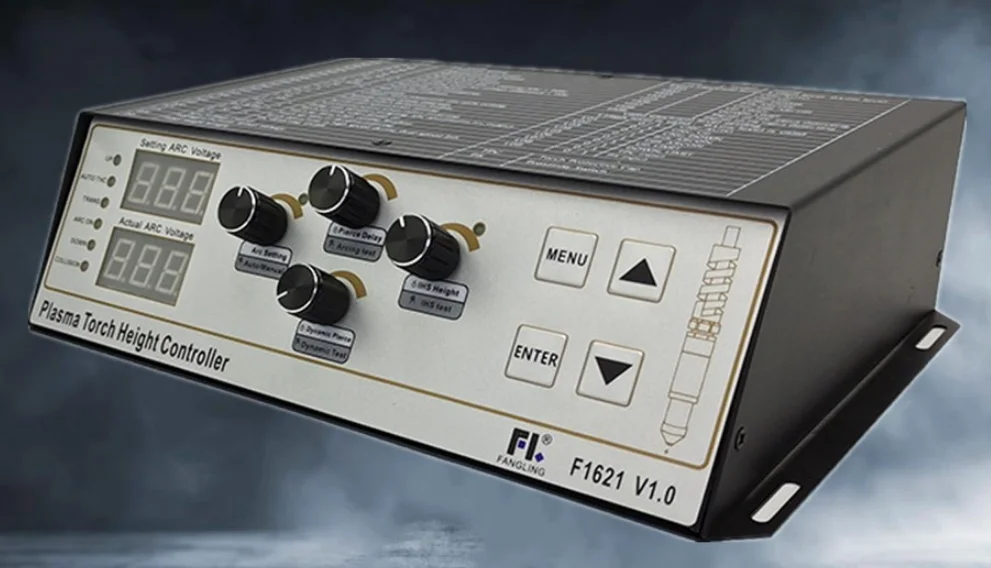

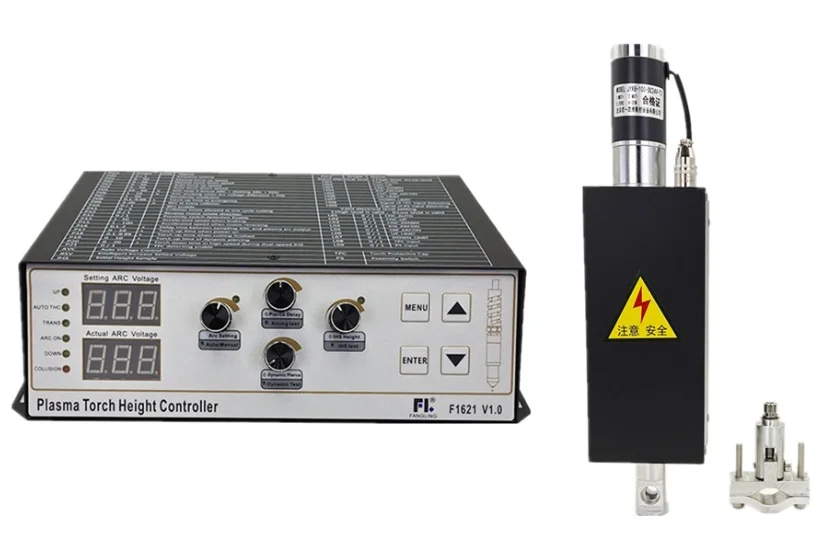

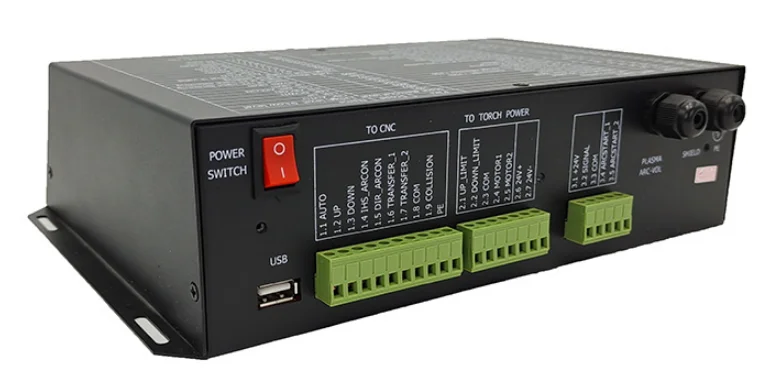

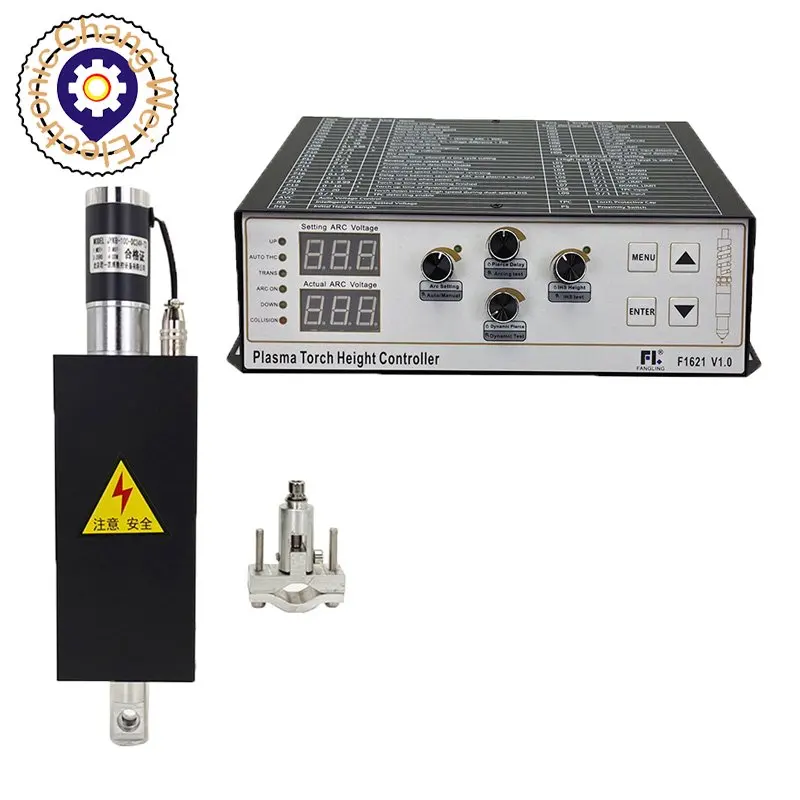

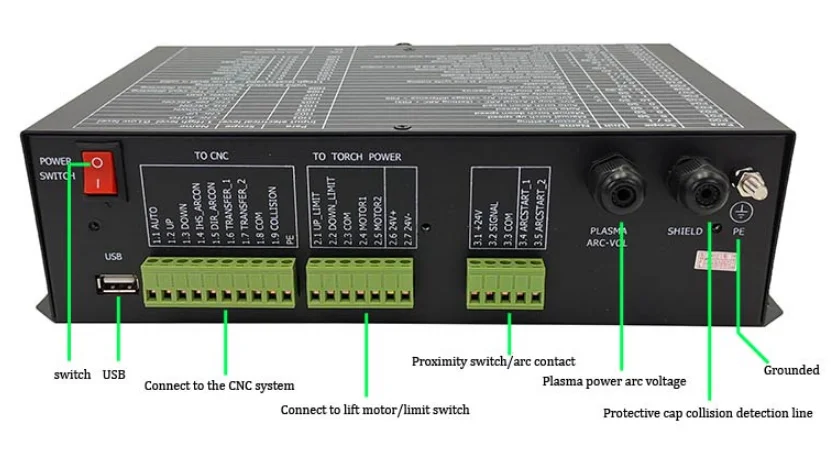

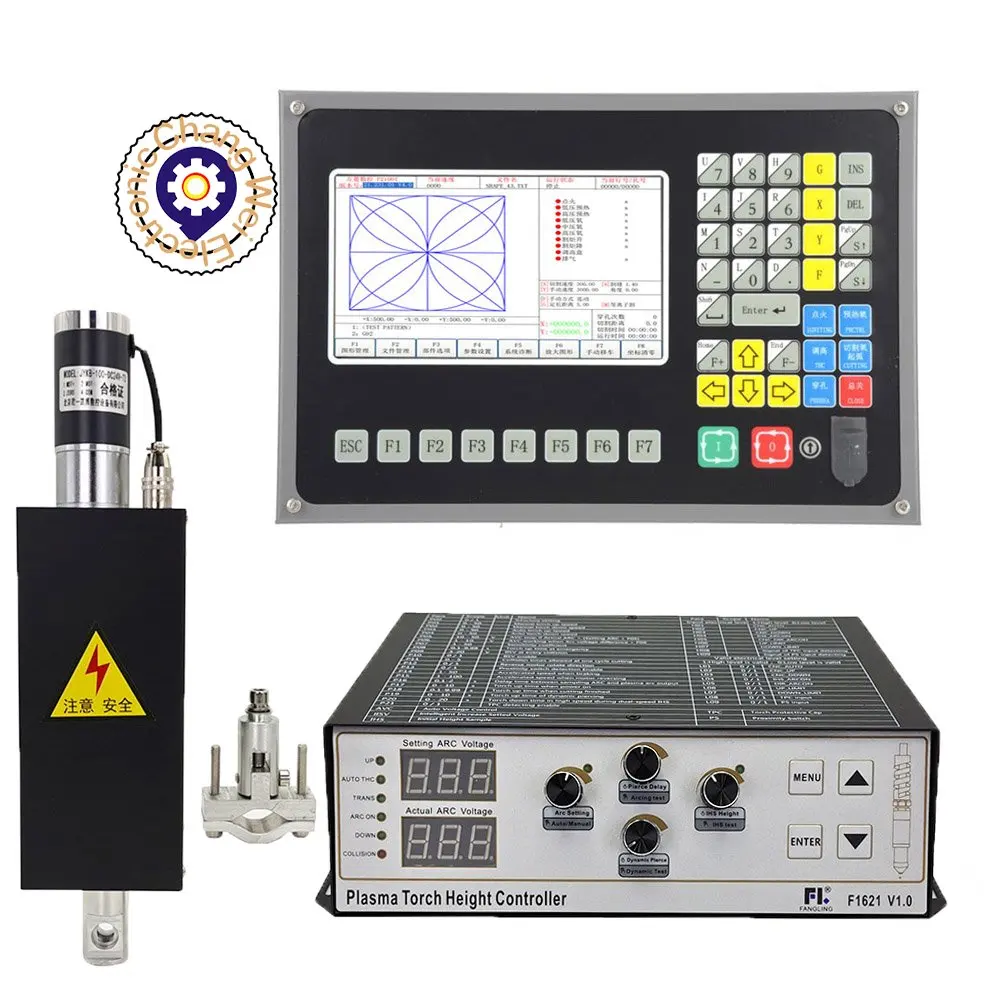

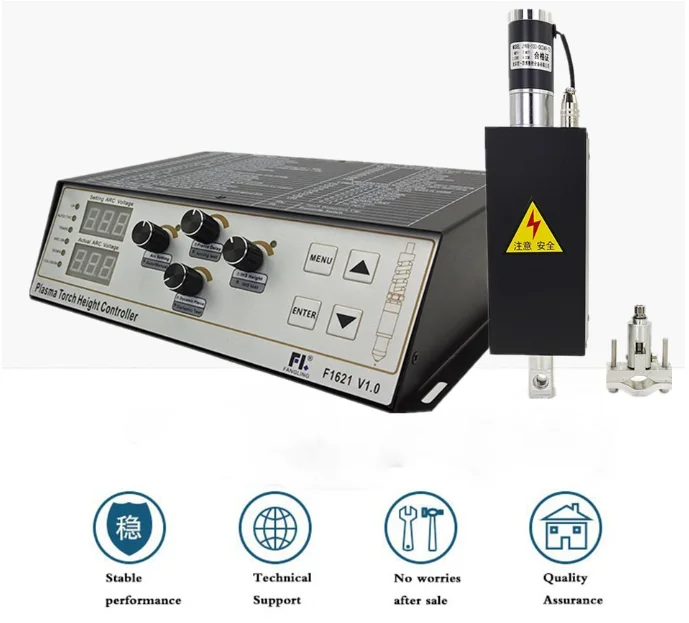

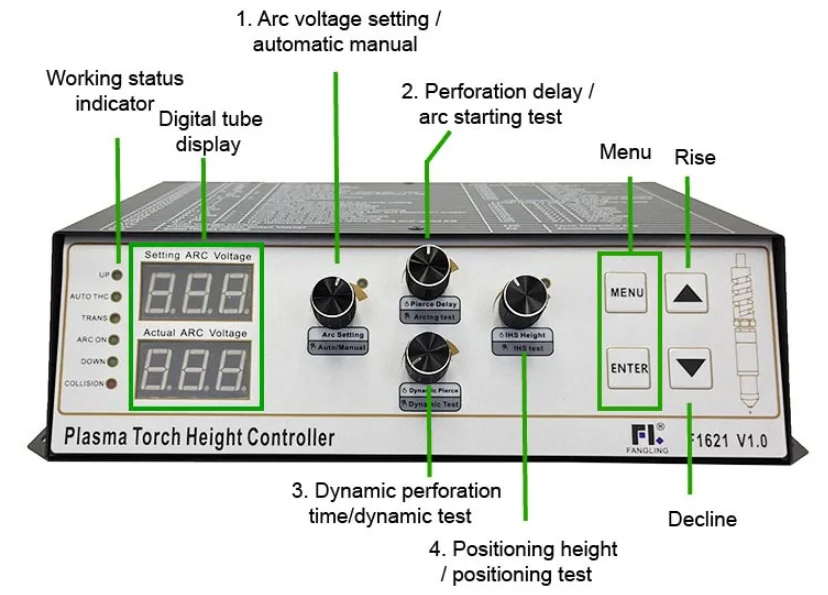

1PCS SF-2100C+F1621P Kit including some accessories

Features:

1. SF-2100C cutting machine CNC system is suitable for all kinds of flame / plasma, high-pressure water jet, laser cutting machine, widely used in metal processing, advertising, stone and other industries.

2. The system is highly reliable and has the ability to resist plasma interference, lightning strike and surge.Practical flame / plasma cutting process. Automatically completes corner speed control and height controller control during plasma processing. Wireless remote control is available for remote operation.

3. It has the function of kerf compensation, and checks whether the compensation is reasonable in the program, and makes corresponding reports for users to choose;

4. Breakpoint recovery, automatic power-off recovery function, automatic breakpoint memory;

5. Arbitrary segment selection and perforation point processing functions;

6. With epitaxial perforation function for thick plates, and bridge function for thin plates;

7. Rollback, segment selection, breakpoint recovery, optional perforation position and other functions, which greatly facilitates the user's control; it can transfer and cut at any time;

8. Special small line processing function is adopted, and the walking is smooth, which can be widely used in metal cutting, advertising, ironwork, etc.

9. Part library with 24 kinds of graphics (expandable), including commonly used basic machining parts;

10. Fully compatible with StarCAM nesting software, and compatible with mainstream nesting software such as IBE (Germany), FASTCAM;

11. Multi-language operation interface conversion, dynamic graphic display, 1 to 8 times graphic enlargement, automatic tracking of moving points, U disk read program and timely software upgrade.

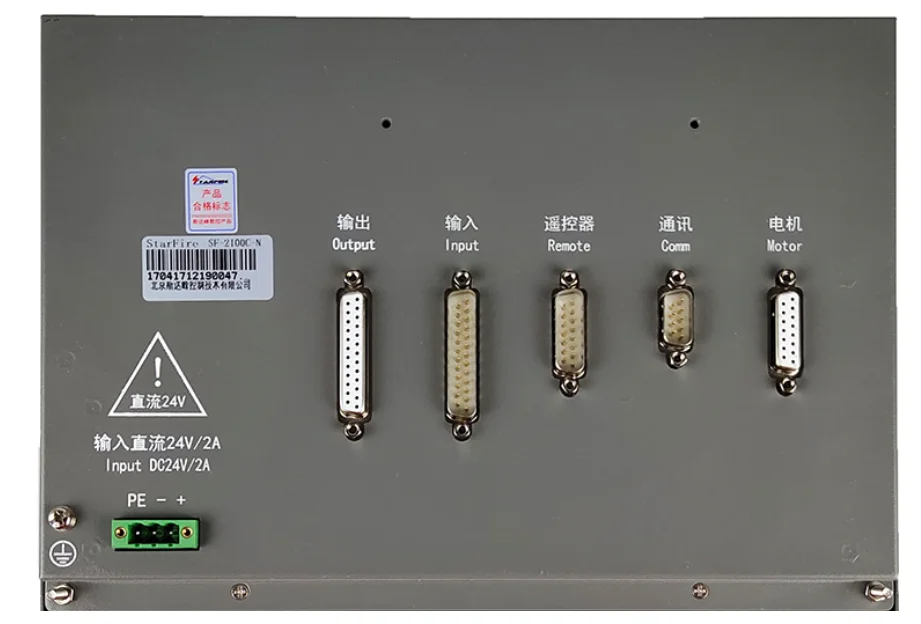

Specifications:

1. Processor: using industrial-grade ARM processing chip;

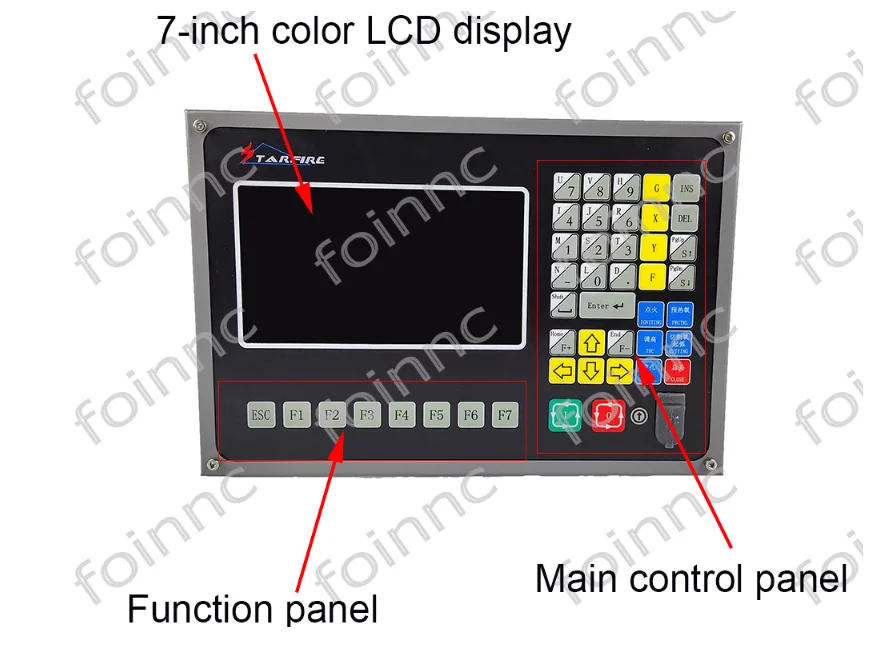

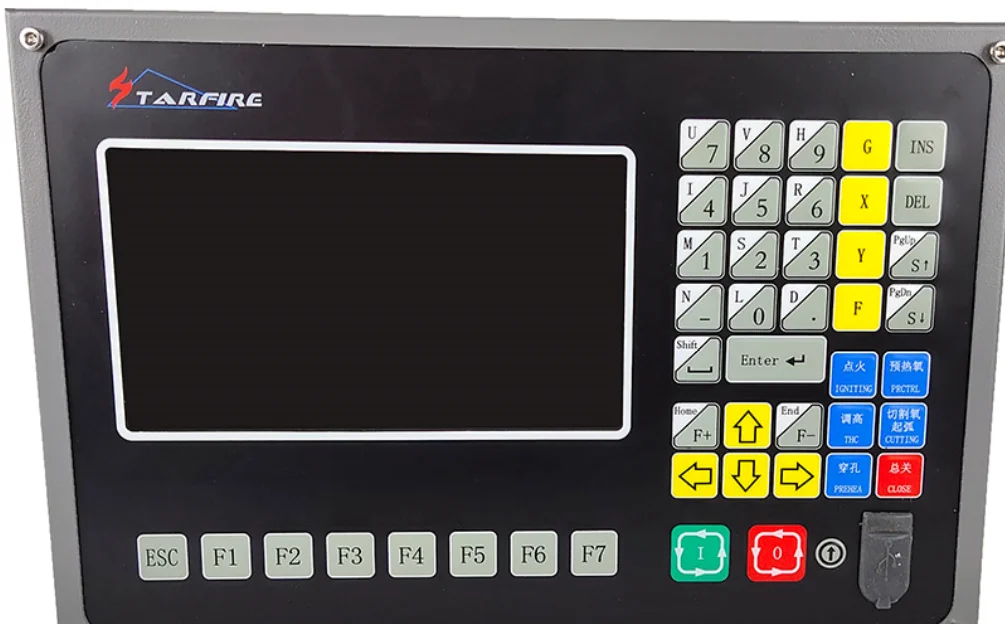

2. Display: 7-inch color LCD display, 800 * 480;

3. Input \ output: the system provides 16 optical isolation inputs and 16 optical isolation outputs;

4. Number of linkage axes: 2 axes, which can be expanded to 3 linkage axes;

5. Maximum speed: not less than 24 m / min;

6. Pulse equivalent: flexible adjustment;

7. Storage space: 4G large user program storage capacity, unlimited processing programs;

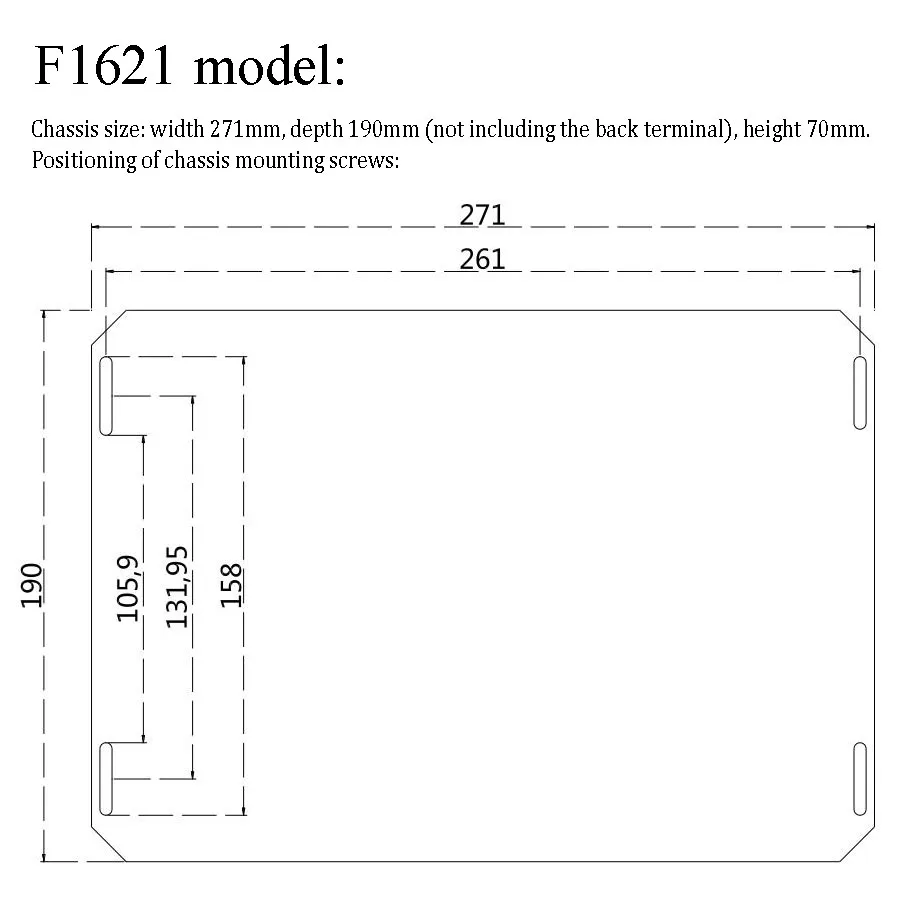

8. Chassis size: 298 × 202 × 65 (mm);

9. Working temperature: 0 ℃ ～ + 40 ℃; storage temperature: -20 ℃ ～ + 60 ℃;

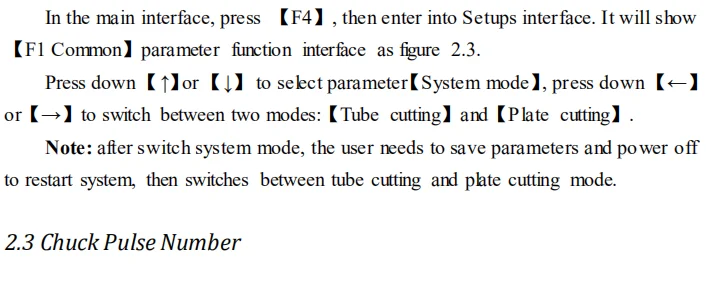

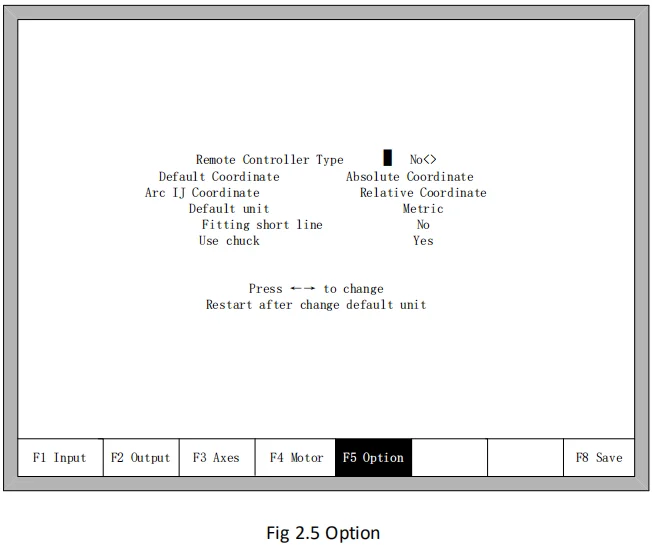

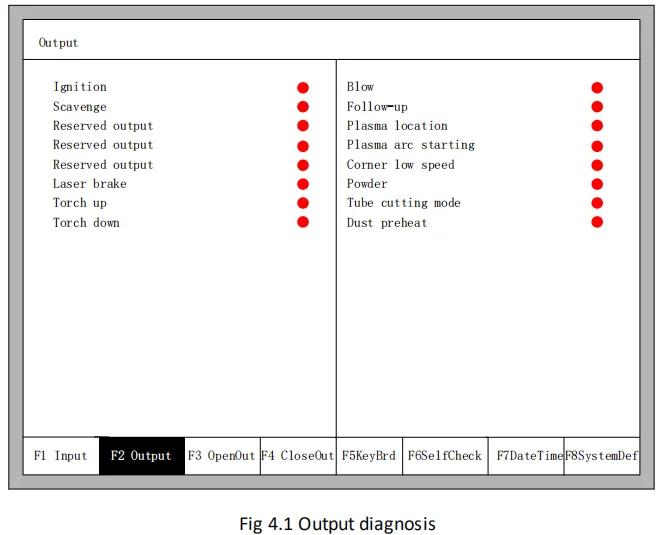

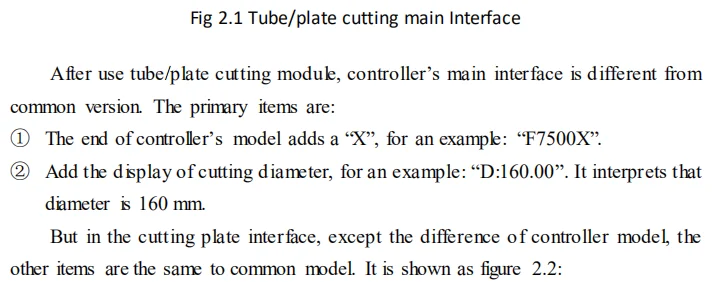

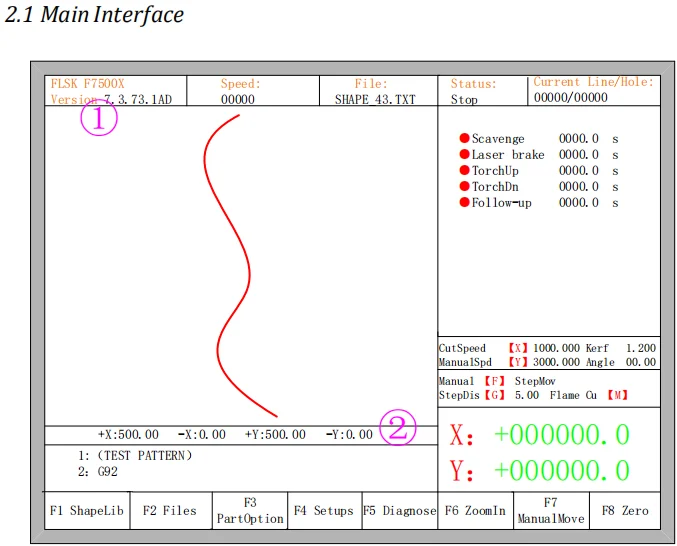

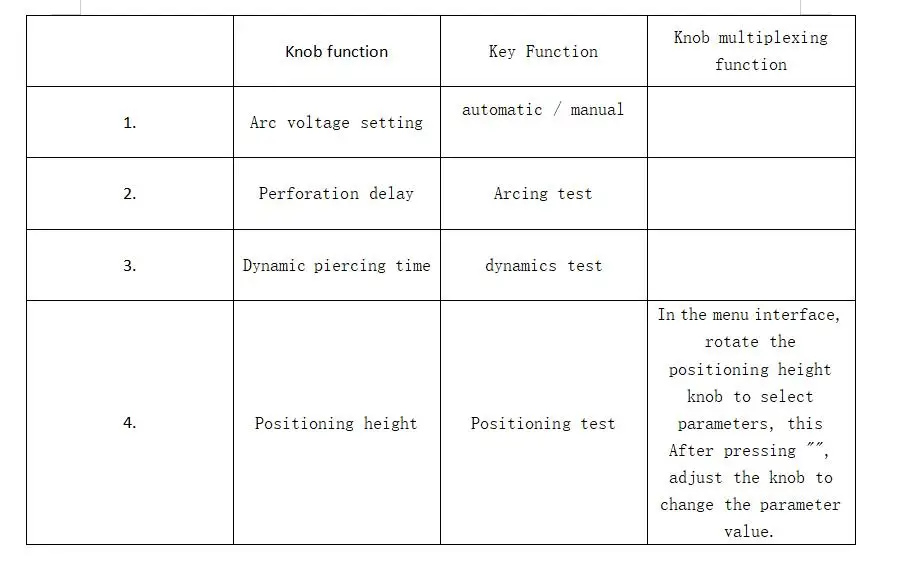

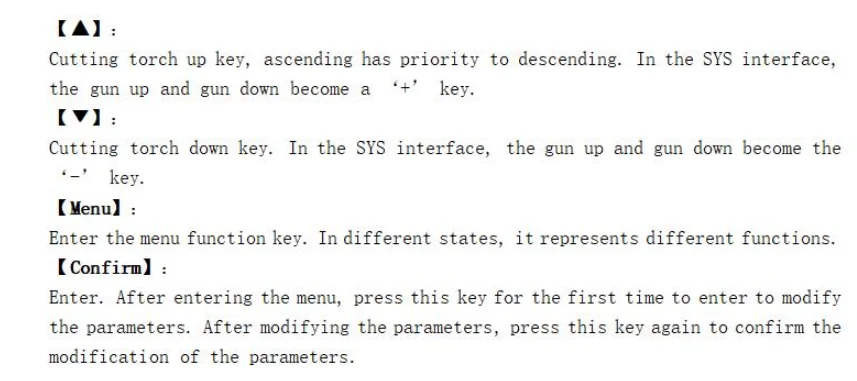

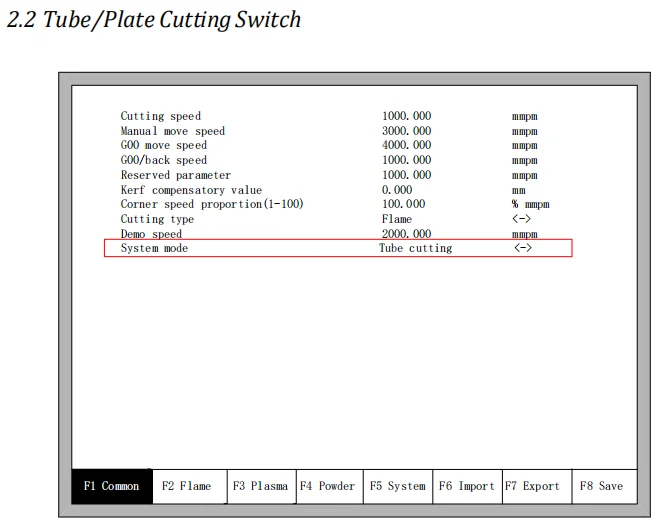

Operation Interface

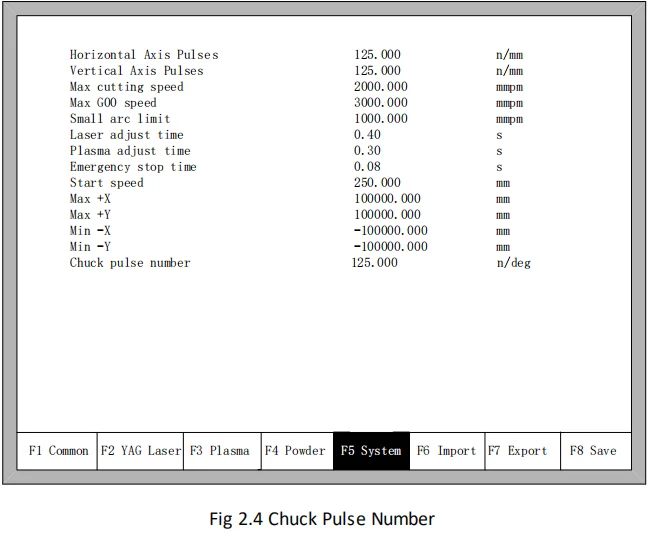

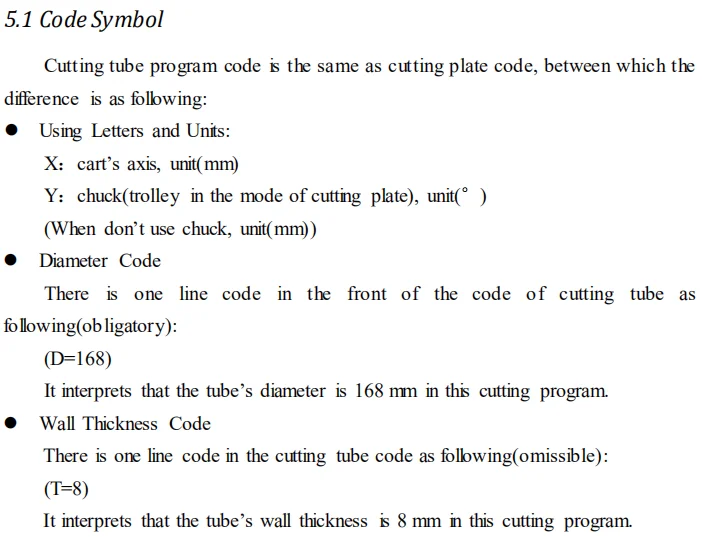

【Chuck Pulse Number]: This parameter sets that chuck needs how many pulses to rotate 1°.

In the cutting tube mode, use【Chuck Pulse Number】 to calculate chuck’s position value

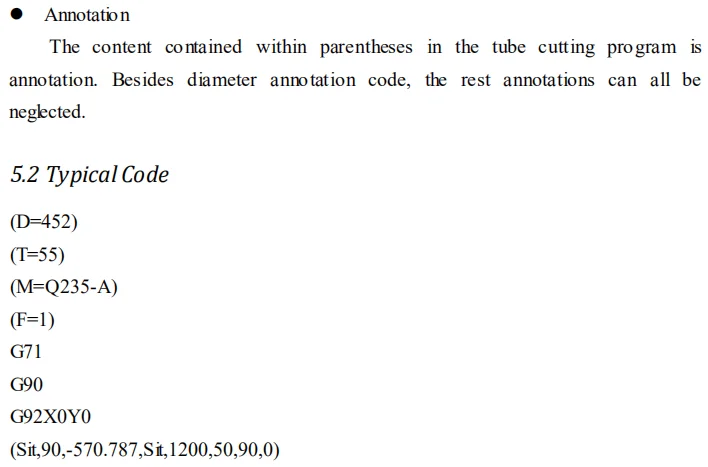

2.4 Whether Use Chuck or not

【Use chuck】When this parameter is set “yes”, (Y) sets angle as unit in G codes; When this parameter is set “no”, (Y) sets length as unit in G codes

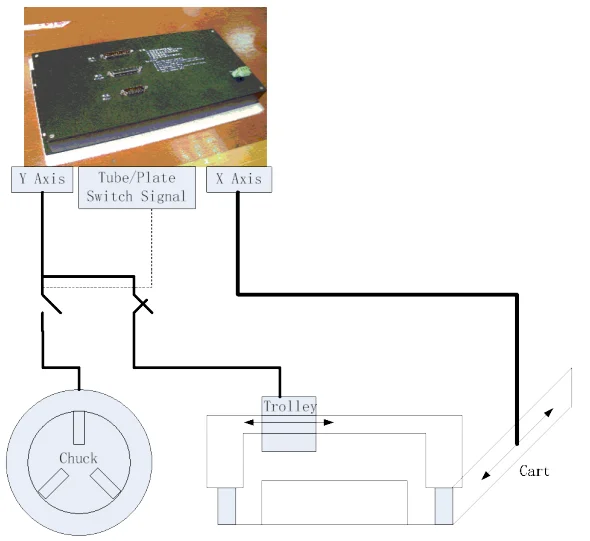

Chapter 3 Tube/plate All-in-one System controller Topology Schematic
