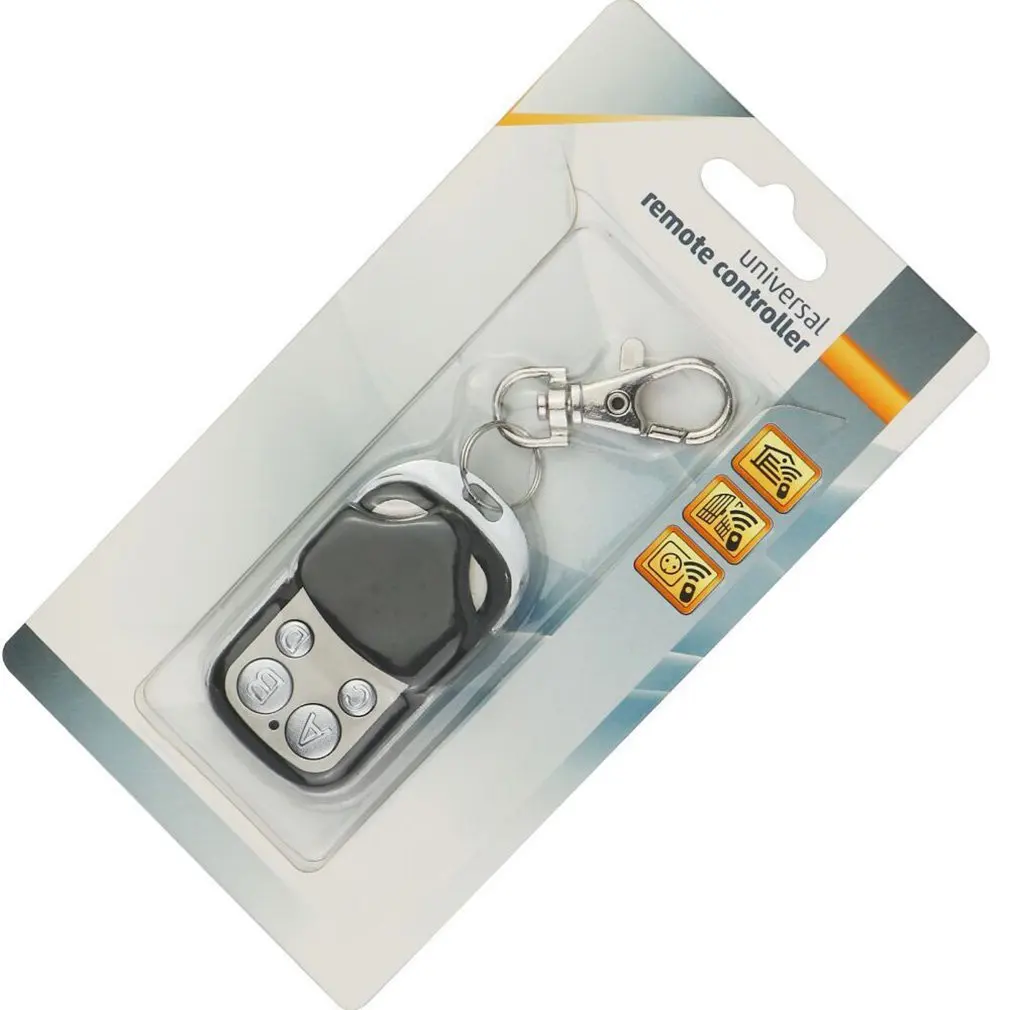

433MHz Cloning Remote Control Electric Copy Controller Wireless Transmitter Switch 4 buttons Duplicator Key For Gate Garage Door |

433MHz Cloning Remote Control Electric Copy Controller Wireless Transmitter Switch 4 buttons Duplicator Key For Gate Garage Door |

Note : Pls read Carefully befor you buying!!!

Pay Attentions to:

Dear friend, please check the following instructions before you buy; if you do not meet the conditions still to buy, we will not accept returns

Please confirm

Door Remote 433Mhz 4 Channel Remote Control Use All 433 Mhz Fixed Code Key Chains Car Home And Garage 1 Pcs

Condition I: the original remote control may be used normally Condition II: know the transmission frequency of original remote control (referring to the following diagram) Condition III: IC of original remote control is 2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527(EV1527,HS1527,HX1527),FP527,CS5211,SMC918,SMC926,AX5026,AX53263,AX53264,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. 5026-2 5026-3 5026-4 FP527 HT12E or without code. IC model of original remote control is 2262 2260 1527 2240 and compatible IC It is unnecessary to consider vibration resistance and address code. The project may be compatible to vibration resistance and address code. only support static code, does not support dynamic code.

NOTE

Here's how to tell the frequency of the remote control and the code chip, as shown below(each remote control board has a silver-white sound table with round,rectangular, Square,etc.).Each remote control has a black chip on it, and the chip has a model with a clearly coded chip on it.)

Inapplicable

The inapplicable IC is HCS300 30 HCS301 and compatible rolling code It's very very important. Don't ingnore them. Don't simple think the frequeny is same then it can be copied.It's not true.

Specifications:

1.Operating frequency: 433.92MHz 2. Number of channels: 2 3. Code: Fixed code 4.Include: 1 x Remote Control (Battery and Keychain Include),1 x English Manual 5.Distance: Up to 100 meters Note：If the received remote B button does not light up, don't worry, this is normal. You can clone directly. With this remote cloner you can clone all 433.92MHz fixed code key fobs. Some remotes that use this frequency are listed below. This is not a complete list! If your remote uses the 433.92MHZ frequency it will work with the remote duplicator

How to Program - it's easy!

Face to face copy your original remote control Step:1:Clear the history code from duplicator 1:Press button A and B continuously until LED flash 3 times 2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash 3.Release button “A”,finish code clearance. Step 2,Copy code from original transmitter 1. Put duplicator aside of original transmitter,as close as possible. 2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash 3. Release both buttons,finish code copy,copy other button in same way. Button A = Lock button Button B = Unlock button
