YR1030 Lithium Battery Internal Resistance Test Instrument

Nickel Nickle Hydride Button Battery Tester

(Combination 1)

（This product is AUTO-ZERO and calibrated before leaving the factory, so NO NEED to RESET/ZERO manually)

PRODUCT FEATURES:

self-assured after-sales technical
support. True 4-wire AC sine measurement, to effectively avoid the
impact of test lines and contact resistance. Two functions interface,
the original battery sorting function. Built-in battery, Andrews mobile
phone charger to charge, low power consumption + a variety of
power-saving options. Test range up to 200 ohms with a minimum
resolution of 0.01 milliohms and less than 5 milliohms. Press HOLD to
enable the

ZR function to measure internal resistance as low as 0.30--0. 50 milliohms.

Hand-built, demanding on the
appearance of careful shot. 2017 battery internal resistance tester.
True four-wire 1Khz AC sinusoidal battery resistance meter 0.000010 ---
2002 range. Measurable lead-acid, lithium-ion, lithium polymer, lithium
iron phosphate, alkaline, dry batteries, nickel metal hydride, nickel
cadmium, button batteries. Use the ZR function to measure internal
resistance up to 5 milli-ohms. Due to the batch of problems may result
in

a slight difference between the physical and the picture

Instructions please download the following address, more tips on the use of skills see the solution.

Http://pan.baidu.com/s/1i3MV86D

Note: read the instructions before use
and instrument back note. It is strictly forbidden to input AC signal
and above 30V DC voltage.

Instrument built-in battery, pay
attention to the selected courier and shipping can be transported,
otherwise the mainland outside the region without the default battery.

Another other types of measuring
instruments have been introduced, please pay attention.OUR will be
committed to the advanced concept of starting, to create a local
excellent instrument manufacturers and work. And then hard to adhere to
the original design.The machine is not equipped with a charger, charging
can be charged with Android mobile phone charger ~

Purchase guidance:

Test line length is 0.5 meters

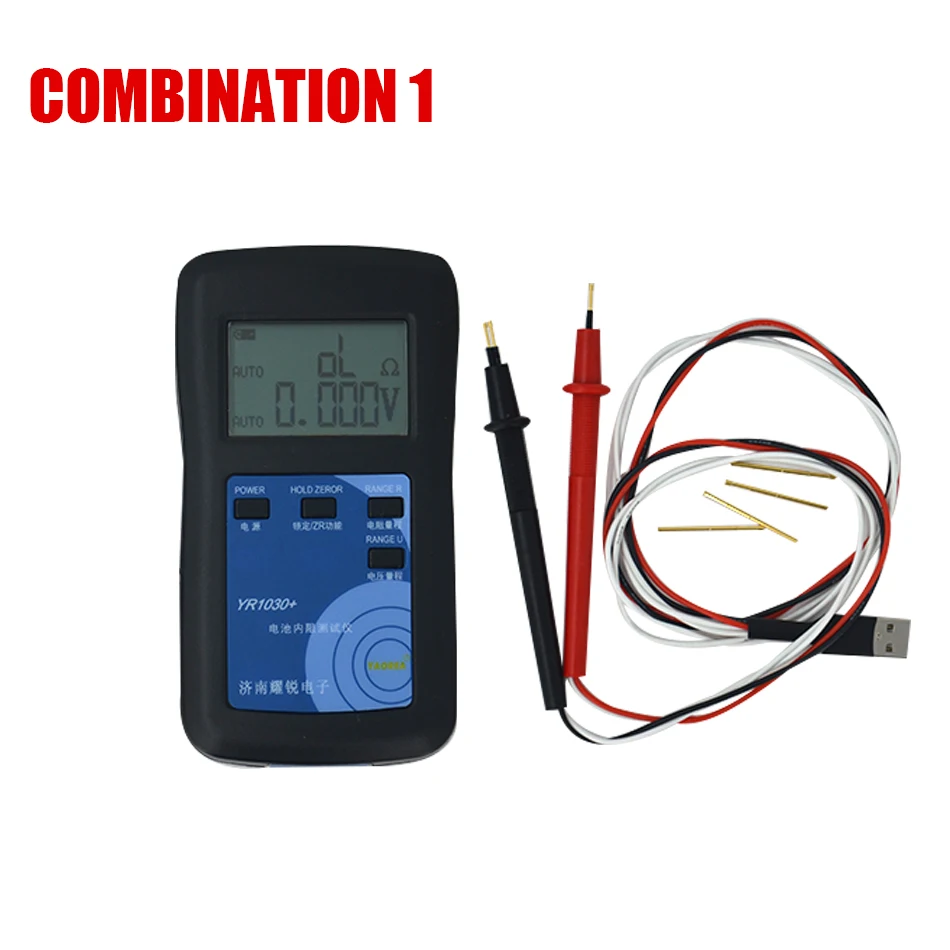

Combination 1: host + probe test line
(suitable for measuring various types of batteries, good versatility.
Twisted-pair leads to improve immunity)

Combination 2: host + Kelvin folder
(for measuring leads, tabs and other ears. Conductor easy twisted pair,
the accuracy is better)

Combination 3: Host +18650 test stand
(for cylindrical batteries such as 18650. Suitable for single-handed
operation, convenient and efficient, with the sorting function suitable
for

incoming testing)

Combination 4: Host +18650 test frame +
Kelvin folder + probe test line (for measuring more types of batteries,
corresponding to a variety of circumstances)

Combination 5: host + probe test line + Kelvin folder

Combination 6: Host +18650 test stand + probe test line

Combination 7: Host +18650 test stand + Kelvin folder

Main parameter:

Internal resistance measurement:

Precision format: + ([]+[minimum effective digit percentage accuracy])

Minimum range resolution accuracy

20mΩ     0.01mΩ     0.7%+ 7(when ZR function is enabled)

200mΩ    0.1mΩ      0.5%+5

2Ω        1mΩ        0.5%+5

20Ω       10mΩ       0.5%+5

200Ω      0.1Ω        0.6%+5

In the gear 5%-95% range, within this
range (less than 5% gear range, or greater than 95% gear range range),
the error may be greater than the accuracy mentioned above.

Voltage measurement:

2V     0.001V     0.8%+5

20V    0.01V      0.8%+5

28V    0.1V       0.8%+5

Features:

1. Voltage resistance with the screen at the same time measurement, measurement quickly and steadily.

The minimum resolution of up to 0.01
milliohms, easy to test large capacity, high discharge rate low
resistance battery. Range can be 200 ohms, can be measured button
batteries, 9V laminated battery and other low-capacity small current
high internal resistance battery.

2. Voltage, internal resistance
function, respectively, with manual automatic range function.Automatic
range switch stable and fast, the measurement shows 4 times per second
update,the basic can be locked in about 1S time range stable display.
HOLD function to help you lock the display, more convenient reading.

3. Using dot matrix LCD screen.

Size font combination, which clearly shows the measurement results, but also display rich

content. Chinese menu is rich in settings.

4.2 kinds of display mode.

Normal mode with the screen display
resistance and voltage, sorting mode shows the interna resistance
voltage and the level of battery classification and counting.

5. Has a three-level battery rating detection.

By setting the voltage resistance rating, the battery can be grouped. .

6. Built-in lithium polymer rechargeable battery.

And more reserved for a standby power interface, can expand the larger capacity.

7. Built-in charge management circuit.

And can be set to 200mA and 400mA two charging current.

8. Energy saving function.

Can be set 5 - 60min shutdown delay. No operation and input, the ultra-delayed automatic

shutdown. Can be set to 5-30min delay into low power mode. No oper
