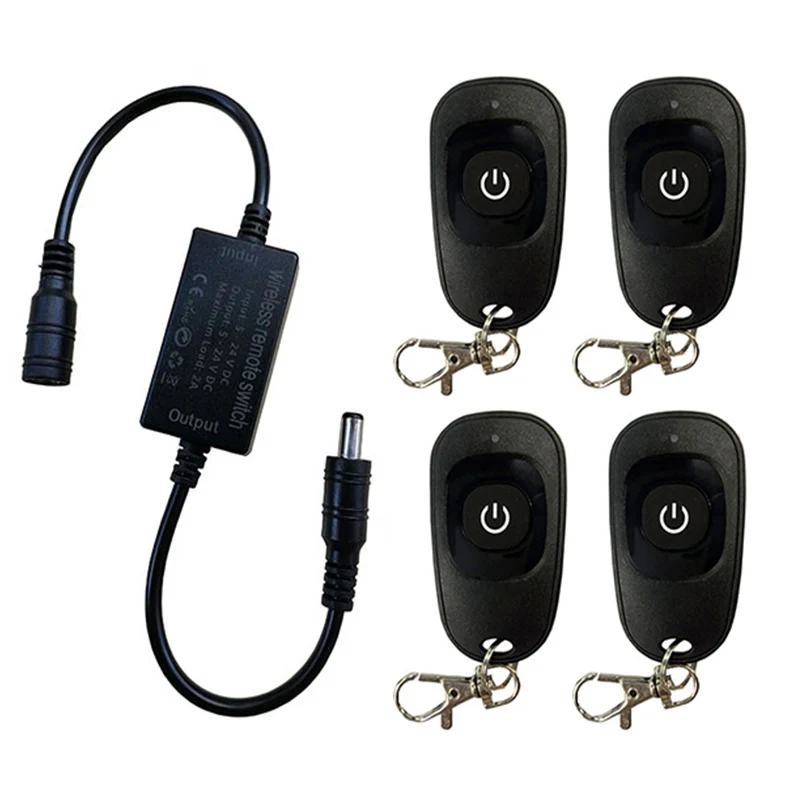

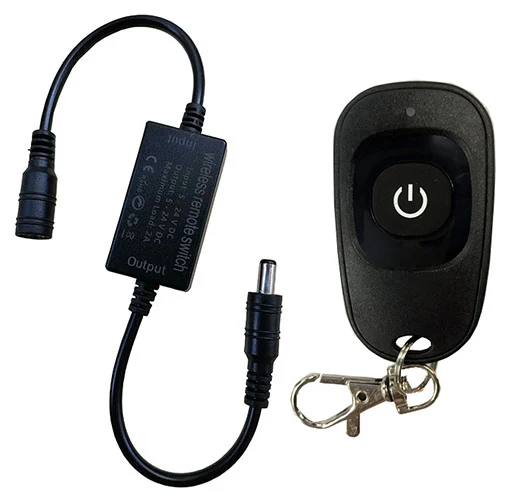

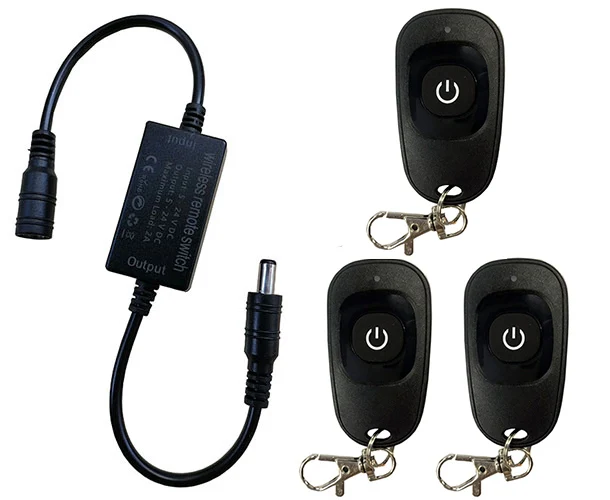

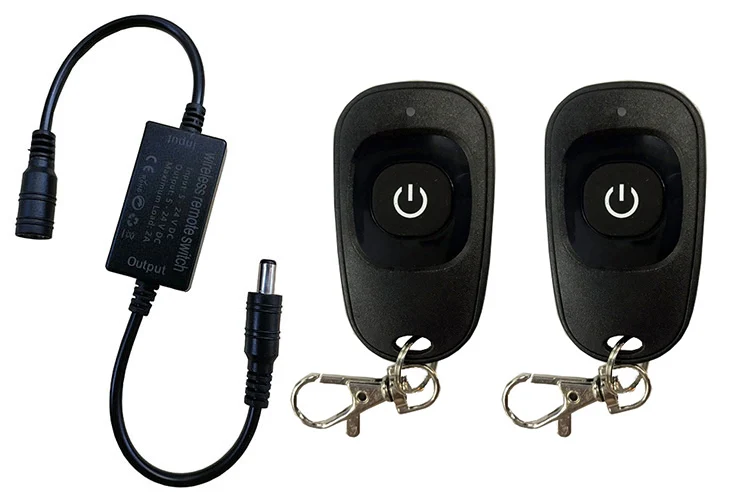

Wireless remote control switch 433mhz relay RF 5V 12V 24V DC power Adapter connector plug Controller receiver transmitter | Обустройство

Wireless remote control switch 433mhz relay RF 5V 12V 24V DC power Adapter connector plug Controller receiver transmitter | Обустройство

Please note ：If you don't understand the product set， please go to the following product video links: https:/item/1005003194881502.html?spm=a2g0o.store_pc_allProduct.8148356.1.2db632ed0CHyeI

Product parameters

1.DC5-24V input,1 CH

2.Working voltage: DC5V-24V wide voltage

3.Length: 300mm

4.Connector size: male and female 5.5*2.1mm

5.Working mode: MOS tube SCR silent and non-contact (control the  on and off of the positive electrode VCC + )

6.Frequency: 433.92MHZ

7.Standby & working current: 6mA

8.Load capacity: 2A

Code :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle :Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Learning the code :(momentary)

Push the learning key on the receiver once time , it comes into momentary setting mode , he LED indicato will be bright , it comes into learning state .Push the remote button,LED indicator on the receiver board will flash then come off.learning successfully .

Learning the code : ( Toggle )

Push the learning key on the receiver twice time , it comes into toggle setting modeWait for a moment , the LED indicato will be bright , it comes into learning state .Push the remote button,LED indicator on the receiver board will flash then come off.learning successfully .

Learning the code :( Latching )

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for "ON", the second time learnt for "OFF".For example : button A = ON , button B = OFFPush the learning key on the receiver triple time , it comes into latching mode .Wait for a moment , the LED indicator on the receiver board will flash then come off.Push the remote button A .LED flash  .Push the remote button B .Led flash  , learning successfully.A = ON , B = OFF .

Clearing the code :

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearning the code, all the remote control cannot work any more.
