Product Description

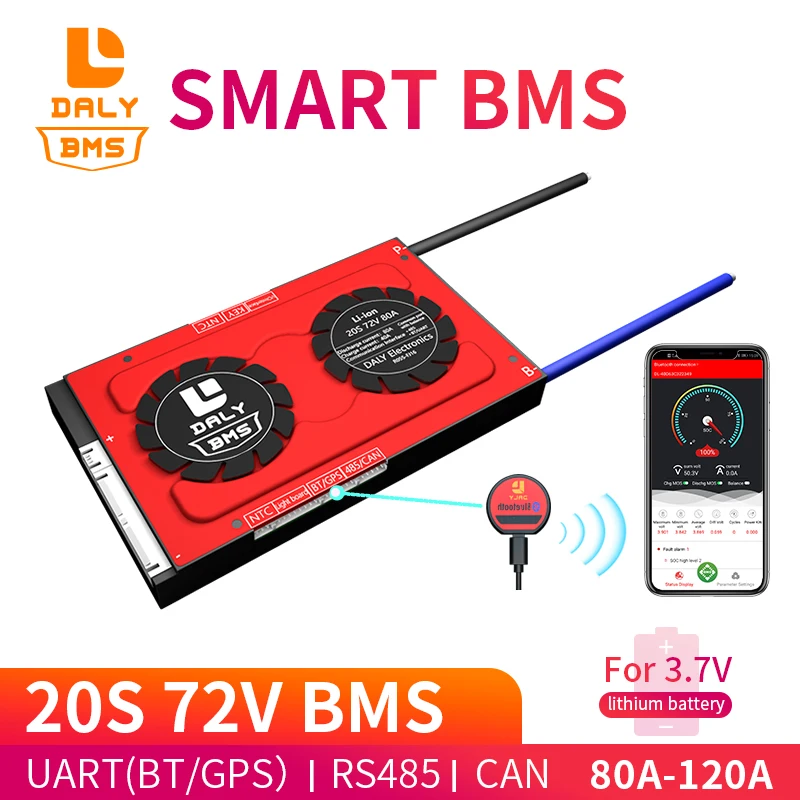

Daly 18650 smart BMS 20S 72V 80A 100A 120A Bluetooth 485 to USB device NTC UART software togther Lion LiFepo4 Battery BMS

◆ Currently, all Smart BMS without the waterproof function.

◆ This link is for 20S72V Li ion Battery. Please fill in the parameter after placing order to ensure SOC with right information.



Before purchasing, please read the following instructions in detail to avoid wasting your precious time and energy.

1. Overview

◆We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.

◆The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.

◆According to the customer request we can develop PCM in different sizes and structures.

◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.

2. Advantage

◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.

◆Strong load ability, constant discharge current 80A 100A 120A 150A 200A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

◆IC itself has power balancing function. The circuit is simple and reliable.

◆Typical voltage detection for each cell,So each battery will be prevented over charged or over discharged,Over current and short circuit protection function is very reliable,Long time short circuit of the load won't affect the PCB and the battery,Temperature protection during charging and discharging.

◆Extreme low power consumption. The consumption of the whole device is less than 50uA.

◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

◆For the same model, its charge current is less than discharge current because Daly PCBAs were updated to well protect customer battery.

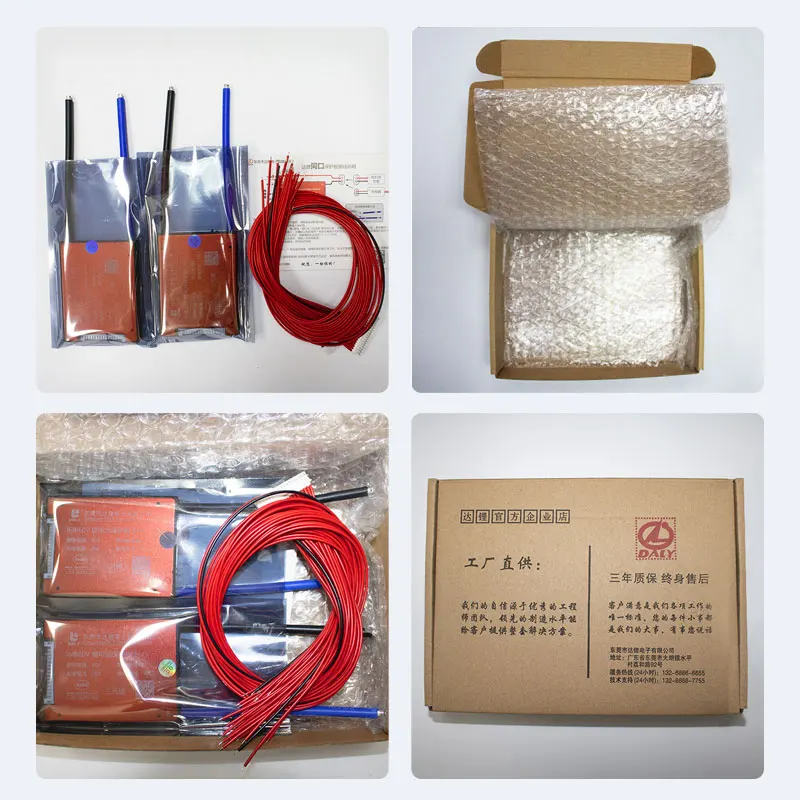

3.Packing list

◆The model of the BMS board you ordered*1pcs and cable*1pcs and English manual*1pcs .

◆If you need to use other accessory functions,Please add the required accessories to the shopping cart on this page and settle together. We will match the BMS version of the corresponding model according to the accessories you purchased, and ship it for you in time.Tip: If you don't buy any accessories, you will only receive The model of the BMS board you ordered*1pcs and cable*1pcs and Englis manual*1pcs. (If you don't know which accessory to buy, please contact our online customer service, we will reply you in time.)

4.Instructions for use

For our smart bms,when first use,need to activate first,then B- P- can be conductive,BMS can work well.Plz ensure correct wiring before using,Bychargingbattery through bms or bypress power buttonon battery light board if you have.

Activation method:

◆Method ①: Purchase the power board,there is an activation switch on the board and click the button.

◆Method ②: Charge activation, B-line must be connected to the total negative pole of the battery pack when

 3S~5S, J series (10J, 16J ) BMS only can be activated by this way.

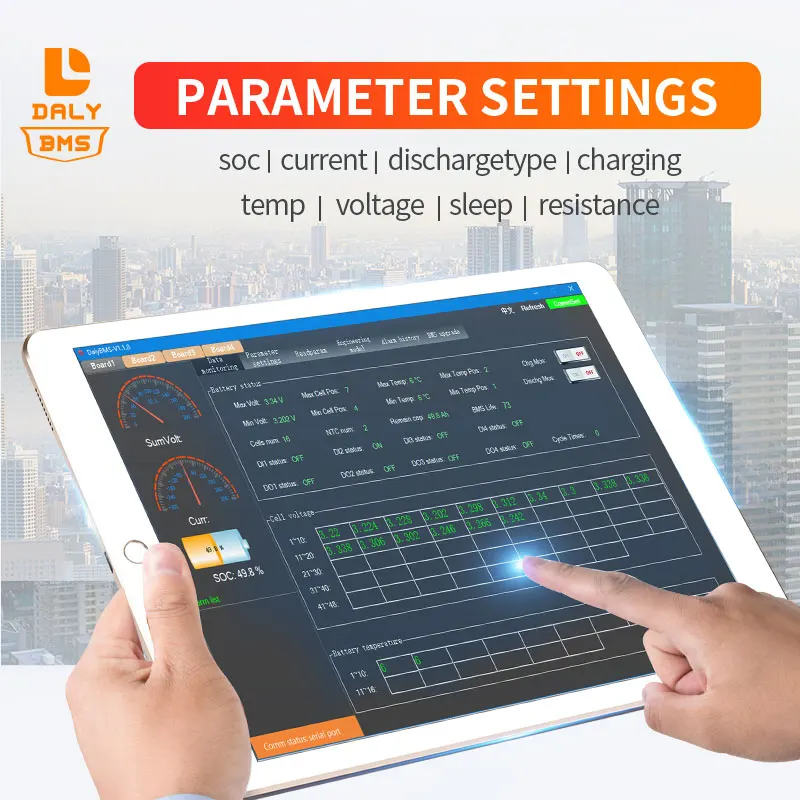

◆ the Android and IOS APP available to download.

◆ Please click the use tutorial link below to understand bluetooth set up by APP.

5.Precautions

◆ all BMS can not be connected in series or parallel.

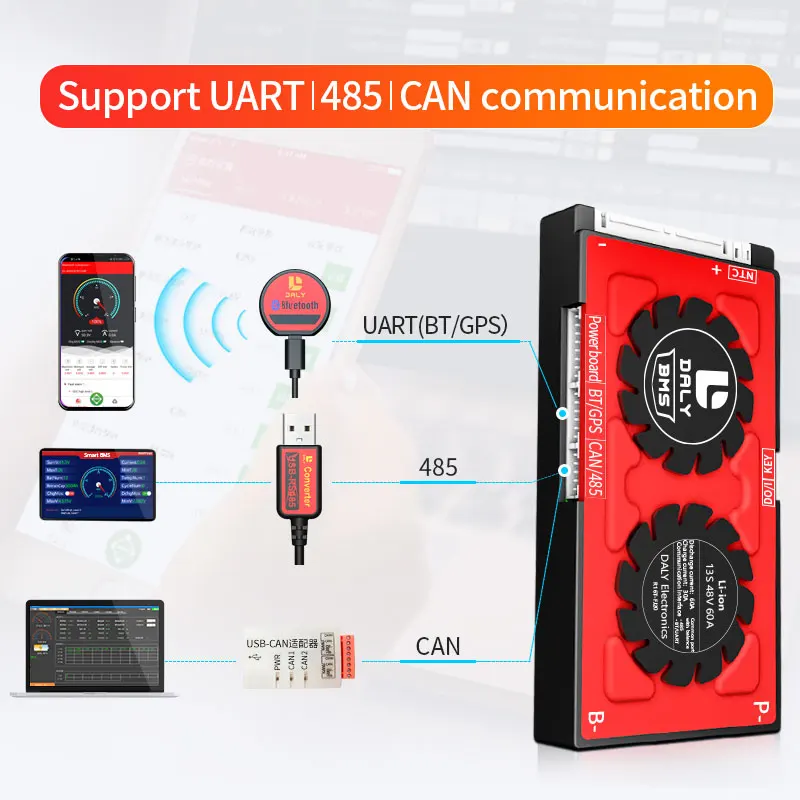

◆Hardware BMScan not add accessories;Only Smart BMS board can use UART /BT /RS485/ CAN / touchable LCD/ Light Board( LCD Battery Power display)/ NTC cable(temperature sensor)/GPS etc.

◆UART/BT/LCD /Gps share the same pin, so can not use those 4accessories in the meantime.

◆3S 4S smart bms board can not support battery light board, USB-CAN.

◆Plz do not charge the smart bms by smart charger !!! Only ordinary charger work!

6.Tips

◆Plz check the paper Manuel before wiring and connect as manuel guide!Any question on using after receiving plz contact us,We will have professional technical engineers to answer you.

◆Can't find the model you need? It is recommended that you go directly to the product classification column in the store, which can help you quickly find the products you need.

◆Sales of daly BMs are all official authentic products, with quality assurance, we will sincerely serve customers.
