Новейший умный миниатюрный сетевой видеорегистратор Full HD 4 канала 8 каналов H.265

Новейший умный миниатюрный сетевой видеорегистратор Full HD 4 канала 8 каналов H.265

Note:

9CH NVR is differences with 8CH/16CH NVR

Differences1:9CH Size: 210*200*43MM, 8CH/16CH Size: 255*210*41MM

Differences2: 9CH Shell Material: Metal, 8CH/16CH Shell Material:Plastic

Differeance3:Video Input(IP): 9CH Max support 9*4K IP Cameras,8CH max support 4*5MP IP Cameras,16CH max support 16*5MP IP Cameras.

Same: Other function are t he same,as H.265 Video Compression,motion detection,Email alarm,Multiple Language....

Please check the picture as follow：

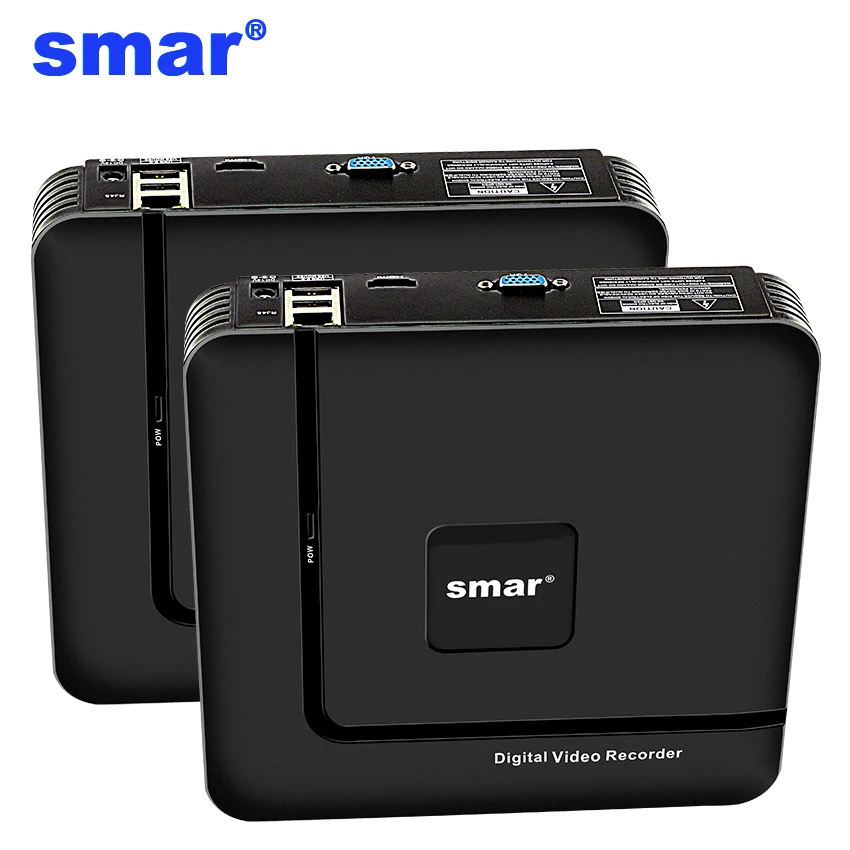

Smar Newest Mini NVR Full HD 4 Ch 8 Ch H.265 Security Standalone CCTV NVR 1080P 4CH 8CH ONVIF 2.0 For IP Camera System 1080P

Now the parameters of the 16CH CCTV NVR are being updated, Please refer to the actual product reference standard.

1. H.265 Vdieo Compresion for4CH/ 8CH/ 16CH,4MP/5MP/1080P HD Resolution

2.Realtime live display up to 4/8 /16 IP Cameras

3.Support Multi Languages.

4.Support VGA &HDMIVideoOutput

5. Backup Via USB Drive + 3.5'' Hard disk (up to 6T )( NO Hard Disk in the Package)

6.Support iPhone,Android Mobile remote access through P2P Cloud.

7.Cloud:XMEYE.NET;APP: XMEYE

8.Motion detection and Email alarm.

9.Support ONVIF2.3 Agreement.(Compatible ONVIF2.0)

(Note: We recommend that when you buying the Network video recorder, also buying the IP Camera from our store, Because they have perfect private agreement between them and docking, it can fully display products all of the functions. If you have buying the IP Camera from other manufacturers, then connect to our network video recorder  through ONVIF, however,you will find that some function of  the IP Camera can't work normaly,, such as: motion detecting Or audio and video are not synchronized and so on;  Why? Because ONVIF protocol cann't be compatible with all functions; Please note that before you buying.)

System

Model

N1008F

N1016GL

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup &remoteaccessOperationinterface16bittrue color graphic menu operation interface, support mouse operation

Preview

1/4/9

1/4/9/16

Video

Video Standards

PAL(625TVL,50f/s)；NTSC(525TVL,60f/s)

Compressione VideoHigh profile

H.265/H.264 High profile

Access bandwidth

64Mbps

64Mbps

Forwarding bandwidth

32Mbps

64Mbps

Display Quality

Max 1920*1080

Video Input(IP)

8*4M/4*5M

16*5M@15fps/8*5M/16*1080P

Playback quality

4M/1080P

5M/1080P

Motion Detection

Rely on the front camera(If your camera is seamlessly supported by the NETIP protocol, if your camera is connected to the NVR via ONVIF, depending on the integrity of the camera's ONVIF protocol.)

Audio

Audio Conpression

G711A

Intercom

Unsupport

Record &PlaybackRecordingModeManualAlarmVideoDetection>Continuous

Local Payback

1*4M

1*5M/2*1080P

Search Mode

Time/Date,Alarm,Motion Detection &exactsearchaccuratetosecondStorage &BackupSpaceOccupationVideo1080p35-45G/day/ch, 720p 20-30G/day/ch( According to the h 264 compression standard, for reference only, h 265 reduces storage space by half compared with h 264); Audio: 691.2M/day/channel

Record Storage

Local HDD,network

Backup Mode

Network backup, USB hard disk, USB burner, SATA burner

interfaccia

BNC

N/A

Video Output

1ch VGA,1ch HDMI

Audio I/O

0/0

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M  self-adaptive Ethernet port

Interfaccia USB

2* USB 2.0

Hard Disk

1*SATA port (Max 8TB/per) 3.5”HDD

If your HDD is not 3.5CH Newest HDD,please do not use it with our item !

If your HDD is use for the computer,please do not use it with our item !

Please choose WD purple, Seagate CCTV HDD, TOSHIBA CCTV HDD. Other HDD sometime no working

Environmental

ONVIF

ONVIF2.3

Power Supply

DC12V/2A(if you use more than 2tb hdd, please change 12V4A or more adaptor by yourself)

Consumption

<;10W（without HDD)

Work Environment

Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp

Dimension

200mm(length)*200mm(width)* 42mm(height)

Weight

0.41kg(about)

Package weight

0.75kg(about)

Packing List:

1* 4 Ch /8 Ch/16 CH Mini NVR

1* USB Mouse

1* DC12V Power Adapter for NVR

1* User's Manual

If you need 1TB/2TB/3TB/4TB HDD, please click below pic for shopping.

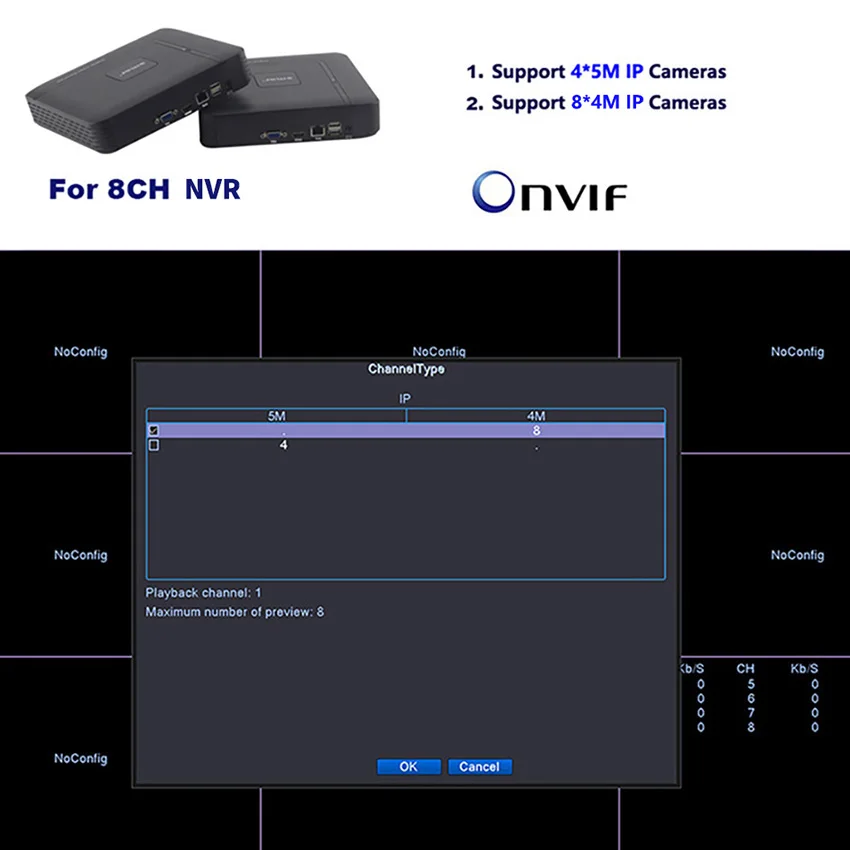

For 8 Channel NVR:

1. Support 4* 5MP IP Cameras

2. Support 8* 4MP IP Cameras

3. Support Onvif

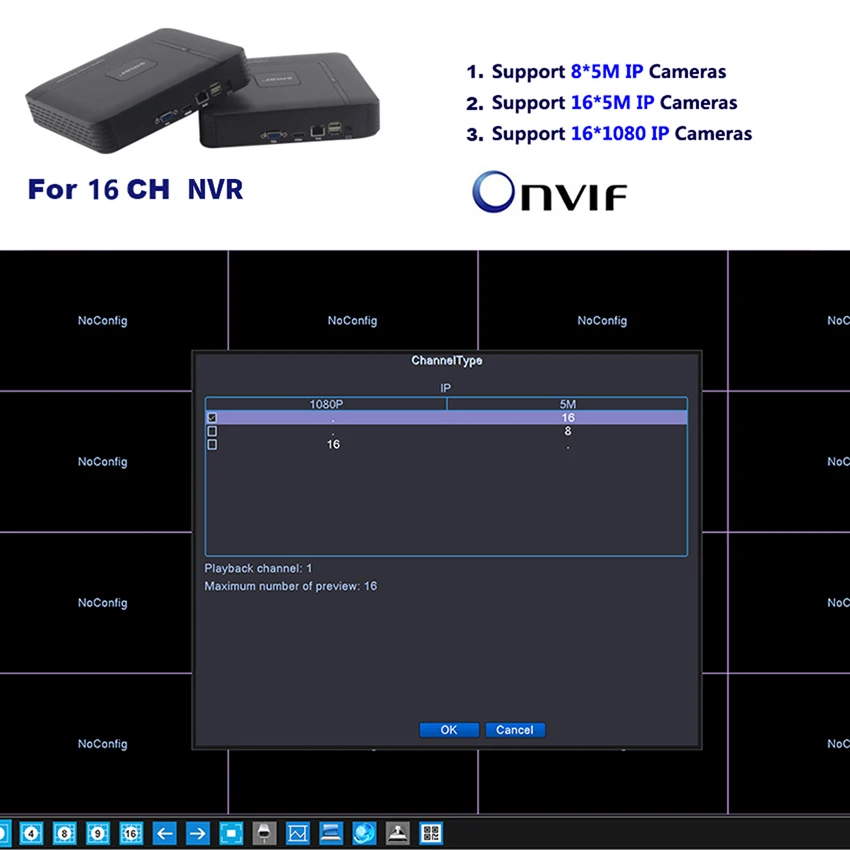

For 16 Channel NVR

1. Support 8* 5MP IP Cameras

2. Support 16* 5MP IP Cameras

3. Support 16* 1080P IP Cameras

4. Support Onvif

Multiple Language

Support more than 20 Language, Chinese, English,Russian, Portuguese, French, German, Polish, Dutch, Hungarian, Turkish, Japanese, Turkish, Romanian, Indonesian and Etc.......

PS:If you need set language for your local use, please leave us a message, we would set and send to you.  Or If there is no your country's language please contact us soon we would send language pack to your e-mail.

HUAWEI HASS CHIP

HuaWei Hass Chip is very good quality Chip in the world, This chip can work many years never get any problem. Now have more than 90% DVR use the HuaWei Hass Chip in the world.

(Note: When you see the Chip of DVR isn't Hass Chip, And it's XM Chip, Please don't  panic, XM is agents of HuaWei , So used their own model to replace the Hass model).

This Network Video Recorder Support ONVIF2.3 protocol, It's can compatible with our own brand of the IP Camera, and also compatible with other brand of the ONVIF IP Camera, It can implement multiple devices connected to each other, mutual communication.

(Note: We recommend that when you buying the Network video recorder, also buying the IP Camera from our store, Because they have perfect private agreement between them and docking, it can fully display products all of the functions. If you have buying the IP Camera from other manufacturers, then connect to our network video recorder  through ONVIF, however,you will find that some function of  the IP Camera can't work normaly,, such as: motion detecting Or audio and video are not synchronized and so on;  Why? Because ONVIF protocol cann't be compatible with all functions; Please note that before you buying.)

Advanced Motion Detection Recording

The motion detection recording function:when motion is detected the DVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask"to block areas with constant movement.

Note:Our DVR Motion Detection Function only Support the following Brand of IP Camera:

As: XM, Dahua, Safer, HIVT, Part of HIKVISION. And if your IP Camera is other Brand, Can't used the Motion Detection Function with Our DVR. ( Please note before when you buying)

Please note: SMTP Server only support these Email Box:126,163,gmail,sina,139,156,qq format, And the recipient can set up 5 vaild mail.

Mail Testing: Test message sent success(It's OK)

Mail Testing: Failed to connect to server.(It's failure)

CMS For Local Review &RecordDefaultIPAddress 192.168.1.9

Username: admin

Password: null (empty)

Default Username of CMS:  super

Password: null (empty)

When you log in to CMS for the first time,Device list is empty, Please add your device at "System->Device Manager"

(As usual, DVR default IP address will be 192.168.1.9, but if your local Internet IP address with the same our default IP address, You must be changed the default IP address, you can edit the IP address of DVR by CMS.)

Website Interface Via IE

Please login your Google or IE or Firefox browser,

Then input default address 192.168.1.9 in your browser

Username:amdin

Password:null (empty)

Remind: If you use the software first time, you need to install a plugin in your computer.

P2P Via Cloud XMEYE.NET

If you want to remote view thourh Internet

Please login your Google or IE or Firefox browser

Then input Website of P2P Cloud: www.xmeye.net

Input your P2P ID, and your password, login in.

(If you want to remote visit the DVR through P2P, At first, you need open the "www.xmeye.net", If your computer can't open this website, please install all the Plug-ins in your computer, otherwise, Otherwise, you will not be able to remotely access this DVR, Please note).

How to remote view through Mobile phone?

1.    You must be installed a APP in your mobile phone,where to find or download APP?

2.    Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)
