Универсальный спидометр GPS 85 мм 0-60 миль/час одометр уровня топлива 0-190 Ом вольтметр 10-18 В красная подсветка с антенной.

Универсальный спидометр GPS 85 мм 0-60 миль/час одометр уровня топлива 0-190 Ом вольтметр 10-18 В красная подсветка с антенной.

Brand NameSPROriginMainland ChinaCountry/Region of ManufactureChinaMeasurement unitpiece/piecesEach pack1

Unavailable in

Description

Specifications:

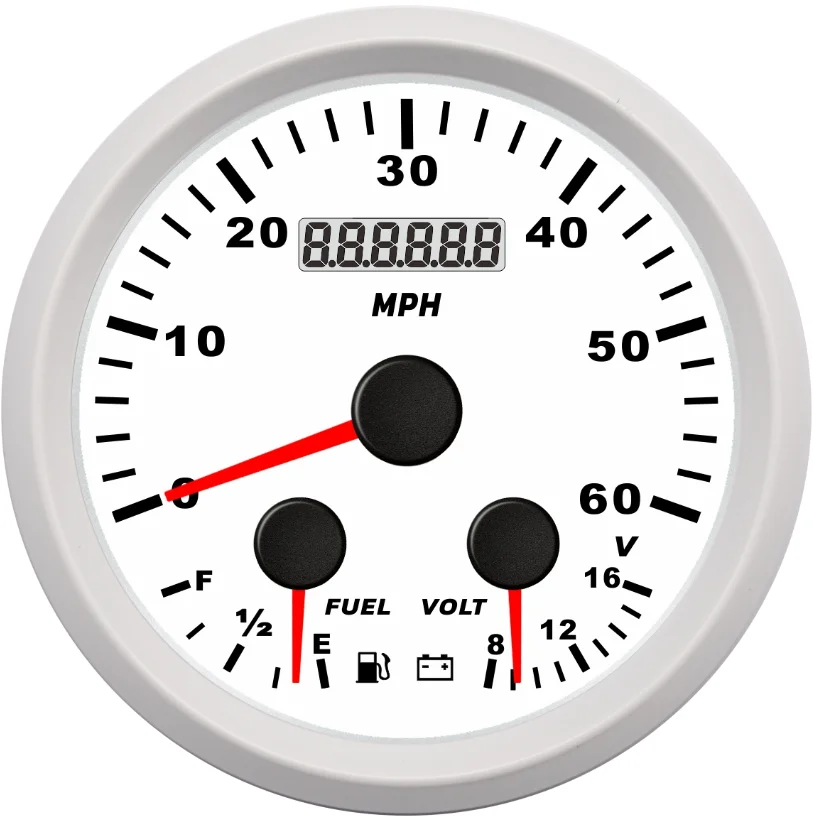

• Name: 3 in 1 Multi-function gauge

• Materials: stainless steel+nickel-plated plastic

• Operating Voltage: 12V

• Indicating range:

• GPS speedometer: 0-60MPH

• Fuel level: E-1/2-F

• Voltmeter: 10-18V

• Input signal:

• GPS speedometer: GPS signal, with GPS antenna

• Fuel level: 0-190ohm

• Protection Class: IP67, can work underwater 1meter position

• Sensors need to be purchased separately

Features:

Suitable for all kinds of cars, boats, motorcycles, with instructions of high precision, repeatability and versatility, reliability and stability, drive and control is relatively simple and so on. Using a stepper motor drive pointer, accurate display of the driving speed, fuel level, voltage.

Instructions:

Before installation, firstly, to open a hole (Diameter: 85~87mm) of the panel, make sure there is a space with (70mm backyard of panel) as well, put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.

Notes: Due to the manual measurement, there might be some error.

Connection:

Red--Battery (+8-16VDC)

Orange--Backlight (+)

Purple--Fuel signal (0-190ohm)

Black--Ground (-)

Package Includes:

1 x 3 in 1 Multi-function Gauge

1 x GPS Antenna

1 x Cable

1 x Owner's Manual
