Mini-Whip Active Antenna Module Medium and Short W-ave System Radio Receiver DC9-15V Power 10KHz-30MHz Frequency |

Mini-Whip Active Antenna Module Medium and Short W-ave System Radio Receiver DC9-15V Power 10KHz-30MHz Frequency |

MiniWhip amplifies the signal of the potential difference between the small metal plate and the ground, and then transmits it to the receiver through the core wire and shielding layer of the coaxial cable after amplification. Wide applications, suitable for short and medium w-ave antenna, receiver antenna and etc.. You can have a try.

Features:
Adopts quality electronic components, with accuracy process, which ensures fine durability and long service time.
Fine contact performance, that ensure stable working.
Mini design, SMA female output interface, which is easy to connect.
The operating frequency-range is 10KHz-30MHz.
The powersupply-range is DC9-15V, and the maximum output power is more than -15dBm.
Builtin circuit-protection can make sure that the operation is much safer.
Wide applications, suitable for short and medium w-ave antenna, receiver antenna and etc..

Specifications:
Name: Active Antenna
Material: printed circuit board+ABS
Operating frequency-range: 10KHz-30MHz
Powersupply-range: DC9-15V
Maximum output power: >-15dBm
Output interface: SMA interface
Item size:

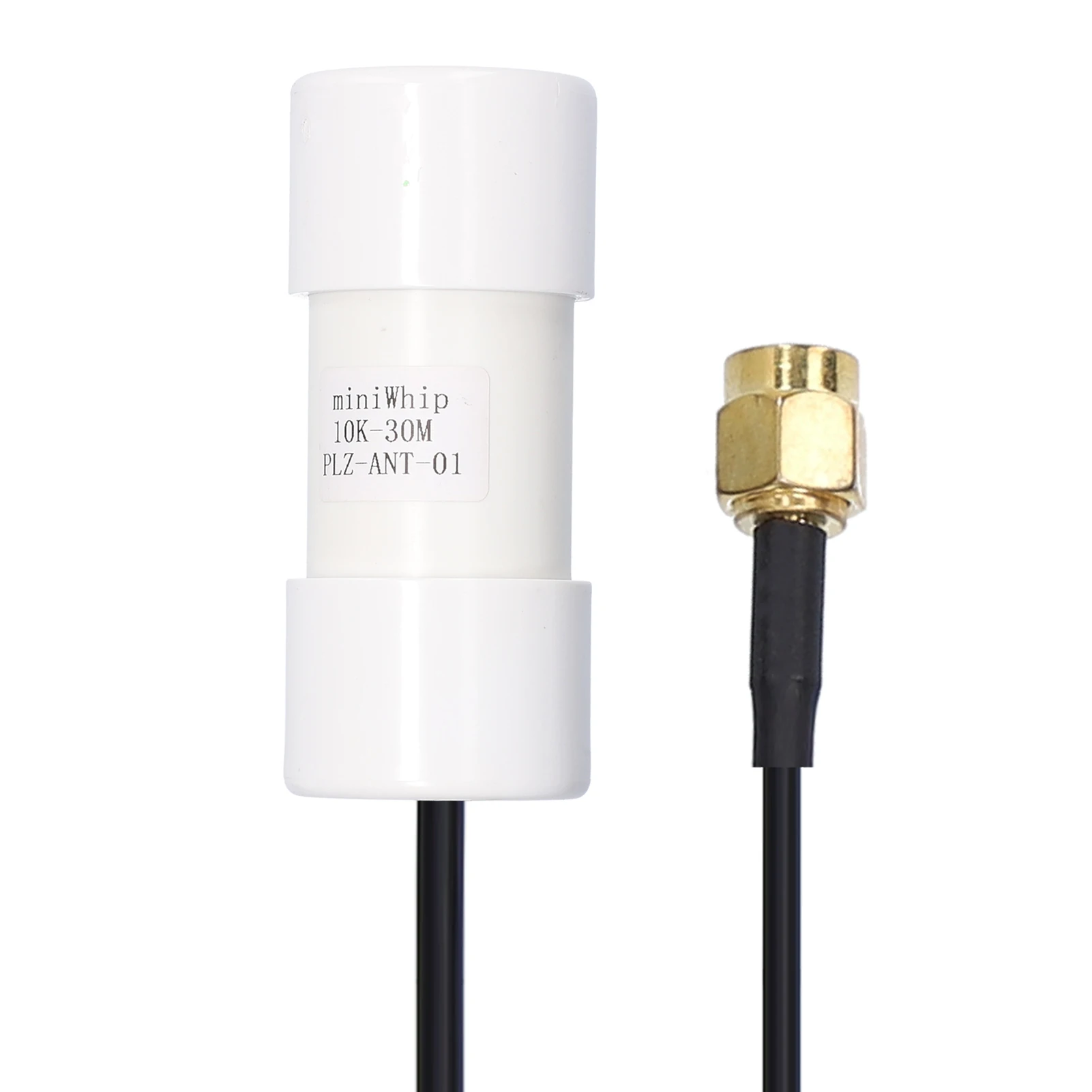

Antenna size: 108 * 45 * 45mm / 4.25 * 1.77 * 1.77in

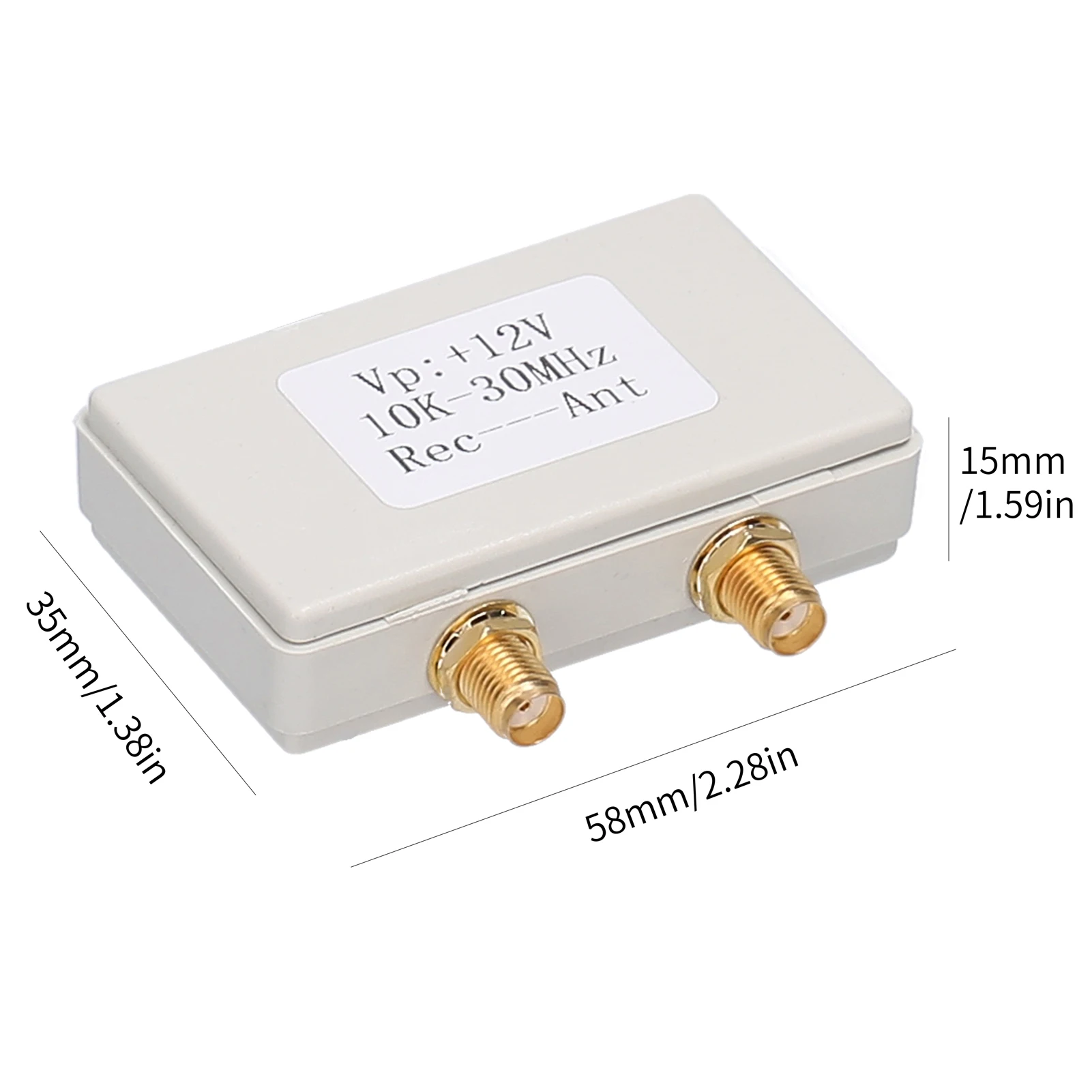

Bias tee size: 58 * 35 * 15mm / 2.28 * 1.38 * 0.59in
Item weight: 238g / 8.40ounce
Package size: 174 * 121 * 50mm / 6.85 * 4.76 * 1.97in
Package weight: 294g / 10.37ounce

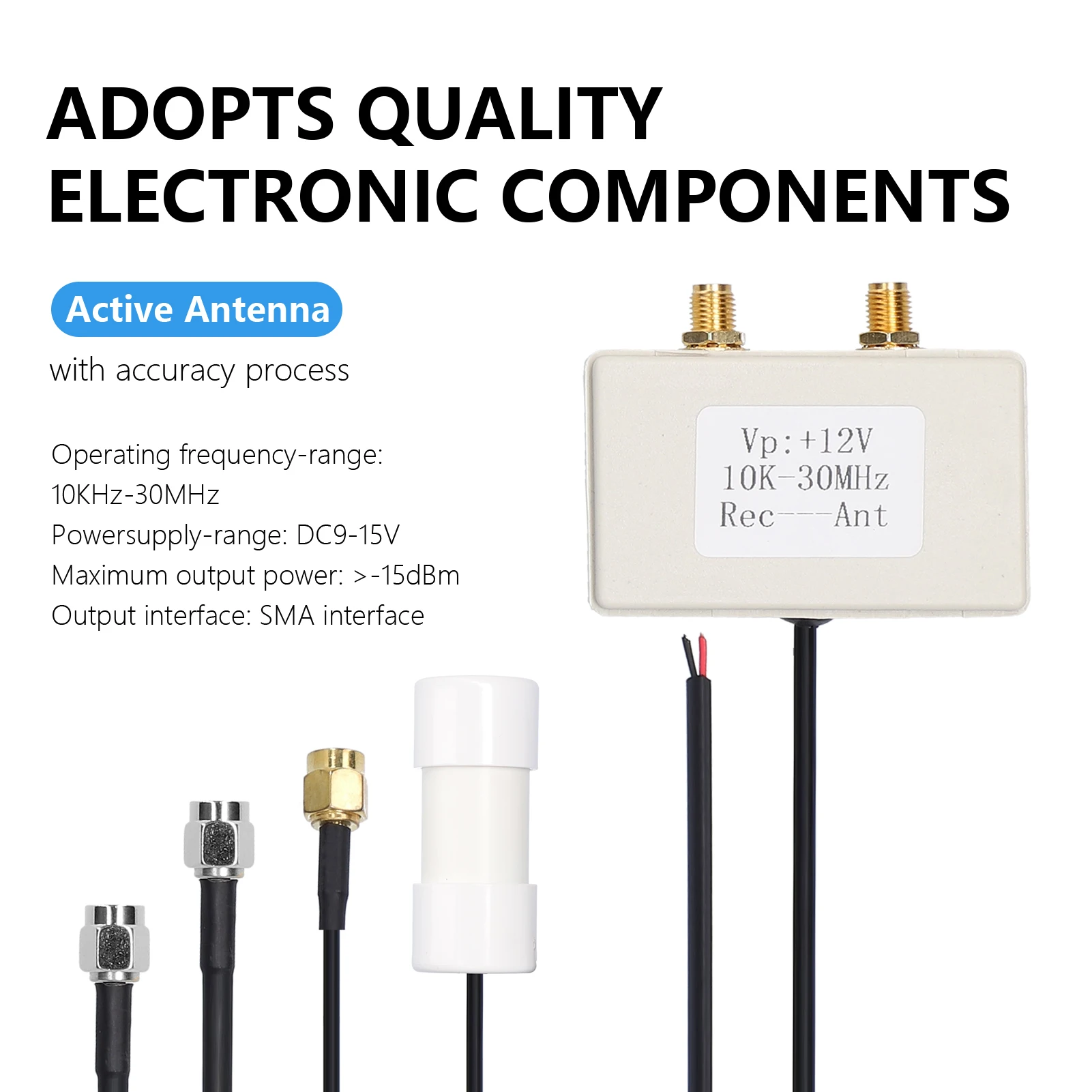

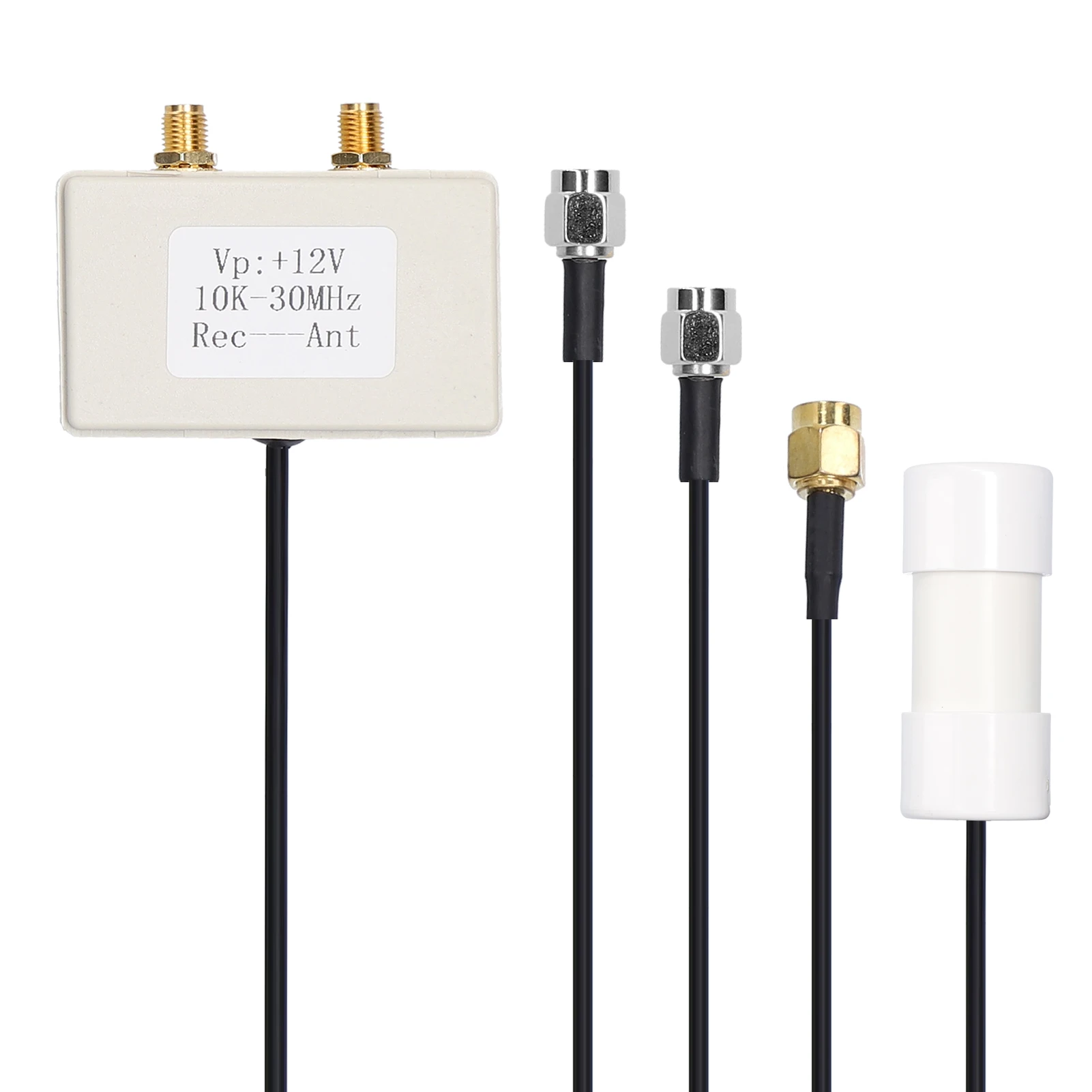

Packing List:
1 * Active Antenna

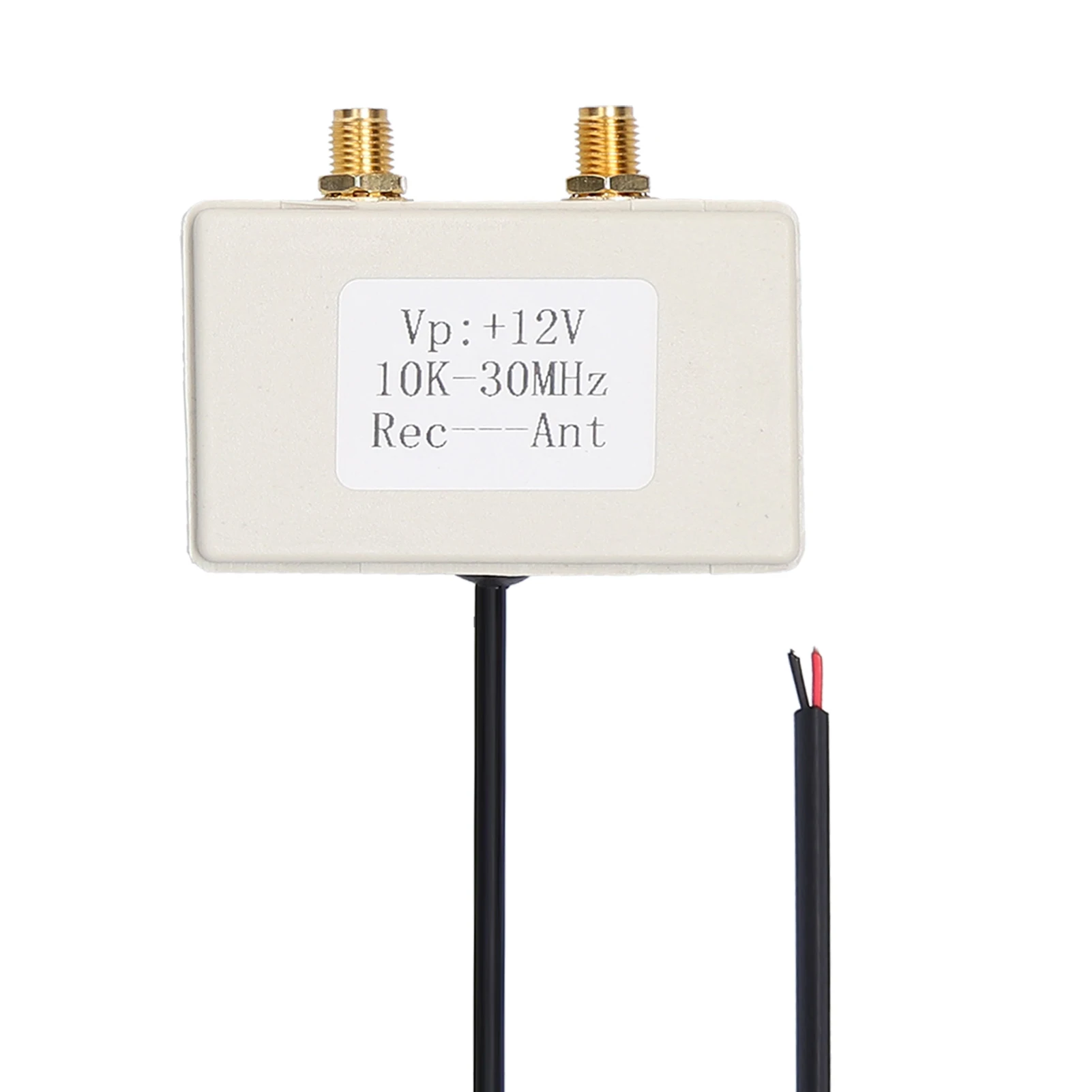

1 * Bias Tee
1 * Cable
