Description

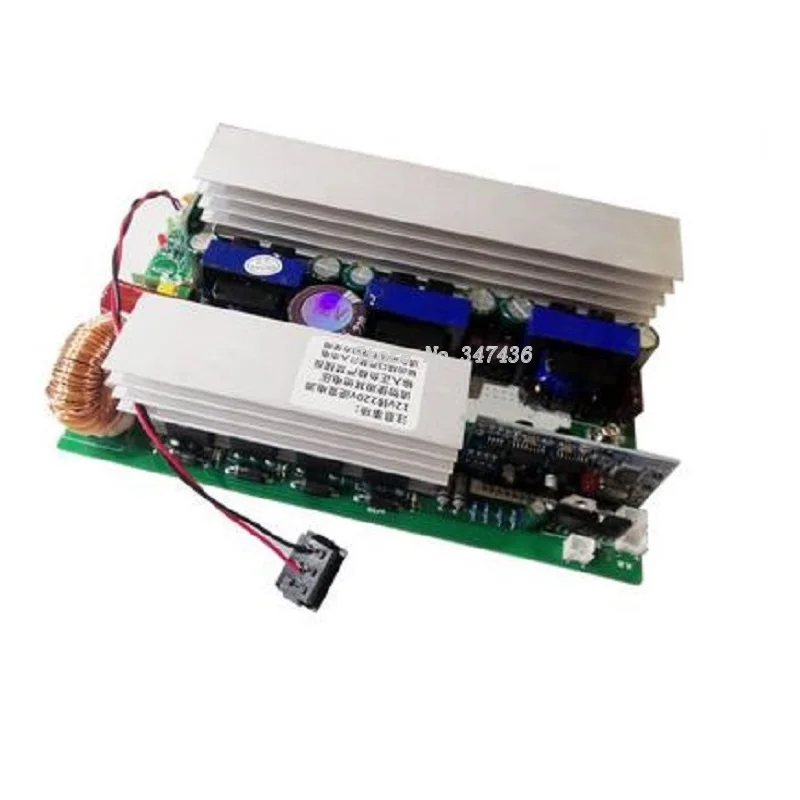

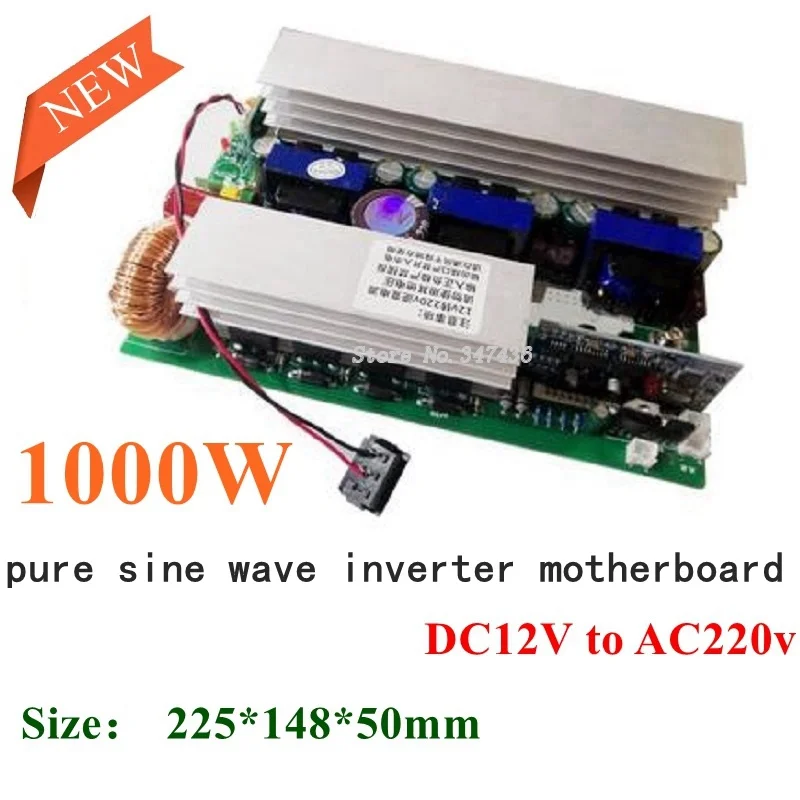

1PCS Invertor Pure Sine Wave Power Frequency Inverter Circuit Board DC 12V To AC 220V 1000W Driver Board 50HZ/60HZ

Product parameters:

Input voltage: 12V (undervoltage adjustable range: 10V-11V, overvoltage protection: 15V)

No-load current: <0.25A

Output power: full 1000w

Output frequency: 50hz/60hz

Output voltage: 220V (150v-230) adjustable

Output waveform: sine wave

Protection function: undervoltage, overvoltage, overload, short circuit, overtemperature, and overcurrent

Size: 225*148*50mm

Weight: 1.08kg

main transformer is three 4045 transformers, the primary is made of copper tape and real materials, and the front stage has 12 power tubes

Rated power of 1000 watts, maximum power of 1500 watts for a short time

no-load current is about 400MA, the fan is intelligently controlled, and the speed changes with the load power

Precautions:

It is strictly forbidden to reverse the 12v input positive and negative, and the output terminal is strictly forbidden to be connected to the mains. Please use it in a ventilated and dry area

Precautions for inverter board test

1. 12v to 220w inverter can only be connected to a 12v battery for testing. Do not connect to other voltages that exceed 16v, which will damage the circuit board.

2. input positive and negative poles must be optimistic about the standard. The length of the 10 square copper wire must not exceed 60 cm, otherwise the performance will be affected. The battery configuration standard is above 60AH, 10AH with 100 watts, 20AH with 200 watts and so on,

3. sine wave board has a high voltage of about 350v. The bottom board must be insulated. Please do not put it on the board for power-on test. board's leakage will damage the high-voltage part of the circuit board. High-insulation materials such as plastic boards or foam boards should be padded, and metal materials of the human body are strictly prohibited to touch the circuit board during the power-on test

4. This inverter does not have a charging function. It is strictly forbidden to connect to the mains on the output line, otherwise you will be responsible for the consequences.

5. Although this inverter has its own short-circuit and overload protection function, electronic products still cannot be 100%. If it is connected to the inverter board protection of high-power electrical appliances and alarms, the electrical appliances must be disconnected within a short time to prevent damage to the circuit board

Note: This product cannot be equipped with high-power electrical appliances such as air-conditioning 750 watts or more, water pump 1100 watts or more, hair dryer, rice cooker, water heater, etc.

Please note that assembling the board requires a certain technical basis, we do not provide technical support, please confirm that you have the corresponding technical basis before placing an order, thank you！
