Защитная плата Smart Ant BMS для батарей Li-ion, Li-polymer, LiFePO4, LTO от 10S до 24S, 450A, 300A, 200A, 100A и 70A без экрана.

---

10S~24S 70A 100A 200A 300A 450A Lithium ion lifepo4 LTO battery bms with bluetooth

Support :

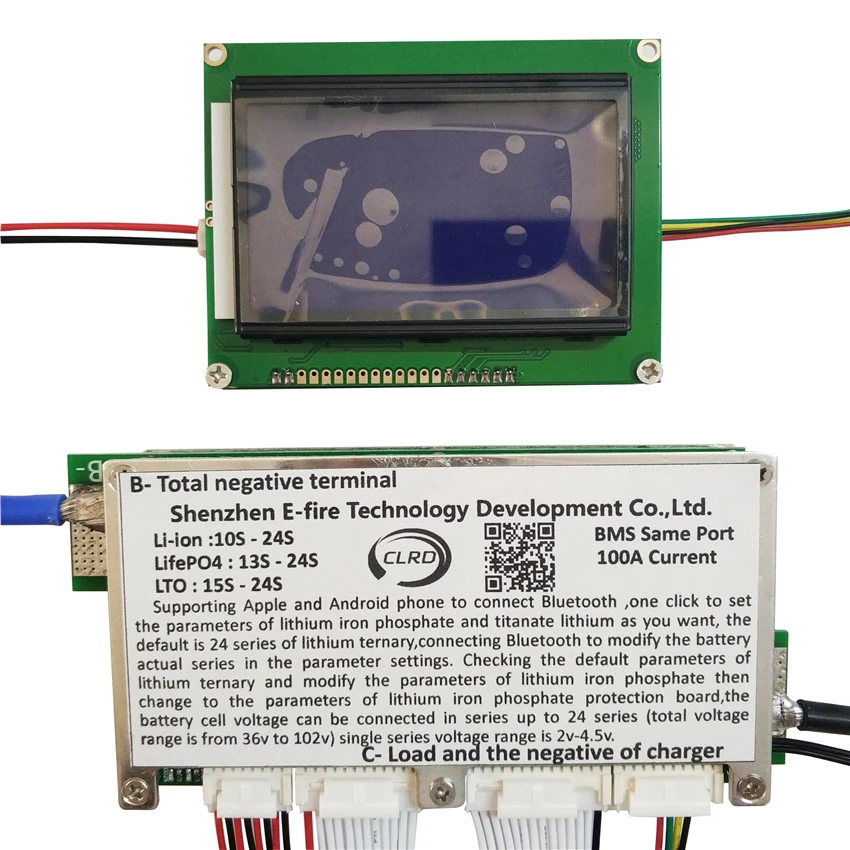

10S -24S li-ion battery (30V-102V Lithium battery cell)
13S -24S lifePo4 battery (30V-88V Lithium iron phosphate battery cell)
15S -24S LTO battery (30V-68V Lithium titanate battery cell)


The default is the li-ion parameters. when you phone connect BT , can click and set up lifePo4 / LTO parameters. default setting is 24S , if you use for other number of cells , change it in app .

Single cell voltage detection range 1V-4.6V. High precision detection cell voltage error is less than 5MA Discharging current: 50A (Peak 110A) , 80A (Peak 150A) , 110A( Peak 200A) , 120A( Peak 300A) , 180A( Peak 400A) , 200A(Peak 450A) Charging current: 50A
Discharge current: 70A 100A 150A 200A 300A to choose
Balance current :200MA . Controlled balance mode, when the charging is started, the voltage difference can be detected by the detected voltage difference to be greater than the set value.
High-precision coulomb counter function temperature control detection Hall speed measurement

Bluetooth connection : support for android & IOS phone
Support cells :Support Li-ion , Lipo , 18650, Lifepo4 , LTO and so on

Voltage accuracy :Single cell voltage detection range (1.5-4.6V), so support a variety of cell use, accuracy error within 3 mV

Drop wire protection :detect wire not weld well and cause the voltage is wrong.balance wire drop cell protection

Overcharge protection: Connect to bluetooth to set high-precision detection voltage, single overcharge protection and total
voltage overvoltage protection

Over discharge protection : Connect bluetooth to set up high-precision detection voltage, single-cell over-discharge protection and total voltage under-voltage protection

Short circuit protection: Can be connected to bluetooth to set the short circuit protection value, change to 0 is turn off short circuit protection
Overcurrent protection: can be connected to bluetooth to set up the overcurrent protection value (maximum 300A)

Current detection: within the current range of the purchased protection board

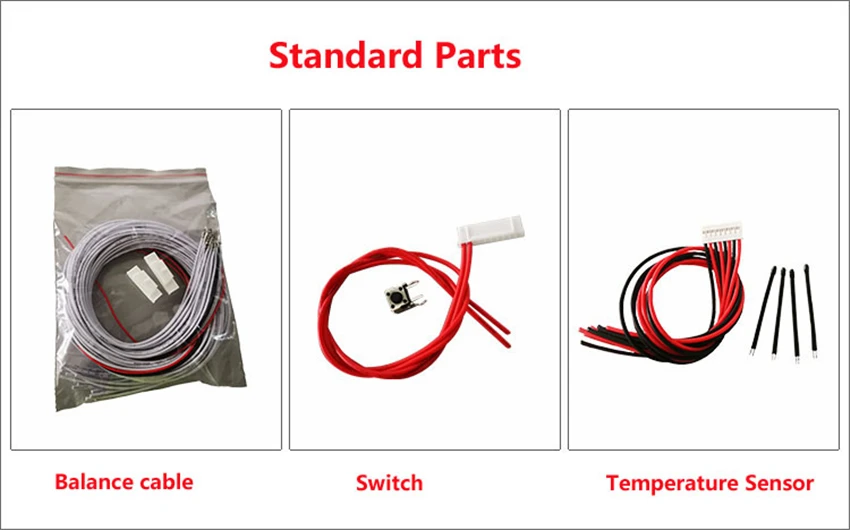

Temperature control protection: The protection board has built-in balanced temperature control, power temperature, and can be
connected with 4 temperature controls to prevent high temperature danger.

balance current: 200 mA, high voltage versus low voltage discharge balance

Discharge current: refer to the current in the purchase selection as the peak discharge current

Coulomb counter: compensation 1-24S battery connection between the chip resistance is too long, causing the wire resistance to be too large, the cell voltage is too large during the charging and discharging, can not be used normally

Connection internal resistance: based on current to time scoring, accurately calculate the remaining battery capacity and charging current

All options listing are peak discharge current .

Note :please carefully check the version you need before you place order !!!

It is with built-in bluetooth and support for Android and iphone APP to monitor

please contact us for newest app and other documents before you use !!!

---
