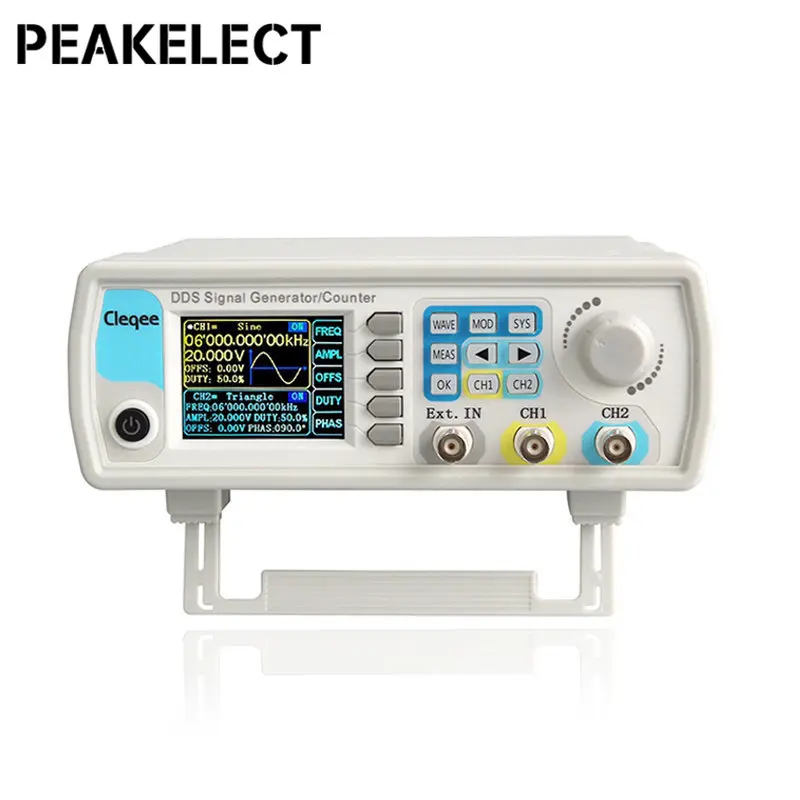

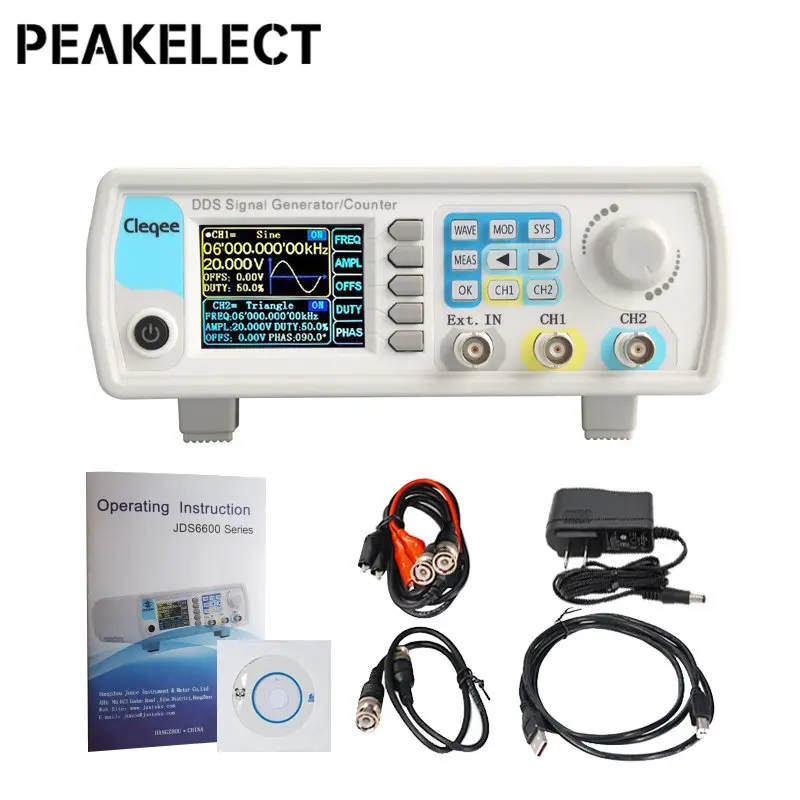

Frequency characteristics
|
|
Model
|
JDS6600-15M
|
JDS6600-30M
|
JDS6600-40M
|
JDS6600-50M
|
JDS6600-60M
|
|
Sine frequency range
|
0~15MHz
|
0~30MHz
|
0~40MHz
|
0~50MHz
|
0~60MHz
|
|
Square frequency range
|
0~15MHz
|
0~25MHz
|
0~25MHz
|
0~25MHz
|
0~25MHz
|
|
Triangle frequency range
|
0~15MHz
|
0~25MHz
|
0~25MHz
|
0~25MHz
|
0~25MHz
|
|
Pulse frequency range
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
|
TTL digital frequency range
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
|
Arbitrary wave frequency range
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
0~6MHz
|
|
Pulse width adjustment range
|
100nS - 4000S
|
50nS - 4000S
|
40nS - 4000S
|
30nS - 4000S
|
25nS - 4000S
|
|
Square wave rise time
|
≤25nS
|
≤15nS
|
≤10nS
|
≤10nS
|
≤10nS
|
|
Minimum frequency resolution
|
0.01uHz(0.00000001Hz)
|
|
Frequency accuracy
|
±20 ppm
|
|
Frequency stability
|
±1 ppm/3h
|
|
Waveform specifications
|
|
Waveform types
|
Sine, square, triangle, pulse (duty-cycle correction, pulse width and cycle time adjustable), arbitrary wave, CMOS, DC level, half-wave, full-wave, pos-ladder, neg-Ladder, noise, exponential rise, exponential fall, tone, cink pulse, lorentz pulse, and 60 kinds user-defined waveforms.
|
|
Waveform length
|
2048 points
|
|
Waveform sampling rate
|
266 MSa/s
|
|
Waveform vertical resolution
|
14 bits
|
|
Sine wave
|
Harmonic
suppression
|
≥45dBc(<1 MHz); ≥40dBc(1 MHz~20 MHz)
|
|
|
Total harmonic
distortion
|
<0.8%(20 Hz~20 kHz,0dBm)
|
|
Square and Pulse wave
|
Overshoot
(Square)
|
≤5%
|
|
Pulse and Partial sine wave
|
Duty-cycle
adjustment
range
|
0.1 - 99.9%
|
|
Sawtooth wave
|
Linearity
|
≥98%(0.01 Hz~10 kHz)
|
|
Output specifications
|
|
Sine wave amplitude range
|
Frequency ≤ 10MHz
|
10MHz ≤ Frequency ≤ 30MHz
|
30MHz ≤ Frequency
|
|
|
2mVpp~20Vpp
|
2mVpp~10Vpp
|
2mVpp~5Vpp
|
|
Square wave,Triangle wave
amplitude range
|
Frequency ≤ 10MHz
|
10MHz ≤ Frequency ≤ 25MHz
|
|
|
2mVpp~20Vpp
|
2mVpp~5Vpp
|
|
Amplitude resolution
|
1 mV
|
|
Amplitude stability
|
±0.5%/5 h
|
|
Amplitude flatness
|
±5%(<10 MHz); ±10%(>10 MHz)
|
|
Waveform output
|
|
Output impedance
|
50Ω±10%(typical)
|
|
Protection
|
All signal outputs can work within 60s when the load is short-circuited
|
|
DC offset
|
|
Offset adjusting range
|
Output Amplitude>2V
|
0.2V<Output Amplitude≤2V
|
0＜Output amplitude≤0.2V
|
|
|
-9.99V~9.99V
|
-2.5V~2.5V
|
-0.25V~0.25V
|
|
Offset resolution
|
0.01 V
|
|
Phase specifications
|
|
Phase adjusting range
|
0 ~ 359.9°
|
|
Phase resolution
|
0.1°
|
|
TTL/COMS Output
|
|
Low level
|
<0.3 V
|
|
High level
|
1 - 10 V
|
|
Level rise/fall time
|
≤20ns
|
|
External measurement function
|
|
Frequency meter function
|
Frequency
measurement
range
|
1 Hz~100 MHz
|
|
|
Measurement accuracy
|
Gate time continuously adjusted between 0.01S~10s
|
|
Counter function
|
Counting range
|
0-4294967295
|
|
|
Coupled mode
|
2 Coupling modes, DC and AC
|
|
|
Counting method
|
Manual operation
|
|
Input signal voltage range
|
2 – 20 Vpp
|
|
Pulse width measurement
|
0.01us (resolution), 20s (MAX measuring time)
|
|
Period measurement
|
0.01us (resolution), 20s (MAX measuring time)
|
|
Sweep function
|
|
Sweep channel
|
CH1 or CH2
|
|
Sweep type
|
Linear sweep, logarithmic sweep
|
|
Sweep time
|
0.1s~999.9s
|
|
Setting range
|
Arbitrarily set between start point and stop points
|
|
Sweep direction
|
Forward, backward and round trip
|
|
Bursting function
|
|
Number of pulses
|
1-1048575
|
|
Burst mode
|
Manual burst, CH2 burst, external burst (AC), external burst (DC)
|
|

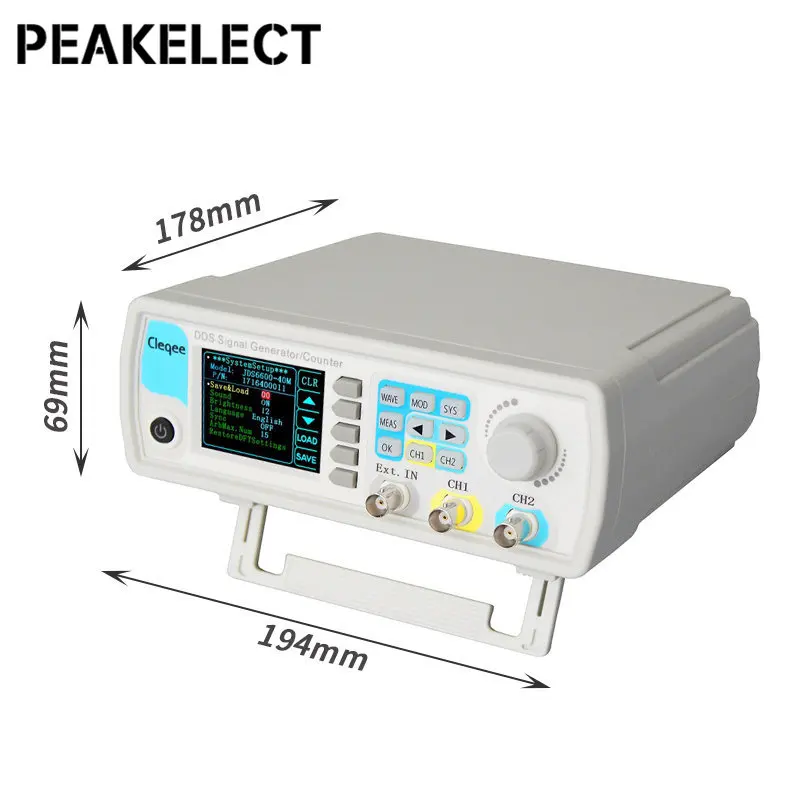

General technical parameters
|
|
Display type
|
Display type
|
2.4 inch TFT color LCD
|
|
Storage and load
|
Quantity
|
100 groups
|
|
|
Position
|
00 to 99(extract 00 place data at default boost state)
|
|
Arbitrary wave
|
Quantity
|
1 to 60, totally 60 groups (default boost 15 groups)
|
|
Interface
|
Interface mode
|
USB to serial interface
|
|
|
Extension
interface
|
With TTL level mode serial interface for user secondary
development
|
|
|
Communication
speed
|
Adopt standard 115200 bps
|
|
|
Protocol
|
Using the command line,the protocol is made public
|
|
Power supply
|
Voltage range
|
DC 5 V±0.5 V
|
|
Manufacturing process
|
Surface-mount technology, large scale integrated circuit, high reliability, long service life
|
|
Prompt tone
|
Users can turn on or off by setting program
|
|
Operating characteristics
|
All key operations,knob continuous adjustment
|
|
Environmental
|
Temperatire: 0~40℃; Humidity: ＜80%
|
