Introduction For TL-XDR3230 (Noted: Chinese Firmware)

TL-XDR3230 is a Mesh dual band(2.4GHz/5GHz) Gigabit Wi-Fi 6 Router with 8 antennas (4 for each frequency), it adopts a new generation of 4×4 MU-MIMO (multi-user MIMO) technology, and allows multiple terminals to share channels at the same time, so that when multiple mobile phones, computers, and PADs are online together. From the low-efficiency "queue one by one, pass in order" approach to the high-efficiency "go ahead together."

Data transfer rate up to 800 Mbps at 2.4 GHz, and up to 2402 Mbps at 5 GHz

Note: This model is with Chinese firmware, so the interface is in Chinese, which is easily solved using the page translation function in the Google Chrome browser. Also，we will offer the English guide to help you solve the problem. Control is also available through the TP-LINK mobile application (downloaded using the QR code found in the instructions and on the box of the device).

Main Features

• Data transfer rate up to 800 Mbps at 2.4 GHz, and up to 2402 Mbps at 5 GHz

• 8*high gain antennas，strong ability to penetrate walls

• Adopts 4*4 MU-MIMO + OFDMA technology, realize game acceleration

• Dual-band 4T4R architecture, wireless signal transmission and reception capabilities are enhanced to 2 times

• Support Mesh "Easy-to-expand" technology, it supports up to 8 sets of TL-XDR3230 connecting


• No need to distinguish between 4*10/100/1000 Mbps WAN/LAN ports, support blind port insertion

• IPv6 Supported

• Mobile APP Remote management

More Details

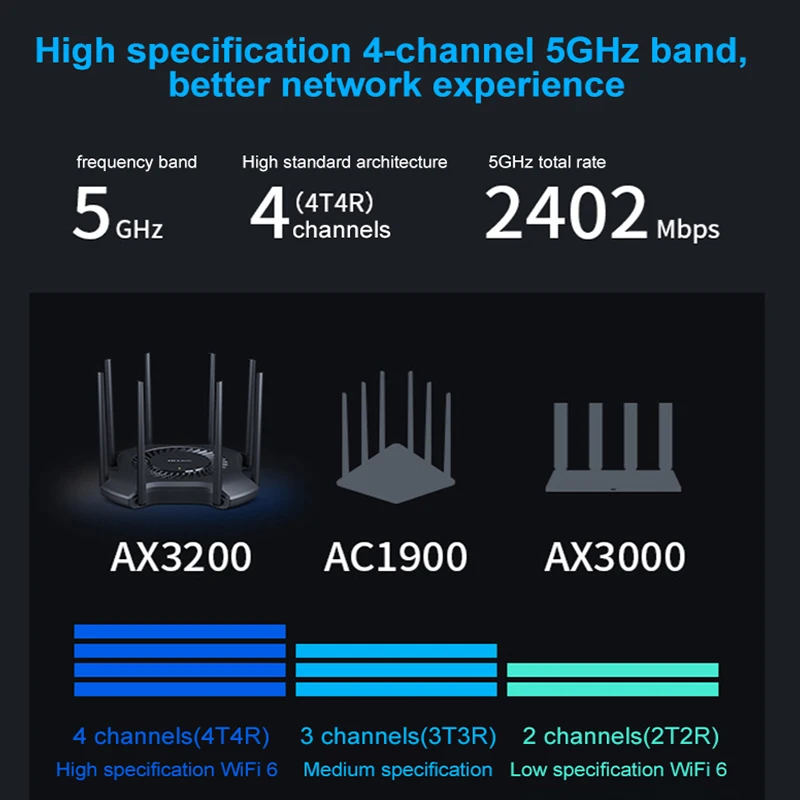

TL-XDR3230 easy-to-expand version 5GHz band adopts a high-specification 4-channel architecture, and a higher number of channels means higher 5GHz band transmission efficiency and stronger signal coverage.

Low-profile Wi-Fi6 (AX3000) uses 2 channels (2T2R), and its coverage is far inferior to the 4-channel AX3200, and even worse than 3-channel/4-channel (3T3R/4T4R) Medium and high-profile Wi-Fi5 (AC1900, AC2600)

The 2.4GHz band of TL-XDR3230 mesh version adopts the more compatible Wi-Fi 5 standard to avoid some smart home appliances and smart home products from being unable to connect due to the replacement of Wi-Fi 6 routers. At the same time, it adopts a high-specification 4-channel architecture, plus 4 external FEMs, stable coverage of the 2.4GHz signal throughout the house, and stable connection of smart home devices in the corner

Support Mesh "Easy-to-expand" technology, it supports up to 8 sets of TL-XDR3230 connecting

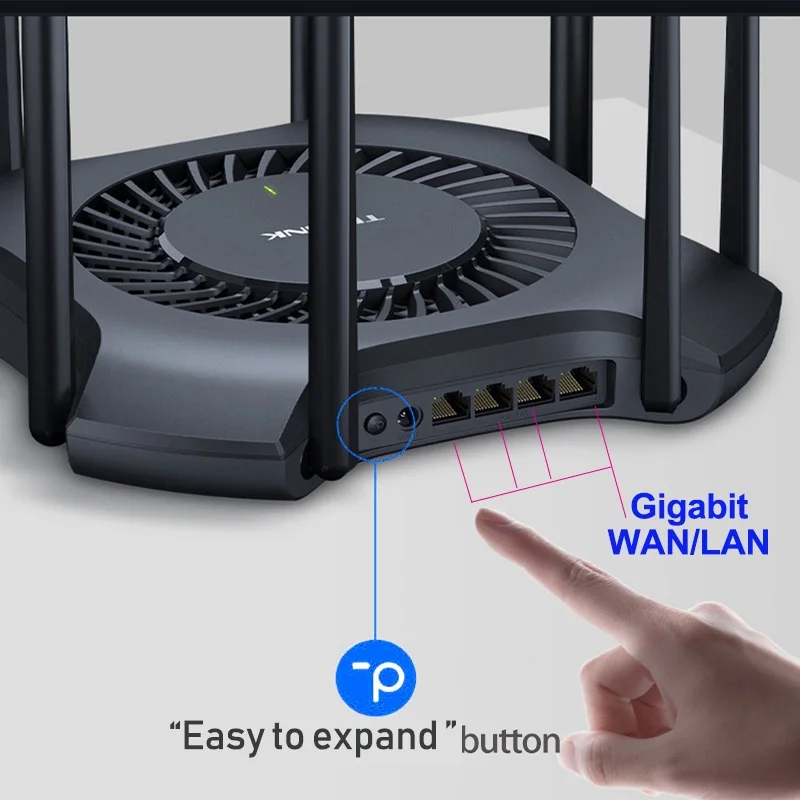

Any specification and any form of "TP-LINK" wireless router can realize "one-key interconnection and easy networking" through the "easy" function. No professional knowledge or professional configuration is required. No matter how big the apartment is or how complicated the partitions are, you can press the "Easy-to-expand " button on the router to automatically connect to multiple routers. Wi-Fi expands quickly and seamlessly covers.

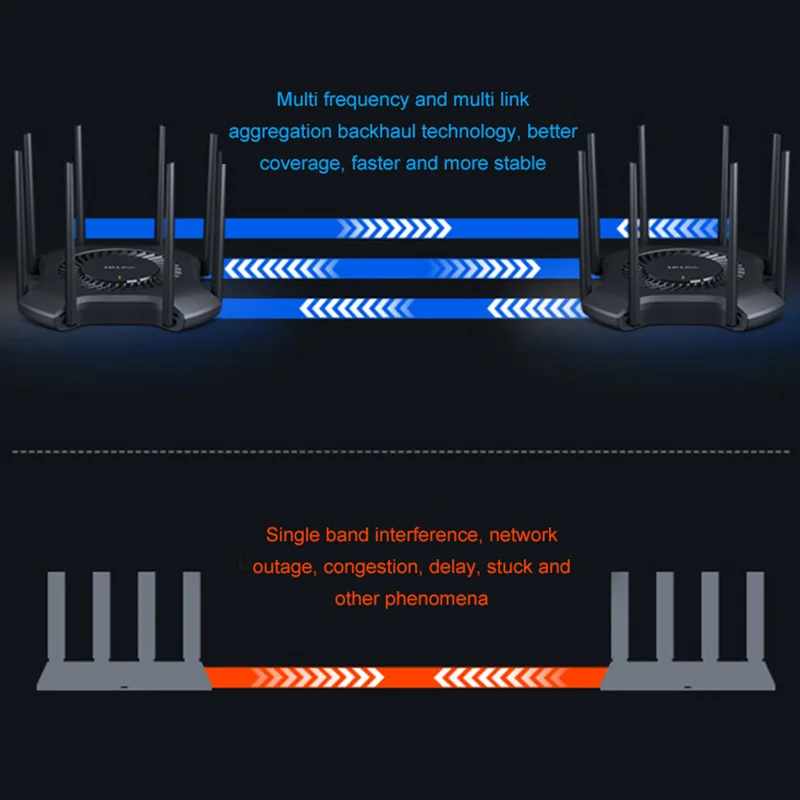

TP-LINK easy-to-expand technology adopts multi-frequency and multi-link aggregation Backhaul technology, which is more difficult to develop and more accurate algorithms, which not only greatly improves the link bandwidth between each route, but also greatly enhances the signal penetration capability. In order to achieve better coverage and a faster and more stable backbone network.

Most other ordinary Meshes only select a single frequency band for link backhaul. Once the backbone link has interference, the trigger rate of disconnection, congestion, delay, and freeze will be very high.

More advantages of "Easy-to-expand" technology:

1. No need to distinguish between main and sub-routes, do whatever you want

2. There is no need to distinguish between WAN/LAN ports, support blind port plugging

3. Support up to 8 sets of networking

4. One-click connection, automatic networking, no need to set

5. Easy-to-expand routing of any specifications, both can be networked with each other

6. Can be interconnected by network cable

7. Any apartment type is applicable: villa, duplex, jump type, large flat floor, super large apartment

8. Can be wired and wireless, mixed interconnection

9. Can be connected wirelessly

10. To change the route, just one click. Automatic synchronization of new and old routes

11. You can buy one first, and then buy another one if it is not enough. Plan carefully, just add it and use it

TL-XDR3230 is a Mesh dual band(2.4GHz/5GHz) Gigabit Wi-Fi 6 Router with 8 antennas (4 for each frequency), it adopts a new generation of 4×4 MU-MIMO (multi-user MIMO) technology, and allows multiple terminals to share channels at the same time, so that when multiple mobile phones, computers, and PADs are online together, From the low-efficiency "queue one by one, pass in order" approach to the high-efficiency "go ahead together."

Specifications of TL-XDR3230

Wireless protocol standard: 802.11b/g/n/a/ac/ax

Wireless rate: 5GHz: 2402Mbps
2.4GHz: 800Mbps

Wireless frequency band: 2.4GHz & 5GHz

Power Output: DC 12V1.5A

Antenna：8* external antennas;4 external 2.4GHz non-removable omnidirectional antennas;

4 external 5GHz non-removable omnidirectional antennas

Interface：4*10/100/1000Mbps WAN/ LAN Ports

Safety

WPA-PSK, WPA2- PSK, WPA3 wireless encryption
,Host network, guest network
,Administrator qualification

Package content

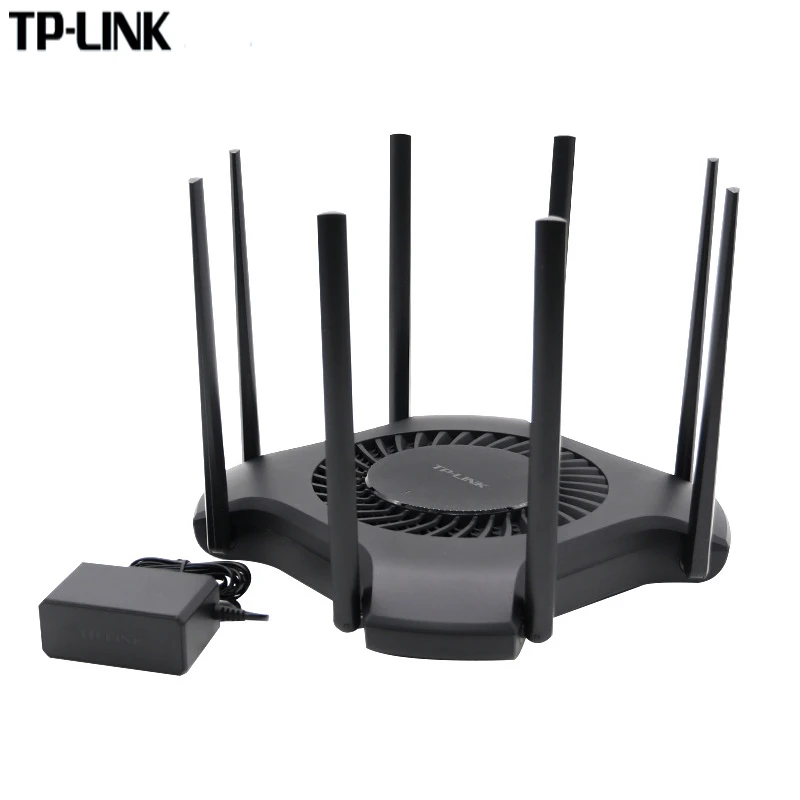

1* TL-XDR3230 dual-band WiFi 6 wireless router

1* power adapter

1* gigabit network cable

1* English installation guide

Product Display
