New M.2 NVMe SSD Express Card M Key To PCIE 4.0 X16 X8 X4 X1 Adapter External SSD Support 2230-2280 Size M.2 FULL SPEED

Description:

M.2 NVMe SSD to PCIE 3.0 X16/X8/X4/X1 desktop SSD adapter card

Note:

Only PCIe x4 x2 NVMe protocol with size of 2280 2260 2242 2230 is supported

And supports PCIe x4 x2 AHCI protocol with the size of 2280 2260 2242 2230

M.2 NGFF SSD solid state drive

Note: AHCI protocol is not SATA protocol.

Input interface: M-Key M.2 NVME (SATA M.2 protocol is not supported).

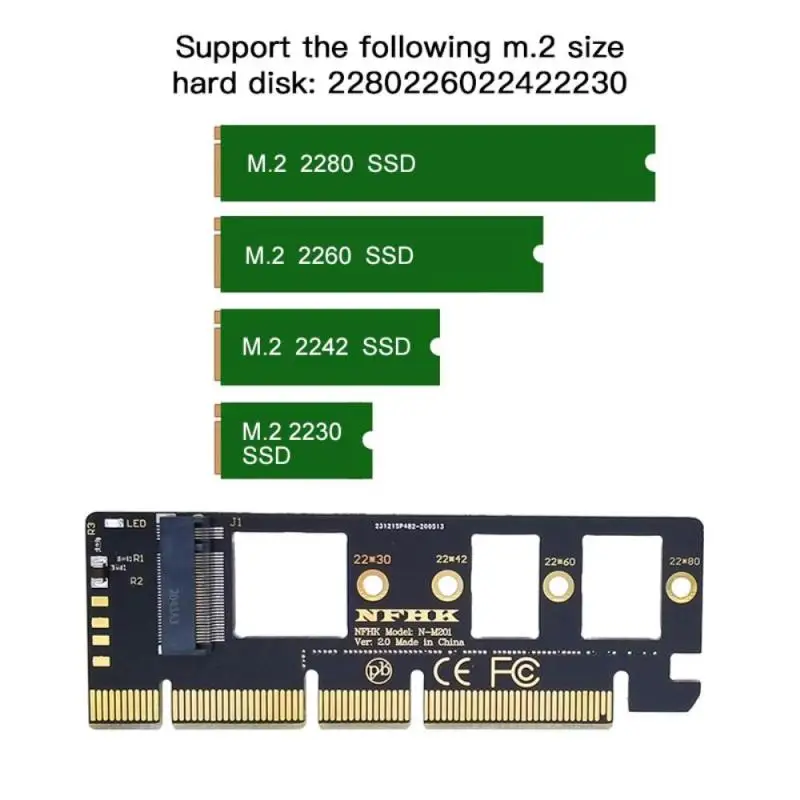

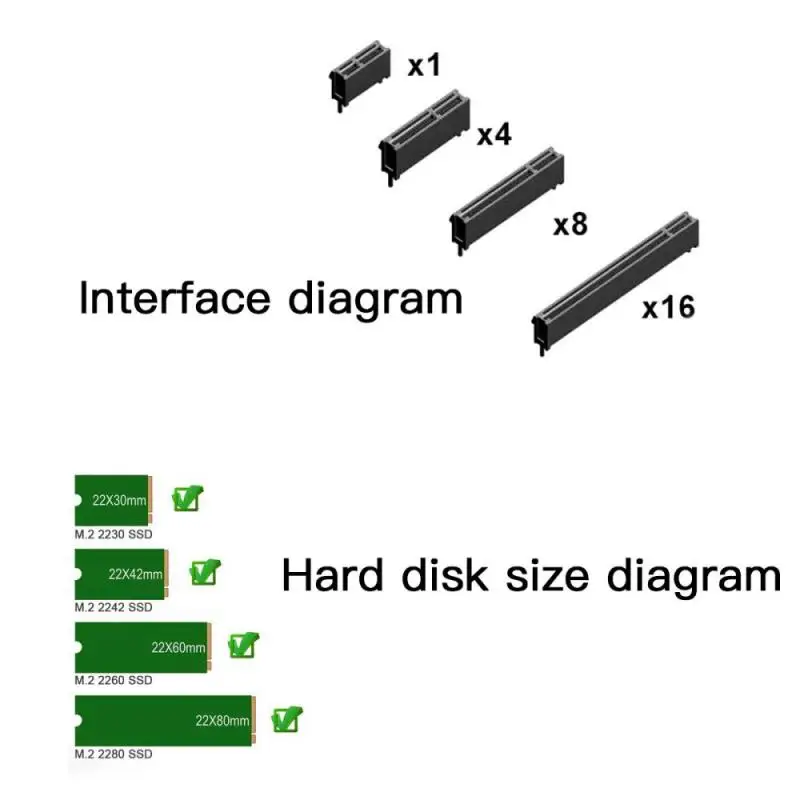

Supported specifications: SSD of size 2230, 2242, 2260 and 2280

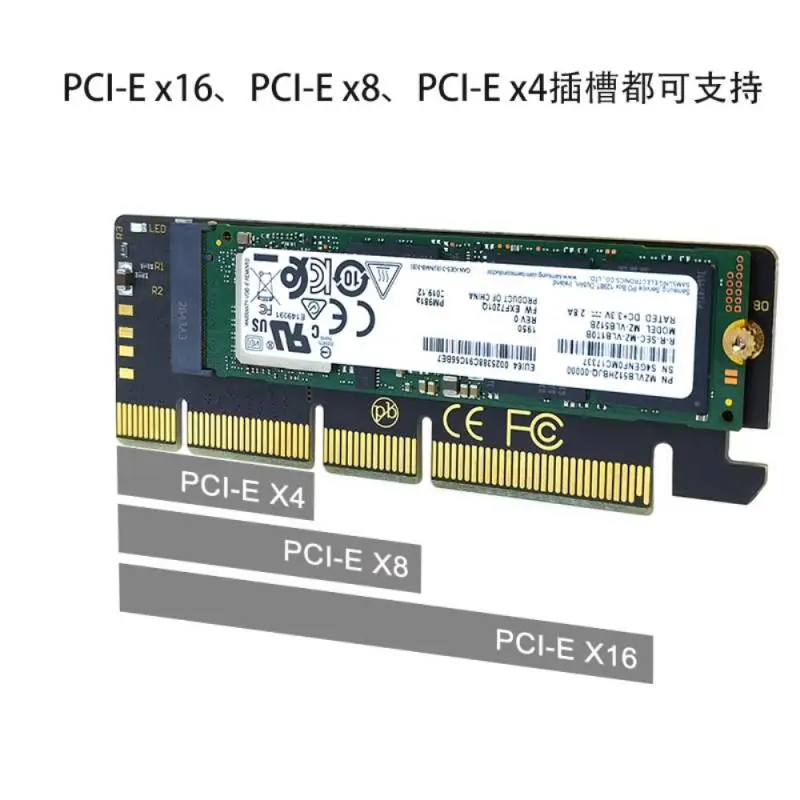

Output interface: PCIE X16, X8, X4, X1

Supporting equipment: NVME m.2 SSD of various PCIE protocols.

Supporting system: Windows7/8/10/ Linux.

Compatible motherboard: motherboard chipset cannot be lower than 9 series.

Easy to install: no driver is required.

The adapter card is hollow, which has good heat dissipation effect.

There is no need to add heat sink in DIY, which increases and has no better heat dissipation effect.

Specifications:

advantage:

1, integrated BTBCOIN high-speed signal enhancement technology;

2, PCIE3.0 GEN3 full speed design;

3, not stuck, the motherboard self-test does not delay;

4, with large capacity tantalum capacitor constant voltage filtering.

Package Included:

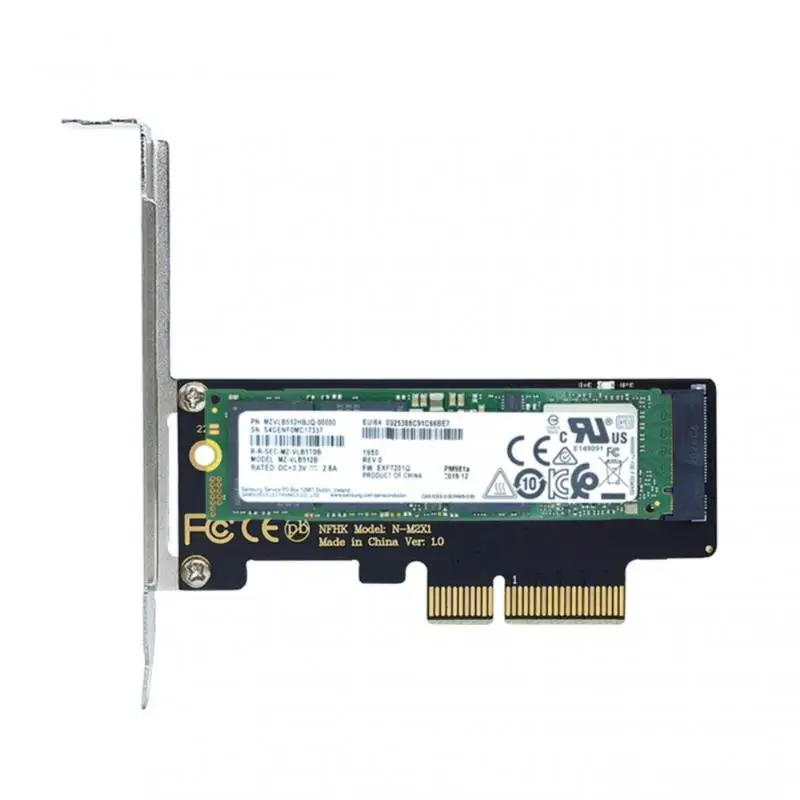

1 x NVMe PCIe M.2 NGFF SSD to PCIe x1 Adapter Card

1 x Full Height Bracket with Screws

Notes:

Note:

M.2 no-give baffle for interface from nvme SSD to PCI-E X16.
