4K HDMI KVM Switch 4 Port USB Switcher 4x1 4k@60HZ box For Keyboard Mouse Printer PC To TV Monitor | Электроника

Характеристики

История изменения цены

*Текущая стоимость 4 207,63 - 6 781,74 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Описание товара

---

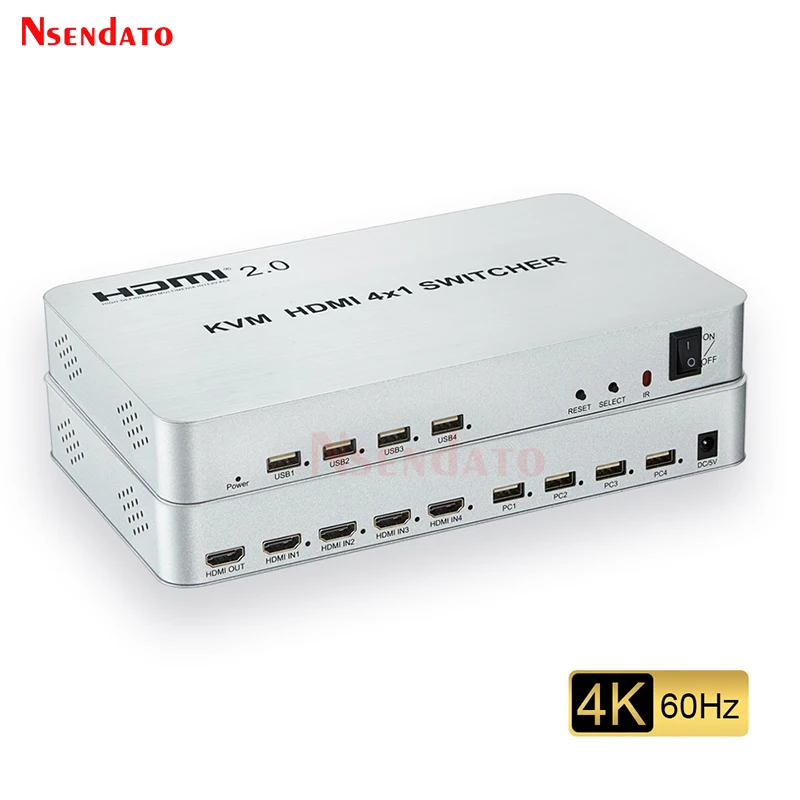

4K HDMI KVM Switch 4 Port USB KVM HDMI Switcher 4x1 4k@60HZ USB HDMI KVM Switch box For Keyboard Mouse Printer PC To TV Monitor

INTRODUCTIONThe 4x1 HDMI switch allows 4 PC and HDMI ports to be switched to a single display terminal via remote control or buttons on unit. The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz，4K/60Hz multichannel audio. It can be used in office, meeting room and teaching, etc. FEATURESSupport HDMI 2.0bSupports 4 HDMI input, 1 HDMI outputSupport 3DSupport highest video resolution 4K/60HzSupport 6Gbps data rate for tmds clock up to 600MHzSupport 24/30/36 bit deep colorCan automatically switch HDMI input port (in 4 ports, the last one is priority)Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres （4K/30Hz or lower）Support standard HDMI 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz)Supports USB 2.0Supports 4 USB host (PC), 4 USB device (mouse/keyboard)Supports wireless mouse and keyboardSupports Windows, Linux, MAC OS and Android operation system, etc.Plug and play, no need to install any driving program SPECIFICATIONS:HDMI version:HDMI 2.0bUSB version:compatible with USB 2.0 Full/Low speedHDMI resolution:4K/60HzUSB rate:Low speed(1.5Mb/s)；Full speed(12Mb/s)Support video format:3DSupport video color format:24/30/36 bit deep colorSupport audio format:for DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSDMax bandwidth:600MHzMax baud rate:6GbpsInput cable distance:≤8m AWG26 HDMI standard cable(4K/30HZ); ≤3m 2.0 HDMI standard cable(4K/60HZ);Output cable distance:≤8m AWG26 HDMI standard cable(4K/30HZ); ≤5m 2.0 HDMI standard cable(4K/60HZ);USB cable length:Standard USB 2.0 cable ≤ 2mMax working current:900mA Operating and Connecting1:Connect four cables from HDMI source device into HDMI switch input.2:Connect one cable from HDMI source device into HDMI switch output.3:Connect PC signal source (such as USB ports on the PC) and ‘PC1-PC4’ports on the switcher with 4 USB 2.0 cable4:Connect USB1~USB4 ports with wired or wireless USB mouse/keyboard5:Connect 5V/1.5A power adapter to the HDMI switch . Notice: USB1-USB4 ports can be connected with keyboard and mouse, but only 1 case of keyboard and mouse at 1 time. After turning the switcher on, ‘Power’ light is on→‘HDMI IN1’light is on→‘PC1’light is on. ‘Select’ on the switcher can be pressed or ‘1-4’ button on the remote control to switch HDMI IN1-4 and PC1-4 ports. The input port is switched to when near light is on. Respective light is on when USB1-USB4 ports are connected. Notice: HDMI IN and PC input ports are switched simultaneously. Package includes:HDMI SwitchIR Remote Control(Without battery)5V/1.5A Power adapterUser ManualUSB 2.0 A Male cable Noted:the link have two model ,please kindly select what your need !!!
