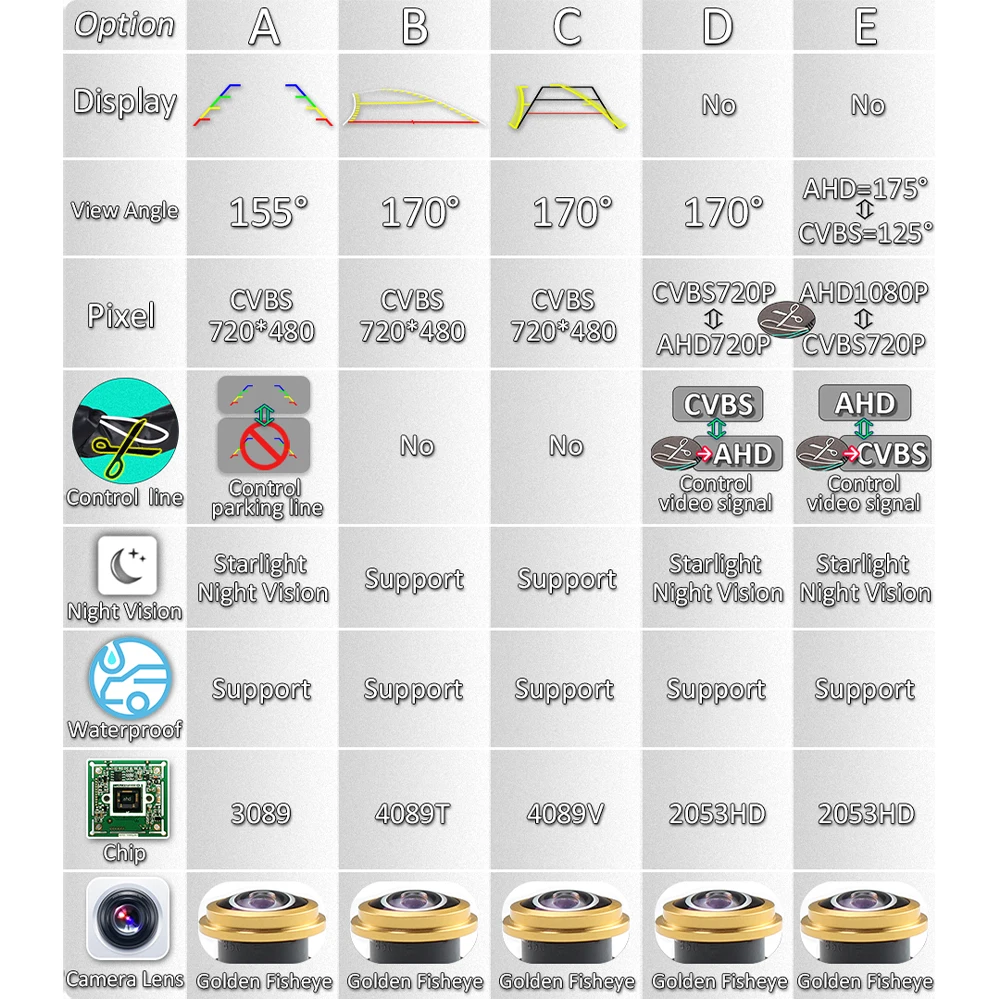

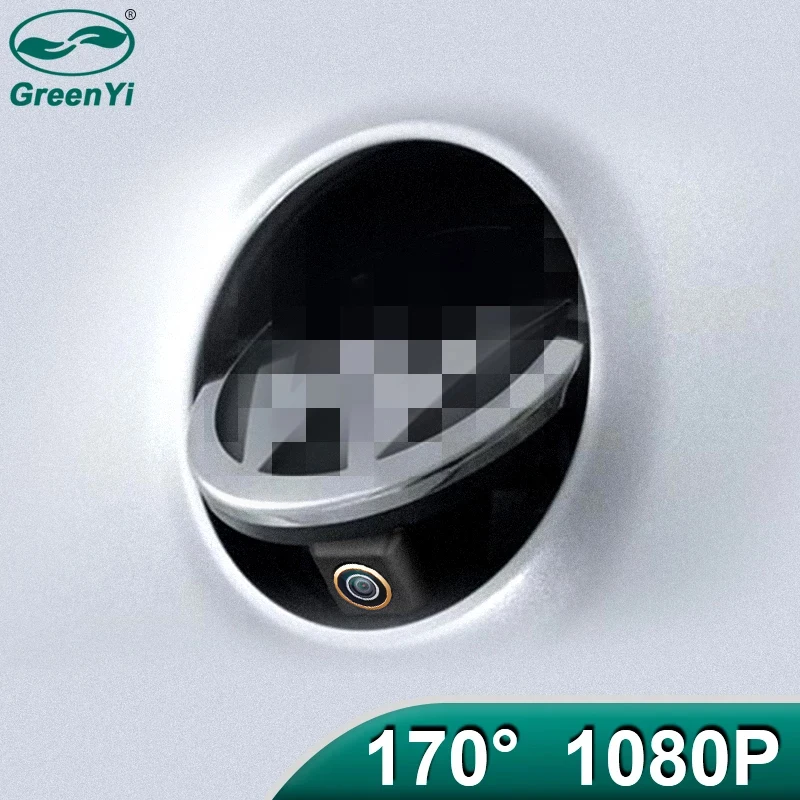

5 Cameras Optional

Tips, About E-AHD1080P options:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

How to check whether the Android unit supports AHD camera?

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

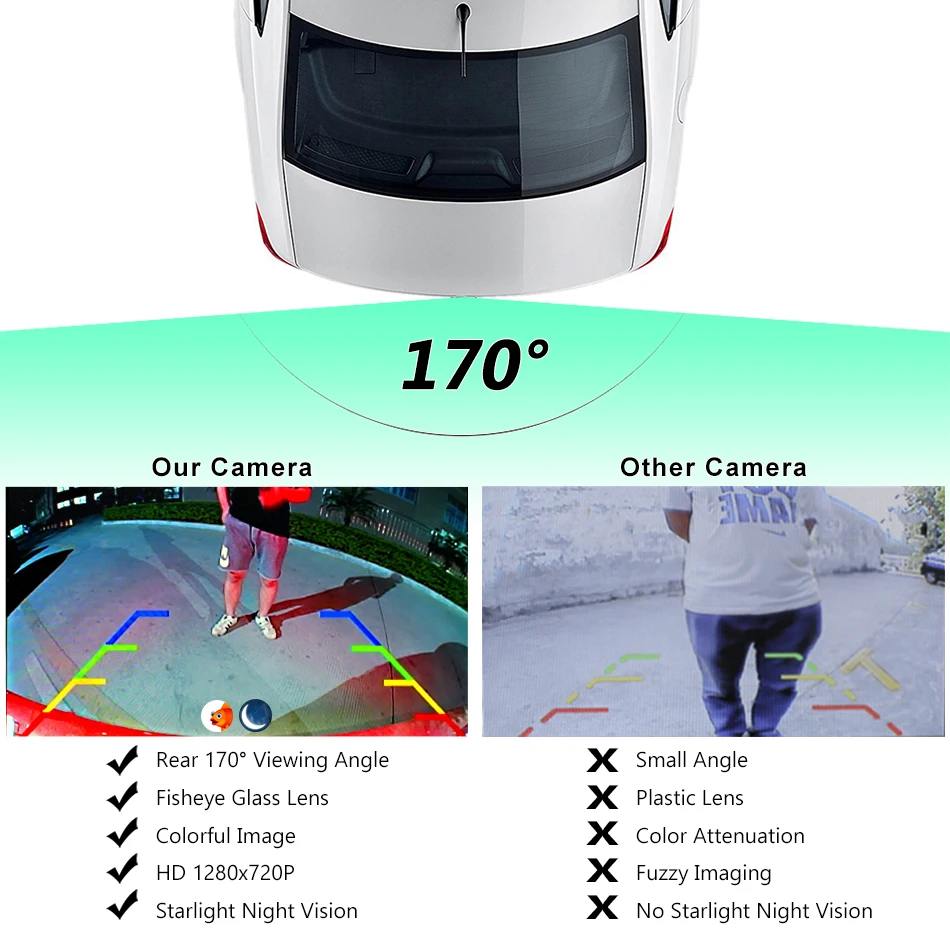

↓↓ 170° View Angle (Option B, C, D, E)

• Real 170° wide viewing angle fisheye lens. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

↓↓ Top Starlight Night Vision (Option A, D, E )

• Low-light Level Night Vision, 15m visible distance for night. Exclusive military low-light camera, the industry's most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!

↓↓ New AHD Camera, Analog High Definition Technology (Option D,E)

• AHD1080P / AHD720P Optional
• If AHD1080P cannot be selected, AHD1080P cameras are not supported!
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• Highly integrated AHD front-end chip, high-definition quality products.
• 170° wide viewing angle fisheye lens.

↑↑ Support video signal control AHD/CVBS (Option D, E)

Through signal control, it can support CVBS and AHD displays.
• D camera
( CVBS )+( 1280x720 )+( 170° )
Cut the white cable→( AHD )+( 1280x720 )+( 170° )
• E camera
( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280x720 )+( 125° )

↑↑ Support parking reference line switch on/off (Option A)

Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.

Support Waterproof

Include Drain Pipe

↓↓ Support Intelligent Dynamic Trajectory (Option B)

• Not need CANBUS or OBD interfaces, camera built-in reversing Tracks module, just connect the power.
• Not support steering wheel control.
• Adjust the track automatically according to the moving position and speed of car body and angle, help you make parking easier.
• 170° wide viewing angle fisheye lens.

↓↓ Support steering wheel control. (Option C)

• It can acquire the your vehicle data from your canbus, predict your reverse track accurately.
• The track can be adjusted according to your steering wheel as the OEM camera.
• 170° wide viewing angle fisheye lens.
Fit for: OEM MIB Radio (ESP/ESC is required)

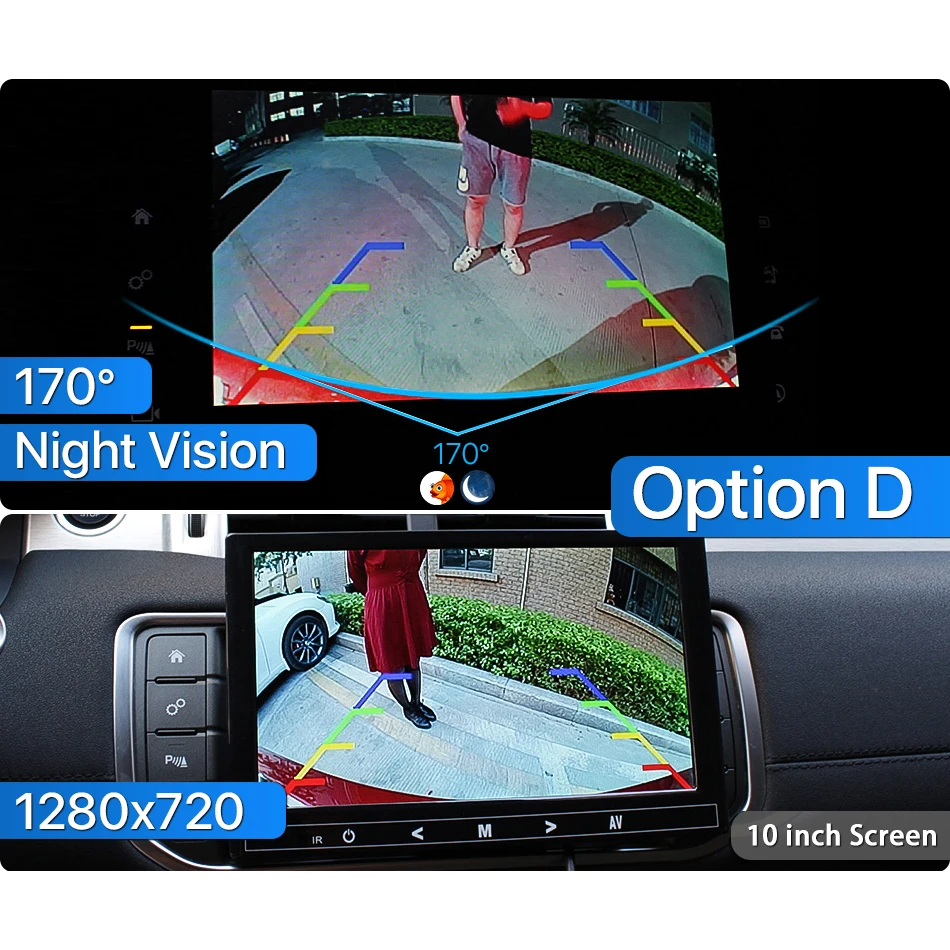

Display effect

Tips:

1. AHD Camera only support AHD monitor.
2. AHD1080P Camera only support AHD1080P monitor.
3. Option A, B, D, E Camera Fit for: General-purpose product, directly connected to AV cable.
4. Option C Camera Fit for: OEM MIB Radio (ESP/ESC is required) Need to connect MIB interface.

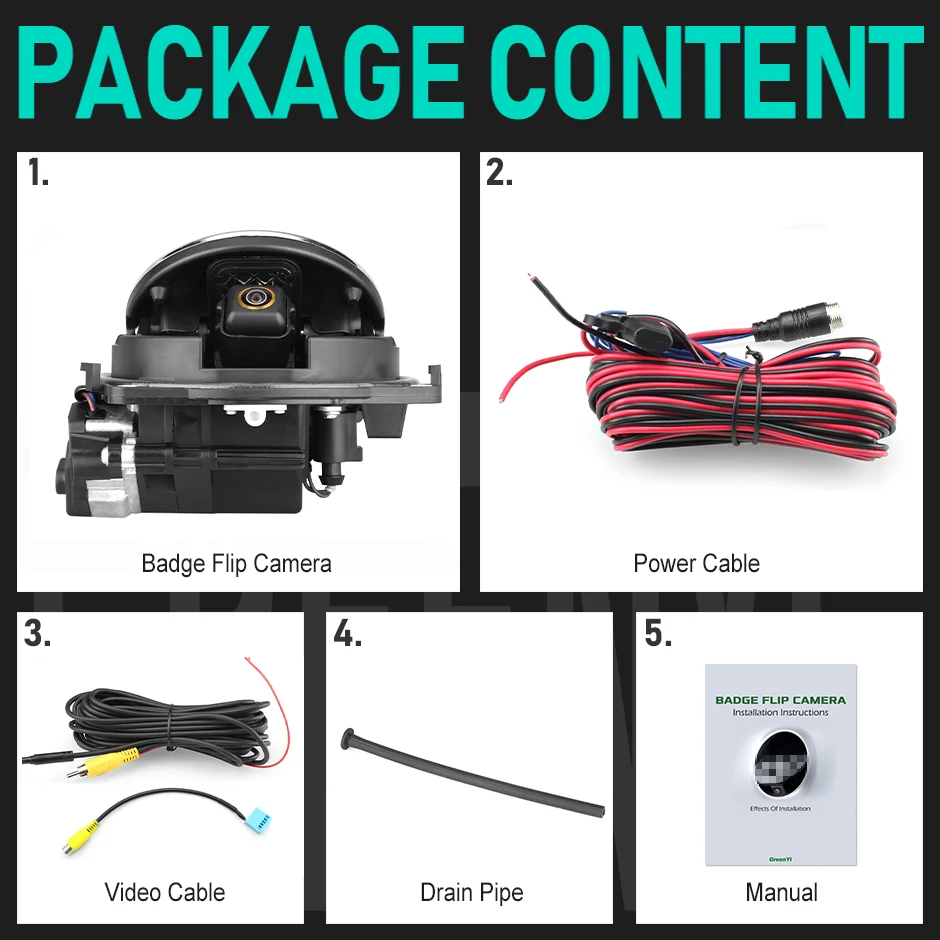

Package list (Option A, B, D, E)

1. Badge flip camera
2. Power camera
3. Video cable + RCA to MIB Cable
4. Drain pipe
5. Manual

Package list (Option C)

1. Badge flip camera
2. Power camera
3. Video cable
4. Drain pipe
5. Manual

How do I know the camera fit for my car?

1. Badge can flip as the trunk handle
2. Diameter of your badge is 11cm
If you car can meet above conditions, then it will be fit.
Tip: POLO (Before 2020) need a dedicated bracket, need to pay an additional $15.

Option A, B, D, E Installation Diagram

1. Drain Pipe:connect flip camera white outfall and trunk drain hole.Big head towards trunk.
2. Trunk switch plug:butt car trunk locking connector.
3. Driving test control line:connect with driving test line of DVD line.
4. Video output: connect DVD rear panel “driving rear-view input” plug.
5. Red line:power cord is positive which must connect DVD usual power
12V, connect ACC will leading trunk don’t open.
6. Black line:power cord is negative which connect DVD negative.
7. Blue line:signal line,connect driving light positive or connect filter“driving
rear-view electric” line.
8. MIB conversion cable: used to transfer the original vehicle MIB screen video transmission, the yellow RCA interface is connected to the No.4 line, and the blue interface is inserted into the MIB socket of the DVD.
Tip: AHD camera only support AHD monitor!

Option C Installation Diagram

1. Drain Pipe
2. MIB Video Signal Plug
3. ACC 12V+
4. GND-
5. CANBUS Wire Plug
6. Trunk Switch
7. GND-
8. Battery 12V+
9. Revesre light 12V+
