Описание товара
Brand NameGZHYAJINModel NumberAM-80OriginMainland ChinaCertificationCEPackageYesMaximum Power Per Channel101-130WMeasurement unitpiece/piecesEach pack121 605,28 ₽-10%21 605,28 ₽-10%19 444,75 ₽19 444,75 ₽loader
Description

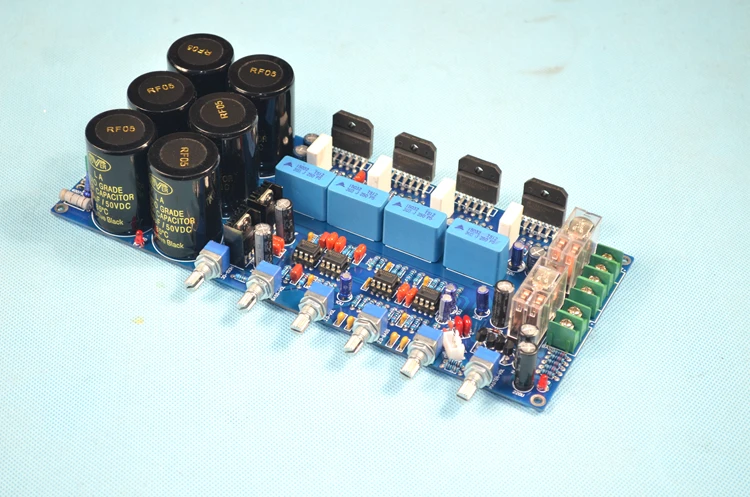

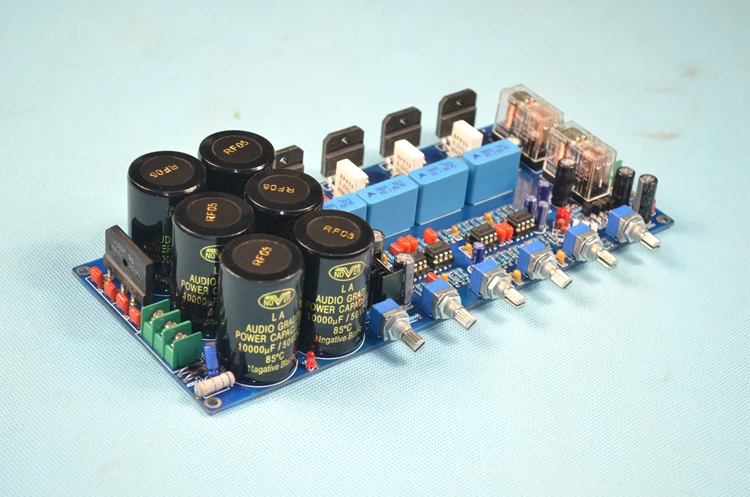

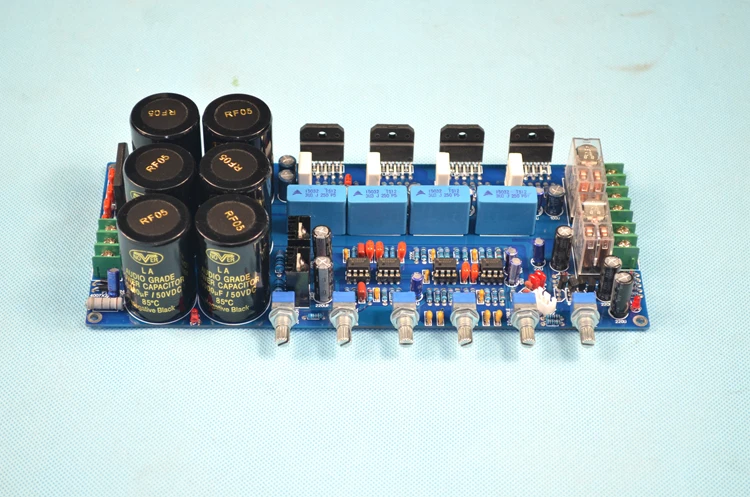

Q-BAIHE LM3886 2.1 Subwoofer Fever Level Amplifier Board Hifi Amplifier Board With Protection Circuit Fever Level DIY
Note: Before powering up,it must be self-equipped with a good heatsink!
Product Name: LM3886 2.1 subwoofer fever level amplifier board (Heatsink not included, please add a heatsink before connecting to the transformer)

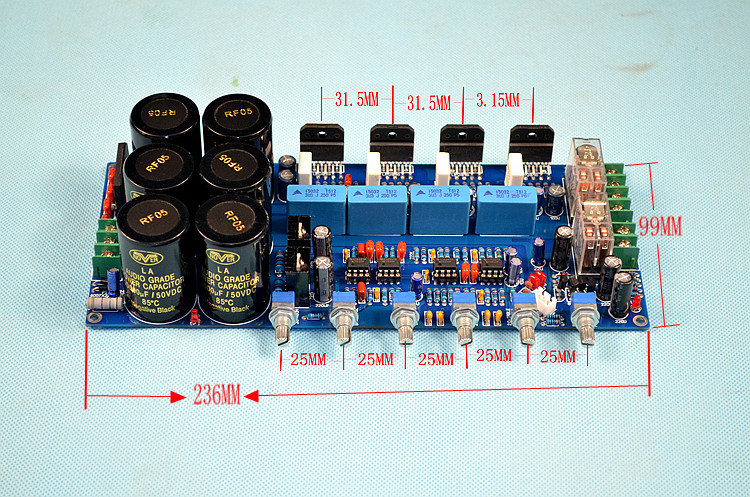

Board size: 235MM (length) * 100MM(width) * 50MM(height)
Output power: 120W (use a subwoofer more than 8ohms, can not use 4ohms) + 68W + 68W 4-8ohms
Supply voltage: AC 24V-0-24V (voltage can be selected between 22-26V)
Transformer requirements: Transformer power 250W or more, will be better if more than 300W (not use those virtual transformer, use full power)

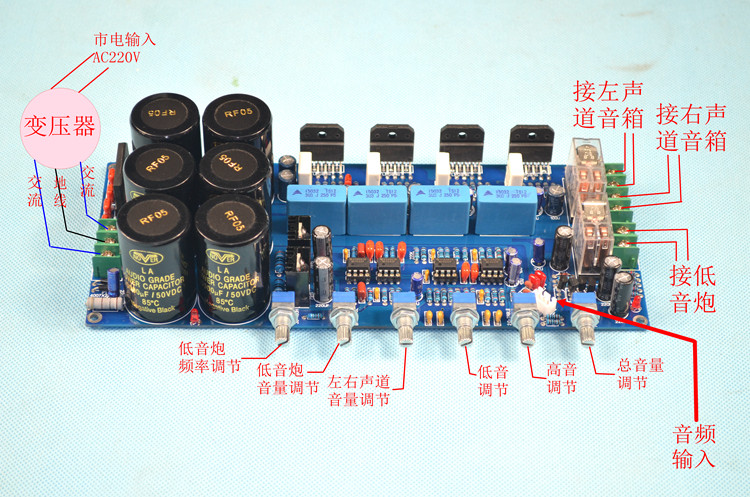

Note: No circuit diagram, only with a wiring diagram, if you mind please do not buy.
Amplifier board is designed using LM3886TF as the core, supplemented by pre-bass low-pass circuit and left and right channel tone circuit design.

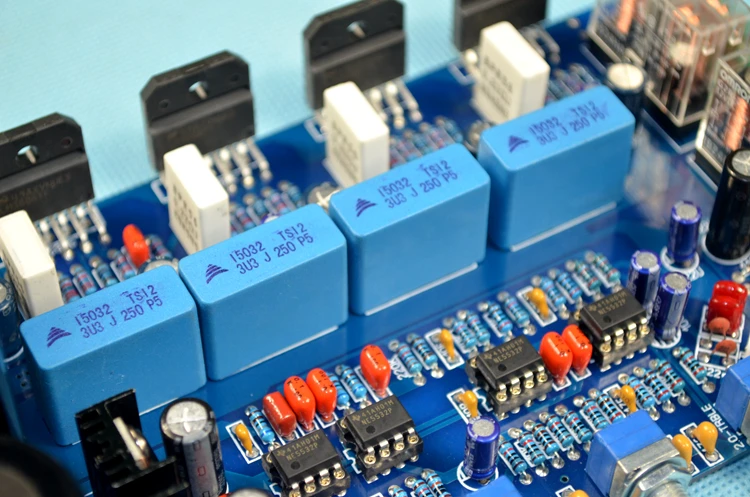

Coupling capacitor use four German Siemens 3.3UF, less loss of the angle , delicate sound, high fidelity

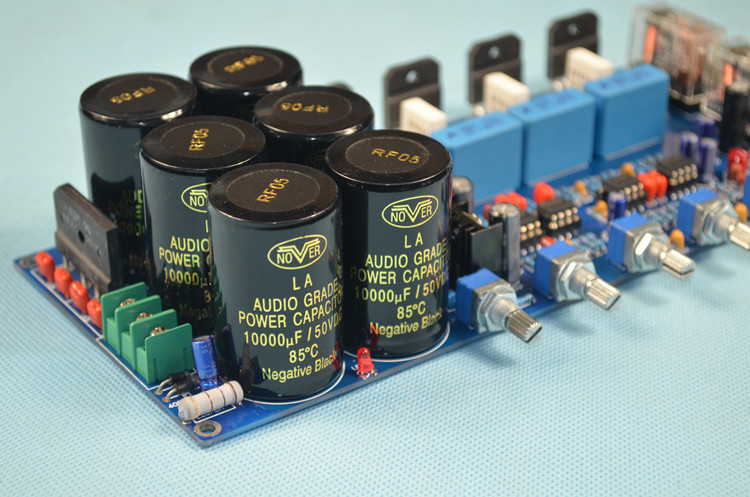

The main filter capacitor use 6 NOVER gold AUDIO capacitor 10000UF 50V, a total of 60000UF, enough to cope with a variety of large dynamic audio output.

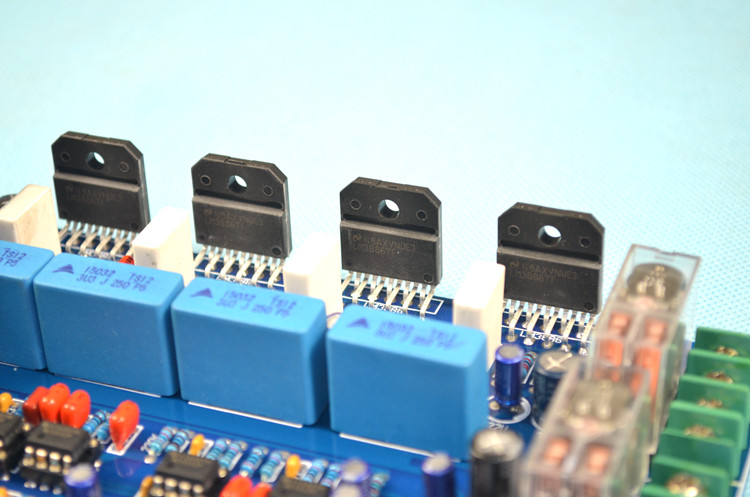

Four imported LM3886 composition 2.1 channel output: 120W +68W +68W

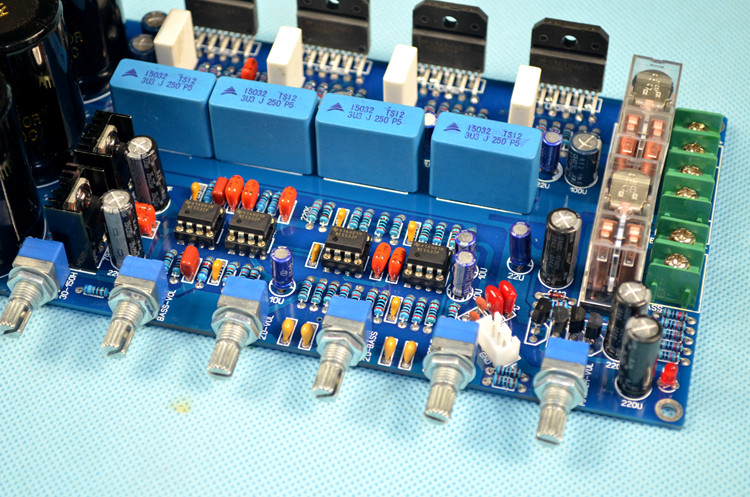

The op amp uses the Texas 5532 four, the board designed with a transport seat, can replace the different levels of fever op amp, easy to upgrade

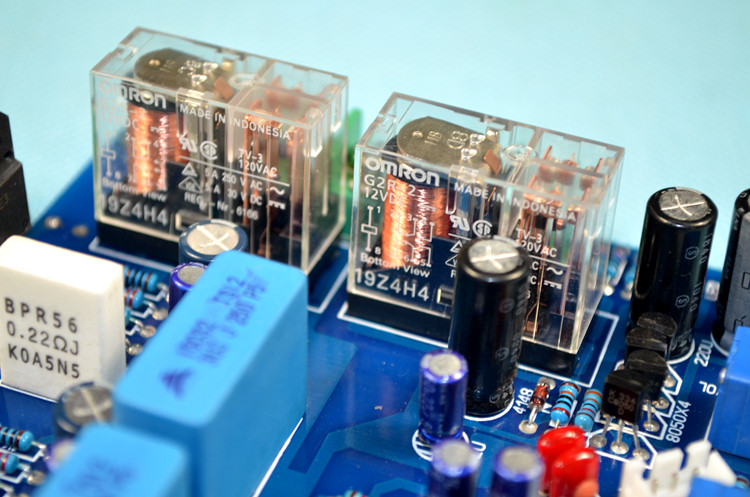

The power amplifier board tuning has a perfect protection circuit: the mid-point voltage protection circuit, boot delay without impact, power amplifier board failure will protect the action, the machine more secure to protect the speaker

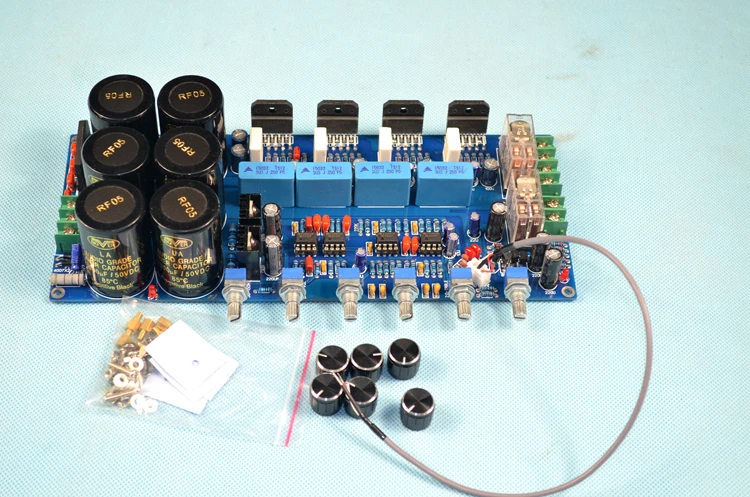

Packing:1x LM3886 2.1 Subwoofer Fever Class Power Amplifier Board
The main filter capacitor 1 shares 6 NOVER gold word AUDIO capacitors 10000UF 50V, a total of 60000UF, which is enough to cope with various large dynamic audio outputs
