Характеристики
PCM5122 для Raspberry Pi HiFi DAC HAT Аудио-карта Расширительная плата 4 3 B+ Zero W.
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 0.68 руб. | 0.55 руб. | 0 руб. |
| Aug-18-2025 | 0.12 руб. | 0.91 руб. | 0 руб. |
| Jul-18-2025 | 0.11 руб. | 0.90 руб. | 0 руб. |
| Jun-18-2025 | 0.8 руб. | 0.33 руб. | 0 руб. |
| May-18-2025 | 0.35 руб. | 0.84 руб. | 0 руб. |
| Apr-18-2025 | 0.9 руб. | 0.16 руб. | 0 руб. |
| Mar-18-2025 | 0.19 руб. | 0.28 руб. | 0 руб. |
| Feb-18-2025 | 0.19 руб. | 0.1 руб. | 0 руб. |
| Jan-18-2025 | 0.11 руб. | 0.78 руб. | 0 руб. |
Описание товара
Brand NamePLEXTONEOriginMainland ChinaCertificationNONEDemo Board TypeRaspberry pi 2 bROM CapacityNoneMeasurement unitpiece/piecesEach pack1Demo Board Typefor Raspberry pi 2 bModel Numberfor Raspberry Pi HiFi DAC HATCompatibleRaspberry Pi
Description

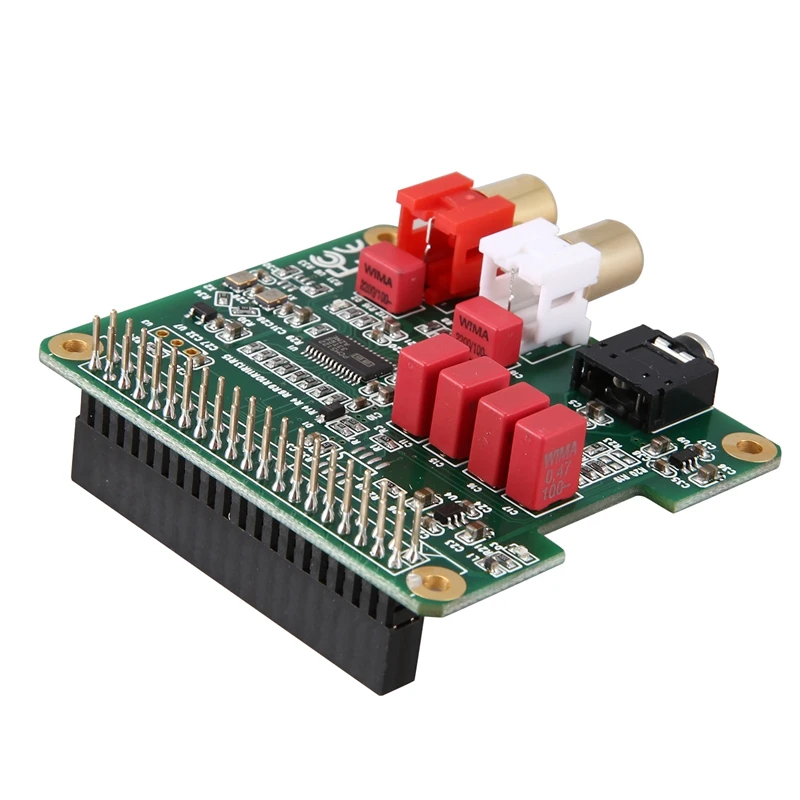

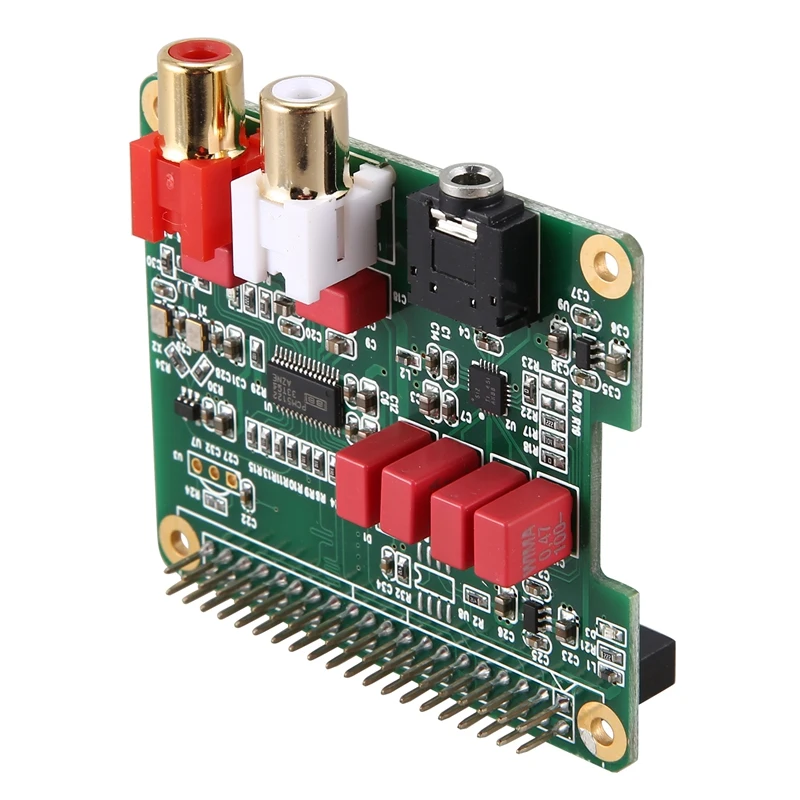

The HiFi DAC Hat compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+ with the 40-pin connector. Connects directly to the Raspberry Pi board, no additional cables required, no soldering. Easy to get more beautiful and fantastic sound by this RPI+DAC HiFi suits.support all Raspberry Pi music playback system, like OSMC, Max2Play, RuneAudio, Volumio, Moode, PiCorePlayer, PiMusicBox, OpenELEC, Debian, Ubuntu etc. Support playing music from a hard disk or over the network. Support DSD over PCM(DOP) mode.
Class-leading stereo audio DAC PCM5122, sample rates up to 384-KHz/32-Bit. Paired with stereo high fidelity headphone amplifier TPA6133. Provides 2.1Vrms ground-centered outputs coupled with Film capacitor.
On-board a pair of gold plated RCA (LEFT &Right) jacks and a 3.5mm high-end headphone jack output, allow you free to play your music through Raspberry Pi to another terminals.
Adopt 384KHZ/32bit DAC PCM5122.
Demo Board Type:for Raspberry pi 2 b
Model Number:for Raspberry Pi HiFi DAC HAT
Compatible: Raspberry Pi
Audio output interface: 2x R C A(LEFT &Right) & 3.5mm head phone Jack.
The headphones can be driven directly using a differential headphone driver (138mw).
The power indicator and the working status indicator are convenient for understanding the working status of the system.
Digital and analog power supplies are separately powered.
The size RPI HAT is fully compatible.
DAC SNR 112 dB.
DAC THD+N @ -1 dBFS -78dB. The DAC output amplitude is 2.1Vrms.
The DAC dynamic range is 112 dB.
Sample rate support range: 8khz ~ 384khz.
Reserve the ID EEPROM location.
The clock frequency is automatically switched according to the audio file sampling rate.
The clock unit uses two crystal oscillators with low jitter, high accuracy and low phase noise.
The DAC post-stage output iscoupled using a film capacitor.
Reserve infrared remote connector position (using GPIO26, users can solder by themselves).
colour:green
Material:plastic
Package Contents:
1 x expansion board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
