Qiyun China Tracked Crawler Electric Self Propelled Scissor Lift for Aerial Working Platform Table sale |

Qiyun China Tracked Crawler Electric Self Propelled Scissor Lift for Aerial Working Platform Table sale |

Qiyun New 2021 CE ISO Approved Mini 4m Lifting Height 240kg Load Self-Propelled Crawler Tracked Scissor Lift Platform （ Please make sure to communicate with me before paying directly, because the price in the title is just a deposit, not the full amount! !）

Product Application:
Qiyun Brand Tracked crawler scissor lift is one kind of self propelled scissor lift. It is famous for its high efficient performance, very low failure rate and sensitive speed adjust ability. Motor drive supply all power for moving and lifting. Track crawler can walk in very bad conditions,like muddy road,grass,gravel road,shallow water road etc.All of our hydraulic lifts are approved by European certificates and meet the international standards.Certificated by CE,TUV,ISO,SGS etc.

Compact structure can be modularized into a small space;With a new electric propulsion system, ride provides more flexibility, more environmentally friendly exhaust emissions.
Characteristics:
1. The surface of our scissor lift is shot blasting. It is very smooth and beautiful. The painting will be very anti corrosion.
2. scissor lift structure is very compact so as to guarantee the structure is strong enough.
3. We adopts automatic production line so that the quality is highly guaranteed.
4. High strength steel structures, smoothly lift up and drop down, easily operated, very few faults.
5. Power sources: local power available at the working sites.
Features:
1. Products advantages

Mini Crawler Scissor Lifts doesn't need any outriggers, one man operates on the working platform.

Moving forward,turning around and lifting up are easily operated.

Short chargeable time and long dural time of the battery.

Easily moved, spacious working platforms, smooth working condition and high working efficiency

2. Moving method

The chargeable battery provides the power to move and steer around.

3. Lifting Power

The chargeable battery provides the power to raise up the lift platforms.

4. Applications

It is widely used for aerial installation and maintenance of the working sites without power supply and

with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, warehouse,

granary,bus/railway stations, hotels,airports, gas station and aerial pipeline.


Model Loading Capacity Lifting Height Overall Size Extended Platform Size Platform Size Weight
GTJZ04 240KG 4m 1515*1097*1660mm 600mm 1300*740mm 995kg
GTJZ06 240KG 6m 1915*1210*2140mm 900mm 1670*760mm 1855kg
GTJZ08 320KG 8m 2705*1325*2500mm 900mm 2263*1129mm 2750kg

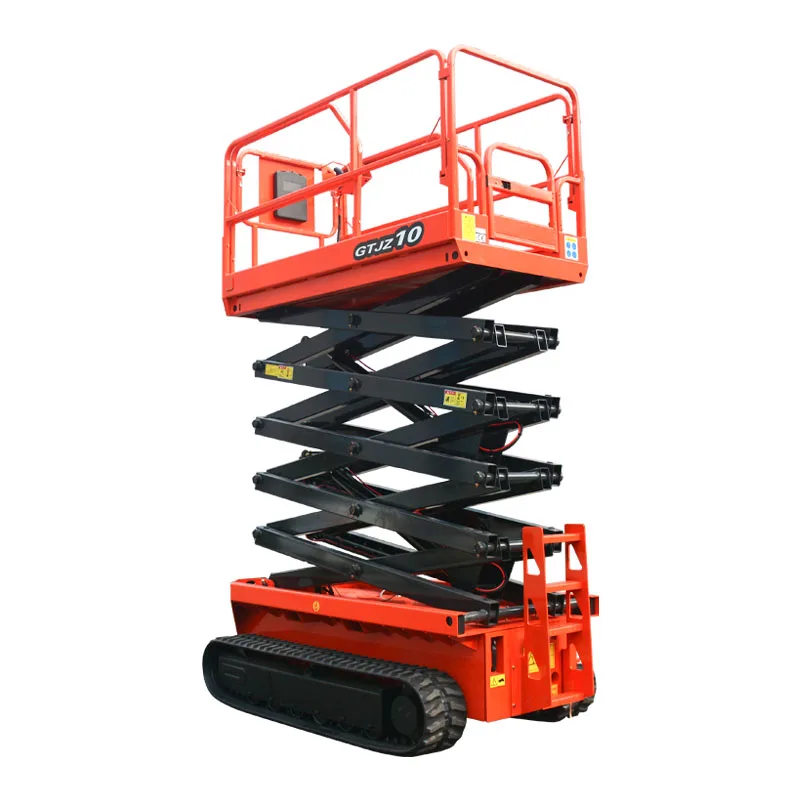

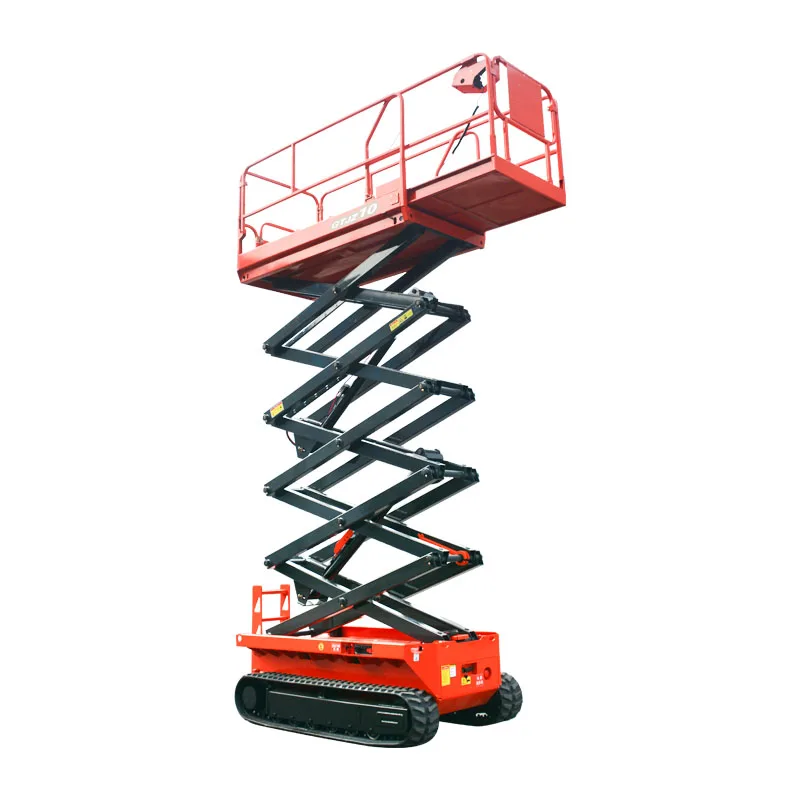

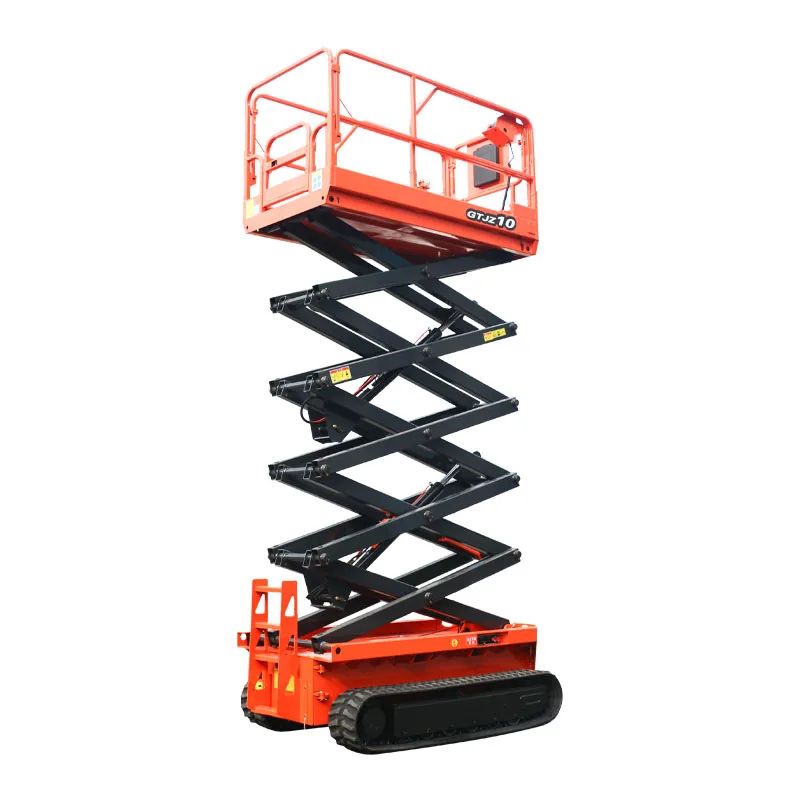

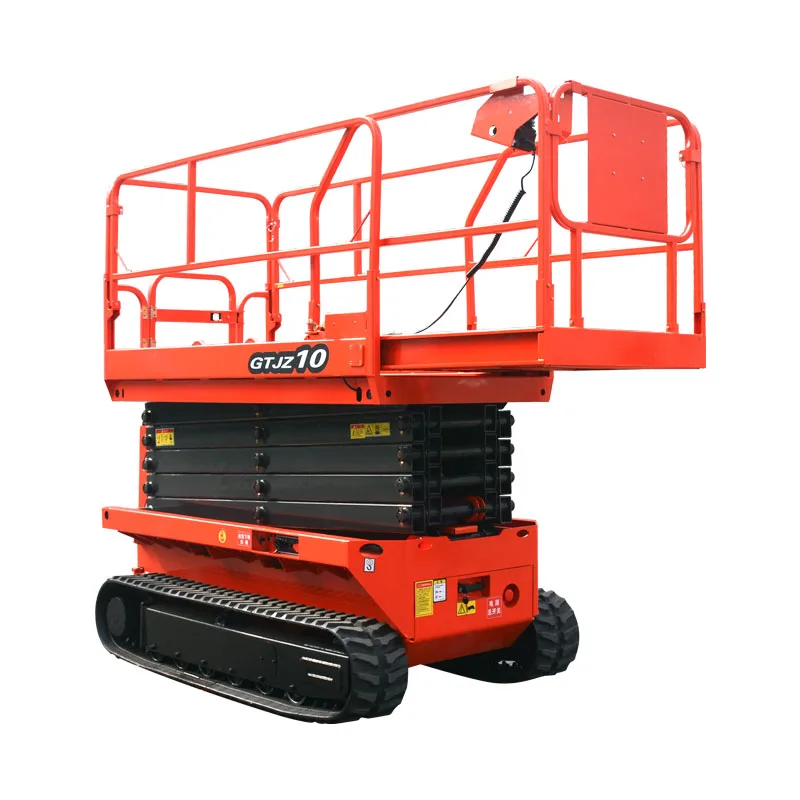

GTJZ10 320KG 10m 2705*1325*2625mm 900mm 2263*1129mm 2900kg
GTJZ12 320KG 12m 2705*1325*2625mm 900mm 2263*1129mm 3200kg
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance video and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.send the parts free of charge
