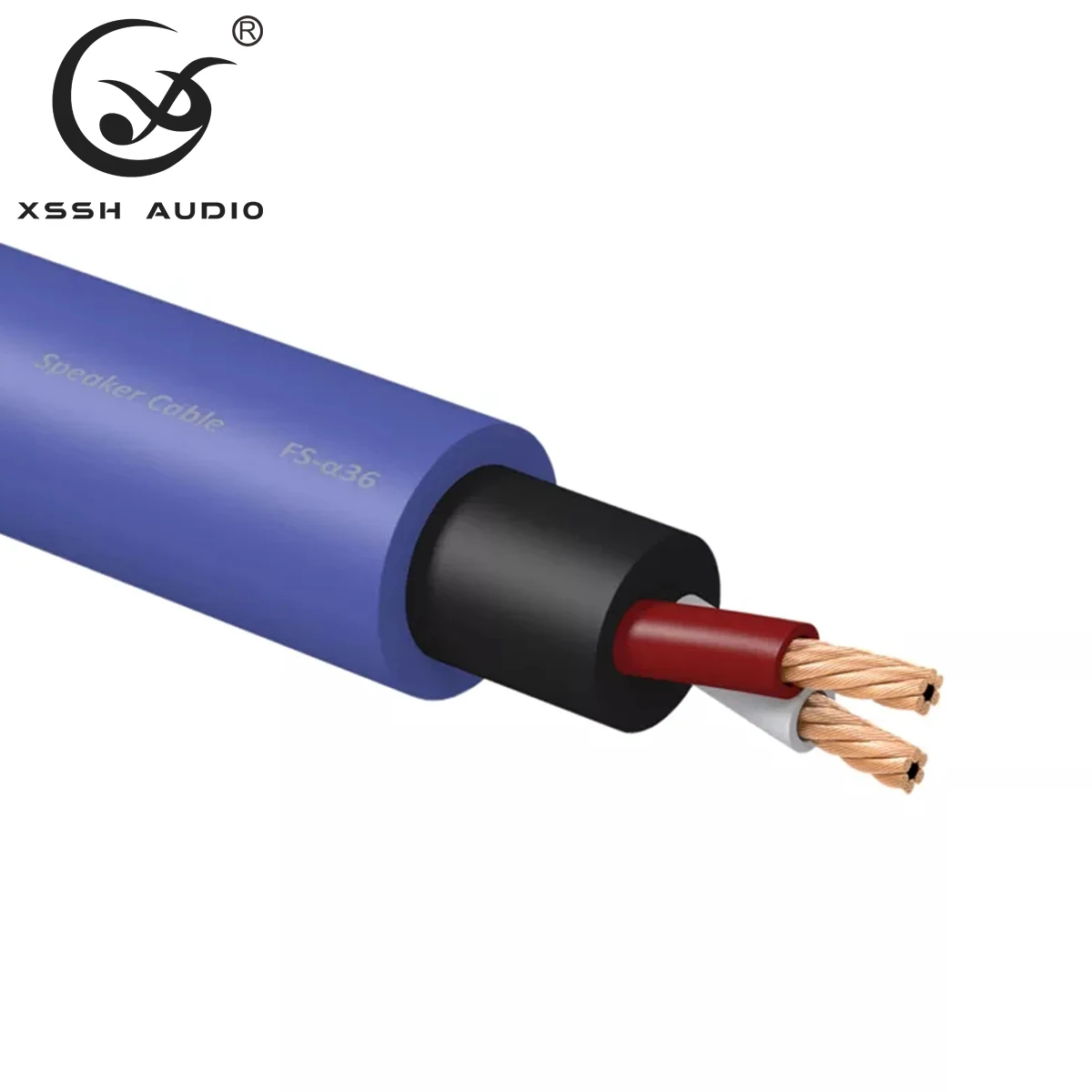

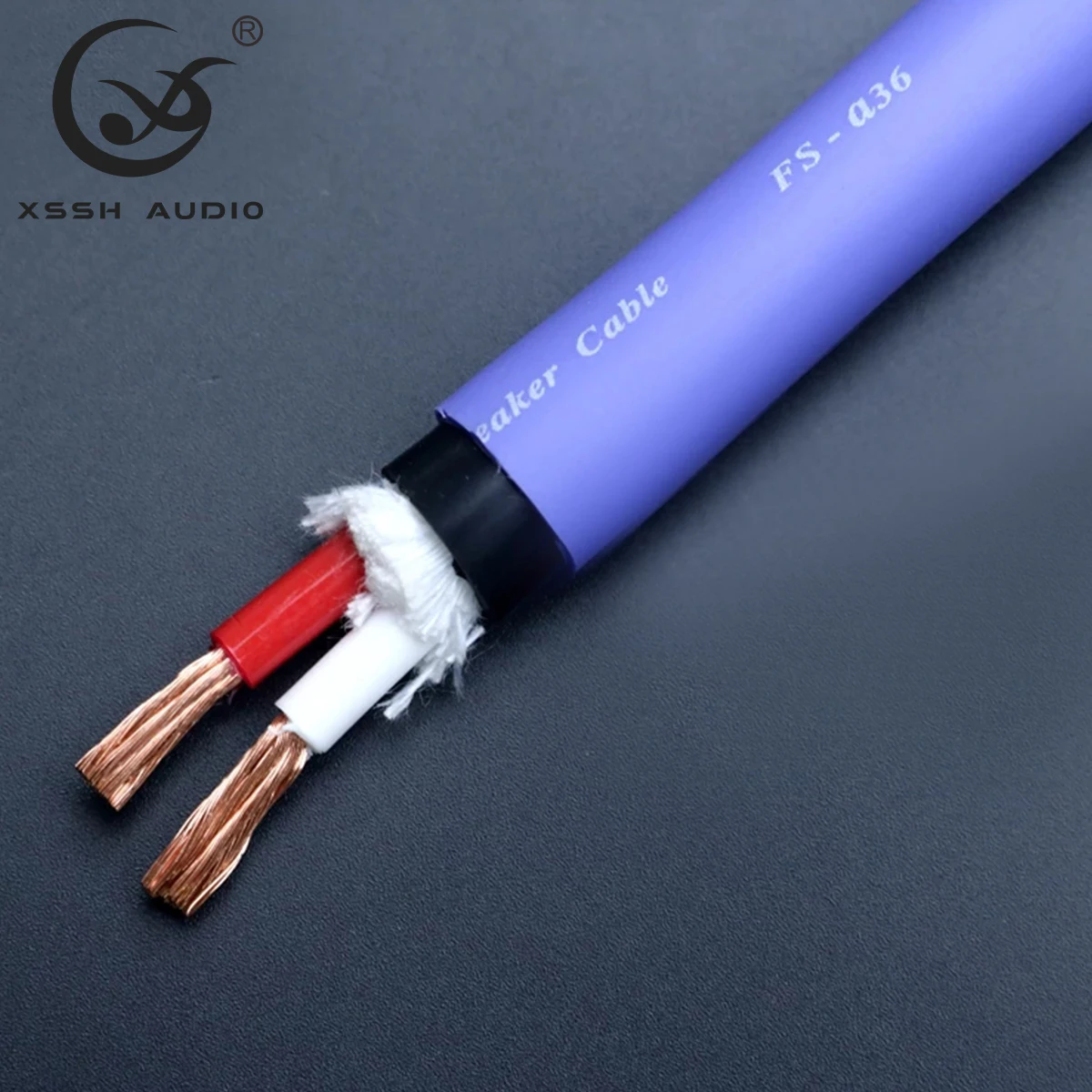

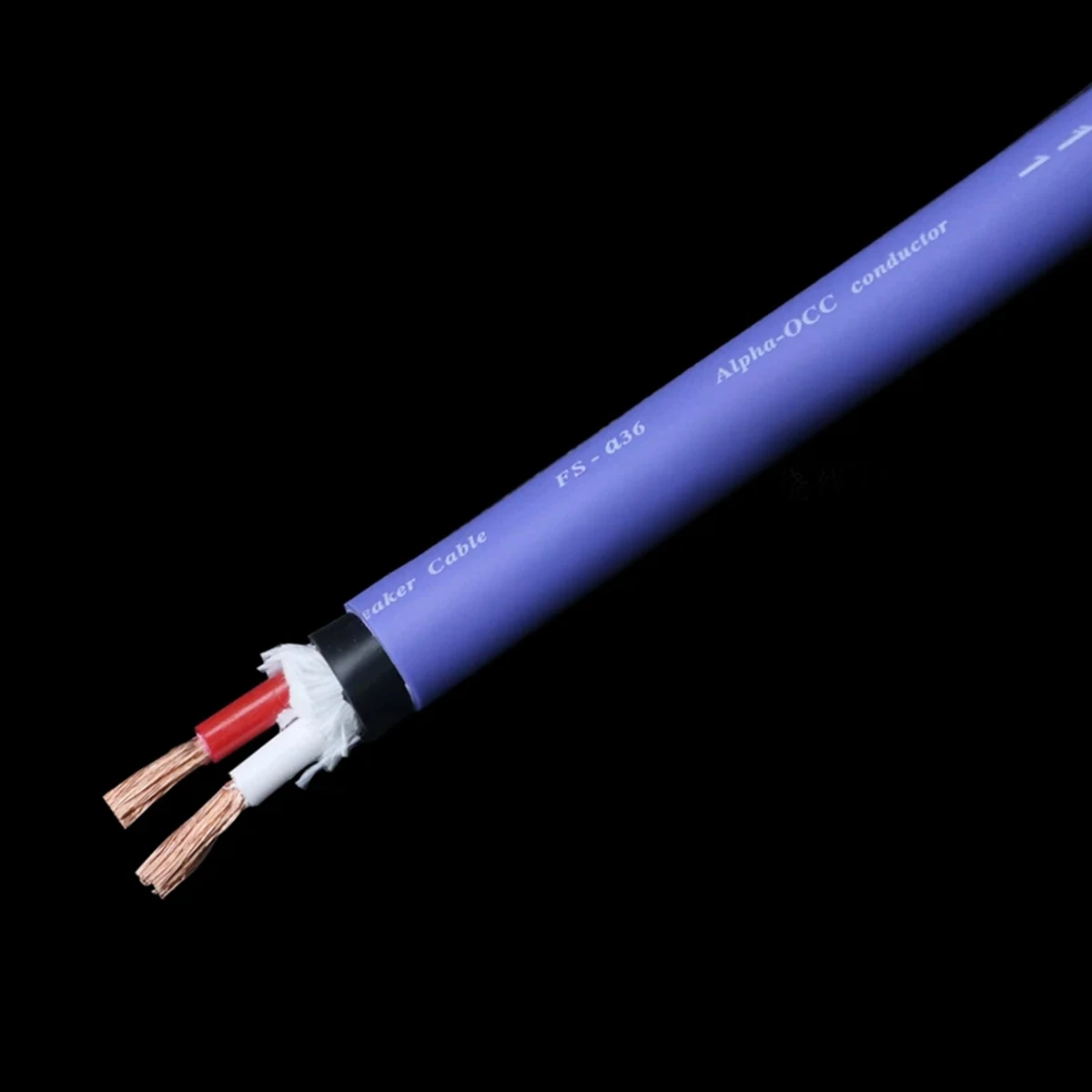

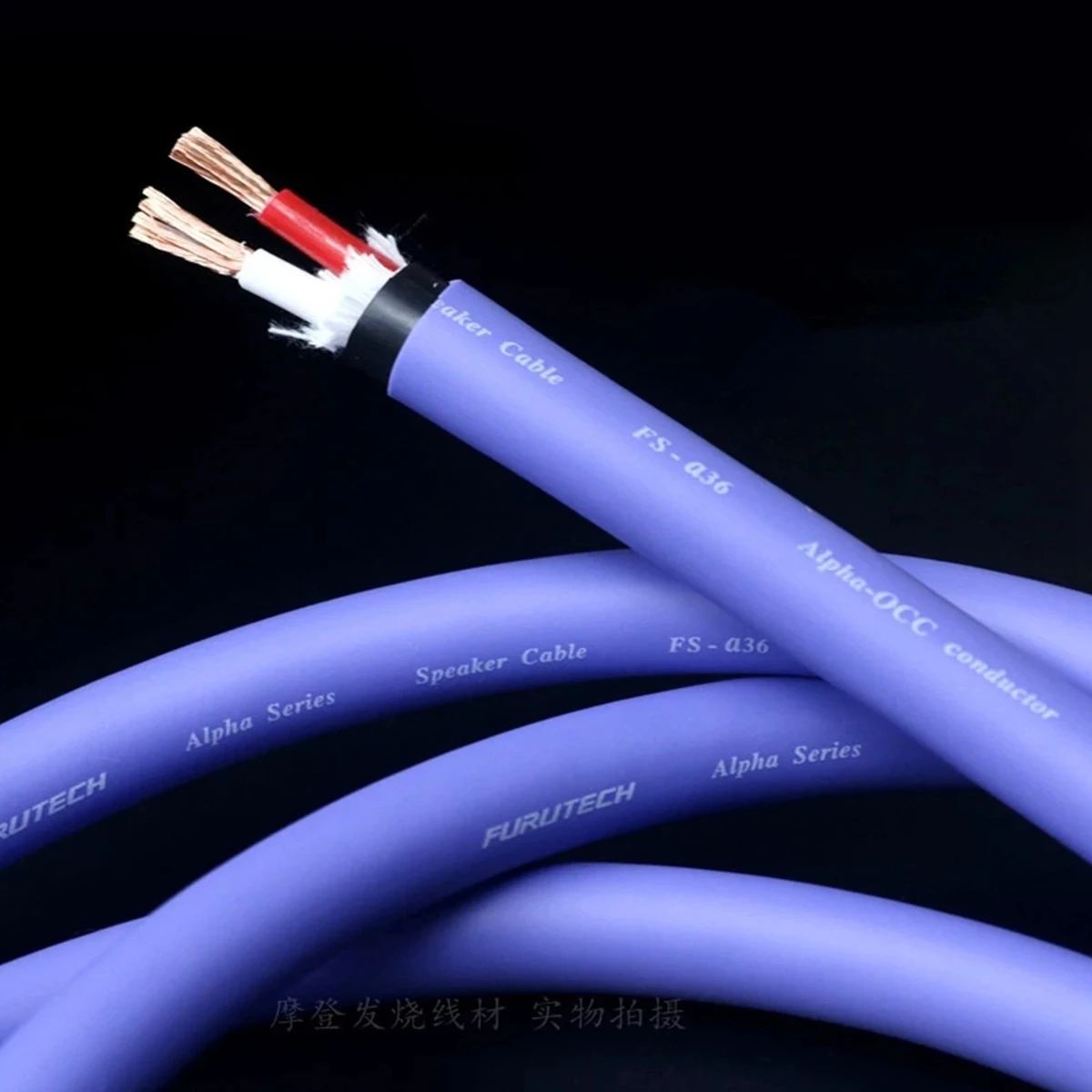

Speaker Cable XSSH Furutech FS-α36 Alpha Series DIY 2 Core OFC 4N OCC Pure Copper Wire Cord Cables | Электроника

Model#

FS-α36#

Material

Maximum conductor resistance: Ω/km 5.3 (JISC3005 6 20℃)
Minimum insulation resistance: MΩ/km>100 (JISC3005 9.1 20℃)
Capacitance: PF/m 41.7 at 1kHz
Impedance: Ω37.7 at 10 MHz
Inductance: uH/M1.4 at 1KHz
Withstand voltage: V/1 min. AC 1000 (JISC3005 8)

Furutech's alpha (Alpha) OCC is one of the few conductors furutech engineers found to have the ability to excel in sound reproduction. Alpha (Alpha) and high purity single crystal copper OCC are made using a special casting process. Unlike ordinary OFC, almost all impurities of high-purity OCC have been removed at the micron level and cast by Furutech's special unique process.

specification:
Conductor: α(Alpha)OCC (20pcs/ψ0.18mmX6+ψ0.9mm) combined with damping carbon particles (cross-sectional area 3 square)
Insulation: Audio grade polypropylene (red, white)
Diameter: 5.1 mm
Twisting method: 2 cores twisted together
Insulation: Audio-grade damping cotton
Barrier layer: wrapped with cotton paper tape
Inner sheath material: Audio grade flexible PVC (black) with damped carbon particles
Sheath material: Audio grade soft polyvinyl chloride (purple blue)
The outer diameter is about: 13mm

Color

Picture Shows optional or customize

version

HIFI audio & video cable speaker cable/ power cable

Type

no connector

Application

HIFI audio & video, microphone, Speaker , mixer, multimedia speaker, microphone, sound card, computer, radio, CD player and amplifier, the audio signal transmission between the speaker and the power amplifier

Life

exceed 50,000 recycling

Package

bulk package (Standard PE Bag or according to the customer's specific requirement)

Wire Diameter

13mm

Structure

as picture show

include

bulk cable, support DIY speaker cable / power cable,  welcome to contact us for detail
