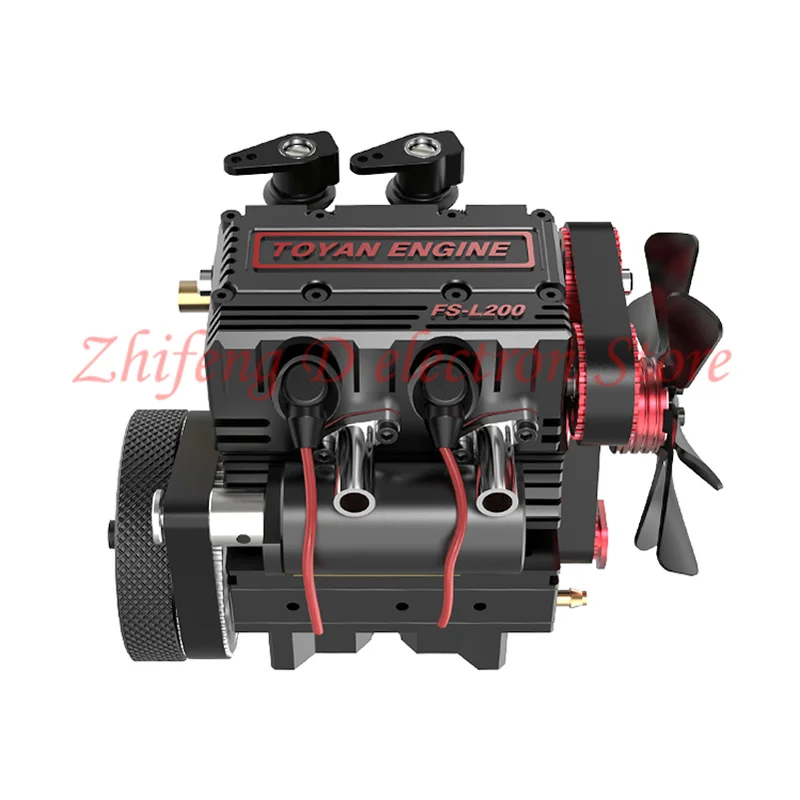

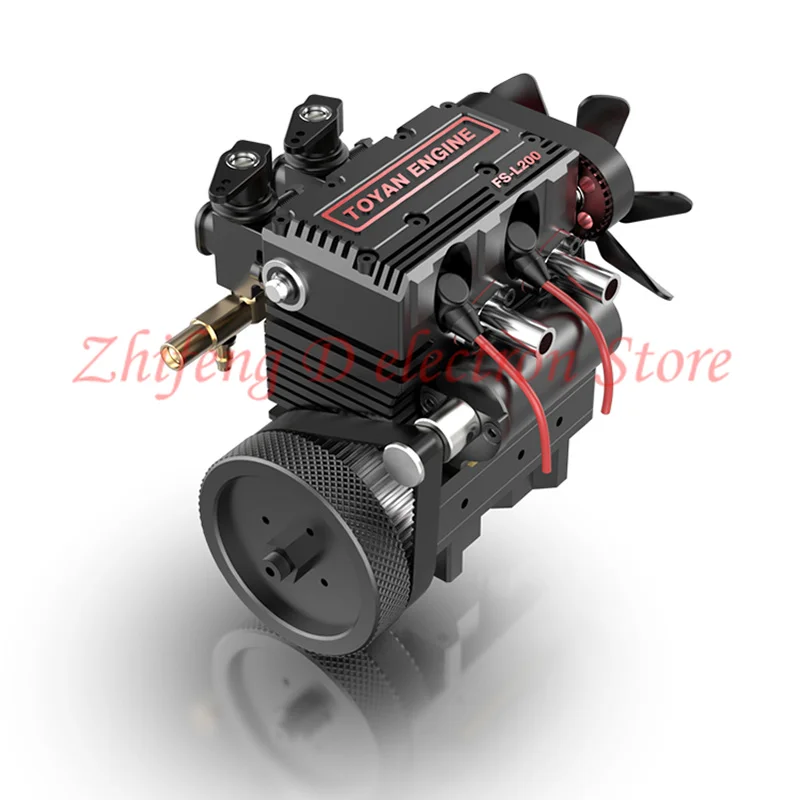

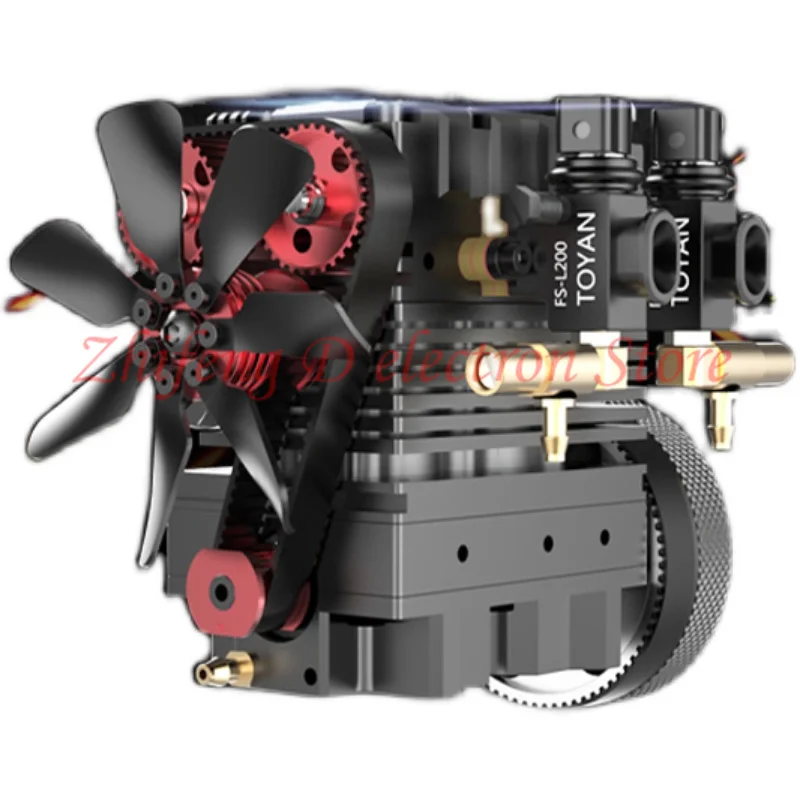

TOYAN FS-L200 Two-Cylinder Four-Stroke Nitro Engine Model For 1/10 1/12 1/14 RC Car Ship Model For Children Educational Toy Gift

Features:

.TOYAN FS-L200 is a brand-new platform specially developed for RC models. It is added to the engine design with red as the motion element.

.The whole machine is made of 2 series aluminum CNC with a more stable temperature coefficient. The compact and lightweight structure and multi-modular design provide better protection for subsequent upgrades.

.High-simulation appearance, closer to the real engine, with a long stroke as the engine design model, effectively providing higher torque

.Asynchronous crankshaft structure is adopted, the operation is smoother, the acceleration response is sensitive, and the maximum speed is 16000 rpm

.Short rocker arm design makes the valve switch more accurate

.The new carburetor design, combined with dual carburetor, allows professional RC players to have more diverse engine adjustments, making the engine work more stable and the throttle response more sensitive

.Adopt a customized flexible oil seal to comprehensively solve the bearing oil leakage, and have a higher bearing speed; the large-tooth ratio start pulley is equipped with a high-torque brushless motor to make the start more comfortable; the double-synchronous pulley timing structure greatly reduces the risk of high-speed running gear jumping

.Lightweight structure design, can be better compatible with RC model, greatly improve the unit power output ratio

.Longer crankshaft design, can be matched with front/reverse gearbox, suitable for RC model loading.

.Product use method: Use methanol fuel (20%-25% nitromethane finished fuel oil), and need to match three-in-one start ESC, heat head, battery, fuel tank, oil pipe, etc. to start the engine.

.Note: Please use it with caution during operation. Do not touch the motor fan with your hands to avoid scratching or touching the cylinder to prevent burns.

.This engine model can be used as the engine power of 1:10, 1:12, 1:14 vehicle and ship model, can be used for science and education experiments, teaching demonstrations, etc. More practical application scenarios are waiting for you to explore and develop in person

:For Age: 14+

Specifications:

.Color: As Shown

.Material: Metal + Plastic

.Speed: 2800-16000 rpm

.Power: 0.82PS

.Displacement: 7cc（3.5cc ×2）

.Stroke : 17.0mm

.Piston Diameter: 16.62mm

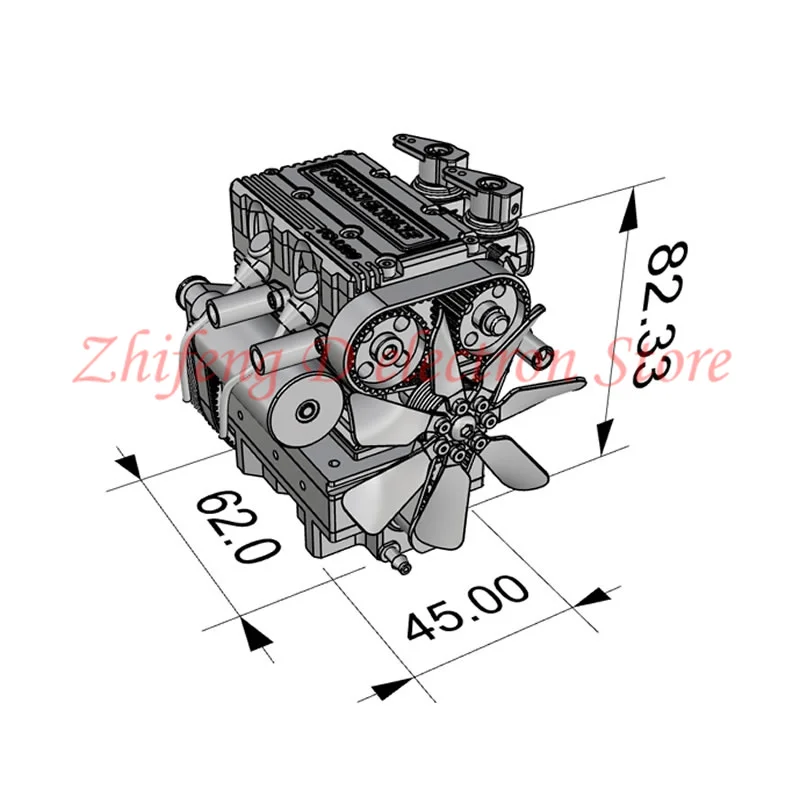

.Product Dimensions: 59.46 x 45 x 84.38mm

.Product Weight: 590g

.Package Dimensions: 12 x 10 x 10cm

.Package Weight: 1300g

.Packing: Graphic Carton

Package Content:

.1 x Engine Model
