Характеристики
Высокоточный регулируемый инвертор переменного тока для питания 500VA с переменной частотой источникового напряжения 500W PS61005.
История изменения цены
*Текущая стоимость 59802.29 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-16-2025 | 71164.85 руб. | 74722.53 руб. | 72943 руб. |
| Aug-16-2025 | 70566.39 руб. | 74094.97 руб. | 72330 руб. |
| Jul-16-2025 | 59204.40 руб. | 62164.72 руб. | 60684 руб. |
| Jun-16-2025 | 69370.55 руб. | 72839.2 руб. | 71104.5 руб. |
| May-16-2025 | 60400.18 руб. | 63420.71 руб. | 61910 руб. |
| Apr-16-2025 | 68174.7 руб. | 71583.68 руб. | 69878.5 руб. |
| Mar-16-2025 | 67576.42 руб. | 70955.86 руб. | 69265.5 руб. |
| Feb-16-2025 | 66978.88 руб. | 70327.17 руб. | 68652.5 руб. |
| Jan-16-2025 | 66380.53 руб. | 69699.75 руб. | 68039.5 руб. |
Описание товара

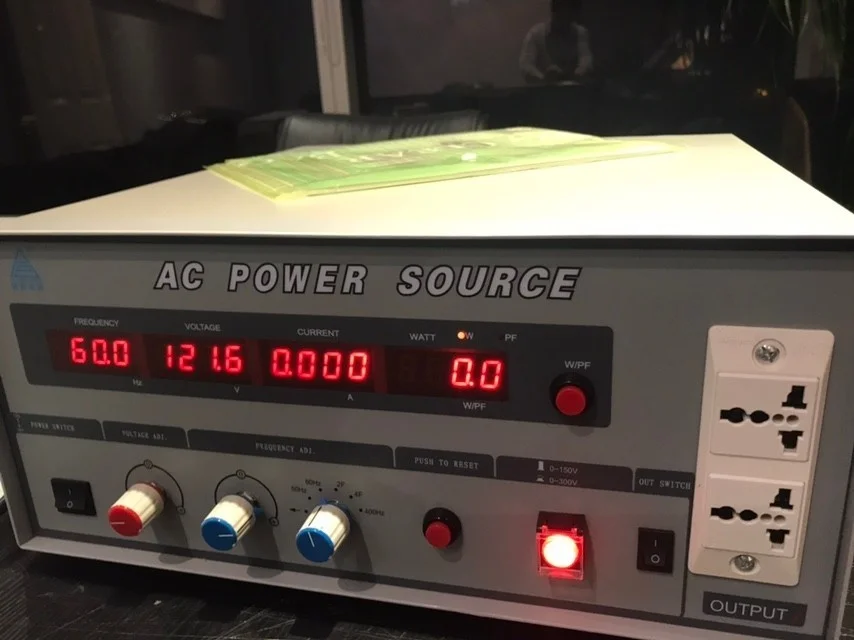

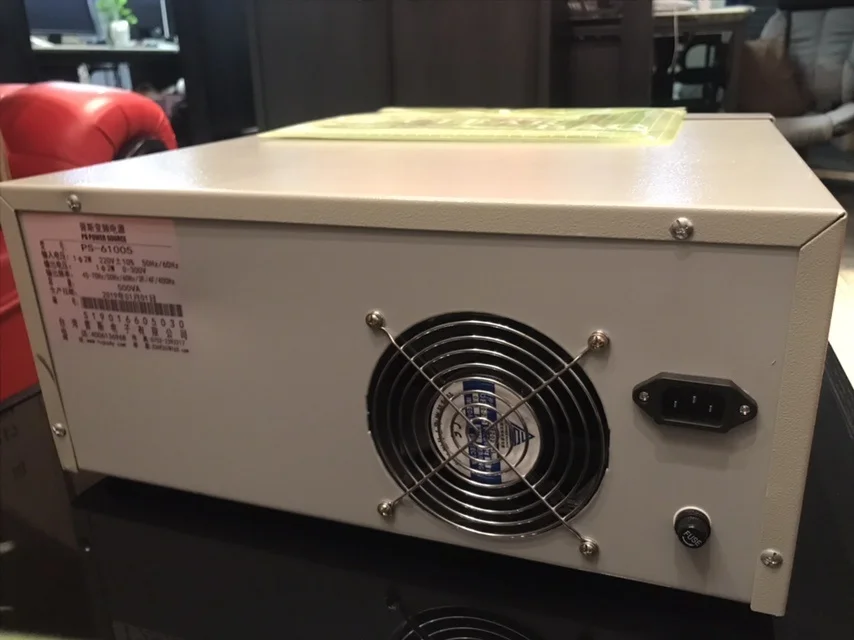

High Precision Adjustable AC Power High Voltage Inverter 500VA Variable Frequency
500W AC Power Source Supply Conversion PS61005
In the pure power output quality:
110V/220V dual power conversion, provides pure and reliable Sine (Wave) output. Not only the best source of research and development, EMI/EMC, etc.
Standard power supply for safety testing.
- excellent stability:
The output load voltage is less than 1%, the output frequency is less than 0.01%. The output frequency is generated by a quartz crystal oscillator with a very stable and accurate frequency output.
- high efficiency IGBT module:
Save energy, save energy, save money. By using the insulated gate transistor (IGBT) module, the power output can be promoted, the quality stability is enhanced, the power loss and disturbance are reduced;
In the direct selection of output frequency:
47~63Hz, 50Hz, 60Hz (2F, 400Hz, 4F optional) can be used for transformer, coil, etc. for inter layer pressure test.
- fast transient response:
In addition to 100% of the load / load, the output load voltage regulation rate (reaction time), can be stable at 1% (linear load).
- strong overload capacity:
Allow 100% full load, long time use; when the instantaneous load capacity of more than 3 times the rated current, the power can withstand, and will not cause voltage drop.
In a number of security features:
With over voltage, over current, over temperature, short circuit protection, alarm device. In case of abnormal condition, the electronic circuit of the machine will automatically sense and cut off the output immediately.
When a warning is issued, the user is informed of an emergency.
- for the load:
Both resistive, capacitive, inductive, or nonlinear loads can be used;
In the current application of high measurement precision, half sine wave and the DC component of similar tests.
The application of all products
In the export of electrical / electronic / Electrical Factory - switching power supply / transformer test
- compressor / test - monitor test motor related products
Air conditioning equipment - Test - all kinds of motor testing products
(quality assurance / control / life test) units using exergy fluorescent lamp rectifier test exergy production factory
The special power supply - 400Hz output: military system, air system, navigation system, super computer switching power supply etc.
|
Model |
PS-61005 high voltage frequency converter |
||
|
Output capacity (KVA) |
500VA |
||
|
Circuit mode |
(IGBT)SPWM Pulse Width Modulation |
||
|
AC input |
Single-phase 220VAC, 50Hz / 60Hz |
||
|
AC out- |
Phase |
Single-phase |
|
|
Volt- |
Low |
0~250V |
|
|
High |
0~500V |
||
|
Frequency |
45Hz~70Hz,50Hz,60Hz,400Hz(optional ) |
||
|
Max- |
0~250V |
4.6 |
|
|
0~500V |
2.3 |
||
|
Frequency |
≤±0.1% |
||
|
Load voltage |
≤±0.5% |
||
|
Waveform |
Sine wave |
||
|
Waveform |
≤1%(resistance load) |
||
|
Efficiency |
More than 85% |
||
|
Response time |
≤2ms |
||
|
Display and resolution |
Digit |
4 digits display, resolution 0.1Hz |
|
|
Digit |
4 digits display, resolution 0.1V |
||
|
Digit |
4 digits display, resolution 0.01A |
||
|
Digit power |
4 digits display, resolution 1W |
||
|
Digit |
4 digits display, resolution 0.001 |
||
|
Protection |
overvoltage, overcurrent, overload, overtemperature and short-circuit, as well as automatic jump protection and alarm device |
||
|
Cooling |
Forced fan cooling |
||
|
Working temperature |
0°C~45°C, Relative 0~90%( non- condense ) |
||
|
Shape |
Dimen- |
440*425*180 |
|
|
Weight |
25 |
||
|
Model |
PS-61005 high voltage frequency converter |
||
|
Output capacity (KVA) |
500VA |
||
|
Circuit mode |
(IGBT)SPWM Pulse Width Modulation |
||
|
AC input |
Single-phase 220VAC, 50Hz / 60Hz |
||
|
AC out- |
Phase |
Single-phase |
|
|
Volt- |
Low |
0~250V |
|
|
High |
0~500V |
||
|
Frequency |
45Hz~70Hz,50Hz,60Hz,400Hz(optional ) |
||
|
Max- |
0~250V |
4.6 |
|
|
0~500V |
2.3 |
||
|
Frequency |
≤±0.1% |
||
|
Load voltage |
≤±0.5% |
||
|
Waveform |
Sine wave |
||
|
Waveform |
≤1%(resistance load) |
||
|
Efficiency |
More than 85% |
||
|
Response time |
≤2ms |
||
|
Display and resolution |
Digit |
4 digits display, resolution 0.1Hz |
|
|
Digit |
4 digits display, resolution 0.1V |
||
|
Digit |
4 digits display, resolution 0.01A |
||
|
Digit power |
4 digits display, resolution 1W |
||
|
Digit |
4 digits display, resolution 0.001 |
||
|
Protection |
overvoltage, overcurrent, overload, overtemperature and short-circuit, as well as automatic jump protection and alarm device |
||
|
Cooling |
Forced fan cooling |
||
|
Working temperature |
0°C~45°C, Relative 0~90%( non- condense ) |
||
|
Shape |
Dimen- |
440*425*180 |
|
|
Weight |
25 |
||
