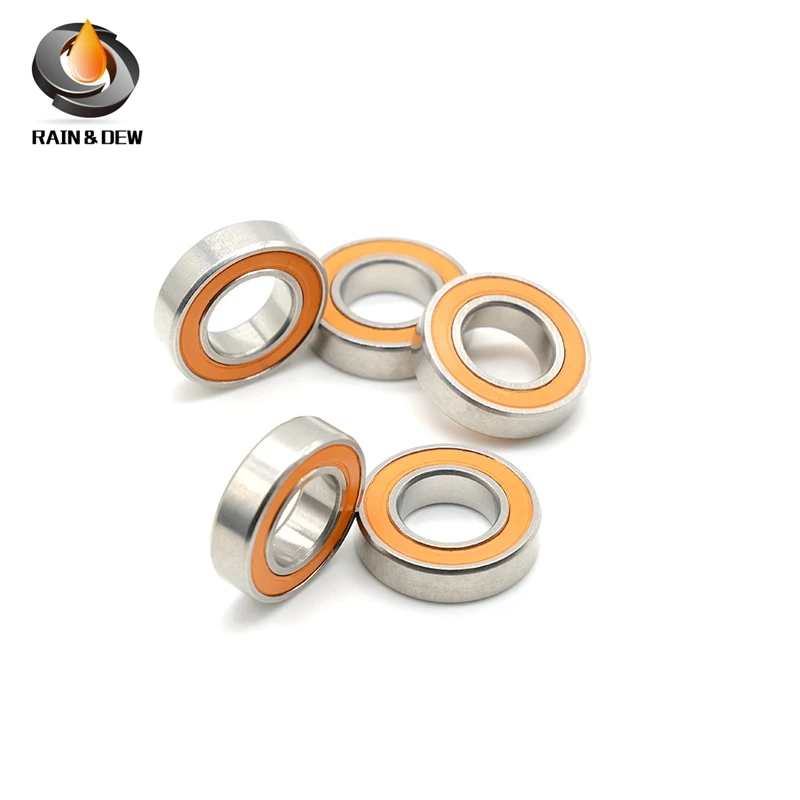

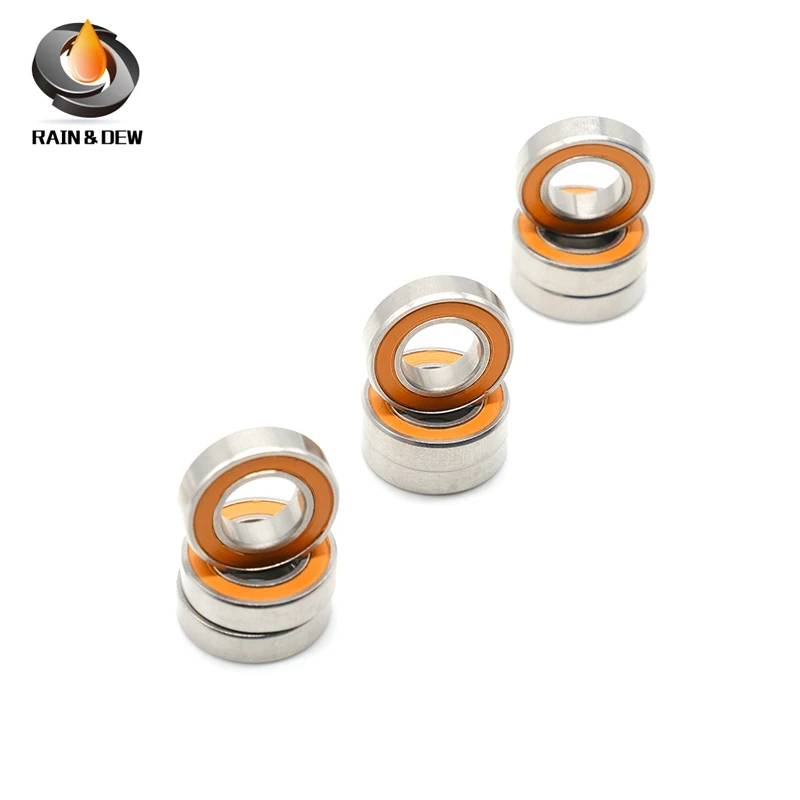

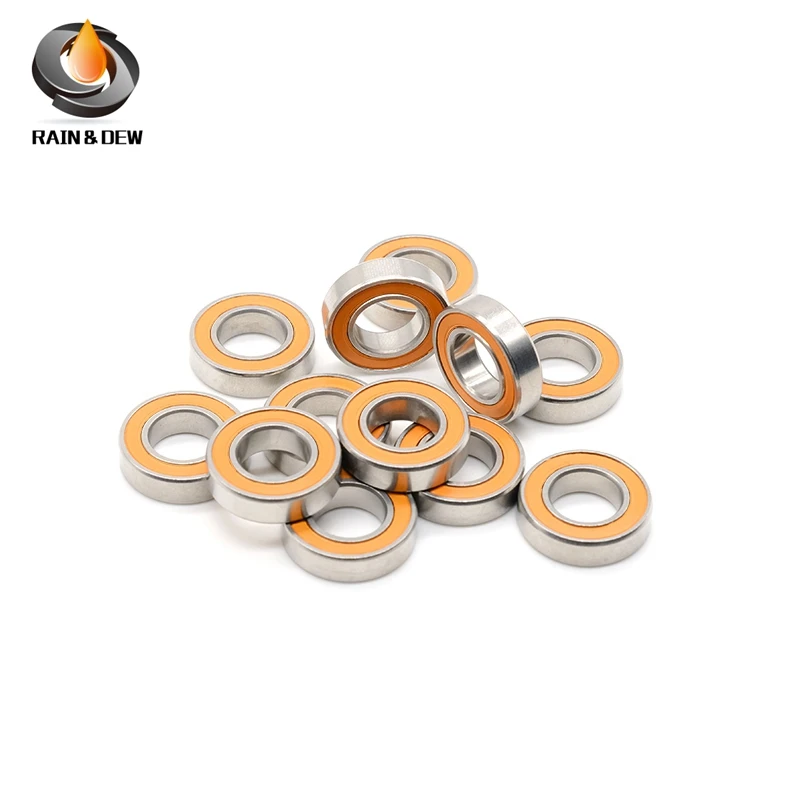

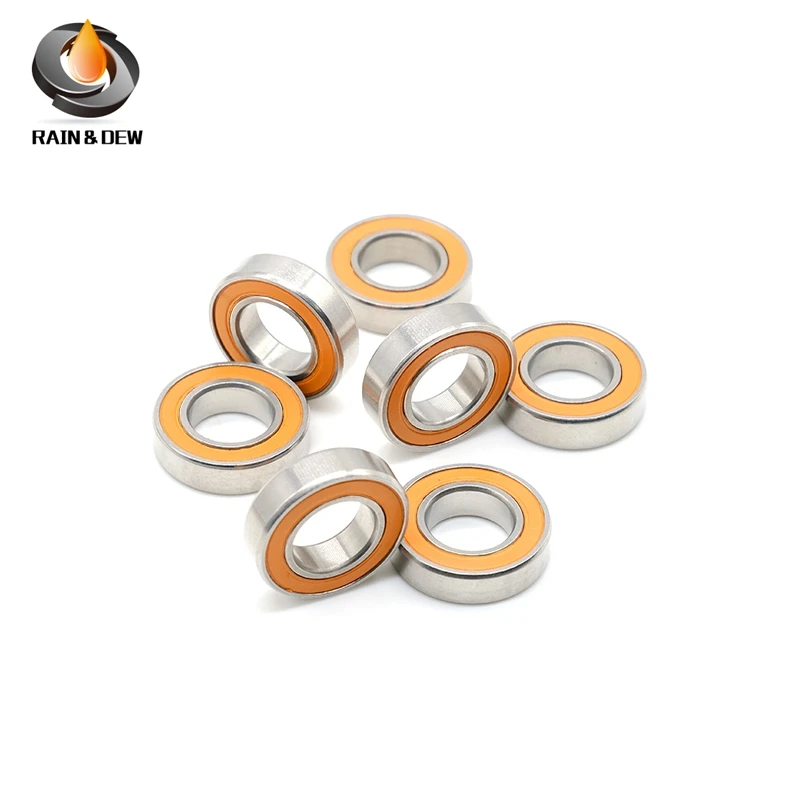

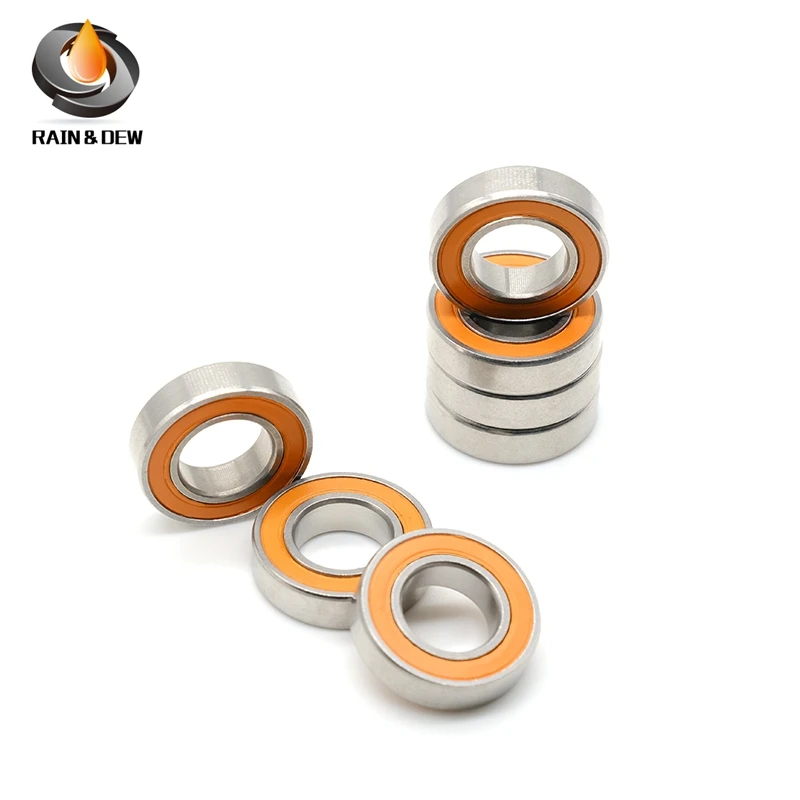

1Pcs S6800 2RS CB ABEC7 10x19x5 mm 6800 Stainless steel hybrid ceramic ball bearing Without Grease Fast Turning |

1Pcs S6800 2RS CB ABEC7 10x19x5 mm 6800 Stainless steel hybrid ceramic ball bearing Without Grease Fast Turning |

TECHNICAL SPECS

Item: S6800 2RS CB
Structure: Deep Groove
Bearing Material: 440C Stainless Steel
Ball Material:Ceramic Si3N4
Bearing Type : Hybrid ceramic ball bearing
Bore Dia (d):  10mm
Outer Dia (D): 19mm
Width (B): 5mm
Lubrication: Free of Grease Free of Runing
Magnetic: little
Hardness: 58HRC
Corrosion Resistance: General
Clearance: C0
Bearing Grades: ABEC 7

WHAT IS A HYBEID CERAMIC BEARING?

A ceramic hybrid bearing is a combination of ceramic balls and stainless steel rings. Advantage (1), high temperature resistance, ceramic ball thermal expansion coefficient is small, in the high temperature environment will not cause the bearing ball to expand due to temperature, which greatly improves the use temperature of the entire bearing, the temperature of ordinary bearings is about 160 degrees, ceramic ball Can reach more than 220 degrees. (2), the rotation speed is high, the ceramic ball has oil-free self-lubricating property, and the ceramic ball has a small friction coefficient, so the ceramic ball bearing has a high rotation speed. The bearing using the ceramic ball is the rotation speed of the general bearing of 1.5 times or more. (3). Long life, ceramic ball can be added without any grease, which means that even if the grease is dry, the bearing can still work, thus avoiding the premature bearing damage caused by the dry grease in the ordinary bearing. The test and some customer feedback use the ceramic ball after the bearing life is 2-3 times that of ordinary bearings.

BEARING STRUCTURE

Stainless Steel Hybrid Ceramic Bearing= + Stainless Steel Outer Ring & Inner Ring +Si3N4 Ceramic Balls +Stainless Steel Cage + Metal Seals
