Note: This model is definitely not an 8-bit cheap chip, but all 32-bit chips support 32-bit instructions!

Imported industrial-grade 32-bit CPU is powerful, faster, and more stable. It can monitor and write to make it easier to debug and use!

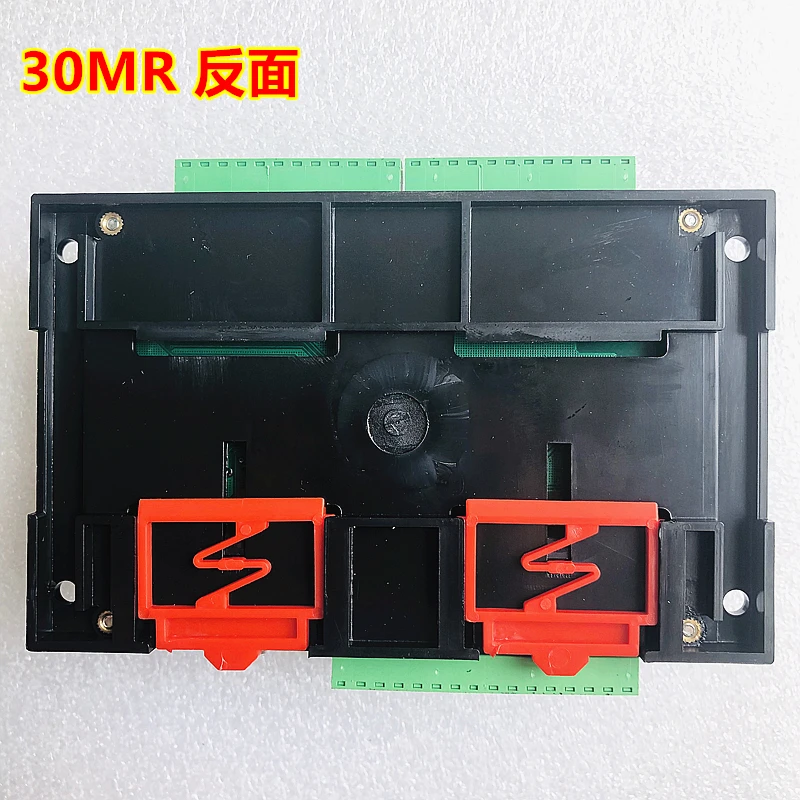

30MR (16 inputs, 14 outputs, 220VAC power supply, 3 analog inputs, relay output. Clock function can be added, please contact us if you need to add it!

PLC application range:

It can be flexibly used in various industrial automatic control situations, such as production machinery and industrial assembly lines in industries such as metallurgy, chemical industry, plastics, textiles, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment, and single process control devices. , In the industrial control equipment of various machine tools. Strictly follow the original Mitsubishi process standard design and only use 1/12 of the price of the original Mitsubishi PLC, which has reached 95% of the performance of the original PLC.

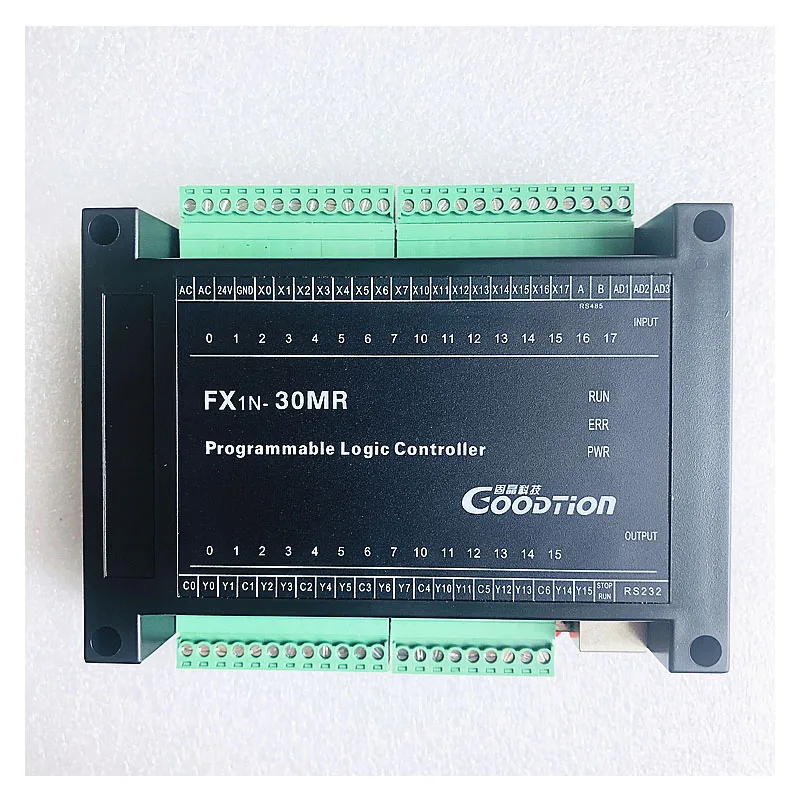

The PLC uses 220AC power supply, 16 points for input and 14 points for output, 30 points in total for relay output. With a set of 232 interface and 485 interface, the 232 interface is used for program download or man-machine interface communication, and the 485 interface is used for man-machine interface communication. It supports RS non-protocol communication, modbus RTU master-slave protocol, and modbus ASCII master-slave protocol. Built-in clock, including 3 channels of AD input, supports 6 channels of high-speed pulse input, 2 channels of AB phase pulse input, MT transistor version can be equipped with 2 channels of pulse output. The relay adopts 5A high current relay, and the life expectancy should not exceed 3A for long-term use.

This PLC contains 24VDC 100MA power output and can be connected to loads such as control end sensors. At the same time, it is convenient for customers who buy to study, without having to purchase a power supply separately.

PLC function introduction:

It can be connected with multiple man-machine interfaces, such as Delta, Eview, etc., and the device option in the application is Mitsubishi FX1N or FX2NC;

Support ladder diagram programming, downloading, monitoring, PLC program is safe and reliable;

Port 232 is the port for downloading programs and communicating with the man-machine interface;

Port 485 is the port for man-machine interface communication;

This PLC uses the world's most advanced microprocessor core ARM as the main control chip, which has fast calculation speed;

The integrated design of analog input and host is adopted, and the programming is simple, and the analog input and output operations can be performed without special function instructions;

Basic commands: LD, LDI, AND, ANI, OR, ORI, OUT, (OUTT, OUTC), SET, RST, ANB, ORB, MPS, MRD,
MPP, INV, LDP, LDF, ANDP, ANDF, ORP, ORF, RET, OUTM, SETM, RSTM, OUTS, SETS,
RSTS, PLS, PLF, MC, MCR, PI, END.

Step instruction: STL: Supports up to 8 parallel branches, and different state numbers can have double coils.

Contact comparison command:

LD>=,LD<=,LD>,LD<,LD<>,LD=,AND>=,AND<=,AND>,AND<,AND<>,AND=,OR>=,OR<=, OR>,OR<,OR<>,OR=.

Transmission and comparison instructions:
MOV, CML, XCH, BCD, BIN, CMP, ZCP, FMOV.SMOV.BMOV.

Four arithmetic instructions: ADD, SUB, MUL, DIV, INC, DEC, WAND, WOR, WXOR, NEG.

Cyclic shift instructions: SFTR, SFTL, SFWR, SFRD.

Data processing instructions: ZRST, DECO, ENCO.

Program flow instructions: CJ, CALL, SRET, IRET, EI, DI, FEND, WDT, FOR, NEXT.

Convenient instructions: IST, ABSD, INCD, ALT, RAMP,

High-speed processing instructions: REF, REFF, MTR, HSCS, HSCR, SPD, PLSY, PWM, PLSR (4 high-speed pulses).

Peripheral I/O ports: DSW, SEGL, FROM, TO.

Peripheral equipment SER instruction: RS, PRUN, ASCI, HEX, CCD, VRRD, VRSC, PID.

Positioning instructions: ABS, ZRN, PLSV, DRVI, DRVA.

Clock operation: TCMP, TZCP, TADD, TSUB, TRD, TWR, HOUR.

Some customers always ask how to connect and communicate with various touch screens such as Vinylon:


For some touch screens that need to be rewired, first confirm that the RXD TXD GND of the serial port of the touch screen is connected according to the above figure!

RS485 port communication: Use two wires from the 485 end of the PLC to the corresponding COM port on the screen, and set the man-machine to 485 communication.

If you need supporting information, please contact the seller!

The free software package contains instructions for use + driver + test program + Mitsubishi PLC programming software + Mitsubishi PLC simulation teaching software (for beginners to practice):
