JGA25-370- Энкодер 25мм диаметр большой крутящий момент скоростное снижение 2-х фазный импульсный детектор CW/CCW Защитный редукторный мотор.

JGA25-370- Энкодер 25мм диаметр большой крутящий момент скоростное снижение 2-х фазный импульсный детектор CW/CCW Защитный редукторный мотор.

Description

DC12V 25GA370 Large Torque Speed Reduction Gear Motor with Tachometer Encoder
Specification:

• Voltage: DC6V 12V 24V

• NO-Load Speed: 12RPM, 16RPM, 35RPM, 60RPM, 77RPM, 130RPM, 170RPM, 280RPM, 620RPM, 1360RPM

• Error: ±5%

• Motor Diameter: 24.5mm

• Motor Body Length: 40mm(ref)

• Output Shaft Diameter: 4mm(D-type)

• Output Shaft Length: about 9.5mm

• Gearbox Diameter: 25mm

• Gearbox Size Detal, please see the table

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-) Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong; Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v) Yellow Wire - signal feedback (11 signals per motor turns a circle) White Wire - signal feedback (11 signals per motor turns a circle)

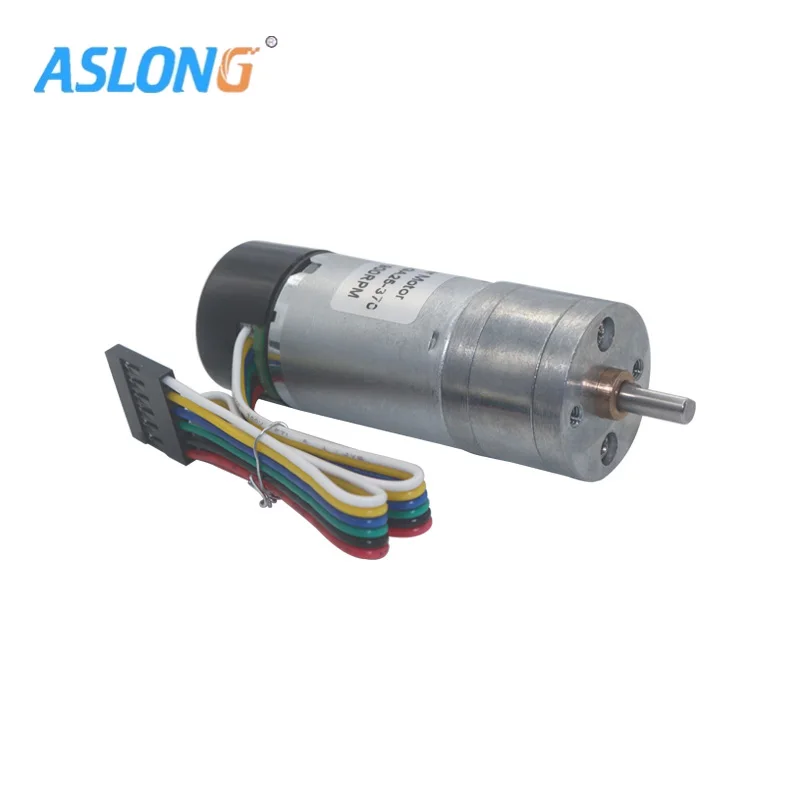

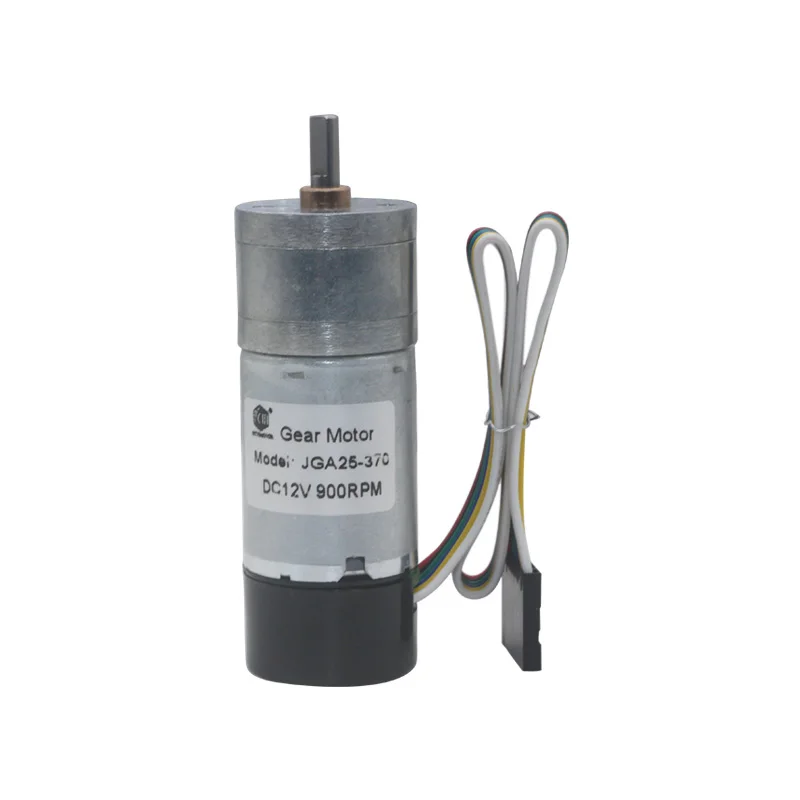

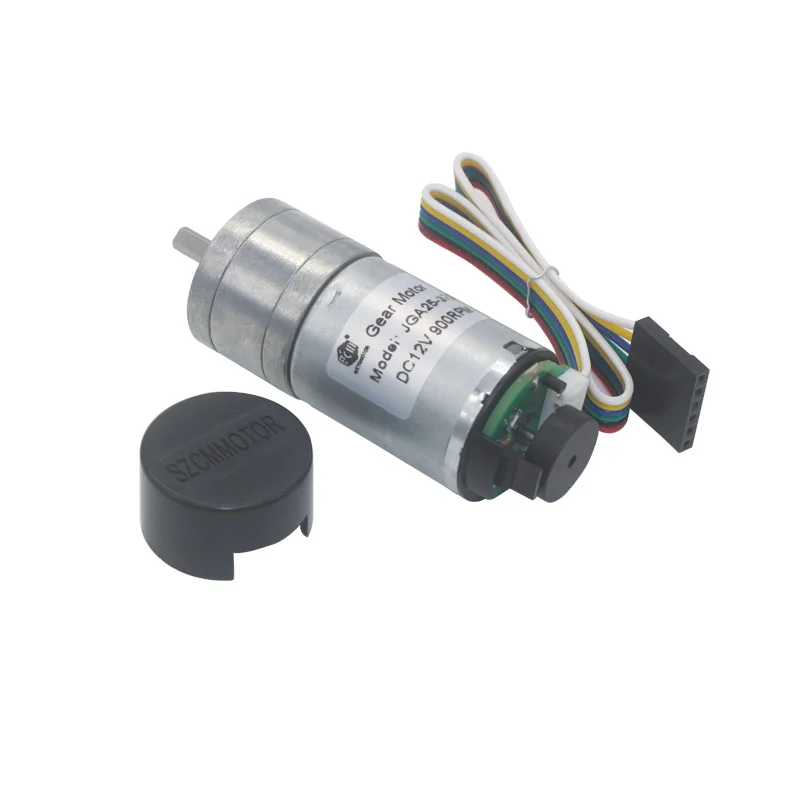

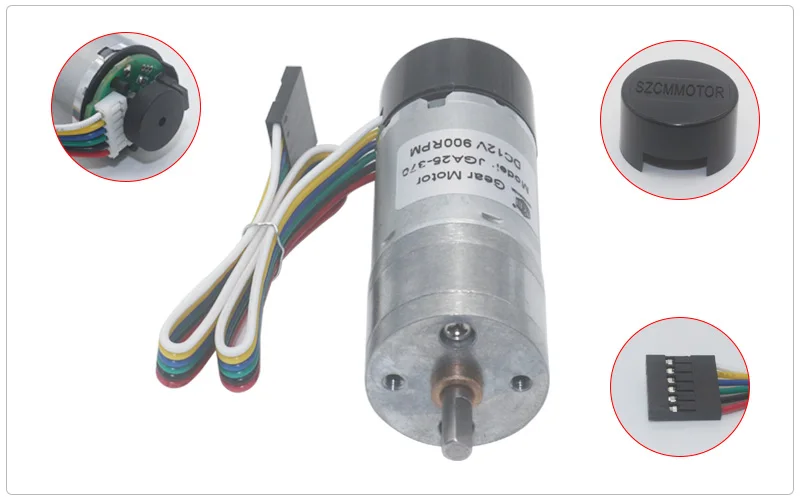

Product show:

Applications:
